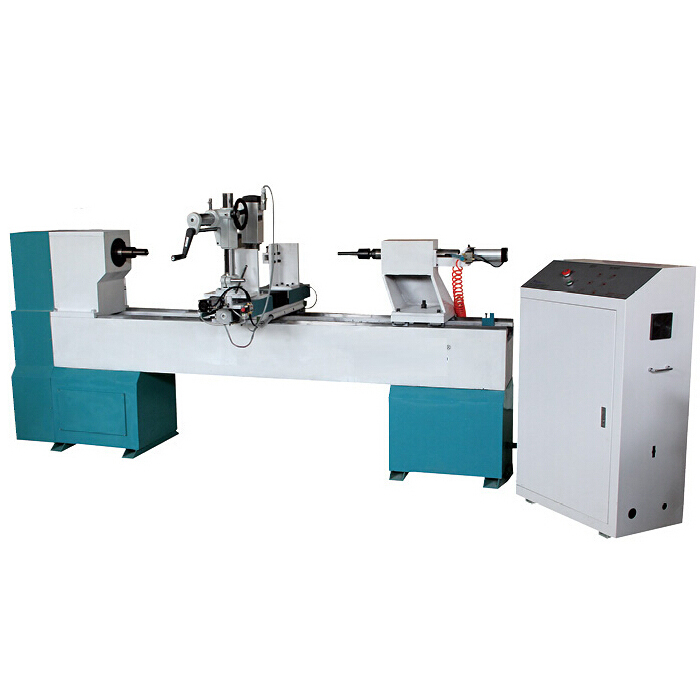

3d cnc router woodworking turning wood copying lathe machine
3d cnc router woodworking turning wood copying lathe machine
remax cnc wood lathe used for woodwork, like wood upstairs, some other legs, and kind of round subjects.

3d cnc router woodworking turning wood copying lathe machine


wood cnc lathe applications:

Staircases, stairway balusters, stairway newel posts; dining table legs; end table legs, sofa table legs; bar stoollegs; chair legs; chair arm posts; chair stretchers; sofa and bun feet; bed rails; lamp posts; baseball bats and so on.


wood cnc lathe feature:

Wood lathe is a device that can create items such as stairway posts,designs on wood,and more. A CNC wood lathe is operated by a computer which is controlled by the user. The use of computers on a lathe machine offers a wide range of benefits and features,while improving functionality.

Lathe machine is designed for cylindrical or conoid workpieces,for example pillar,banister,chair legs,etc.

All lathes work the same way.


Item

Parameter

Model

Remax-1516

Remax-2016

Remax-1530

Processing length

100-1500mm

160-2000mm

300-1500mm

Machine dimension

3.0x1.5x1.4m

3.5x1.5x1.4m

4x1.5x1.4m

Package dimension

3.1x1.6x1.6m

3.5x1.6x1.6m

4.1x1.6x1.6m

Gross weight

1600kgs

2000kgs

2200kgs

Max. turning diameter

300mm

Max.side length of wood logs can be processed

200mm

Quantity of spindle

1

Quantity of knife

2

Max.feeding speed

40mm/s

Processing accuracy

0.00125mm

Spindle motor power

4KW/5.5KW

Voltage

380V/50Hz/3Phase (Or 220V/50Hz/Single/3 Phase)

Compatible software

autoCAD,type3,artcam,etc.

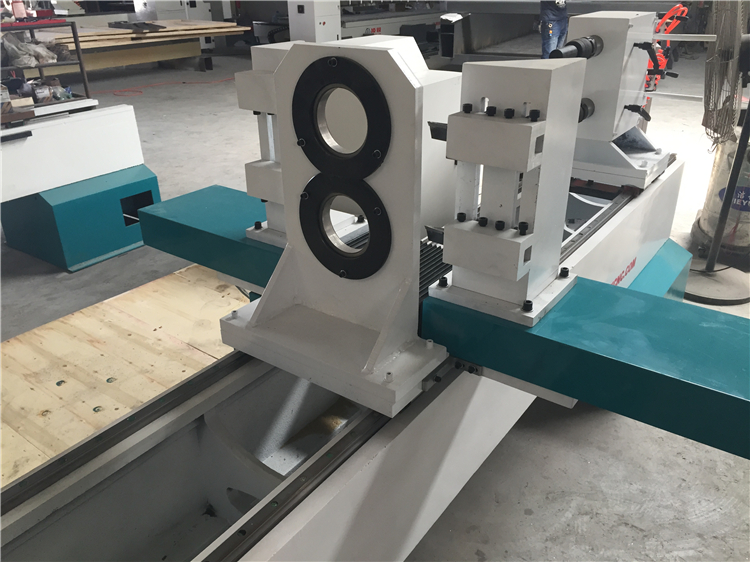

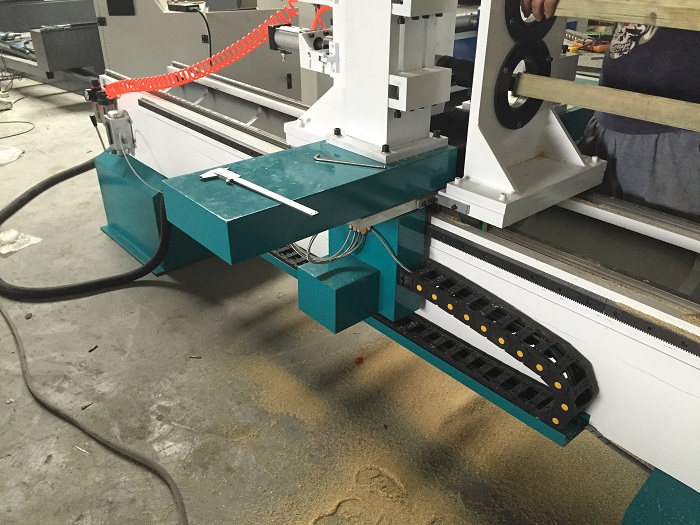

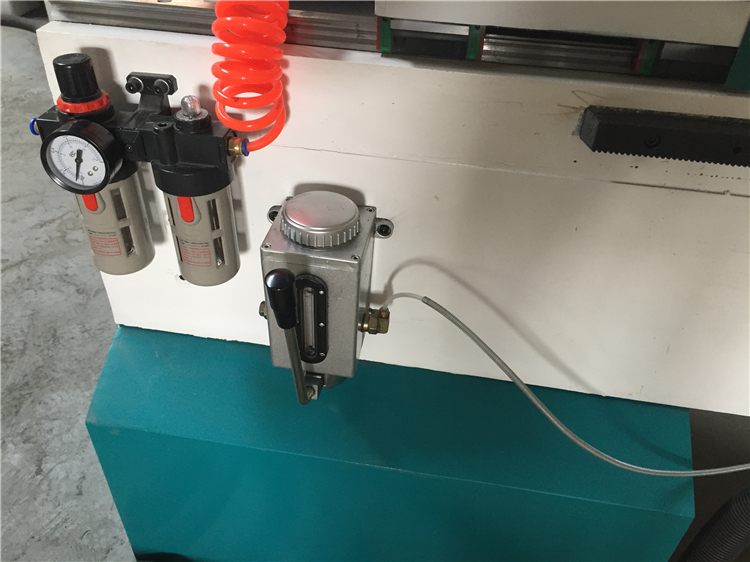

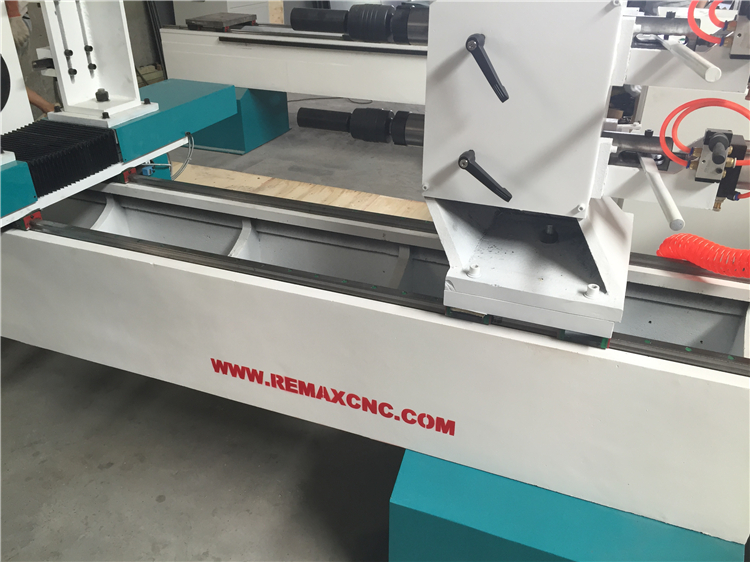

wood cnc lathe parts:

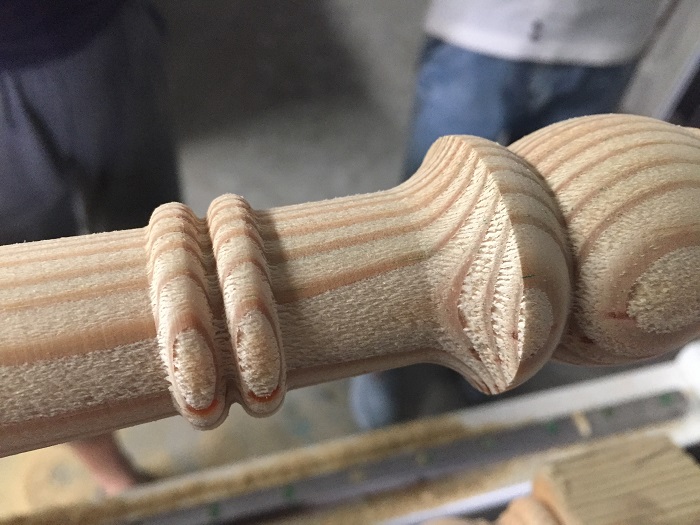

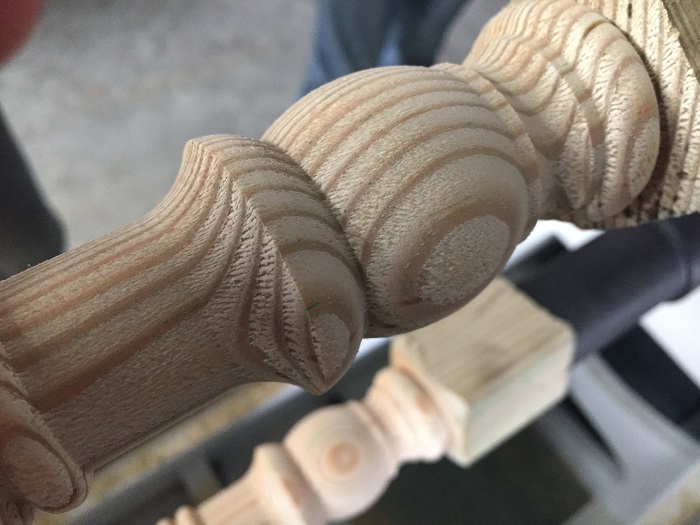

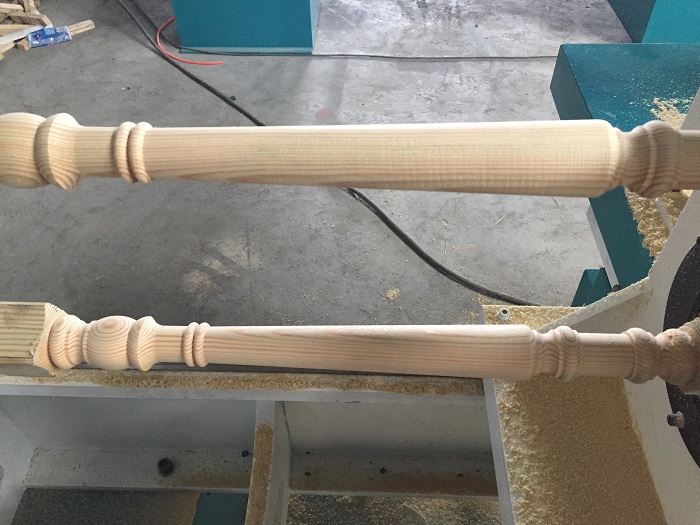

wood cnc lathe samples:



remax wood cnc lathe services:



Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.


Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.


Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.


Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.
