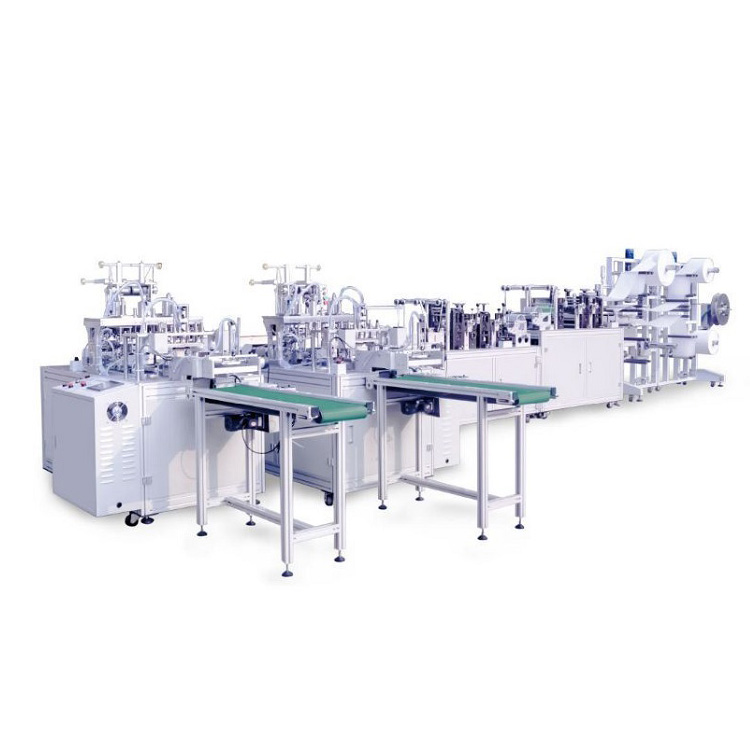

Flat Disposable Surgical Face Mask Making Machine

fully automatic 3 ply face mask portable sheet folding machine

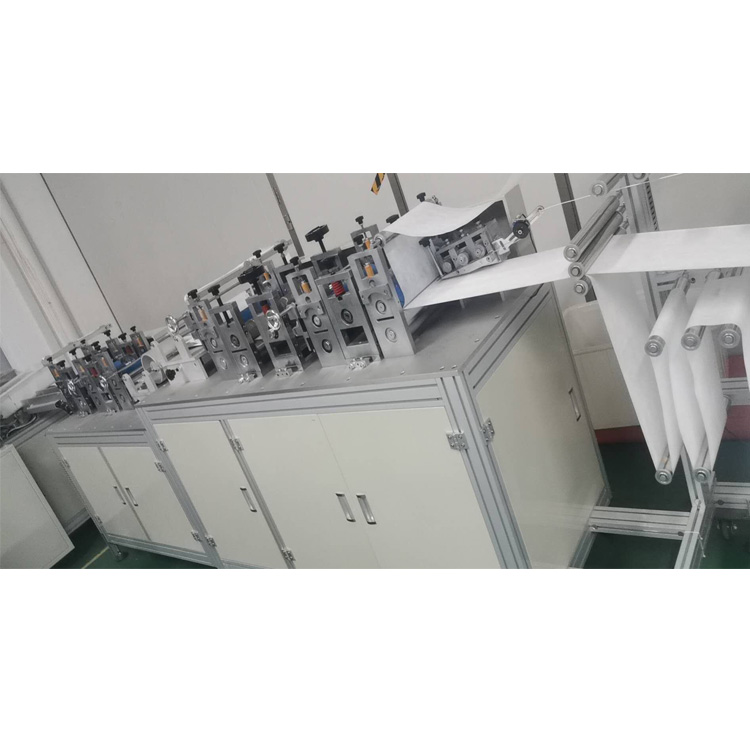

Flat Disposable Surgical Face Mask Making Machine

FUNCTION:

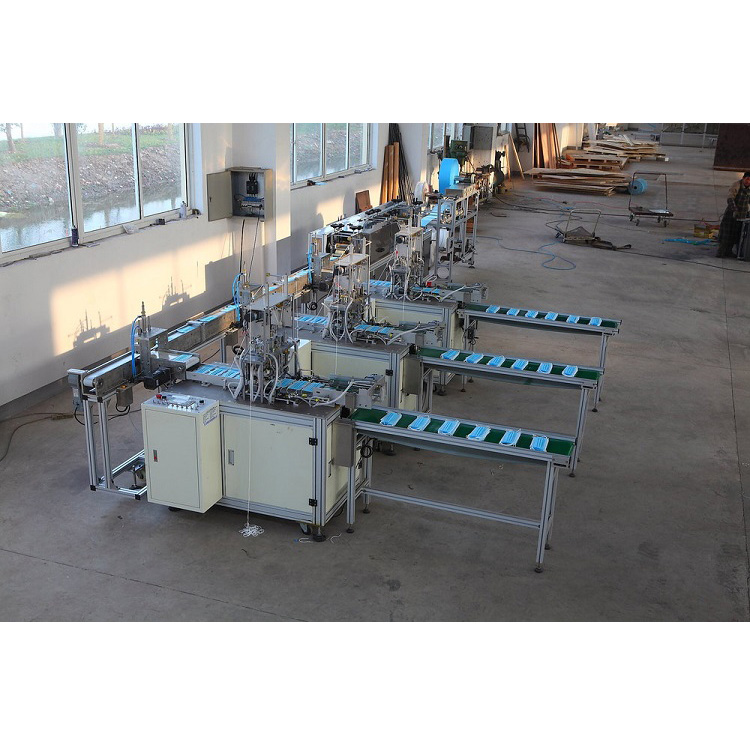

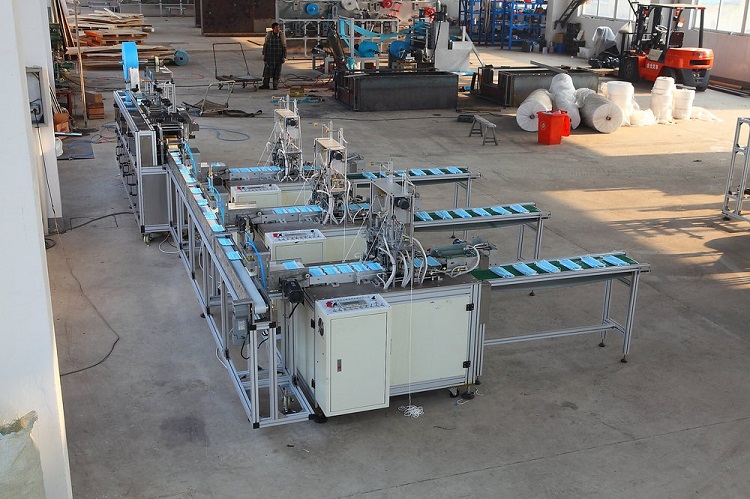

Automatic ear-loop mask making machine unify 1 unit face mask blank making machine and 3 units welding ear-loop making machines by a unit of automated dispenser.

Mask bodies produced on mother machine can be allocated onto 2 units child machine averagely by PLC at the speed of 120-150 pieces per minute. All of operation of the machine is controlled through touch screen, the interface of man and machine.

INSTRUCTIONS:

No	Item	Quantity
1	Ultrasonic	8sets(Taiwan)
2	Motor	1set TaiWan “YongKun”
3	Servo motor	3sets(Delta)
4	Inverter	1set TaiWan “Sunfar”
5	PLC	1set Japan “Mitsubishi”
5	PLC	2sets (Delta)
6	Touch screen	1 set TaiWan “Wei- Lun”
7	Transport motor	5sets
8	Static eliminator	2sets(Guangdong)
9	Cylinder	New Christine and AirTAC
10	Constant Tension System	four sets
11	Conveyor	2 sets
12	Bearing	NSK
13	Frame:	Aluminum
14	Closure plate	stainless steel
15	Reducer	3sets

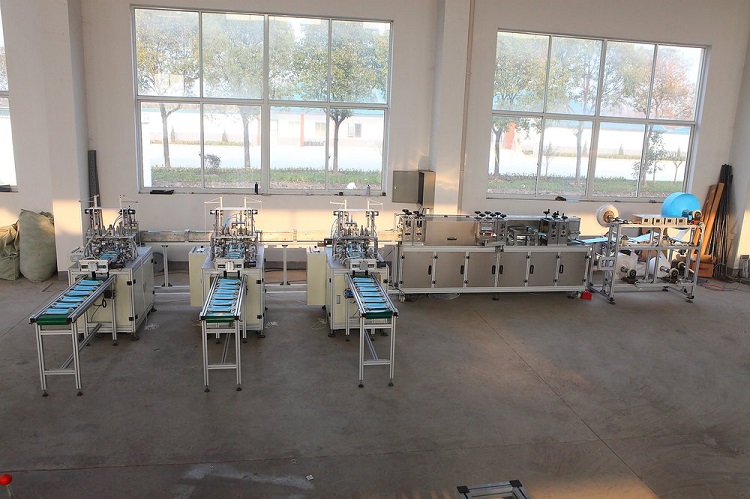

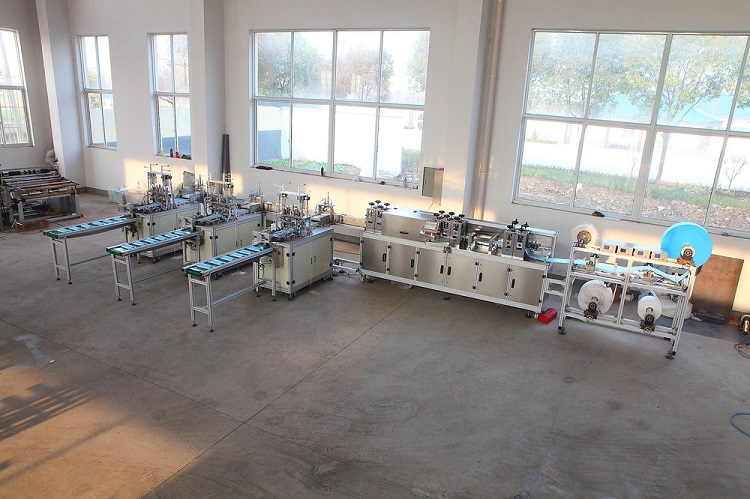

On this combination the mask body machine can match with 1, or 2 or 3 units of ear-loop,machine
1.The machine is made of aluminum alloy which makes it beautiful,prevented from rust and has a small size.

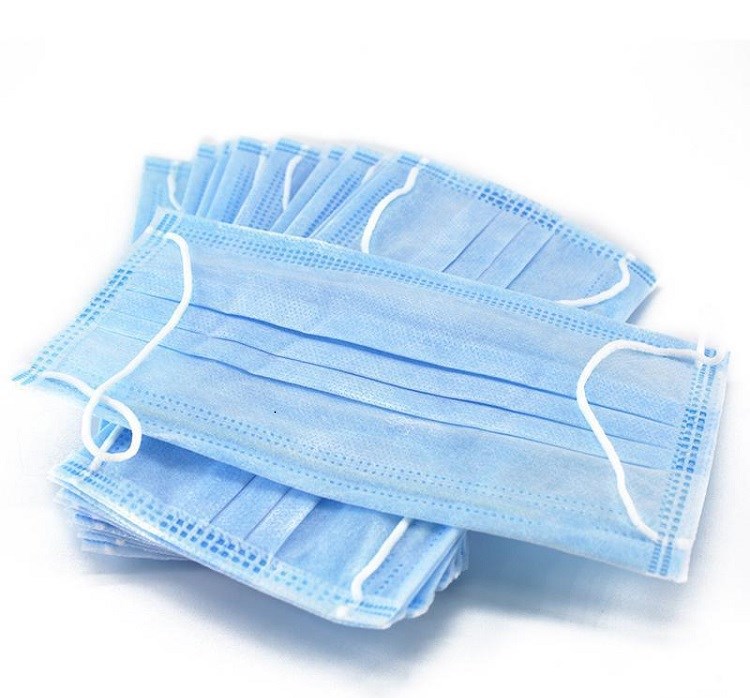

2.The machine can make the 1~5 levels mask blank according for the customer's require with a high output.
3. You can adjust the size of the mask blank and the folding location.
4. The direction of the earloop is outside.
5.Compared with sub=mask production equipment, this set of equipment more efficient, more economical artificial.

6.The computer program control and photoelectric detection make it have a high reliability and low failure rate.

SPECIFICATION:
1. Machine size: 9000*3500*1700mm
2. Throughput:120-150cs/min
3. Line source: 220V or 380V, 1 or 3 phase
4. Special requirements: a mask body size must be fixed
5. Atmospheric pressure:6kg/cm2(minimum)
6. Power consumption: 14KW
7. Weight:2500kg.

Warranty:
1.the whole machine warranty for two year.
2.During the warranty, any parts broken(not human reason), then send the broken parts back, after tested, we will offre you the new parts for free, your side only need to pay the shipping cost is ok.
3.if your side have any need of the machine, contact us at any time.
4.before the machine ship, we will sent you test machine video for check. and will agjust it to the best condition to work. so when you received it can work directly.

service:
1.we will offer the user manual for customer to operate the machine when machine ship to you.
2.we offer online service for 24 hours, once you have problem, we will give the best solution in 24 hours.
3.if you need our engineer come to your place to make training, then your side need to pay for the cost.
