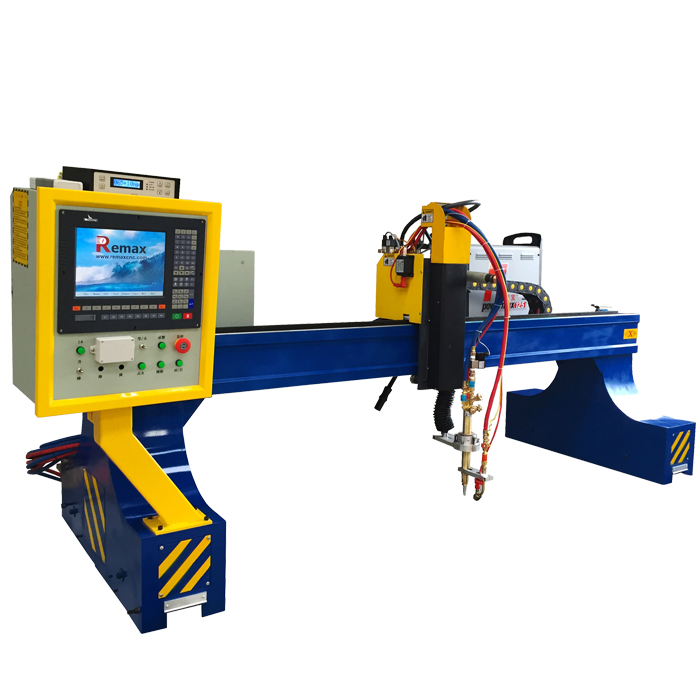

Factory price 2030 Gantry Type Plasma Cutter Machine

1. Gantry type plasma cutting machine,without table.It can according to different requirement to choose machine and guide size 2. Plasma cutting head and flame cutting head can cut 1-100m stainless steel

2030 Gantry Type Plasma Cutter Machine Application:

All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.

Applies to iron plate, aluminun

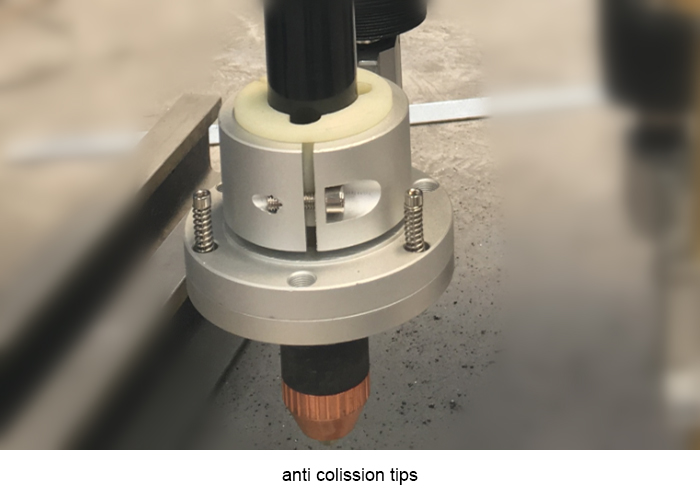

2030 Gantry Type Plasma Cutter Machine Parts:

2030 Gantry Type Plasma Cutter Machine Feature:

1. Equipped with the collocated USB interface and automatic code conversion software for CAD drawing,

the CAD drawing can be directly entered into the cutting machine via the U disk.

2. The tips for each operation are displayed on the screen at all times, so that operators can use our system

without being trained or read instructions.

2030 Gantry Type Plasma Cutter Machine Parameter:

Model	Remax-2030 gantry type plasma type
Effective cutting width(X-axis)	2000mm
Effective cutting width(Y-axis)	3000mm

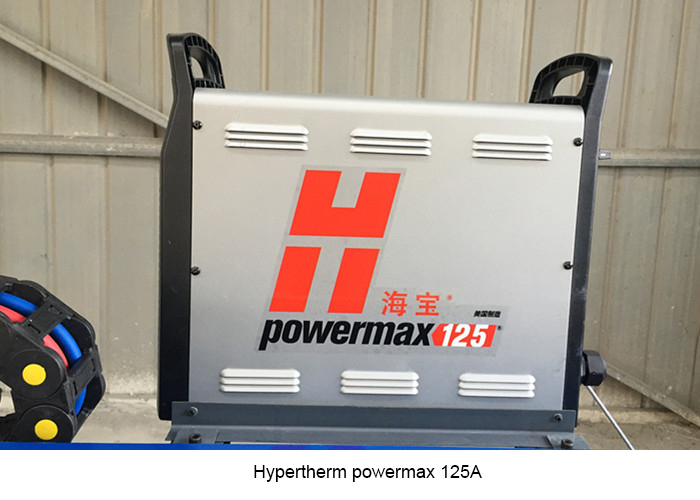

Plasma power supply	Hypertherm
Drive mode	Bilateral side

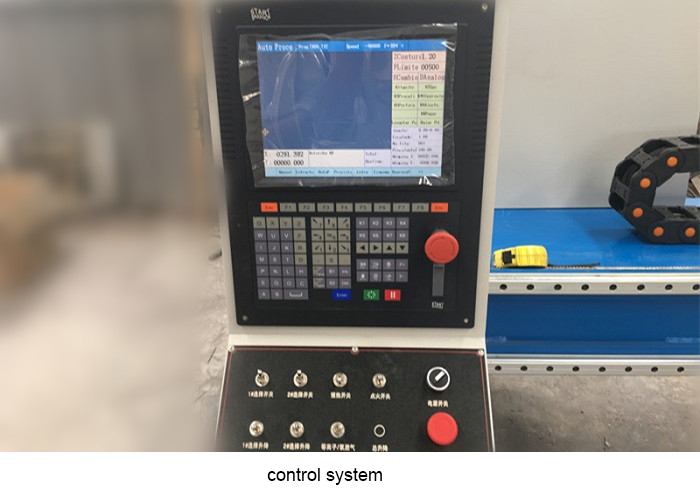

CNC System	Beijing START CNC
Plasma cutting speed	50-6500 mm/min
Lifting distance of cutting torch	150mm
Speed setting error	≤±5%
The maximum speed of blank lines	18000mm/min
Torch Height Controller Accuracy	≤±1.0mm
Precision of longitudinal line	±0.2mm/10m
Motor	Panasonic servo motor
Material of the machine bed	8 mm welded stainless steel
Drive method	Racks and guide rails for XYZ-axis

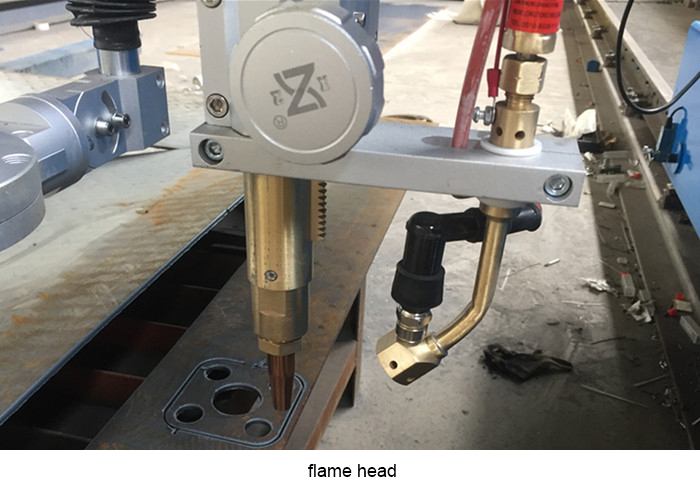

Number of cutting torches / nozzles	A set of plasma torch cutting / Flame cutting of flame, 10pcs nozzle
Power source	380V 50/60Hz
Height Controller (Plasma)	Arc Pressure Auto THC
Plasma Cutting Thickness	1-32mm

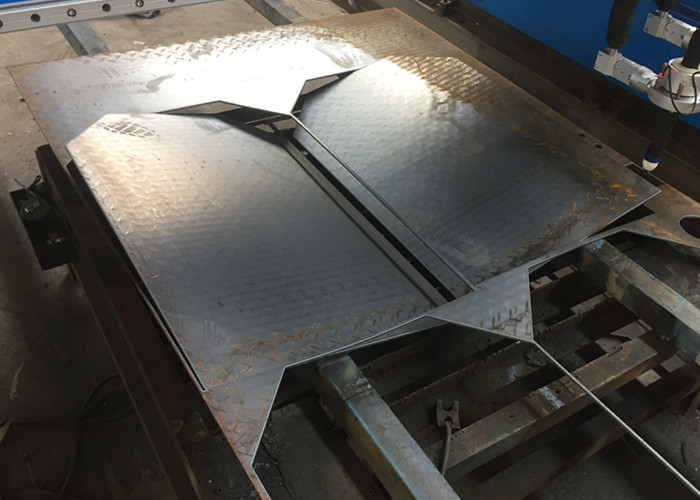

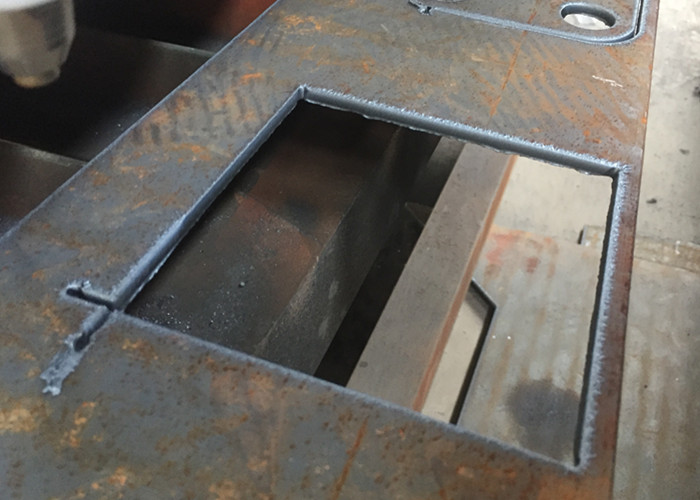

2030 Gantry Type Plasma Cutter Machine Sample:

Remax Plasma Machine Services

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
