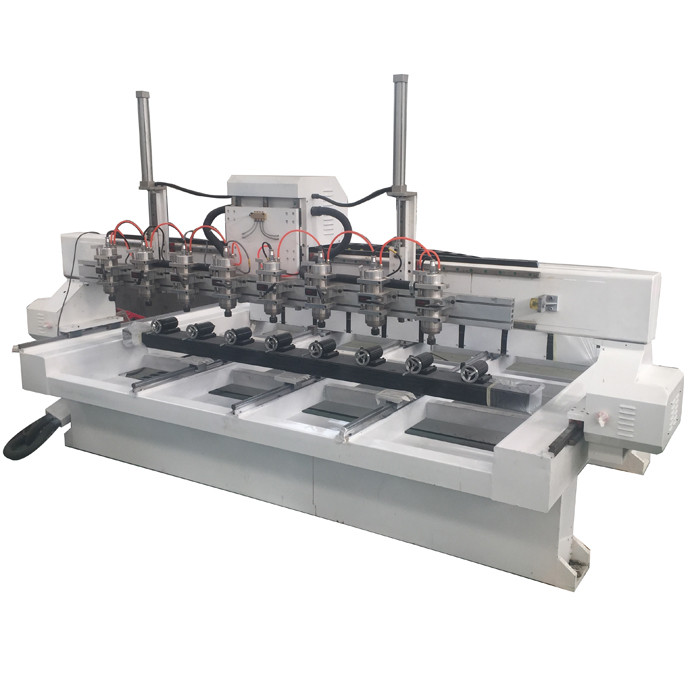

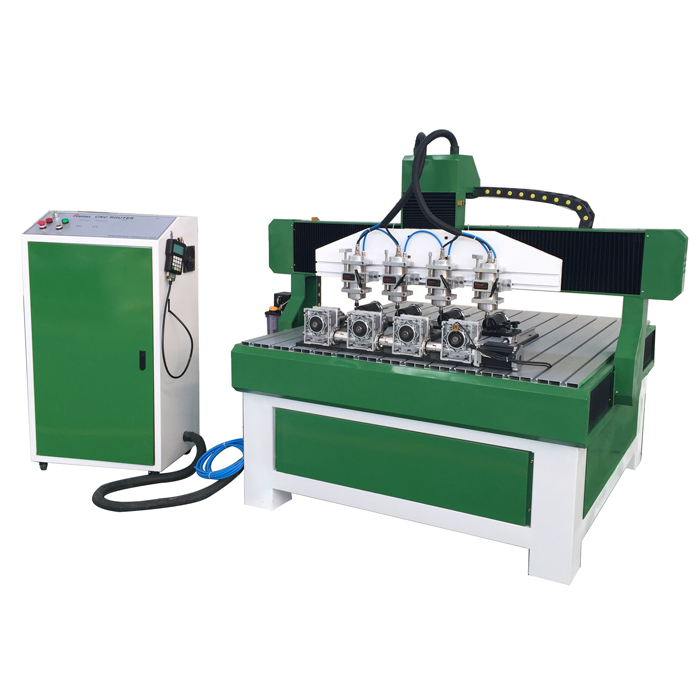

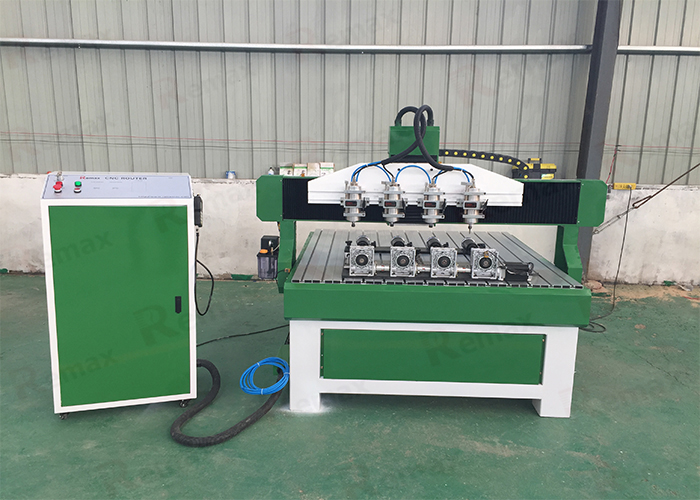

Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale
Multi head 3D wood Caving CNC Router Machine With 4 Rotary for sale
Multi head 3D Caving CNC Router Machine With 4 Rotary for sale is used for 3D CNC machining of furniture bulk production, 3D sculptures , stair handrail, sofa legs,and complex artworks with high speed, high precision, high efficient and low noise.

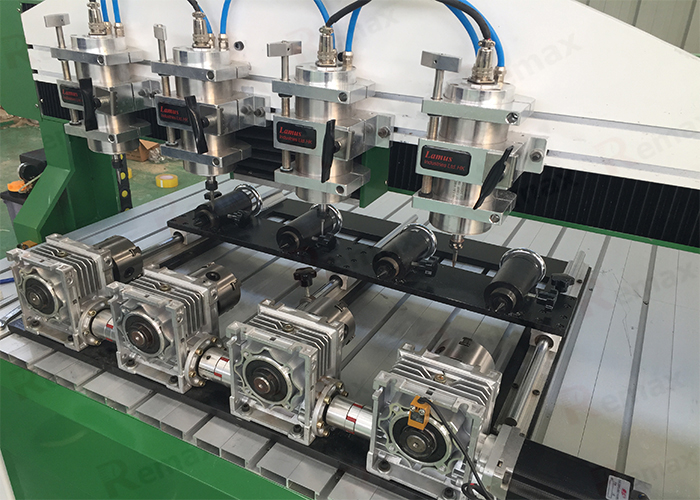

Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale



Application of Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale

1. Wood furniture industry

Such as wooden doors, cabinets, Tables,Chairs, cupboard doors, stair handrail, sofa legs,ect.

2. Advertising industry

such as sign making, acrylic engraving and cutting, Signage, Logo, Display board, advertising materials

derivatives making, PVC,acrylic ect.

3. Die industry

such as aluminum &metal molds, artificial marble, tombstone.

4. Artwork and decoration

such as Stateus engraving, gift box ect.

Feature of Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale



1. Multi heads can work at the same time to improve the same design engraving efficiency.

2. Multi heads can also work alone,control the machine heads independently .

3. Multi heads CNC router can use only one head to process and make increasing the working area.

4. Multi-Heads amounts and working area can be changed according to client’s requests.

5. Four Rotaries and Four heads, which can work at the same time or independent

6 Multi head 3D Caving CNC Router Machine with the work efficiency can be greatly improved when carving products

with complicated graphics. during batch production, the consistency of products is good and the output is high.

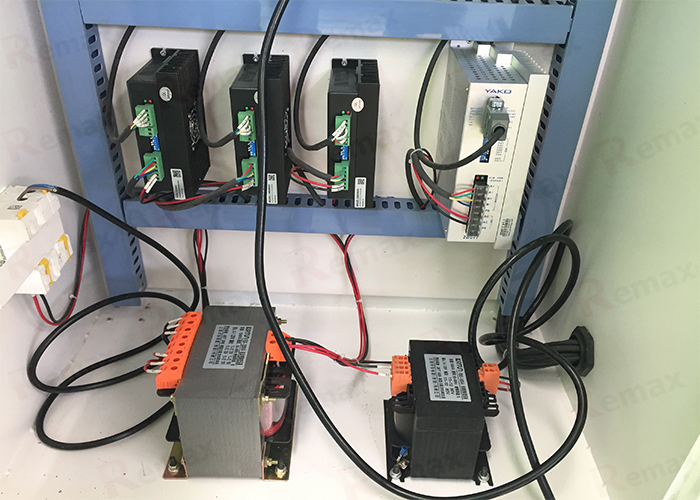

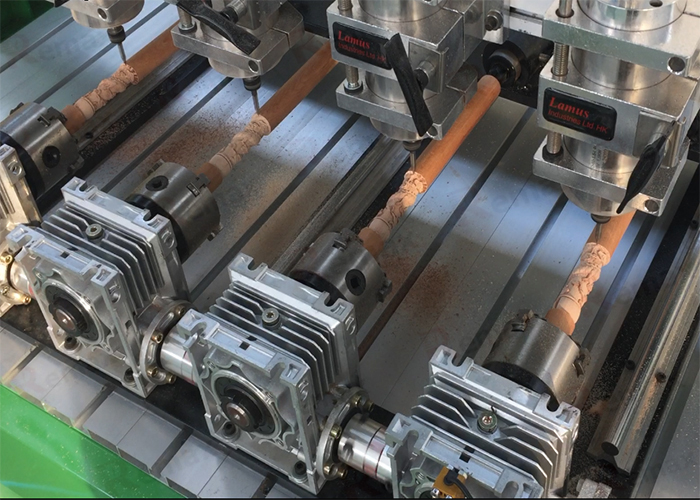

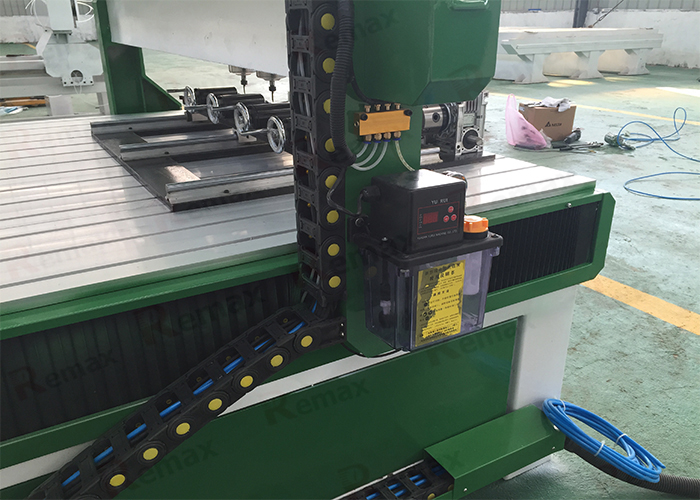

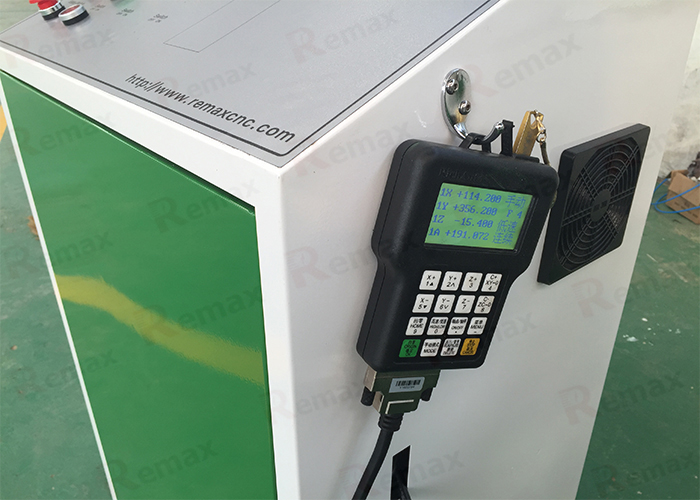

Parts of Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale


Parameter of Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale

Description

Parameter

X,Y,Z Working Area

1200x1200x200mm

X,Y,Z  Accuracy

X,Y,Z  Accuracy

X,Y,Z Repositioning Accuracy

±0.0254mm

Table Surface

T-slot Table

Frame

Machine lathe bed cast by iron

Transmission

Hiwin square rail and TBI ball screw

Max. Power Consumption

2.5kw~3Kw (without spindle)

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

8000mm/min

Spindle Power

1.5kw water cooling (2.2kw for option)

Spindle Speed

0-24000RPM

Driver and Motor

Leadshine and Stepper Motor

(servo motor for optional)

Working Voltage

220/380V    50/60Hz

Command Language

G code

Operating System

DSP control system

Computer Interface

USB

Software

Type3 or Artcam

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Inverter

Delta/Fuling

Electrical components

Schneider

Limit switch

OMRON

Tool sensor and lubrication

with
head 4 head
Rotary 4 pc 100x1000mm

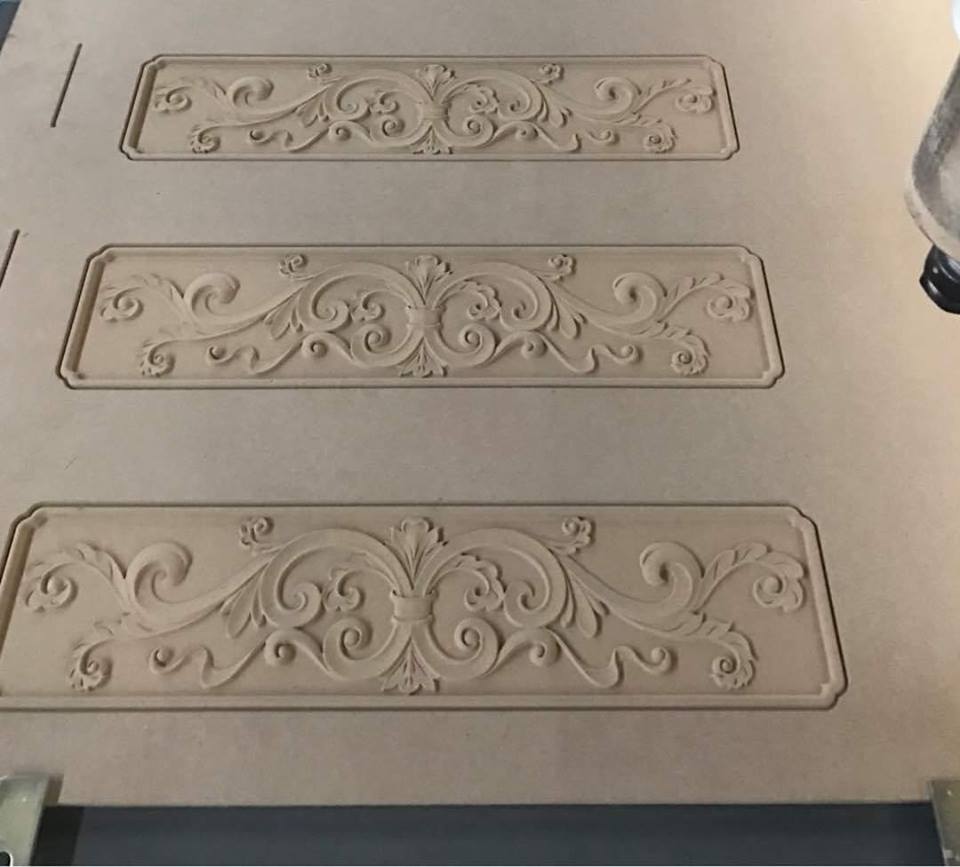

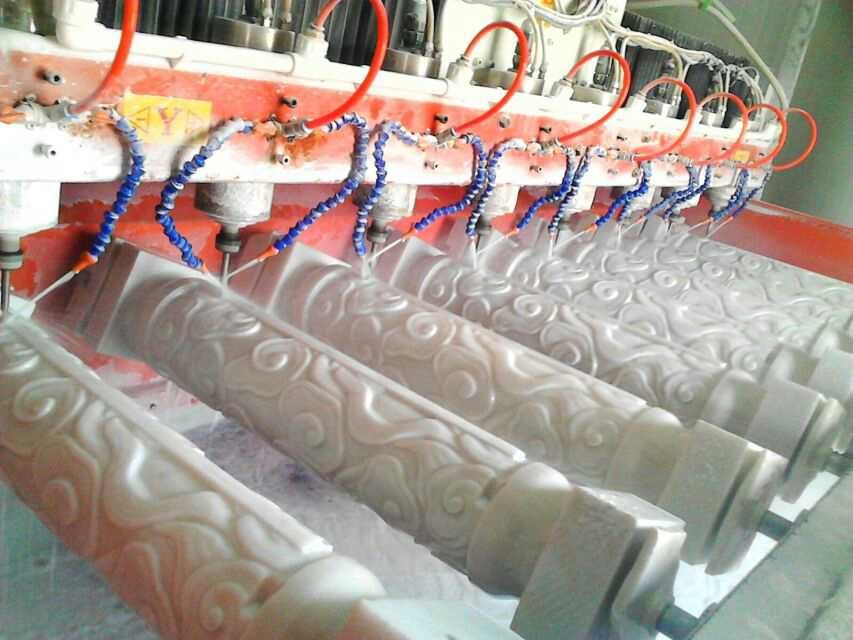

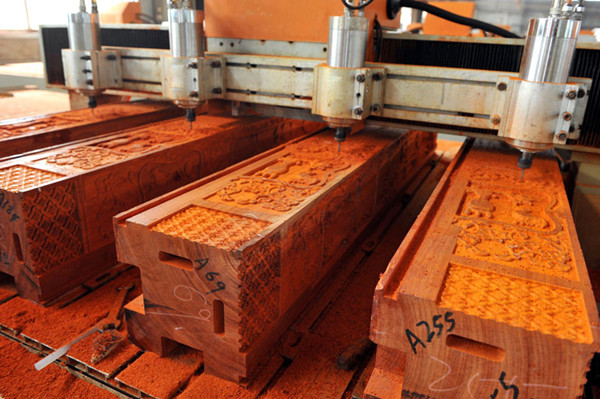

sample of Multi head 3D wood  Caving CNC Router Machine With 4 Rotary for sale


FAQ
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
