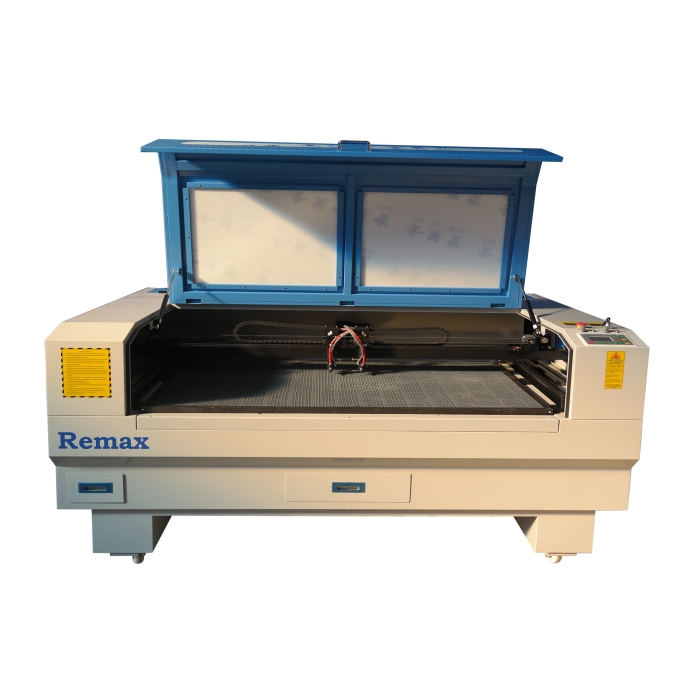

Remax 1410 double heads co2 cnc laser engraving machine

Application:

Our double-headed laser engraving machine is mainly suitable for processing non-metal materials, such as Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf ,Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.

Parameters:

Model	Remax 1410 double heads co2 cnc laser engraving machine
Working Area	1400*1000mm
Table Structure	Honeycomb Table ( or Optional Blade Table)
Table	Up-down Table ( optional )
Laser Power	80W (100w/130w/150w en option)
Power Adjustment	0-100% with control, no adjustment segment, adjusted by software
Guide Ralis	Hiwin or PMI Square Rails
Driver	Leadshine
Cutting Speed	≤600mm/s
Engraving Speed	0-1000mm/s
Position Precision	± 0.05mm
Performance	Engraving , Cutting
Main Graphic Format Supported	PLT/DXF/DST/BMP/Al etc. ( Direct Output)

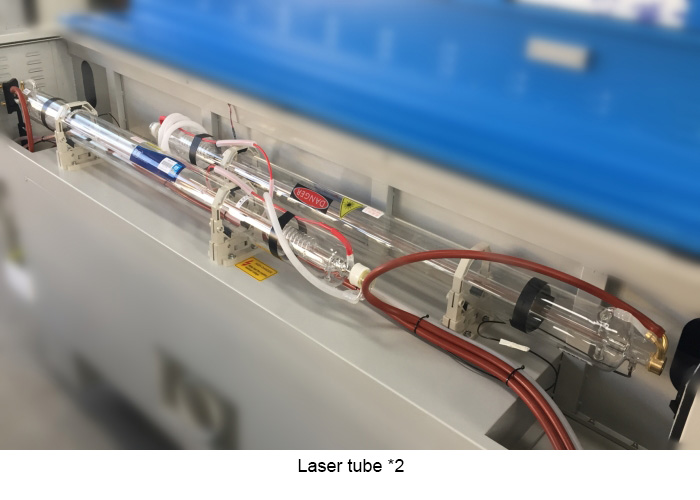

Laser Type	CO2 Glass Laser Tube or Radio- Frerquency Tube
Working Platform	Engraving Platform ( up-and-down device with optional auxiliary cutting rack)

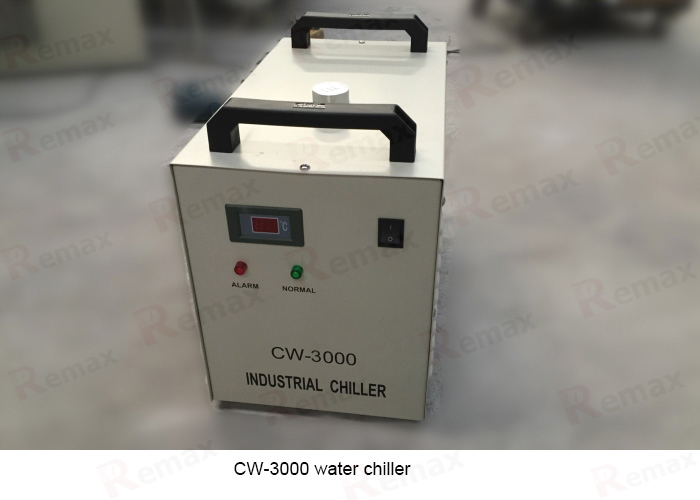

Cooling Water	Water Cooling And Protection System
Working Voltage	AC110/220V ± 10% , 50/60Hz
Woke Mode	Stepper or Servo
Working Temperature	0-45°c
Working Humidity	5%-95%

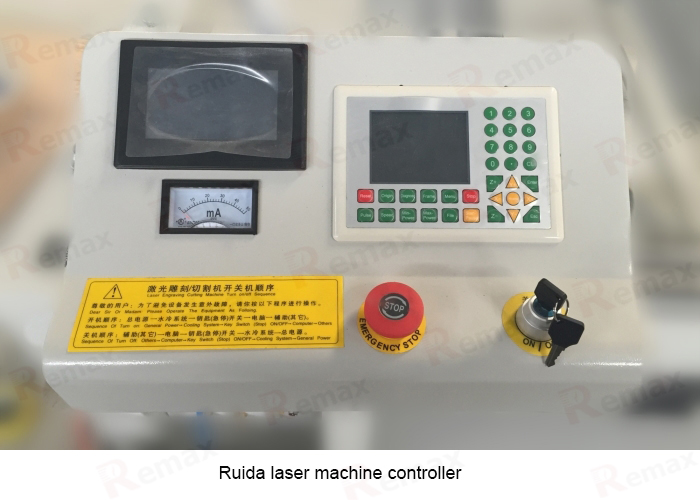

Control System	Ruida
Dot positioning System	Red Dot Positioning  (Option)
Warranty	One Year, Expect Consumble Parts

A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
