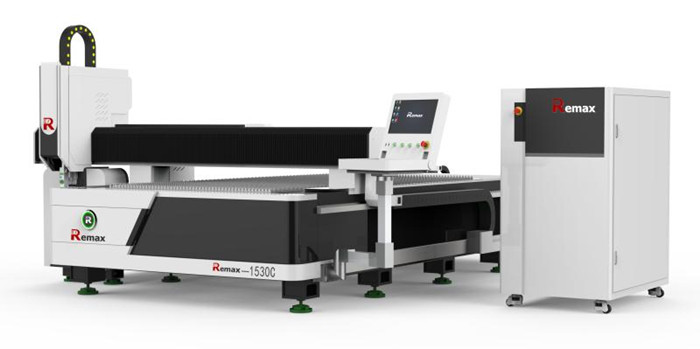

Remax 1530 fiber laser metal cutting machine

1. Our optical fiber laser cutting machine has high cutting accuracy, good stability and can work for a long time. 2. Good cutting section quality. Mechanical follow-up cutting head system is adopted. The cutting head follows the height and height of the

Remax 1530 fiber laser metal cutting machine

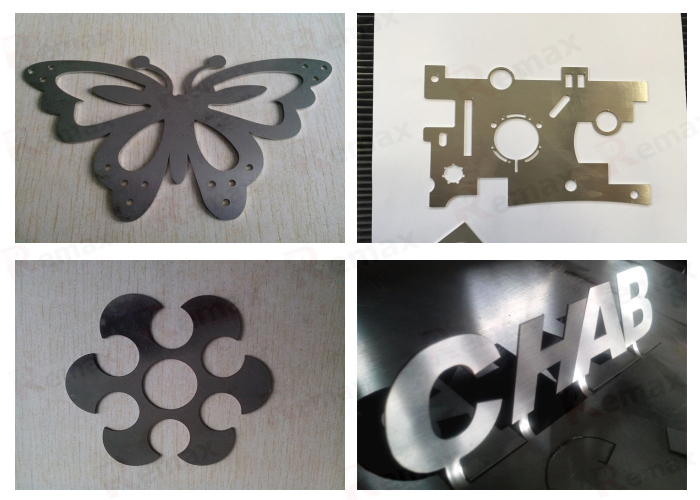

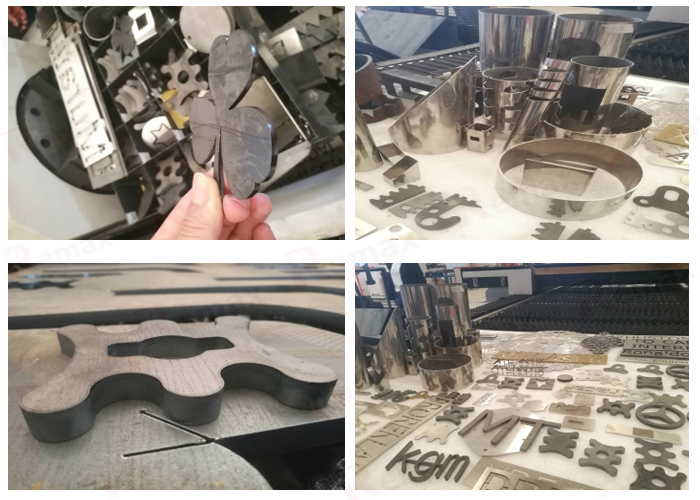

Suitable for stainless steel, carbon steel and some other metal materials precise cutting,

applicable for aerospace technology, rocket,plane,robot,elevator,steamship and automobile manufacturing

and metal parts processing industry for metal plate,advertisement,kitchen ware,bit tool,hardware etc.

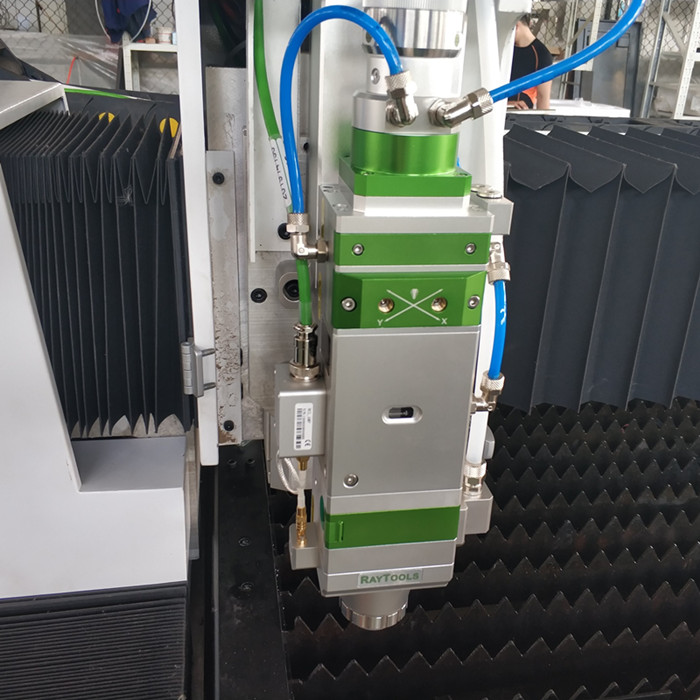

Raytools laser head

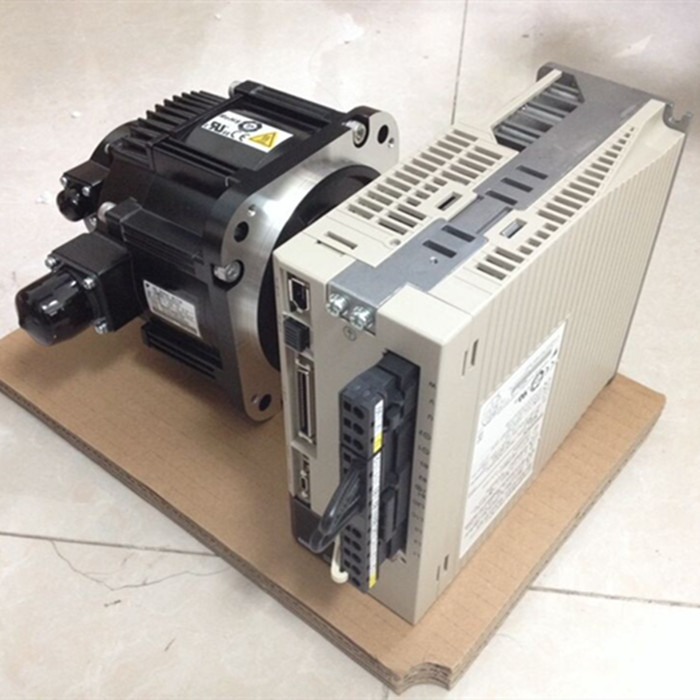

Japan Yaskawa servo motor and driver

1. Select Germany ruike fiber laser, high photoelectric conversion efficiency, stable performance, and the service life of key components can reach 100,000 hours.

2. Standard: 500W, 750W, 1000W, 1500W and 2000w fiber laser. The optical fiber laser has high beam quality, high conversion rate and low operation and maintenance cost.

3. No gas is needed in the laser generation process, air assisted cutting, optical fiber transmission, no need to adjust the optical path, easy operation and low cost.

4. Compared with other medium laser equipment, the focusing light spot of fiber optic machine is smaller, which makes the cutting line thin, working efficiency is higher and the processing quality is better;

5. The company independently designed the gantry type CNC machine tool with dual drive system and high strength integral welding body. After high temperature annealing, no deformation occurred, which ensured the smoothness of long-term high-speed cutting.

6. It has good rigidity and stability, and is driven by precision ball screw and linear guide.

7. Equipped with high-precision and highly responsive drive, it is suitable for rapid and precise cutting of metal plates under 5mm.

Machine Model	Remax-1530-500W
Max. working area	1500 mm x 3000 mm
Laser	Raycus brand fiber laser 500W
Cutting thickness	0.1-6 mm metals(carbon steel, stainless steel, titanium,etc)
Laser wavelength	1080 nm
Rated power	10-100%
Max cutting thickness	6 mm max metals like Carbon steel,stainless steel etc
Water chiller power	CW 6100
Driving system	Japan YASKAWA servo motor
X,Y-axis location accuracy	±0.03mm
X,Y-axis repeat location accuracy	±0.02mm
Min. cutting line width	0.01mm
Machine occupy space	4m x 2.5m x 1.5m
worktable max load weight	100 KG

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
