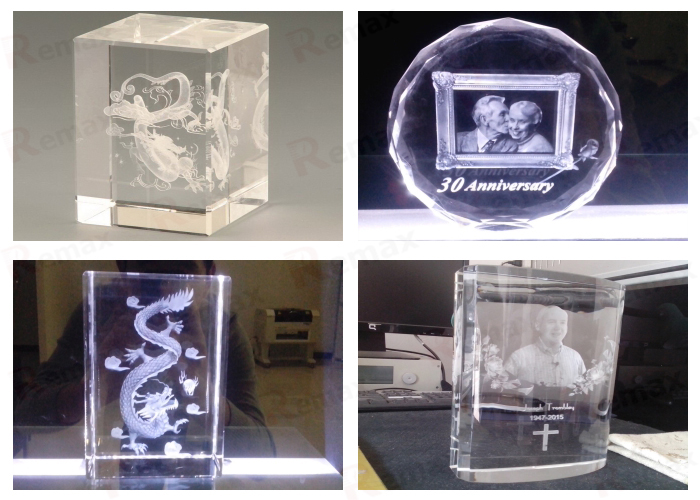

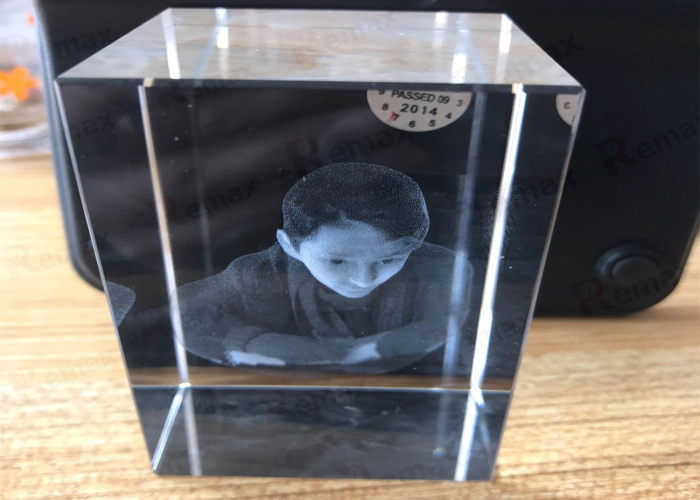

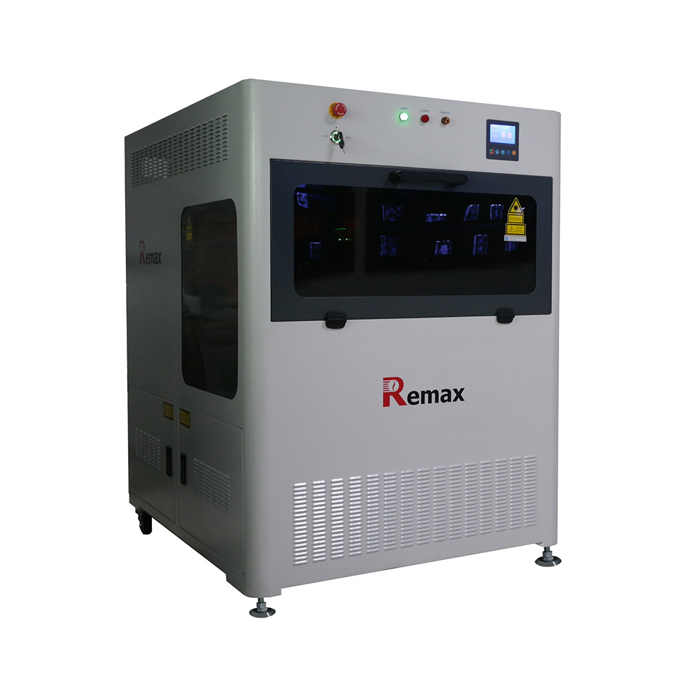

3d cystal laser engraving machine used for engraving inside crystal, glass. for photo and some other kinds of picture, for christmas gifts.
1. inside work environment, more safe design.
2. with 2d to 3d software, can make the photo image totally for 3d.
3. air cooling system, and the work speed also can chose for 4kc/4kd.
Diode Working Span |
>12000 hours |
Laser Wave Length |
532nm |
Laser Frequency |
4000Hz |
Max Pulse Power |
0.7mj |
Laser Power |
3 w |
Q Adjust Method |
Electro optically Q Switched |
Max Engraving Speed Dots/min |
220000dots/min |
Max Engraving Range |
300*400*150mm |
Max Crystal Size |
320*320*130mm |
Engraving Dot Size |
20-40um |
Beam Quality |
m2<1.5 |
Laser Head |
1 Head |
Resolution |
900dpi |
Focus Diameter |
0.04mm |
Applications Materials |
All transparent material |
Cooling Method |
Air Cooling |
Electrical Source Require |
AC220V±10% 50-60Hz |
Software |
Special English 3D Engraving software |
Engraving Accuracy |
0.005mm |
Constant Working Time |
>20 Hours |
Format Support |
JPG,BMP,DWG,DXF,etc |
Time for engraving a 50*50*80mm crystal |
<1.5 mins |
Dimension of Main Machine |
760*670*1280mm |
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
