China Remax Mini 5030 Laser Engraving Machine for Sale - Jinan Remax Machinery Technology Co.,Ltd.

China Remax Mini 5030 Laser Engraving Machine for Sale

There are many industries to use and a wide range of applicable materials: the industries to use include architecture, civil engineering, artistic design, environmental art, aviation, navigation, industrial design, advertising, clothing, gardens, machiner

1) Machine use RECI laser tube.
2) Ruida or Leetro control system, Hiwin square rails and high quality belt transmission.

3) USB interface can support data transmitting to be quickly finished.

4) Lens and mirror imported from Singapore

5) Transmit files directly from CorelDraw, AutoCAD, high-speed USB2.0 interace output can support off-line working.

6) Working resume from power break point when power on.

7) Electrical drive up-down table, rotary device, red dot spot,vacuum, etc are to option.

Working Area	500x300mm
Table Structure	Honeycomb Table
Table	Up-down Table ( optional )
Laser Power	60w
Power Adjustment	0-100% with control, no adjustment segment, adjusted by software
Guide Ralis	Hiwin or PMI Square Rails
Driver	Leadshine
Cutting Speed	≤600mm/s
Engraving Speed	0-1000mm/s
Position Precision	± 0.05mm
Performance	Engraving , Cutting
Main Graphic Format Supported	PLT/DXF/DST/BMP/Al etc. ( Direct Output)
Laser Type	CO2 Glass Laser Tube or Radio- Frerquency Tube
Working Platform	Engraving Platform ( up-and-down device with optional auxiliary cutting rack)
Cooling Water	Water Cooling And Protection System
Working Voltage	AC110/220V ± 10% , 50/60Hz
Woke Mode	Stepper motor (Servo motor for option)
Working Temperature	0-45°c
Working Humidity	5%-95%
Control System	Ruida or Leetro
Dot positioning System	Red Dot Positioning (Option)
Warranty	One Year, Expect Consumble Parts
Dimension de l’emballage	195015501250mm

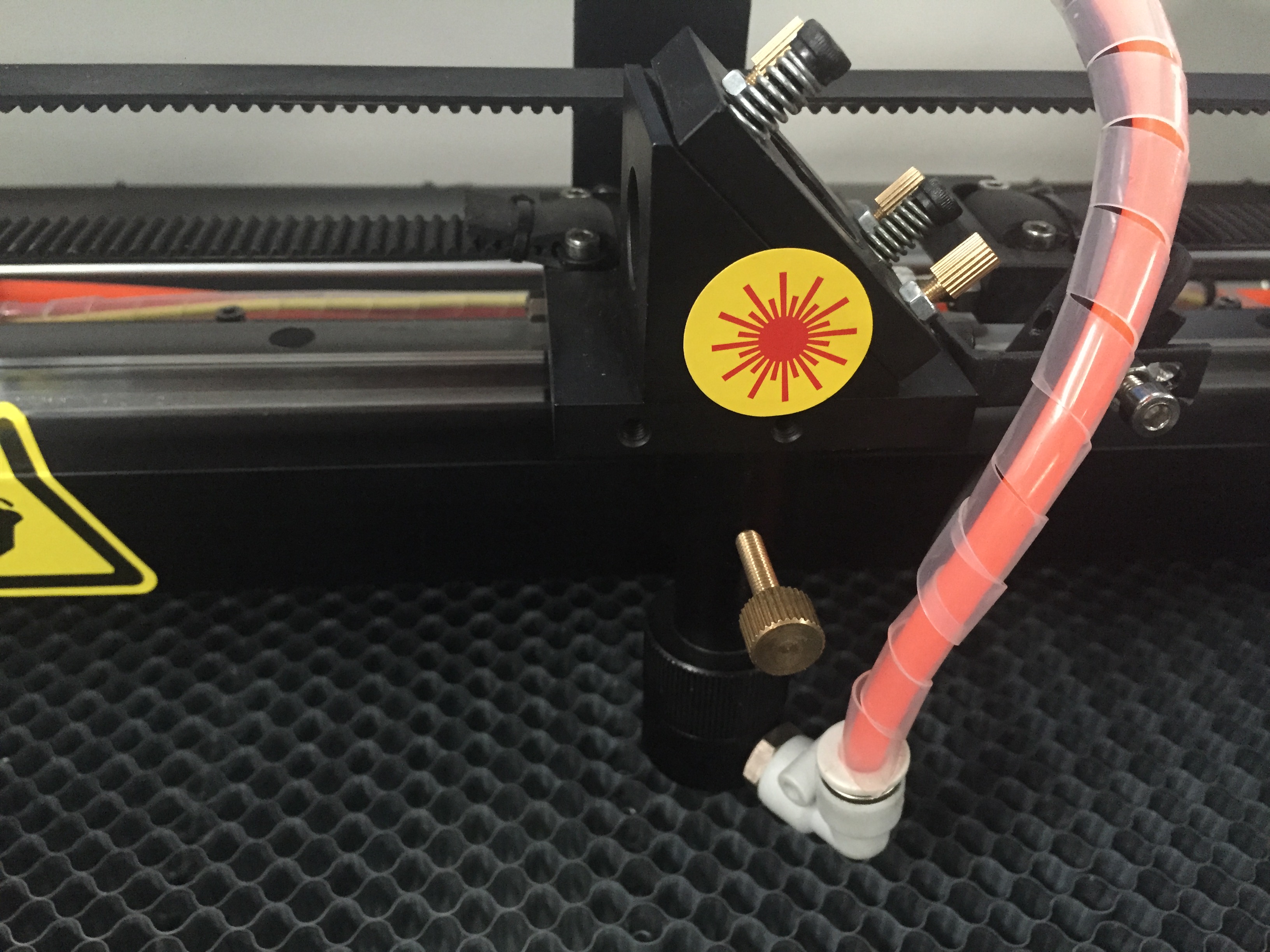

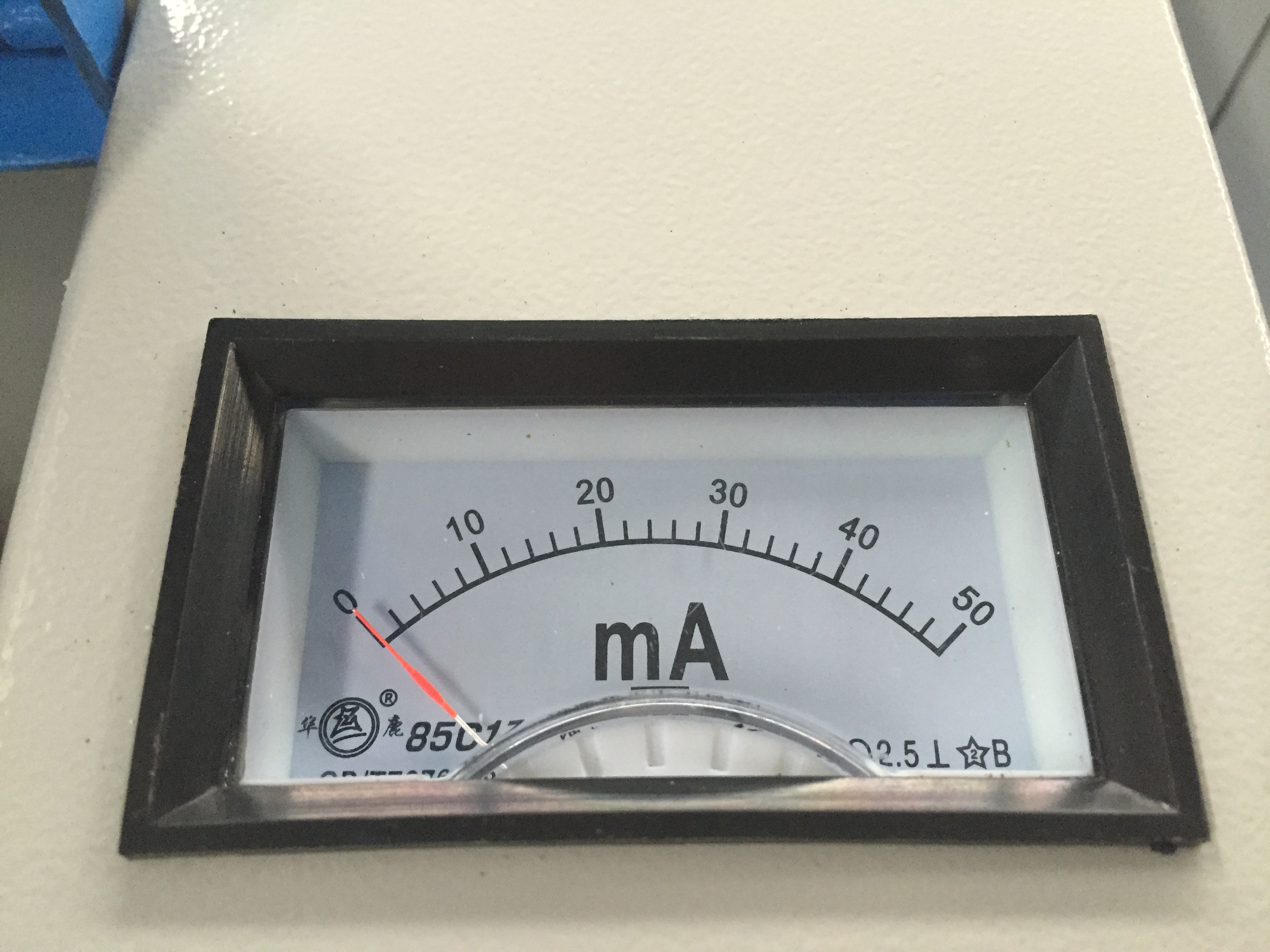

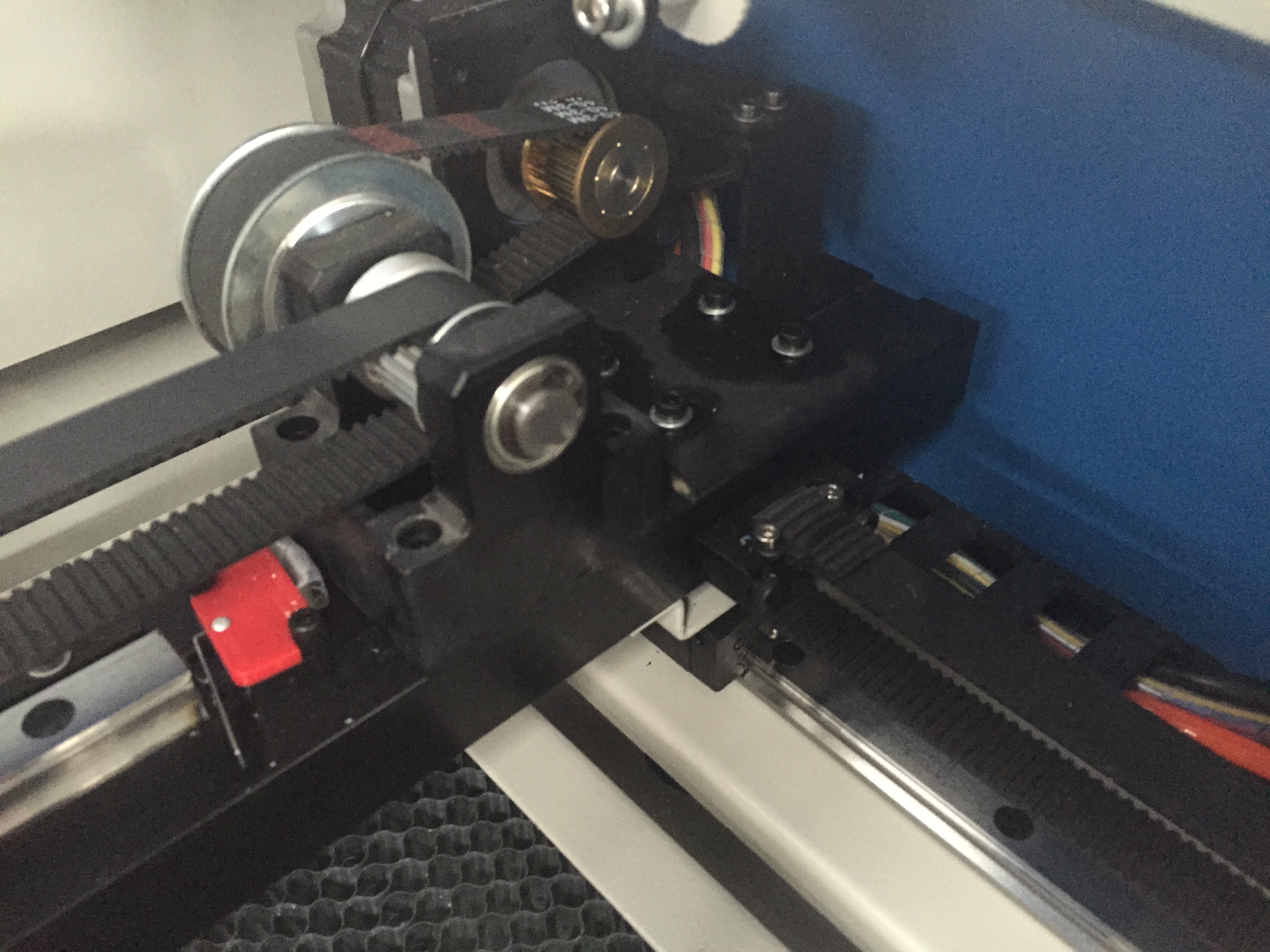

Parts

Samples

Our service

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.

6. Send your order by air or by sea.
