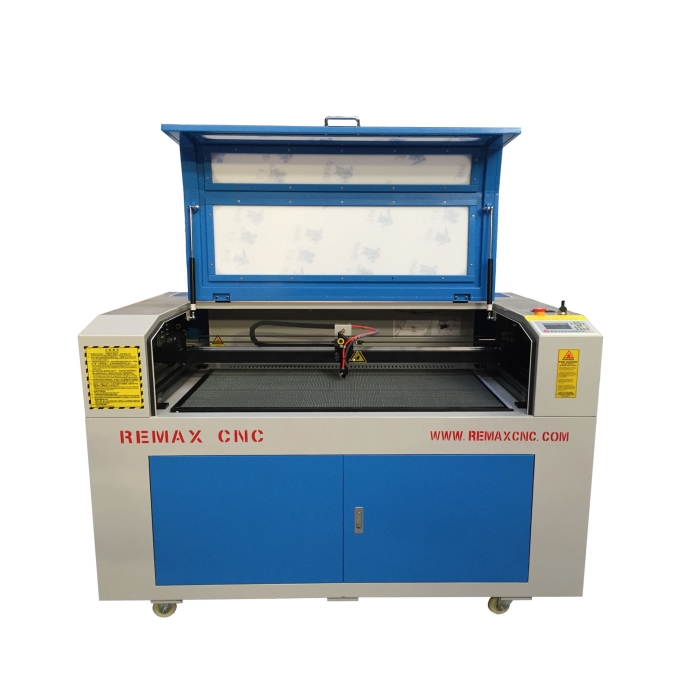

Remax 6090 cnc laser cutting and engraving machine

Remax-6090 laser machine 1. With a DSP control system for direct output of CorelDraw / AutoCAD and other advanced software, international standard laser power supply, integrated frame. 2. This laser machine Equipped with the RECI laser tube, the service

Remax 6090 cnc laser cutting and engraving machine

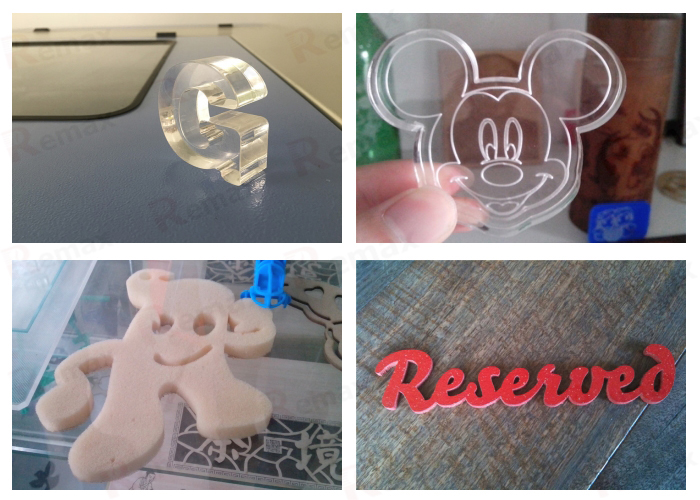

Laser engraving cutting machine mainly process non metal materials,such as double color board,acrylic

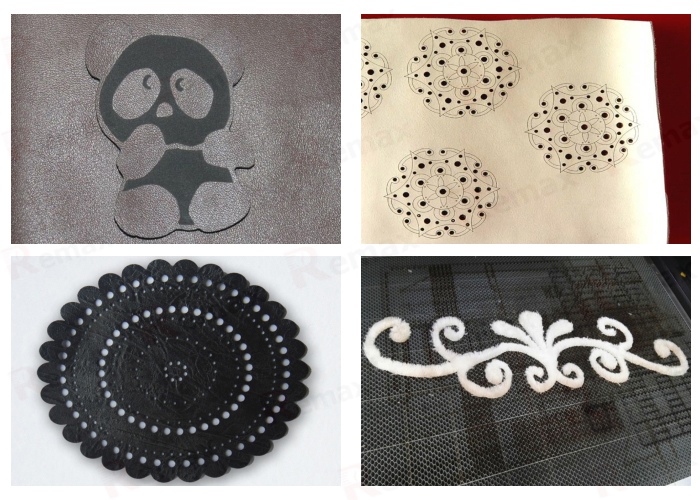

engraving and cutting,label engraving,crystal etc. leather and cloth process:compound leather,man-made

leather,fabric,fur ,toy etc.

1.Transmit files directly from CorelDraw, AutoCAD, USB 2.0 interface output with high speed supports offline

operation.

2.Summary of operation of the power cut-off point during power-up.

3.Lift table, rotating device, red dot, vacuum, etc. Are at option.

Model	Remax 6090 cnc laser cutting and engraving machine
Working area	600*900 mm
Table surface	Honeycomb table(blade for optional)

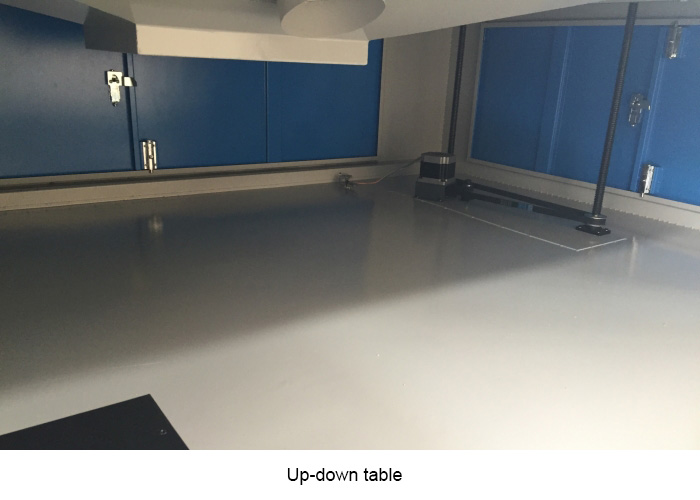

Table	Up-down table

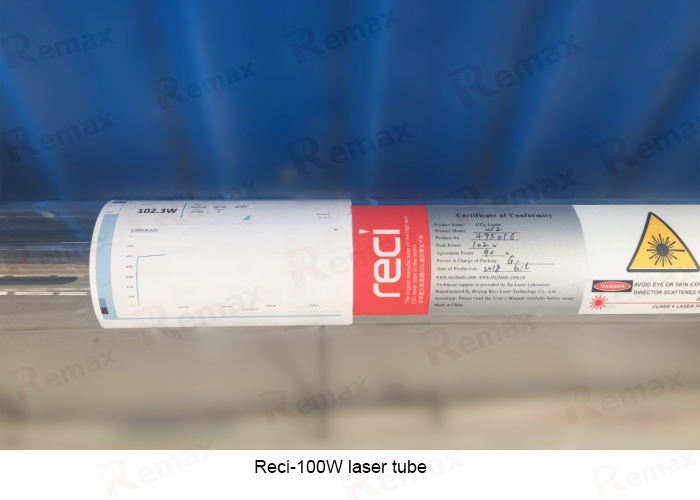

Laser power	Reci 80w(100w/130w/150w for optional)
Guide rail	Hiwin or PMI Square Rails
Driver	Leadshine
Cutting speed	<600 mm/s
Engraving speed	0-1000 mm/s

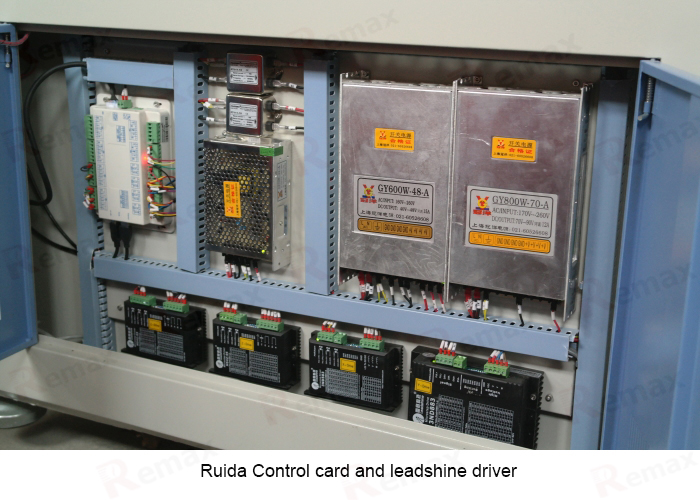

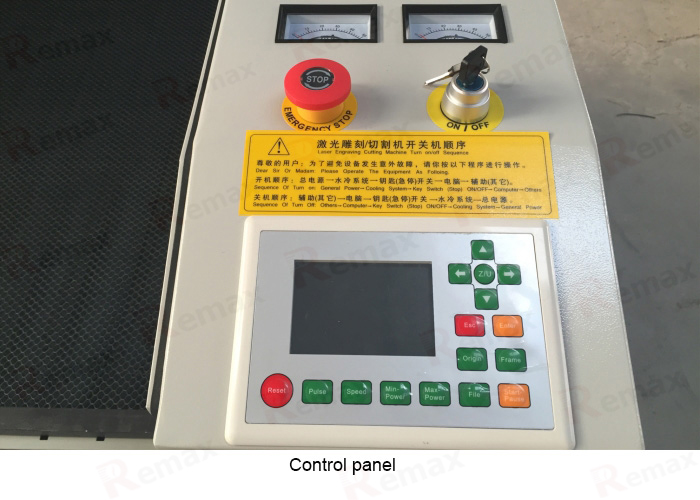

Control system	Ruida control
Working voltage	AC110/220V ± 10% , 50/60Hz
Motor	Leadshine stepper motor
Working humidity	5%-95%
Laser type	Co2 glass laser tube
Working temperature	0-45℃
Position Precision	±0.05 mm
Cooling water	Water cooling and protection system
Dot positioning system	Red Dot Positioning (Option)
Main graphic format supported	PLT/DXF/DST/BMP/Al etc. ( Direct Output)

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
