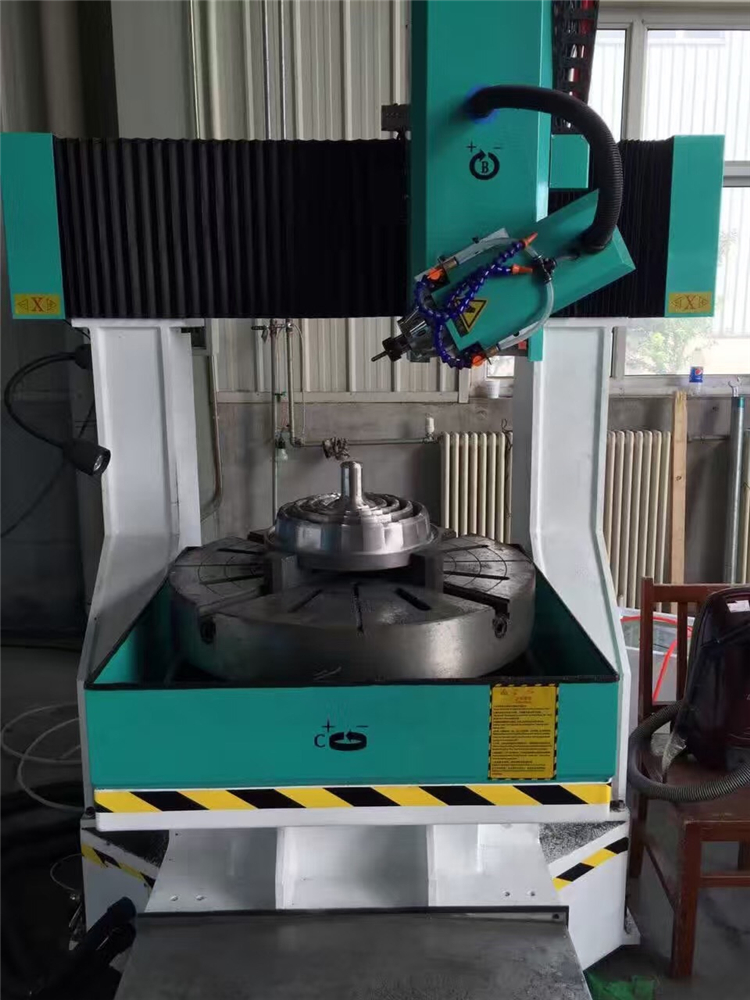

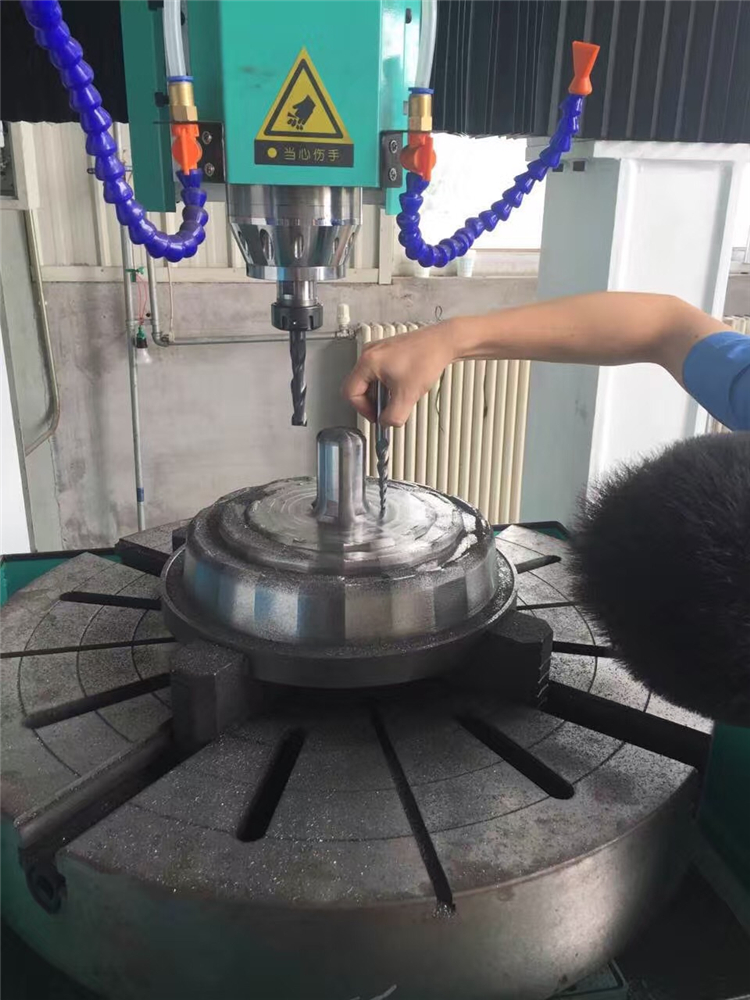

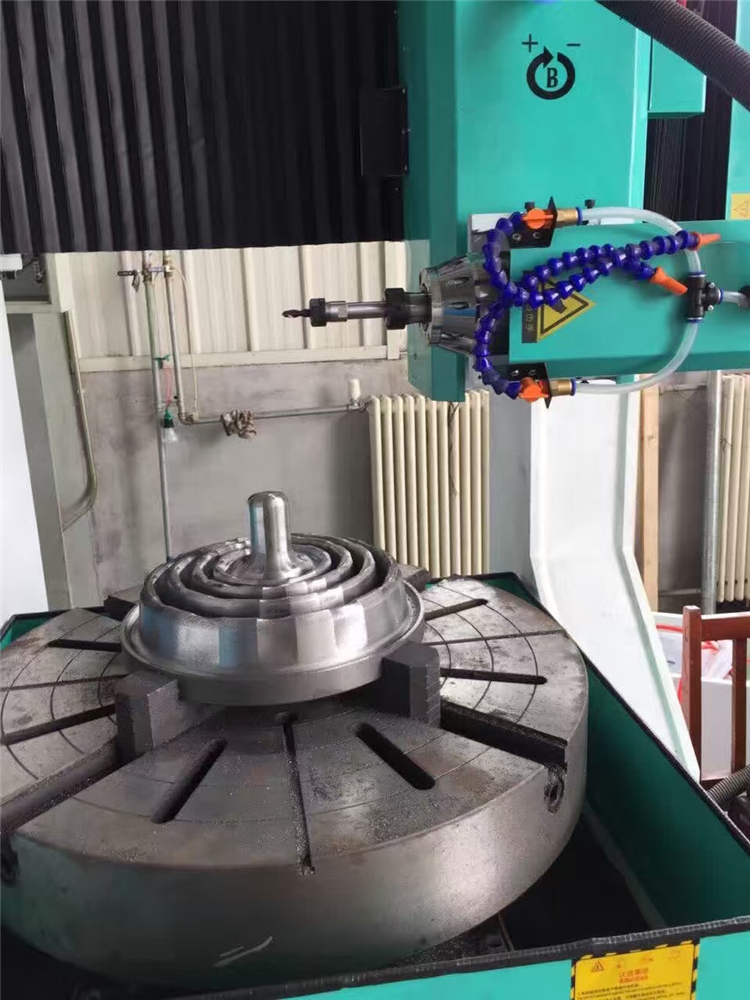

Industrial Remax mini cnc 5 axis cutting machine for metal

5 axis cnc router is used for engraving and cutting wood, plastic, acrycli, aluminum, brass, MDF, PVC, plywood, double color board, PCB and other materials. It can both process plate and round subjects.

1. 5 axis cnc router can work at same time for 5 axis. it use March 3 control system, can save the cost greatly.

2. 5 axis cnc router for the rotary axis configurate with reducer, so it can stop at any angel.

3. 5 axis cnc router the whole machine is cast iron, so it can process metal kind of materials.

4. 5 axis cnc router Table moving and ball screw transmission can prove the work precision highly.

X,Y,Z Working Area	1000500200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	iron Table
Frame	cast iron Structure
X, Y Structure	Hiwin Rail Linear Guide
Z Structure	TBI Ball Screw
Max. Power Consumption	(Without Spindle) 2.2kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min
Spindle Power	2.2kw water cooling spinle
Spindle Speed	0-24000RPM
Drive Motors	Stepper Motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	NC STUDIO control system
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine or Yako

Parts

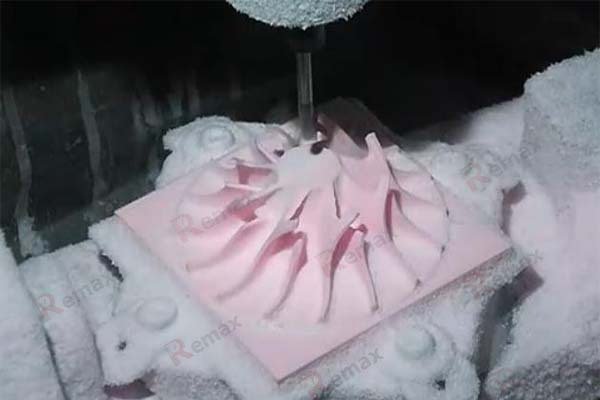

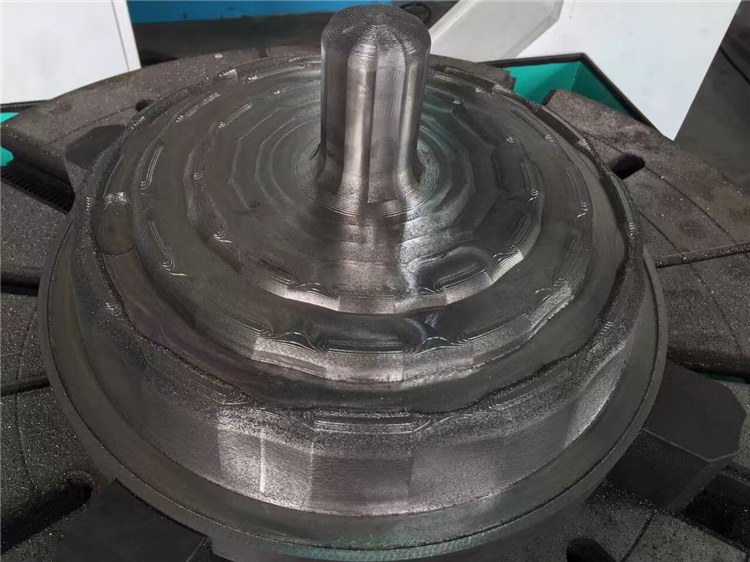

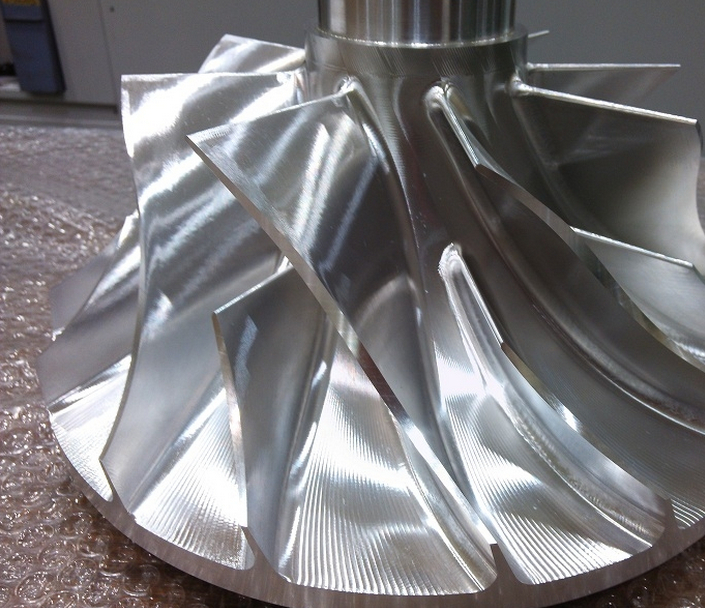

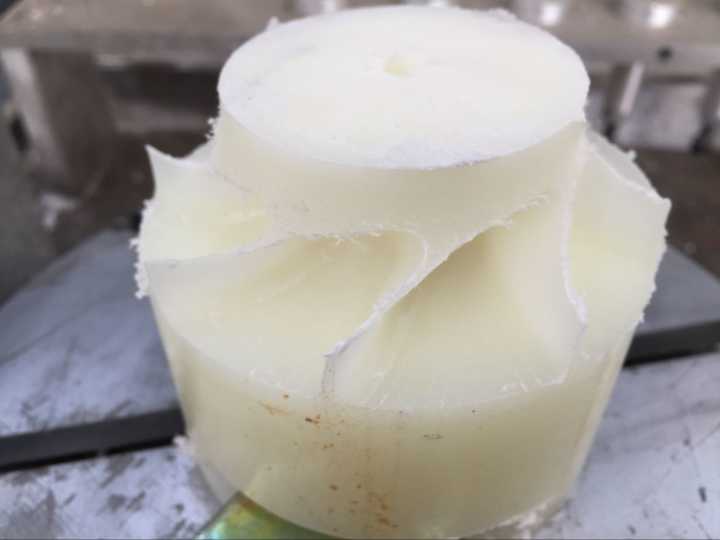

Samples

Our Service

Q: This is the first time I use this kind of machine, is it easy to operate?

A: There are english manual or teaching video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager

online service at any time.

Q: If machine have any problem after I receive it, how can I do ?

A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?

A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)

A: 1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.
