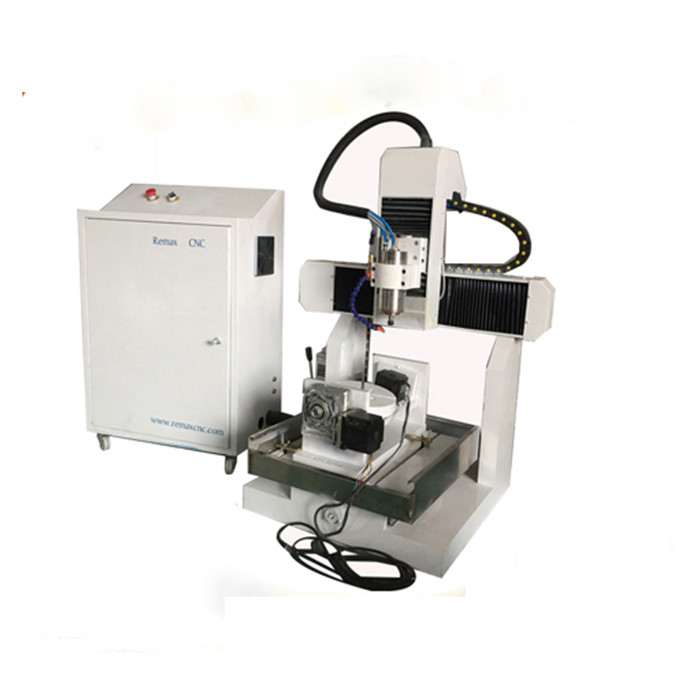

Remax 3040 desktop mini 5 axis CNC milling drilling router machine

1. Remax-3040 5 axis cnc router can work at same time for 5 axis. It can save the cost greatly. 2. For the rotary axis configurate with reducer, so it can stop at any angel. 3. The whole machine is cast iron, so it is very stable and durable.

Remax 3040 desktop mini 5 axis CNC milling drilling router machine

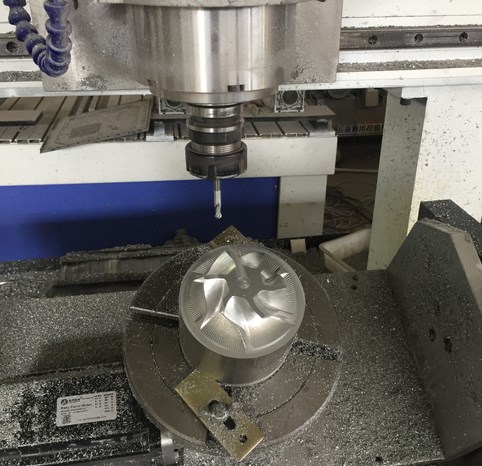

For Remax-3040 mini 5 axis cnc router is used for engraving and cutting metal,wood, plastic,

acrycli, aluminum, brass, MDF, PVC, plywood, double color board, PCB and other materials.

It can process plate, more 3D produst and more complex materials with high speed.

Model	Remax 3040 5 axis mini cnc machine
X,Y,Z Working Area	300400200mm
X,Y,Z Repositioning Accuracy	±0.02mm
Table surface	Iron table
Frame	Whole machine cast by iron
X,Y structure	Hiwin Guide rail
Z structure	TBI ball screw
Max Rapid Travel Rate	15000mm/min
Max Working Speed	8000mm/min
Spindle Power	2.2Kw water cooling spindle
Motor	Leadshine stepper motor
Working voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command language	G code
Control system	Mach3 6axis control system

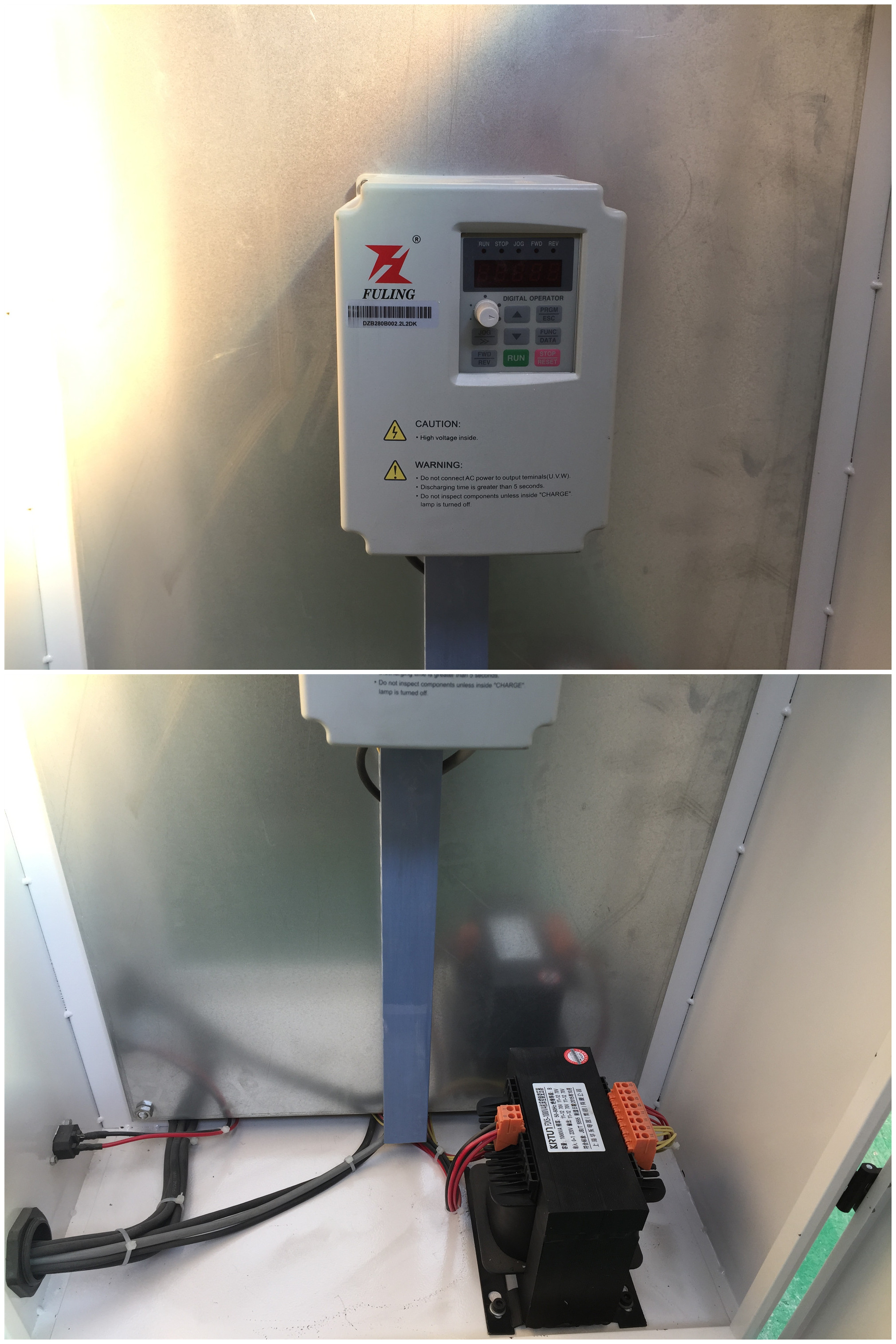

Inverter	Fuling/Delta
Electrial components	Schneider
Limit switch	OMRON
Driver	Leadshine/Yako
Computer interface	USB
Software	Artcam/Powermill

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
