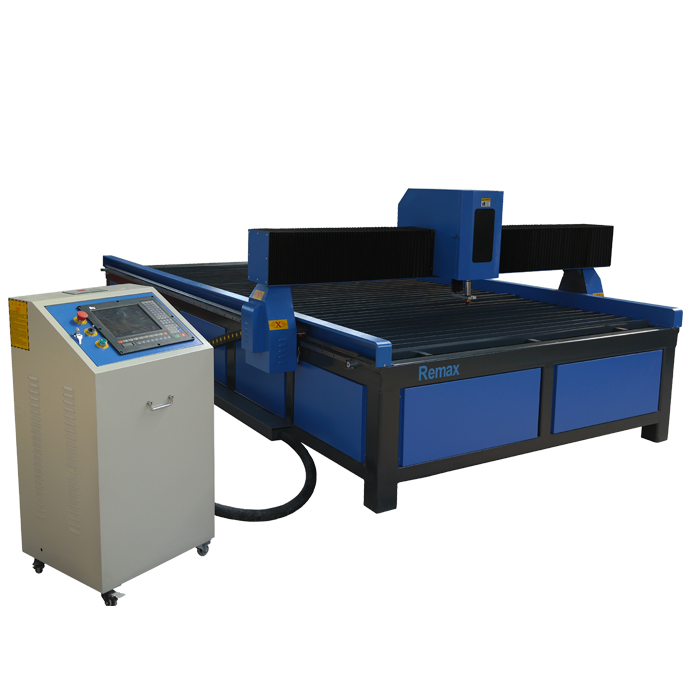

Remax 2040 plasma cnc metal cutting machine 2000*4000mm
Remax 2040 plasma cnc metal cutting machine 2000*4000mm
1. Remax plasma cutting machine adopt imported hiwin square rails to guarantee the work efficiency. 2. Start control system is easy to cooperate for customer. 3. Table with water tank to protect the cutting torch and reduce smoke.

Remax 2040 plasma cnc metal cutting machine 2000*4000mm



Application:

1.All welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
2. Machine with lubrication system, auto fume extraction system and dust proof.
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk.The software can be edict graphics automatically.
4.Collocated Udisk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
6.Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7.There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.

8.With break point or interruption of power ,memory function.






Parameters:

Model

Remax-2040

Effective Cutting Width (X axis)

2000mm

Effective Cutting Length (Y axis)

4000mm

Cutting Mode

Plasma head

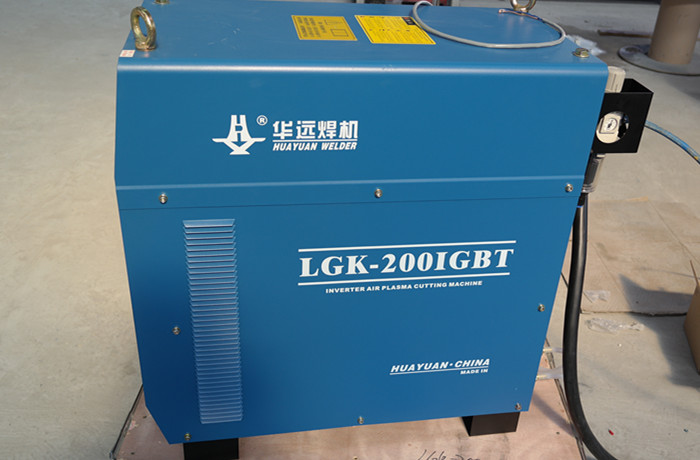

Plasma power

Huayuan 200A

Drive Mode

Linear guide and rack gear

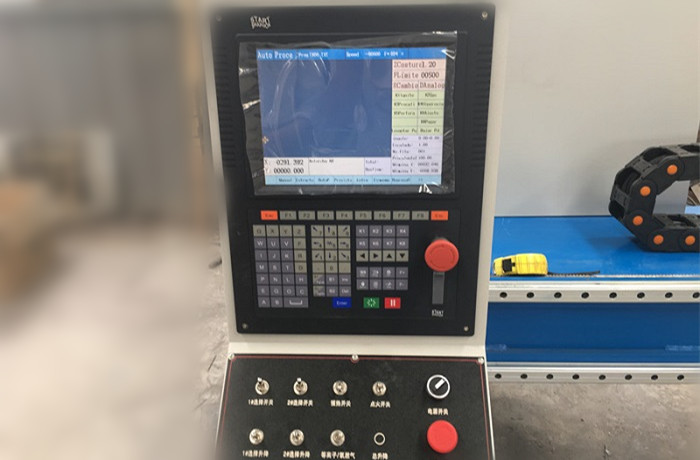

CNC system

Beijing START CNC

Plasma cutting speed

1-18 m/min

Lathe bed

8mm welded steel

Speed setting error

≤±5

Max running speed

20m/min

Torch height controller accuracy

≤±1.0mm

Longitudinal line accuracy

±0.3mm/10mm

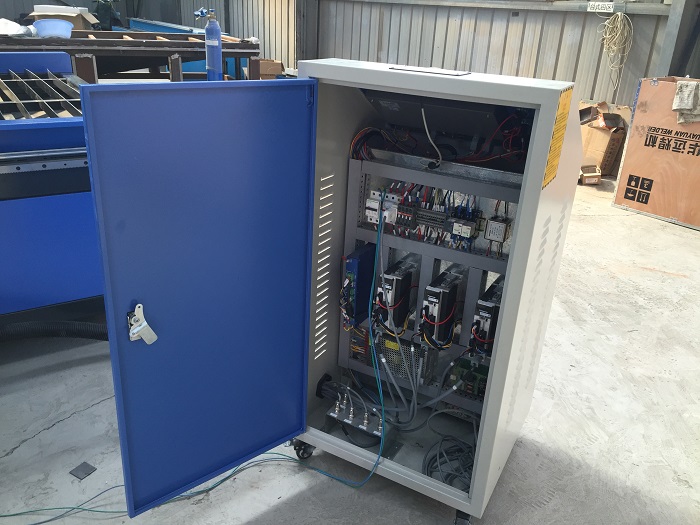

Motor

Japan Panasonic servo motor and driver

Linear guide

Hiwin or PMI from Taiwan

Electrical components

Schneider

Lubrication system

With

Auto fume extraction system

With

Moving Precision

0.01mm per step

Power Source

380V  50/60Hz

Height controller(plasma)

Start



A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.


Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.


Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.


Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.


Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
