The main application fields of plasma cutting machines are:

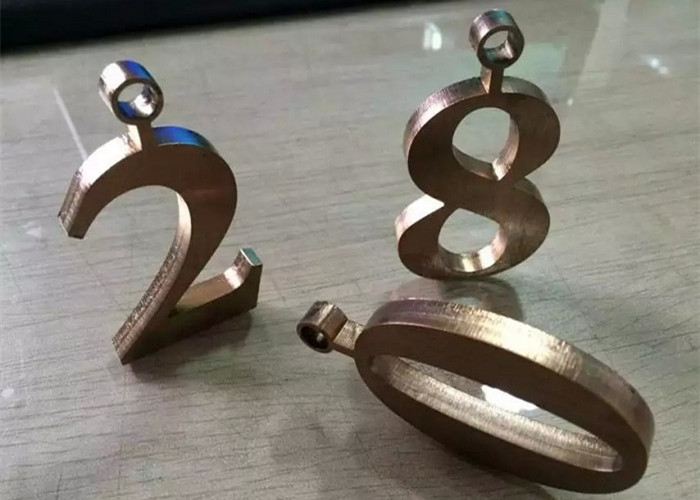

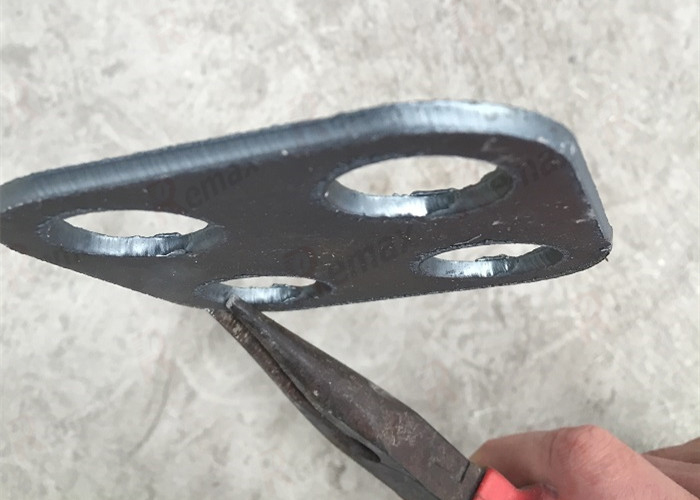

Stainless steel, cast iron, copper, aluminum and other non-ferrous metal plates or sheets with a thickness of less than 6mm are mainly used for plane cutting irregular patterns.
Plasma cutting machine has many advantages such as simple operation, high precision, high working efficiency, low labor intensity, etc. it is widely used in many kinds of workpieces. Numerical control plasma cutting machines are often used in many industries, such as chemical machinery, automobile industry, general engineering machinery, etc. For those materials that are difficult to cut by traditional methods, they can be finished by numerical control plasma cutting machine.

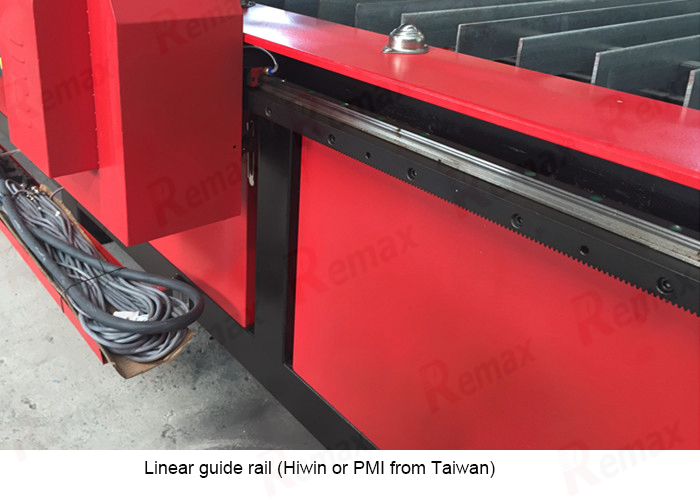

1. All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
2. X Y Z axis with leadshine drive , stable performance .
3. The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk. The software can be edict graphics automatically.
4. Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5. Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
6. Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7. There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
8. With break point or interruption of power ,memory function.
Model |

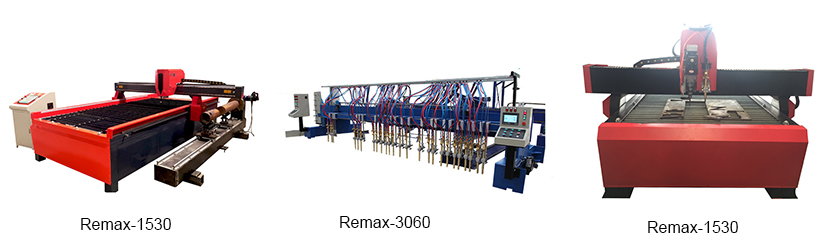

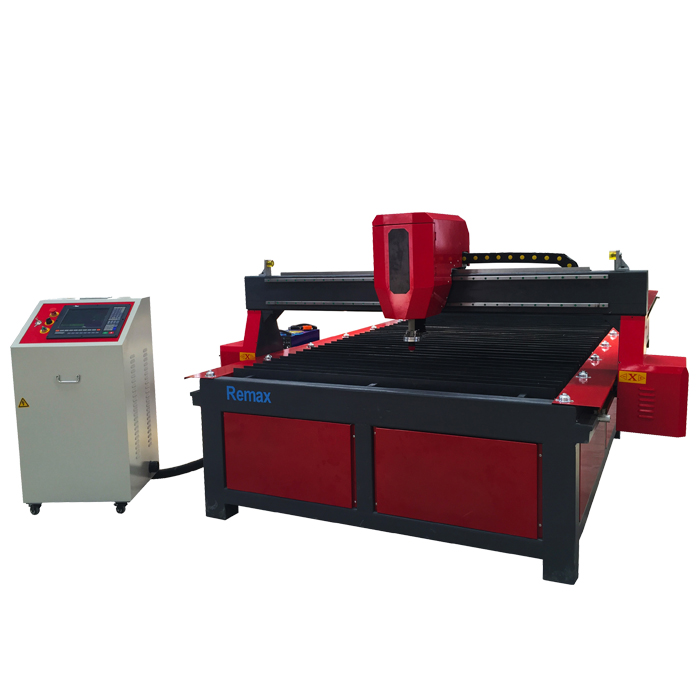

Remax-1530 plasma cutting machine |
Effective cutting width(X axis) |
1500mm |
Effective cutting width(Y axis) |
3000mm |
Plasma power |
LGK 200A |
Drive Mode |
Bilateral-side |

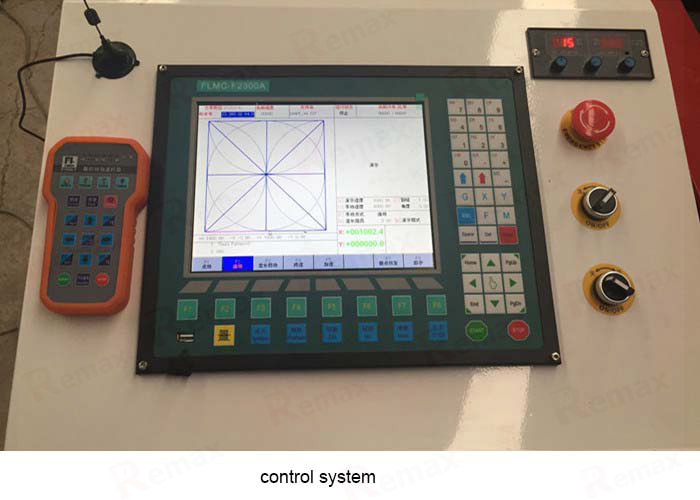

CNC system
|
Beijing START CNC |
Plasma cutting speed |
50-6500mm/min |
Cutting torch lifting distance |
150mm |
Speed setting error |
≤±5% |
Max idle running speed |
12000mm/min |
Torch height controller accuracy |
≤±1.0mm |
Longitudinal line accuracy |
±0.2mm/10m |

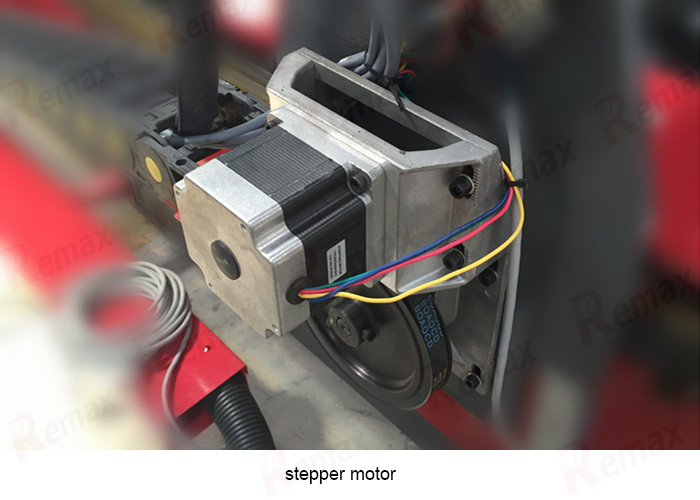

Motor and drvier |
stepper motor and yako driver |
Gear box |
Hubei planet |
Drive Method |
Rack and square rails for X Y Z axis |
Moving Precision |
0.01mm per step |
Machine Voltage |
220V 50/60hz ,Single phase |
Power Source |
380V 50/60hz ,3 phase |

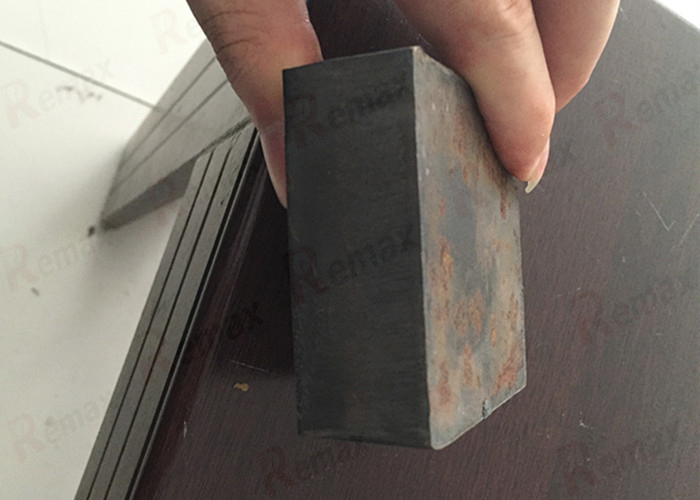

Plasma cutting thickness |
1-40mm |
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
