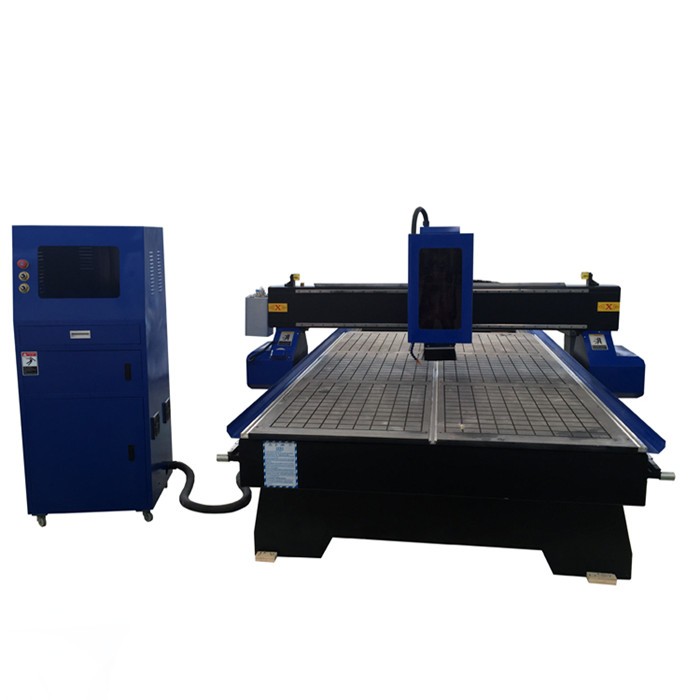

Remax 1325 heavy duty cnc wood stone router machine
Remax 1325 heavy duty cnc wood stone router machine
Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials

Remax 1325 heavy duty cnc wood stone router machine



Application:

1)Welded steel pipe lathe bed, strong and never out of shape
2)Double motors and drivers of Y axis which can ensure steady movement
3)Rack gear transmission ensures fast speed and high accuracy
4)Imported HIWIN square rail ensures high accuracy and heavy workload

5)Adopt vacuum system. Made by advanced international technology, with double   cavities,

configured with vacuum pump of strong adsorption, can absorb different size materials

6)Machine with leadshine driver and stpper motor, you can choose YAKO 2811 driver or YASKAWA servo motor and driver.
7)Humanistic design,the machine can be disassembled,so it is easily transported.


Main Parts:



Parameters:

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

X,Y,Z  Accuracy

±0.02mm

3

X,Y,Z Repositioning Accuracy

±0.0254mm

4

Table Surface

T-slot and vacuum Table

5

Frame

welded by steel

6

Transmission

Hiwin square rail and TBI ball screw for 3 axis

7

Max. Power Consumption

2.5kw~3Kw (without spindle)

8

Max. Rapid Travel Rate

25000mm/min

9

Max. Working Speed

15000mm/min

10

Spindle Power

3kw water cooling ( 4.5kw and air cooling spindle for option)

11

Spindle Speed

0-24000RPM

12

Driver and Motor

Leadshine and Stepper Motor (servo motor for option)

13

Working Voltage

220/380V    50/60Hz

14

Command Language

G Code

15

Operating System

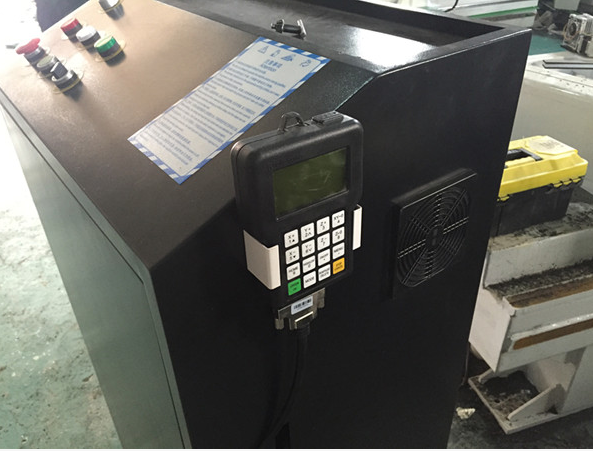

DSP System (Options: Ncstudio/Mach3 PC Software)

16

Computer Interface

USB

17

Software

Type3 or Artcam

18

Running Environment  Temperature

0 - 45 Centigrade

19

Relative Humidity

30% - 75%

20

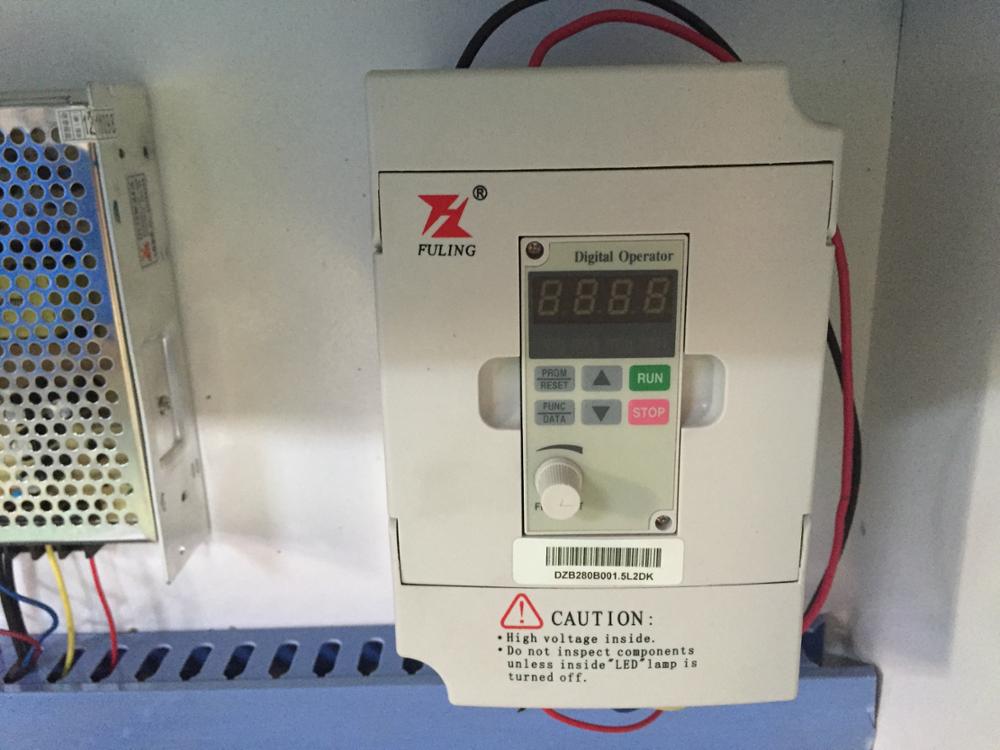

Inverter

Delta/Fuling

21

Electrical components

Schneider

22

Limit switch

OMRON

23

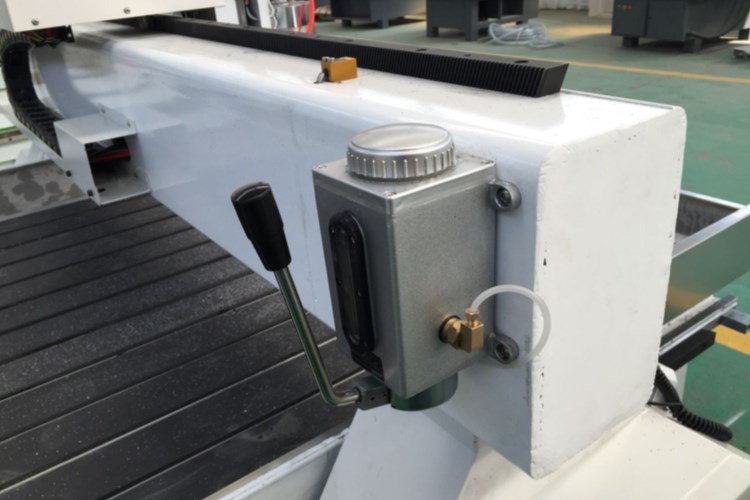

Tool sensor and lubrication

With



A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.


Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.


Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.


Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.


Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
