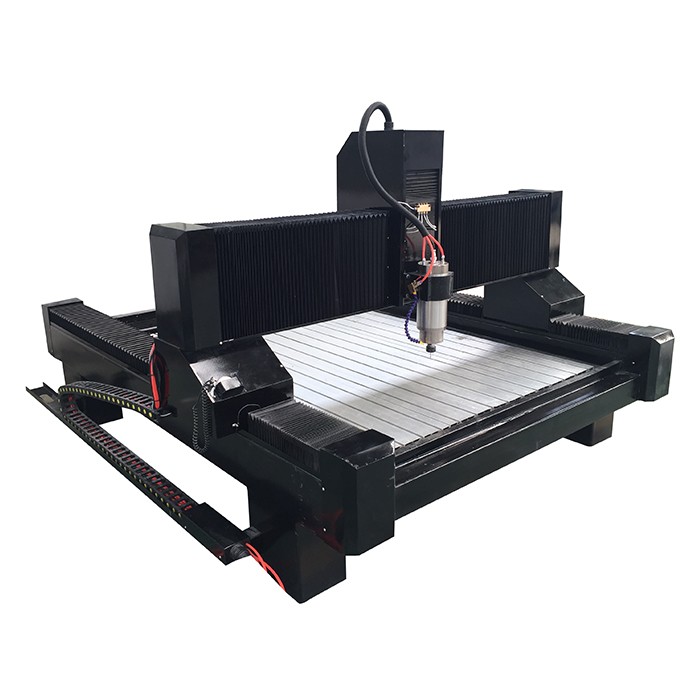

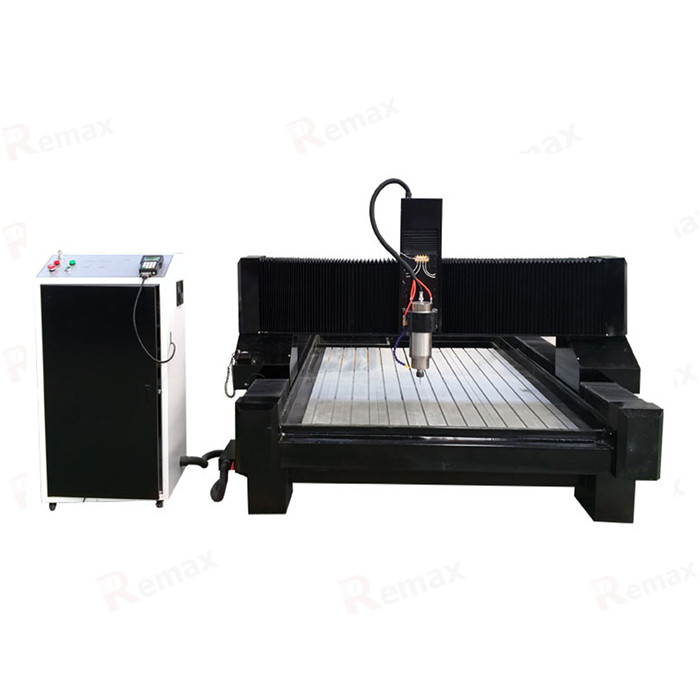

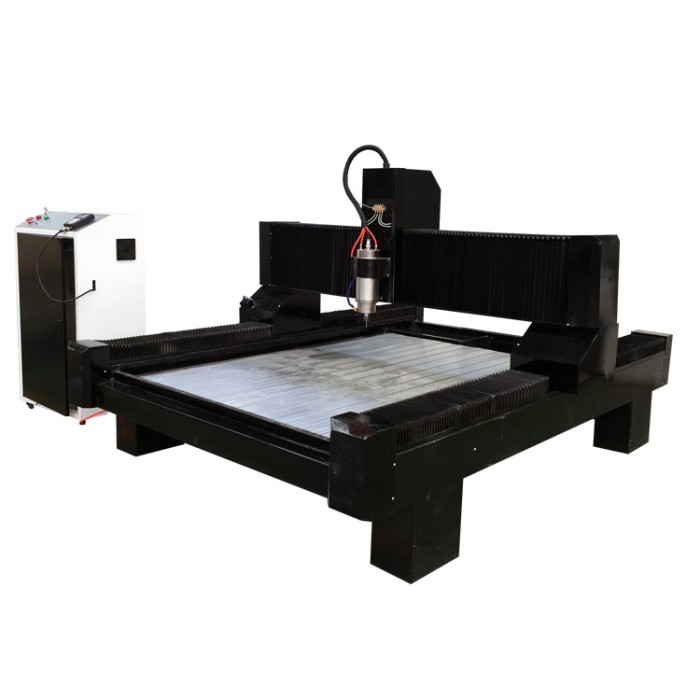

Remax cnc router for stone plane engraving machine
Remax cnc router for stone plane engraving machine
stone cnc router: 1.stone cnc router made with strong structure, can support the heavy stone processing. it structure guarantee the work stable and accuracy. 2.Stone cnc router with high power spindle, and water tank, when it cooling the spindle, won't



Stone cnc router machine Application:

Stone cnc router machine used for processing marble, granite, sandstone, artificial-stone, headstone, tablet, such as ceramic kind of materials.


Stone cnc router machine Parts:

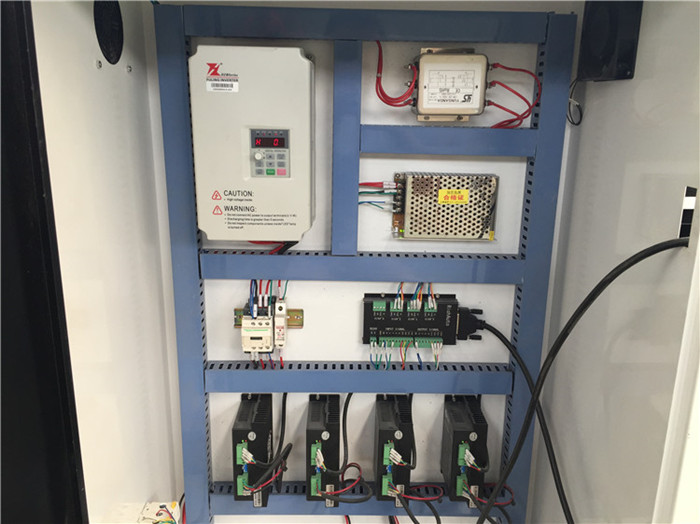

Fuling inverter and leadshine drivers

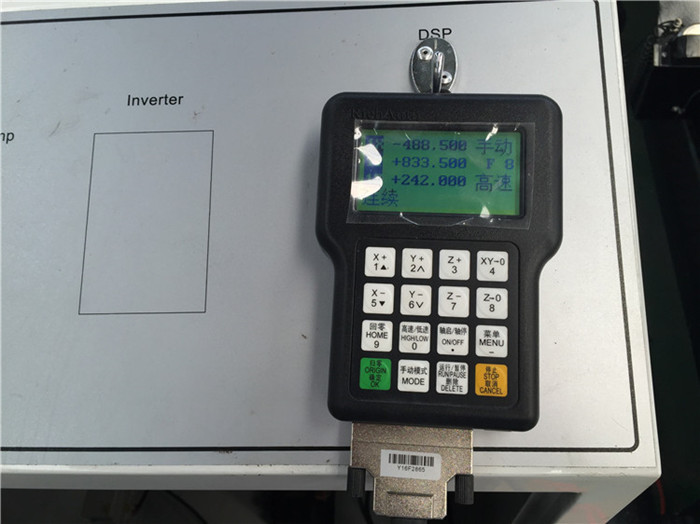

DSP control system

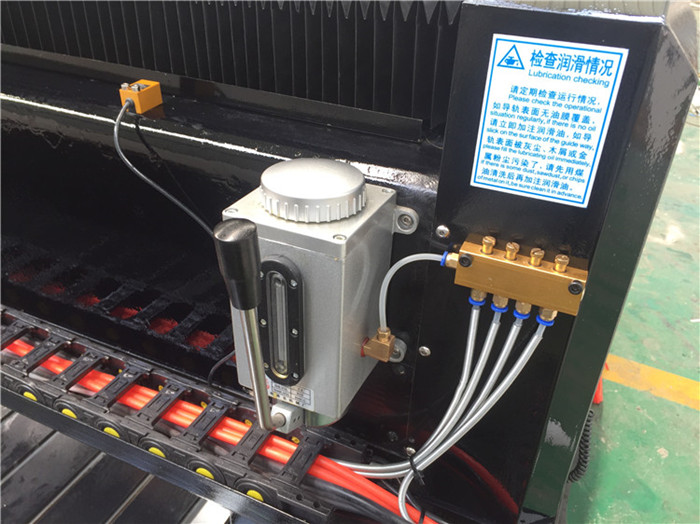

Manual Lubrication system

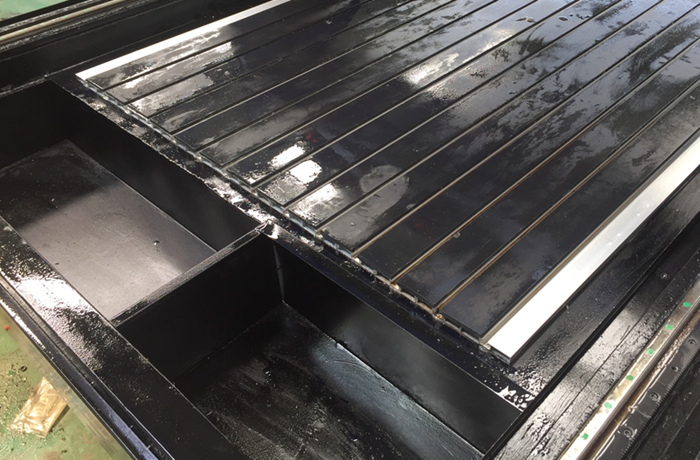

Water tank


Stone cnc router machine Feature:


stone engraving machine equipped with water-cooled spindle Fuling inverter. This machine is suitable for stone carving such as marble,

and is often the first choice for stone factories.



Stone cnc router machine Parameter:


Items
Parameters
Working area(mm)
1300*1800*200mm
Table Structure
stainless steel T-slot table
Transmission system
X,Y axis Gear Rack from Taiwan,z axis Ballscrew from Taiwan but with German technology
Lead rail system
taiwan hiwin square rails
Spindle power
5.5 kw Water-cooling spindle ,3.175/4/6/12.7mm
spindle speed
0-24000 rpm
Motor
stepper motor (Panasonic/Yaskawa optional)
Drive
YAKO 2811
Dust collector system
For your option
Inverter
Fuling inverter
Software environmant
Windows 98/2000/XP
Control System
DSP A11
Compatible file formats
G code; *.u00 ; *.mmg ; *.plt .
Compatible CAD/CAM Softwares
Ucancam V8 / Type3 / Artcam /
Working Voltage
AC380V,3ph, 50HZ
Precision
0.005mm
Max speed
26.0m/min
Max engraving speed
18.0m/min
Max feeding height
200mm
Work-holding devices
by fixture
Interface type
USB
Warranty guarantee
One-year

Stone cnc router machine Sample:



Remax cnc router services:





Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
