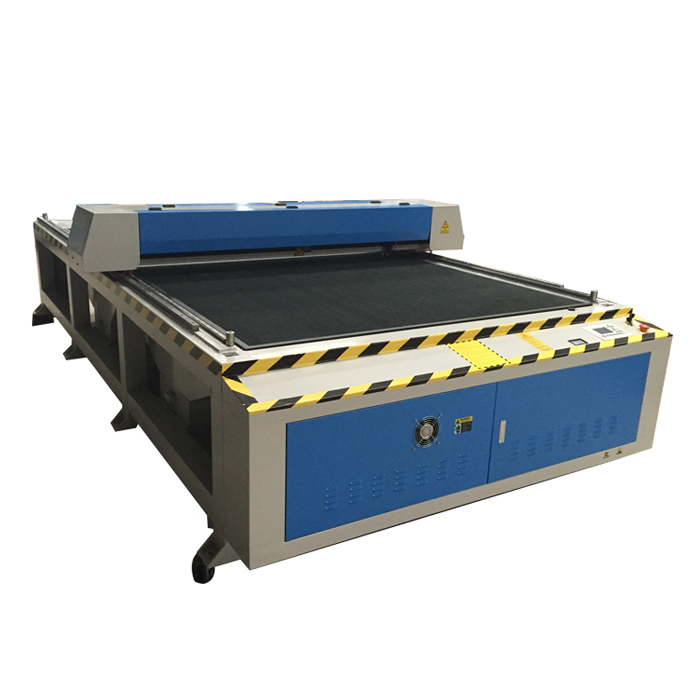

Remax 1630 CNC laser cutting machine

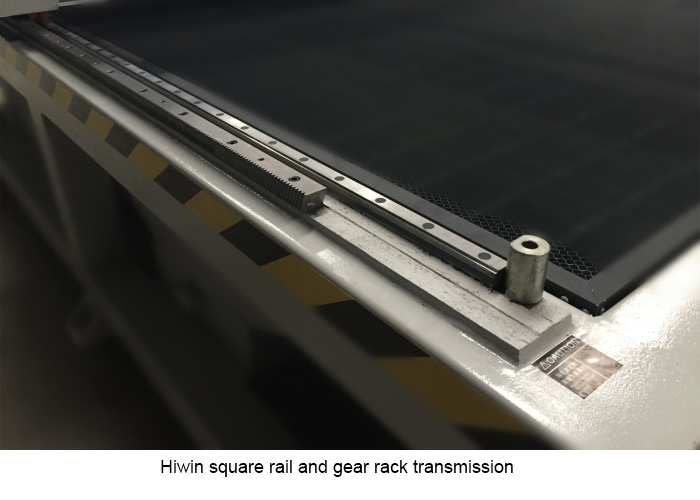

1) working area:1600*3000mm, could be changed and designed by our professional design team 2) internationally advanced accessories: Taiwan square linear rails, high quality stepper motor, focus lens, 3)Equipped with the RECI laser tube, the service life

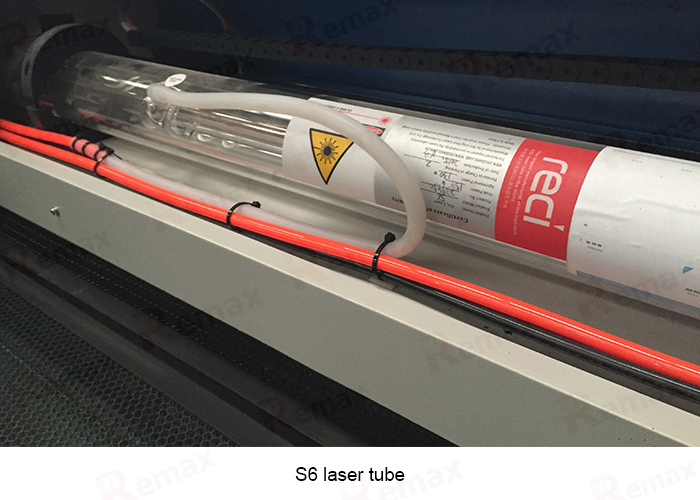

Remax 1630 CNC laser cutting machine

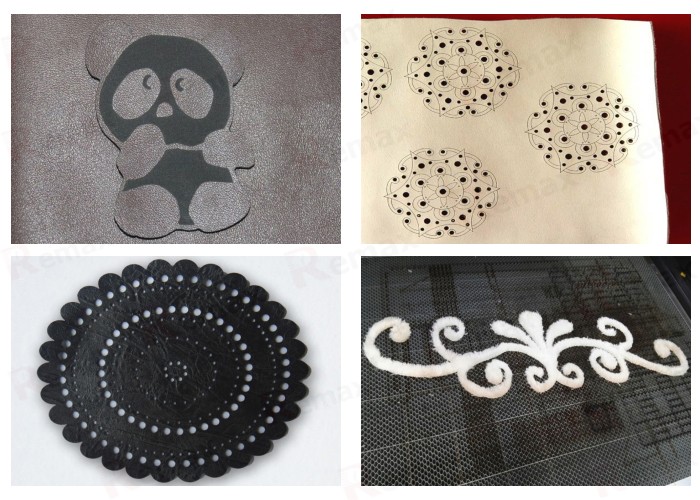

Leather laser cutting machine is a kind of laser engraving machine system equipped with Co2 laser tube,

it is mainly used to engrave on leather,it also can process acrylic, PVC, rubber sheet, plastic, crystal, glass,

wood, bamboo, oxhorn, figuline,marble, cloth, double-color board, etc. nonmetal materials.

1. Lens and mirror imported from Singapore

2.Transmit files directly from CorelDraw, AutoCAD, USB 2.0 interace output with high speed supports offline operation.

3.Summary of operation of the power cut-off point during power-up.

Product model	Remax-1630 Leather laser cutting machine
Working area	1600x3000mm
Laser Types	CO2 Laser
Laser power	60W/80W/100W/150W/180W/260W
Engraving speed	0-60,000mm/min
Cutting speed	0-40,000mm/min
Location precision	≤+0.01mm
Resetting positioning accuracy	≤+0.01mm
Highest Scanning Precision	4000DPI
Power supply	AC110V/220V+10%, 50HZ/60HZ
Gross power	<1,500W
Minimum shapes	Chinese: 2.0mm2.0mm, English Letter:1.0mm1.0mm
Driving system	Stepper
Cooling mode	Water-cooling and protection system

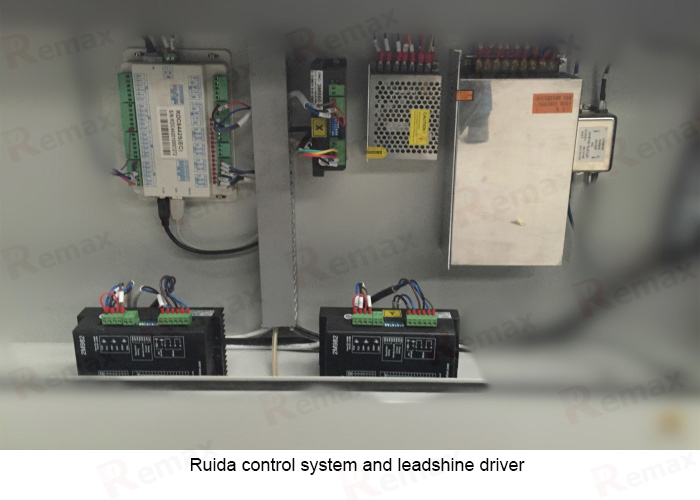

Control system	Ruida
Graphic format supported	BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc.
Compatible Software	CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.
Working Environment	Temperature:0-45C, Humidity 5-95%(No Condensate Water)

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
