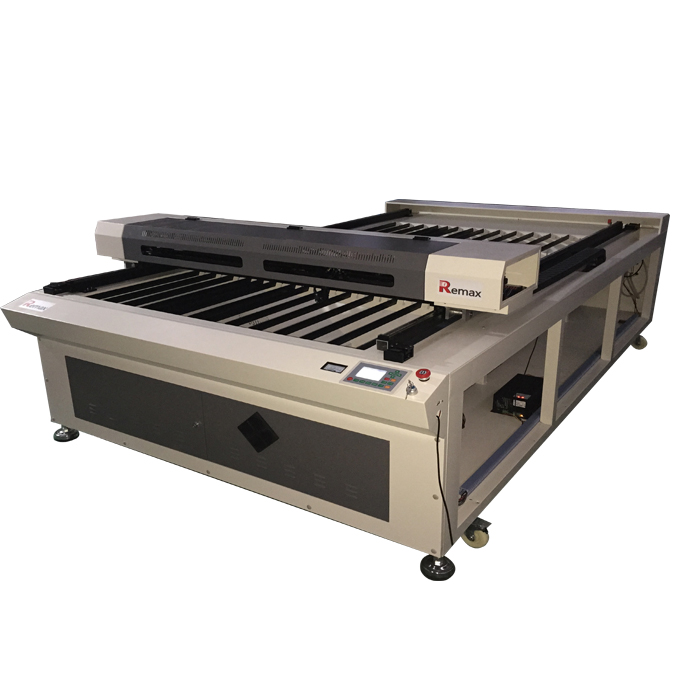

Remax 1325 cnc laser cutting machine

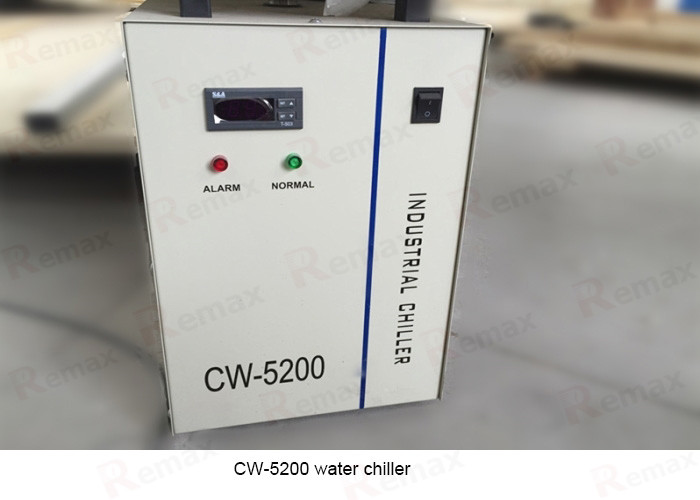

1. The slit of laser cutting is narrow, the deformation of workpiece is small, and it has extensive adaptability and flexibility. 2.Our 1300*2500mm laser cutter adopt cw5200 water chiller,the refrigerating capacity reaches 1400 w, the volume is small, th

Remax 1325 cnc laser cutting machine

1. Mainly used in large plastic character cutting,color plate engraving and cutting,sign engraving,

crystal engraving,trophy engraving,authorzation engraving etc.

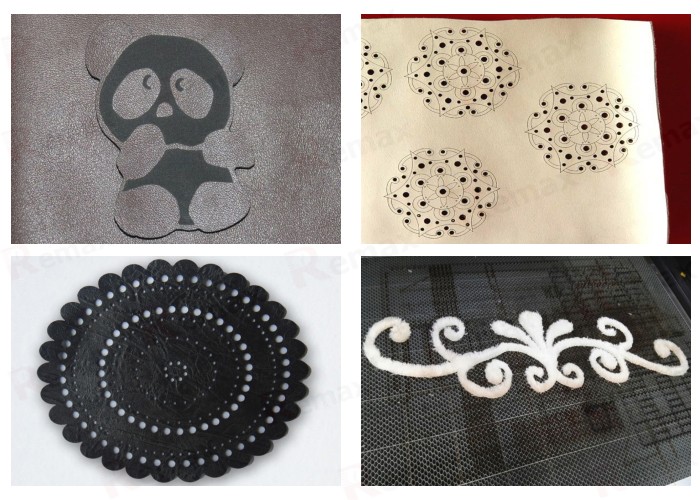

2. Leather clothing processing industry:can engraving and cutting complex patterns on genuine synthetic

leather,woolens,clothing ,furnishing,glove,handbag,model and Aircraft Model,etc.

3. Model industry:production of construction sand table model and Aircraft Model,etc.ABC plate cutting,MLB cutting.

4. Packing industry:Engraving and printing rubber plate,plastic plate,duble board,die cut paper,etc.

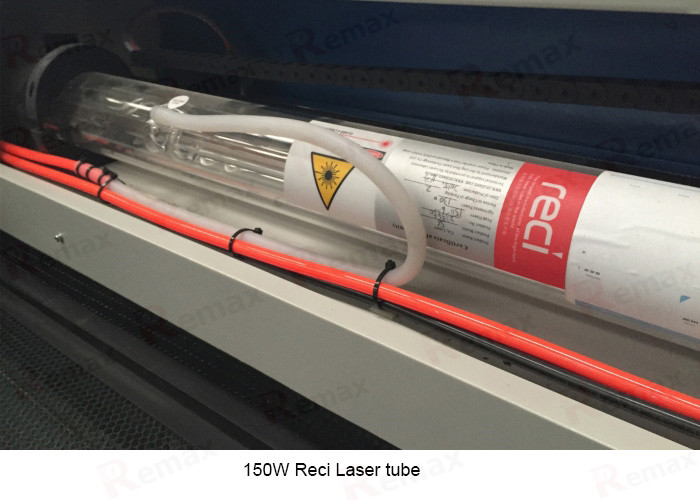

1) Machine use RECI laser tube, working life is 10000 hours.

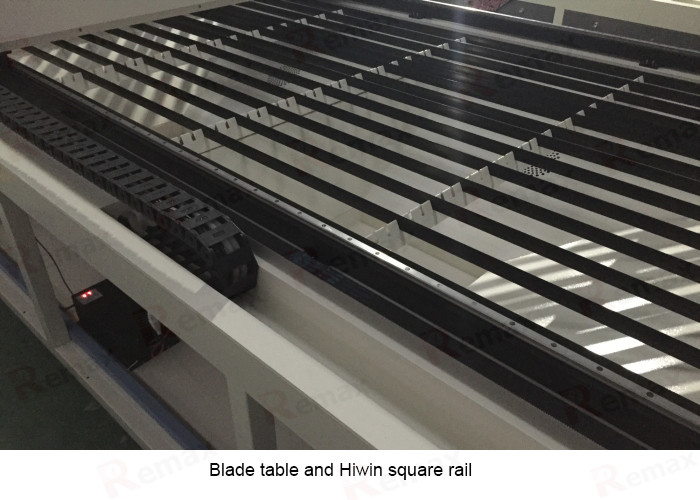

2) Ruida or Leetro control system, Hiwin square rails and high quality belt transmission.

3) USB interface can support data transmitting to be quickly finished.

4) Lens and mirror imported from Singapore

5) Transmit files directly from CorelDraw, AutoCAD, high-speed USB2.0 interace output can support off-line working.

6) Working resume from power break point when power on.

7) Electrical drive up-down table, rotary device, red dot spot,vacuum, etc are to option.

Machine Description	1325 laser cutter machine
Working area	1300*2500mm
Laser-type	Hermetic and detached CO2 laser tube
Laser-power	150w (100w/130w/260w for option)
Cooling Mode	Circulating-water-cooling
Power Adjustment	0-100% controlling, no segment and adjusting by software
Machine Control and Drive	Speedy DSP controlling, stepper motor
Engraving Speed	60m/min
Cutting Speed	50m/min
Repeating Location	0.01mm
Minimum Character	Chinese character 1.5mm, crisscross-row 1mm
Power	750W
Adjustable Up-down Distance of Laser Head	30mm
Up-down Range of Working Table	Mechanical 400mm
Working Voltage	AC220V 50/60Hz
Working Environment	Temperature: 0-45, Humidity: 5%-95%, and congeal- water removed
Controlling Software Language	English, Simplified Chinese, Traditional Chineseand procuring of multi-languages
Dictate Format	.plt,.dst,.dxf,.bmp,.dwg,.al,las, Support AutoCAD, CorelDraw,direct outputting
Applicable material	Acrylic, PVC,crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood etc.

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

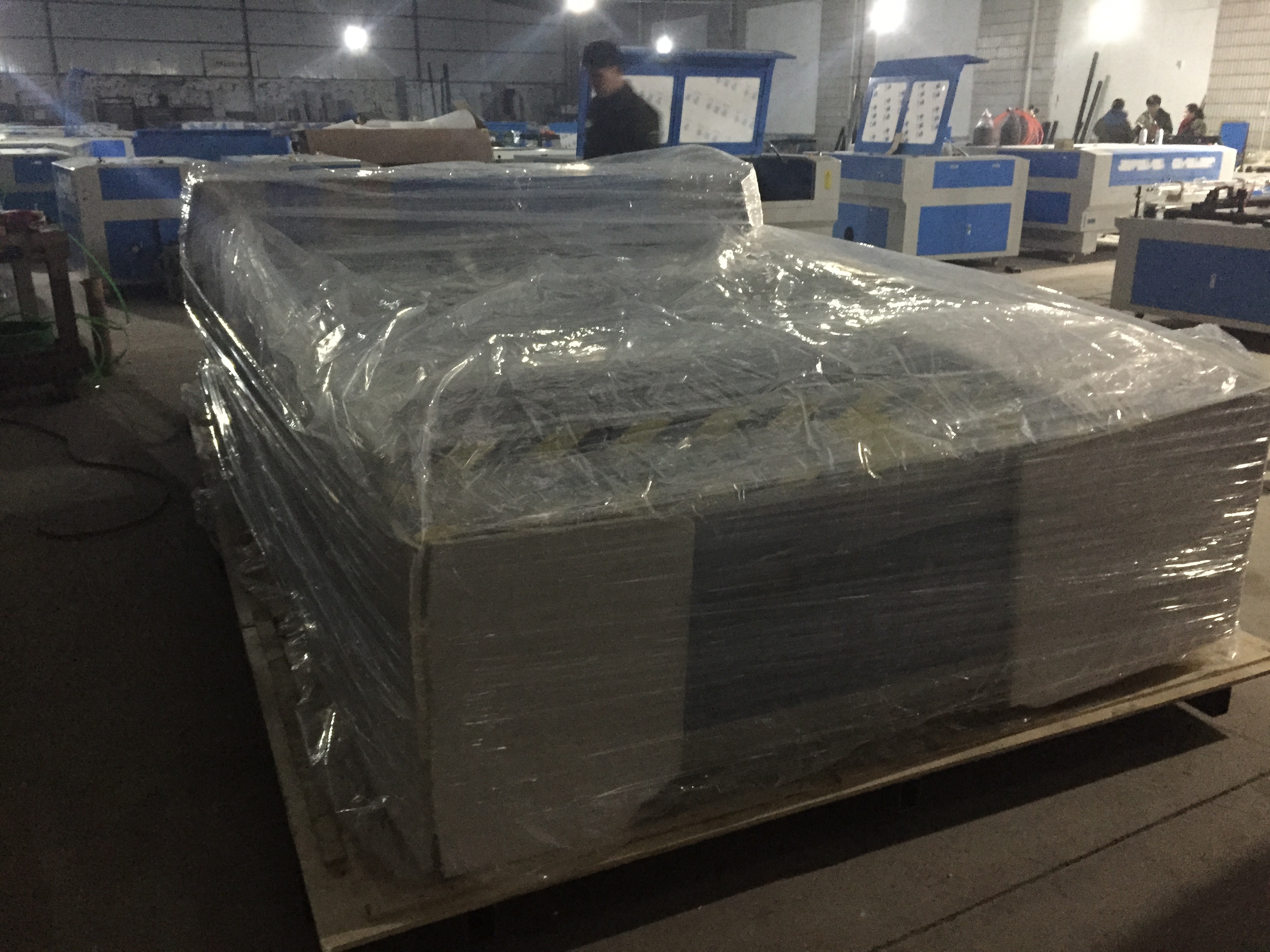

And 100% quality check before shipping.

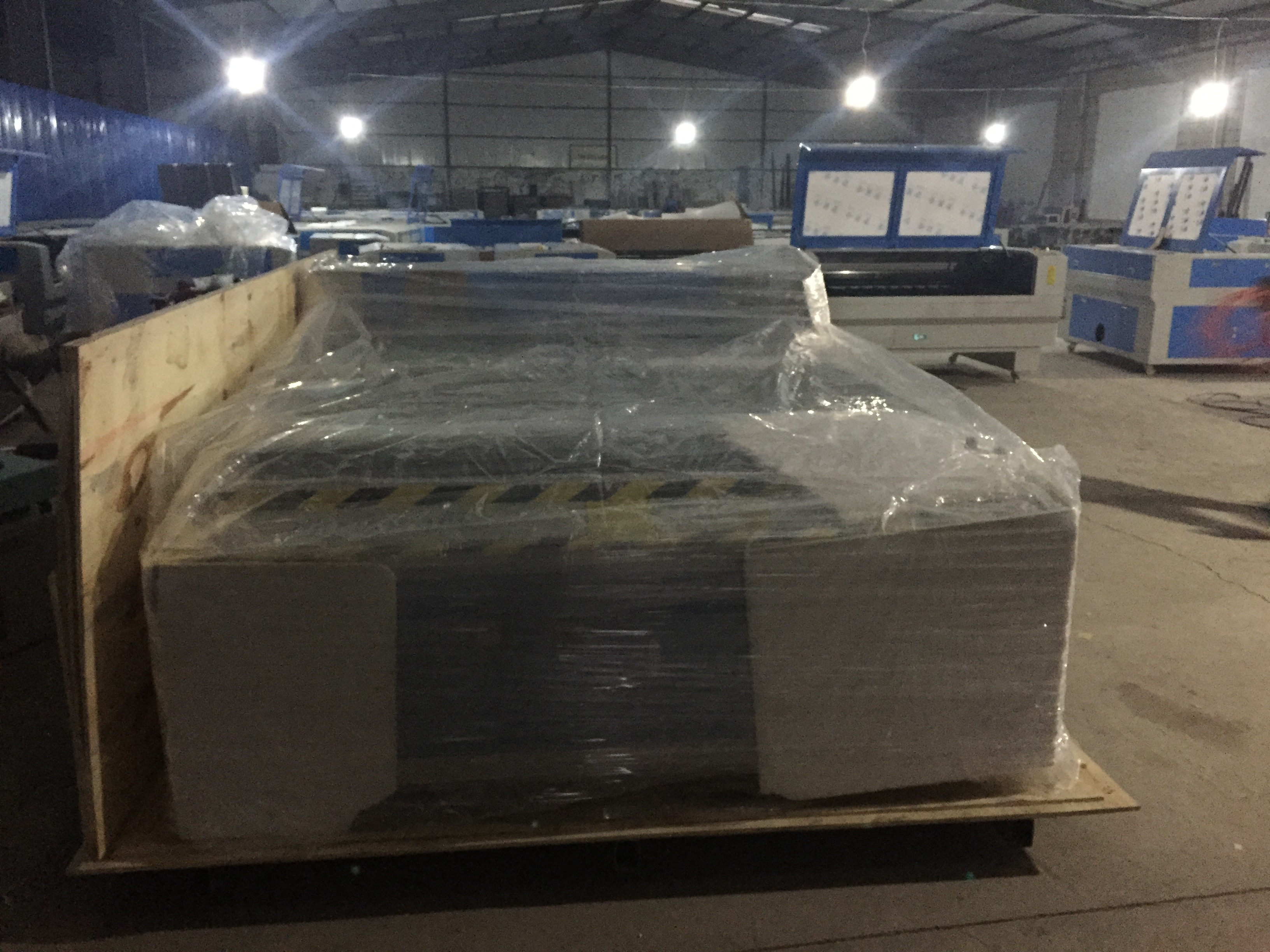

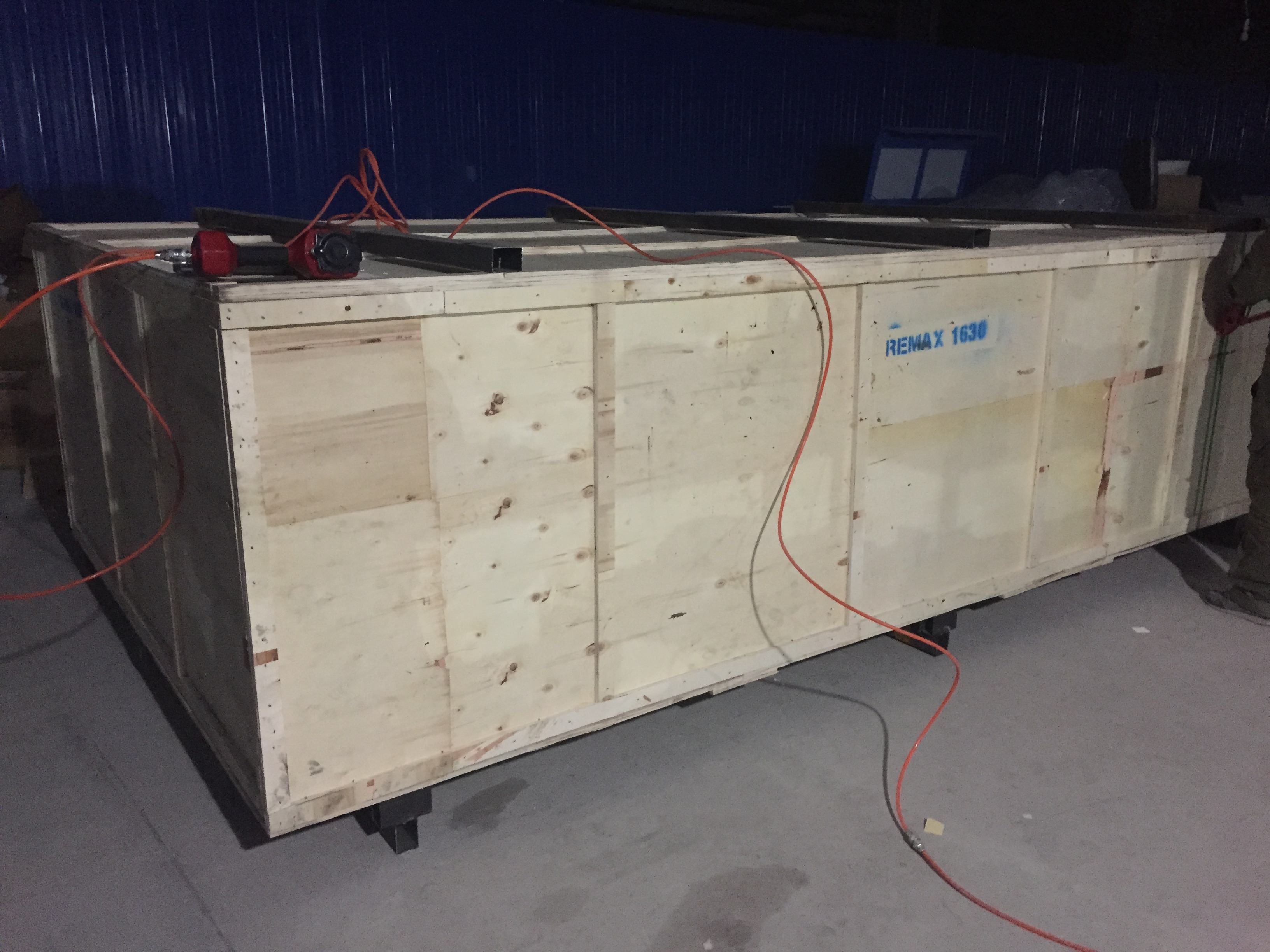

6. Send your order by air or by sea.
