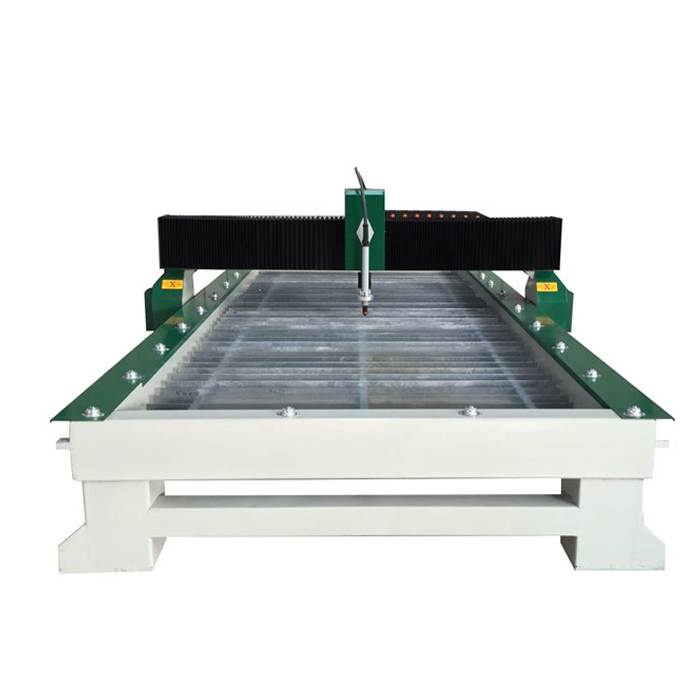

1530 Havc Plasma Cutting Machine on sale

HVAC CNC Plasma Cutting Machine 1. This Metal Plate 2. Thickness Within 8mm 3. Suitable for ventilation pipe production

1530 Havc Plasma Cutting Machine Application:

Havc plasma cutting machine mainly process thin metal sheet,sample like air dust tube,Ventilation duct by using Huayuan 63A or Hypertherm 45A plasma power.

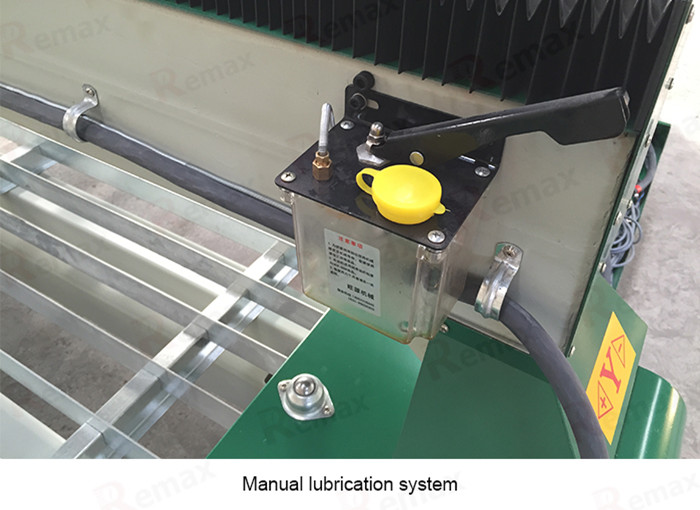

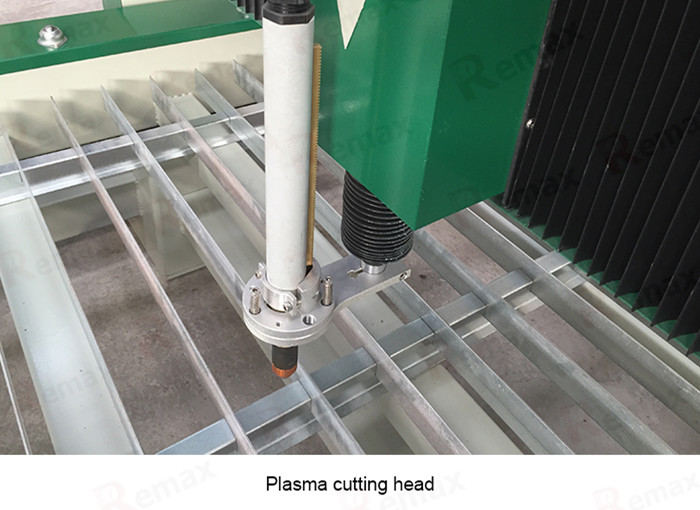

1530 Havc Plasma Cutting Machine Parts

1530 Havc Plasma Cutting Machine Feature:

1. Fully welded structure, Y axis and X axis are with racks and linear guides, Z axis is with automatic electric lifting device, to ensure cutting speed and quality.

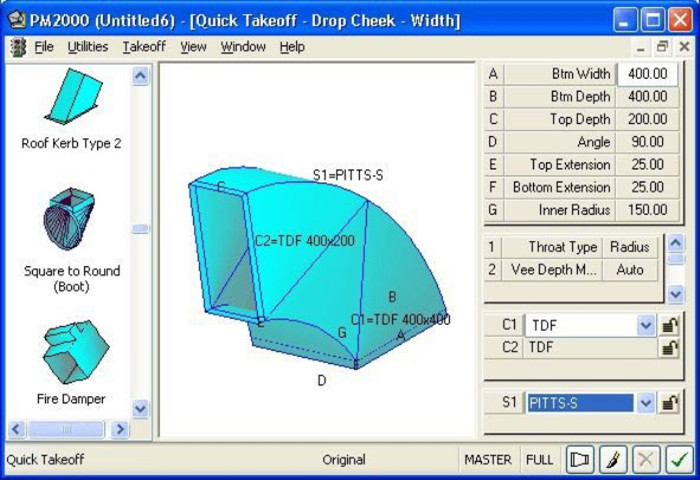

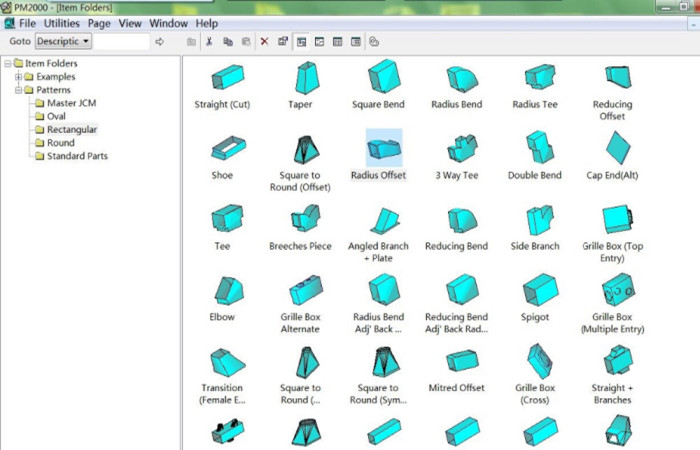

2. The installation is very simple, all types of CAD graphics can be read directly by our system via the USB key. The software can be edited automatically.

1530 Havc Plasma Cutting Machine Parameter:

model	Remax-1530 havc plasma cutting machine
Working Area	1500×3000mm
Power	8.5KW-10.5KW
Working Voltage	3-PHASE 380V /60HZ
Cutting Speed	0-15m/min
Free Running Speed	0-50m/min
Cutting Thickness	1-8mm(Huayuan 63A)
1-5mm(Hypertherm 45A)	Plasma Current
China power supply	USA Hypertherm Power Supply
Transmission	X Y High PrecisionHelical rack; Z Axis High Accuracy ball screw; XYZ Linear Square Rails
Working Mode	Untouched Arc Striking
Command Code	G code(uoo,nc,mmg, plt)
Motor Driver	Servo motor / Stepper Motor Driver
Interface	U disk or USB line
Working Accuracy	<0.03mm
Running circumstance	Temperature: 0~45 Relative humidity: 30%~75%

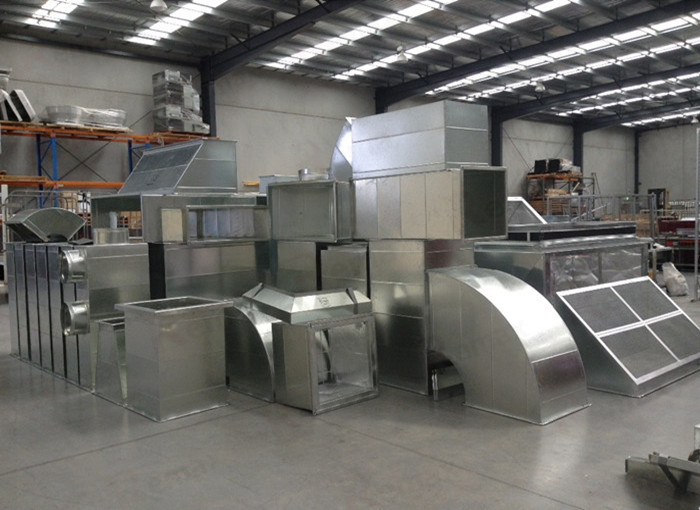

1530 Havc Plasma Cutting Machine Sample:

1530 Havc Plasma Cutting Machine Services:

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
