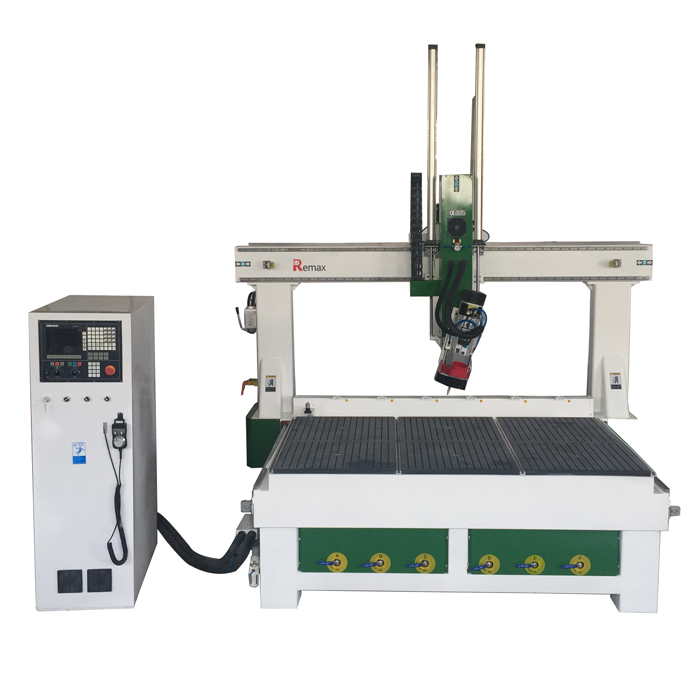

4 Axis CNC Router Engraver Machine for 3D Engraving

1.The spindle with air cooling spindle can move at least 180degree, so process some kind of chair seat, Chair backrest, and some other industry mold. 2.We can make the machine z-axis higher, to suitable for kind of high height requirement. so when custom

4 Axis CNC Router Engraver Machine for 3D Engraving

4 Axis CNC Router Machine Application

Remax 4 Axis CNC Machine used for making kind of mold, like wood, metal, plastic, foam etc.

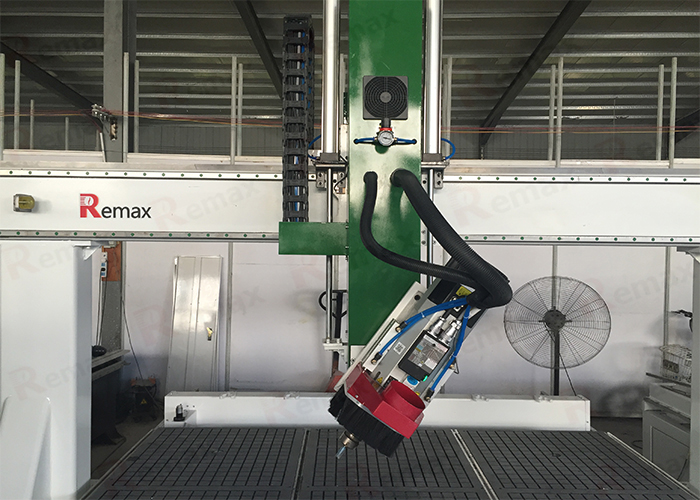

It can engraving and cutting with 180 degree moving spindle.

4 Axis CNC Machine widely used for funiture, boat, kind of mold industry.

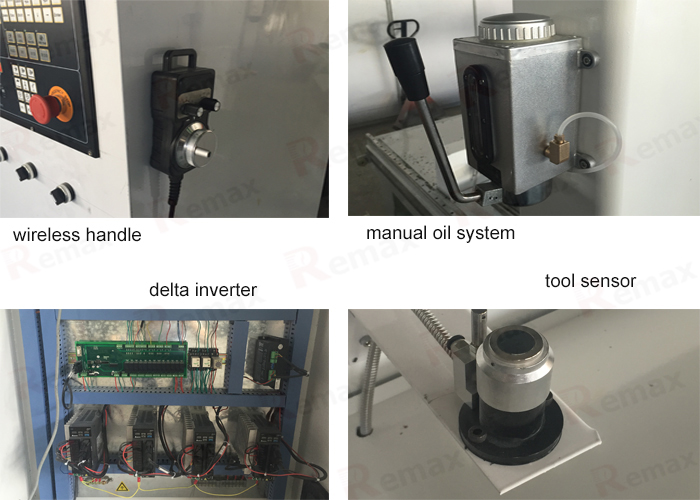

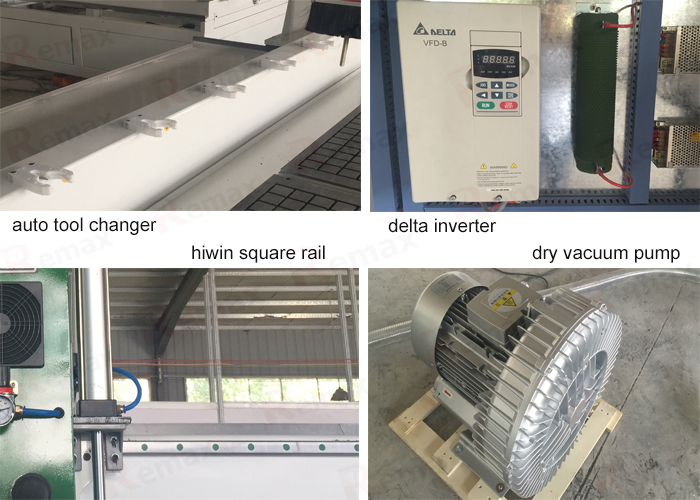

4 Axis CNC Machine Parts

4 Axis CNC Router Engraver Machine Parameter

Items	Parameter
X,Y,Z Aworking Area	1300x2500x400mm ±90°
Table Size	2940x1490mm
X,Y,Z Traveling Positioning Accuracy	±0.03/400mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	Integrated Vacuum and T-slot Combined (Option:T-slot Table)
Frame	Precision machine & heavy duty frame (stress-relieved), one-piece steel base
X,Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearing and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 4.5kw
Max.Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
Spindle Power	HQD/HSD 9.0KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	Delta or Japan Yaskawa servo Motors
Working Voltage	AC380V/50/60Hz, 3PH / 1 phase 220V 50/60hz
Command Language	G Code

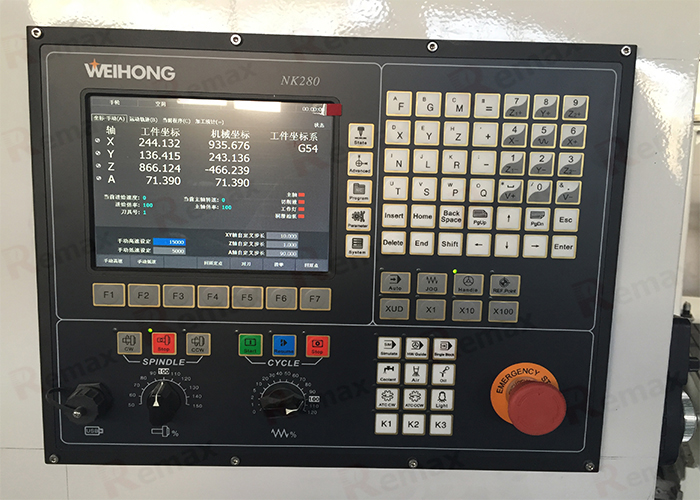

Operating System	WeiHong or Syntec EZ-4M Control System
Computer Interface	CF card, Ethernet
Flash Memory	256M
Tool holder	HSK F63
X,Y Resolution	<0.03mm
Software Compatibility	Type3, Ucancam V9 software (UG software / Power mill)
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Packing Size	3400x3500x2800mm
N.W.	2600KG
G.W.	2800KG
Optional Parts	Lucbricating system
	Vacuum Pump
	Mist-cooling System
	Positioning air cylinder

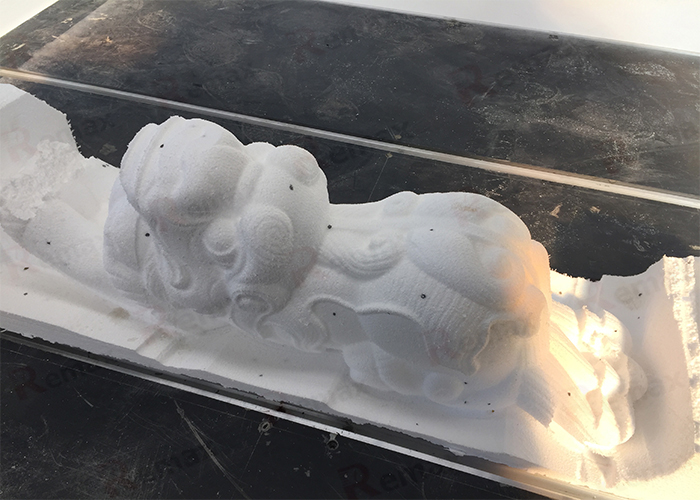

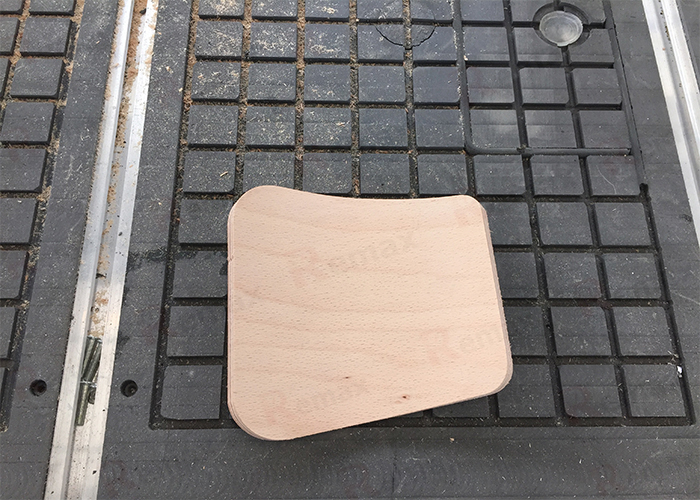

4 Axis CNC Router Engraver Machine Sample

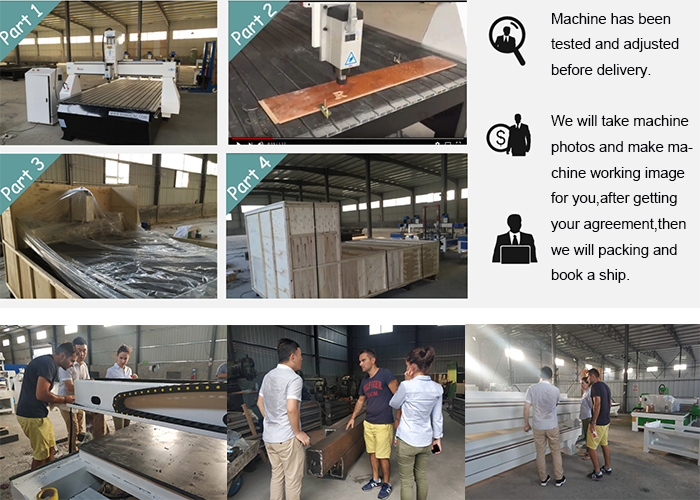

Remax CNC Router Services

Q: This is the first time I use this kind of machine, is it easy to operate?

A: There are english manual or teaching video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager

online service at any time.

Q: If machine have any problem after I receive it, how can I do ?

A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?

A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)

A: 1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.
