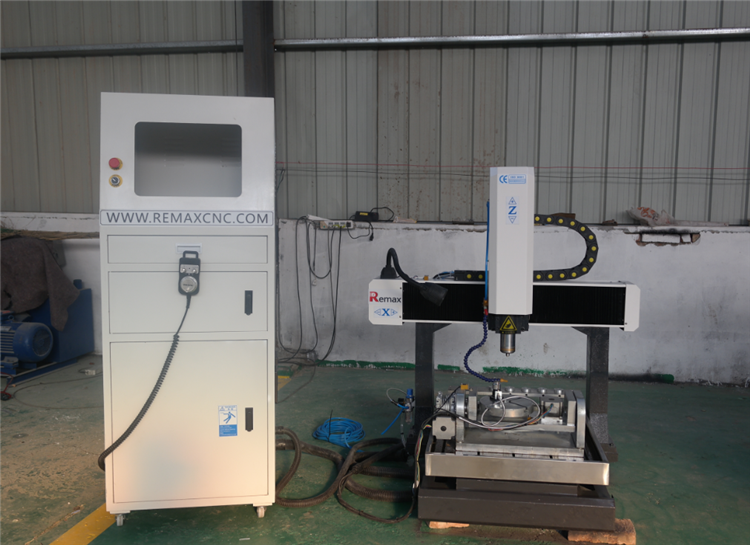

Remax 3040 mini 5 axis cnc milling machine with ATC

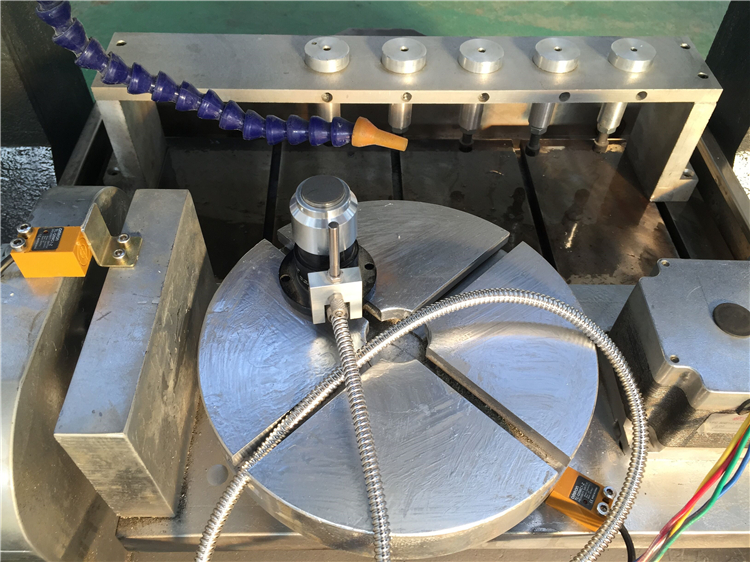

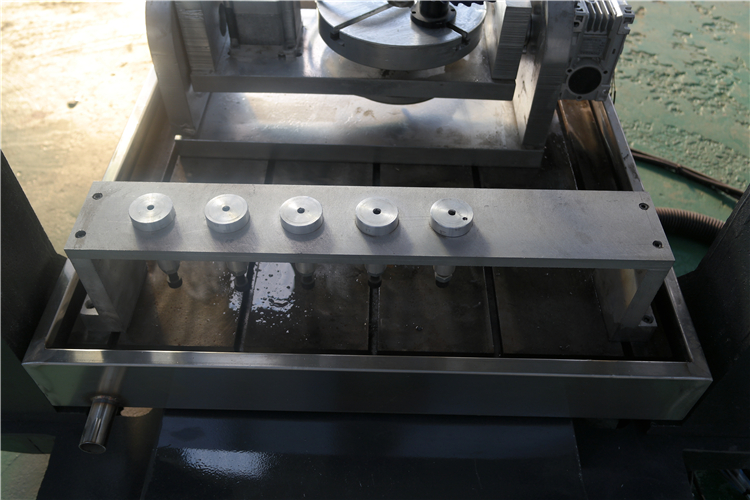

1. Equipped with 5 axis automatic tool changer , reduce tool change time, improve work efficiency 2. Whole machine by cast iron , grooved aluminum table, never deformation, ideal for machining metal or stone 3. Stepper motor or servo motor for option

Remax 3040 mini 5 axis cnc milling machine with ATC

Application:

1)Whole machine cast by iron, very strong and never out of shape

2)Leadshine driver and motor, Schneider electrical parts

3)TBI ball screw transmission ensures high accuracy

4)Imported square rail ensures high accuracy and heavy workload

5)Five axis NC Studio control system, easy cooperation

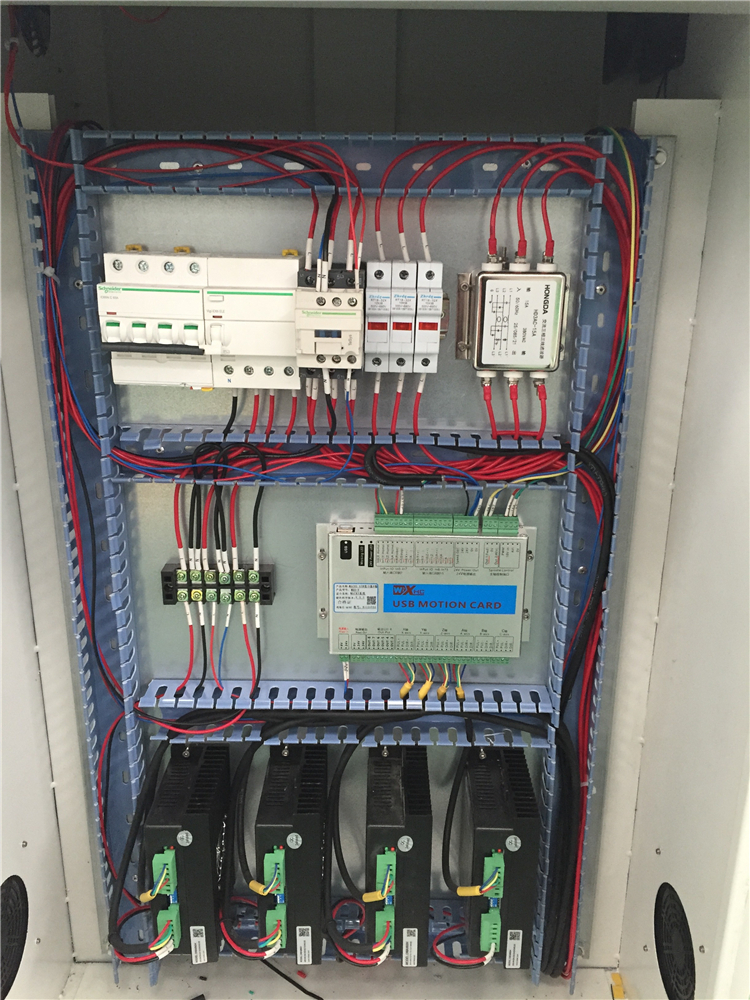

Main parts:

Parameters:

NO.	Description	Parameter
1	X,Y,Z Working Area	300x400x150mm
2	X,Y,Z Accuracy	±0.02mm
3	X,Y,Z Repositioning Accuracy	±0.0254mm
4	Table Surface	T-slot Table
5	Frame	whole machine cast by iron
6	Transmission	Hiwin square rail and TBI ball screw for 3 axis
7	Max. Power Consumption	2.5kw~3Kw (without spindle)
8	Max. Rapid Travel Rate	15000mm/min
9	Max. Working Speed	8000mm/min
10	Spindle Power	ATC 2.2kw water cooling
11	Spindle Speed	0-24000RPM
12	Driver and Motor	Leadshine and Stepper Motor
13	Working Voltage	220/380V 50/60Hz
14	Command Language	G Code
15	Operating System	5 axis NC Studio
16	Computer Interface	USB
17	Running Environment Temperature	0 - 45 Centigrade
18	Relative Humidity	30% - 75%

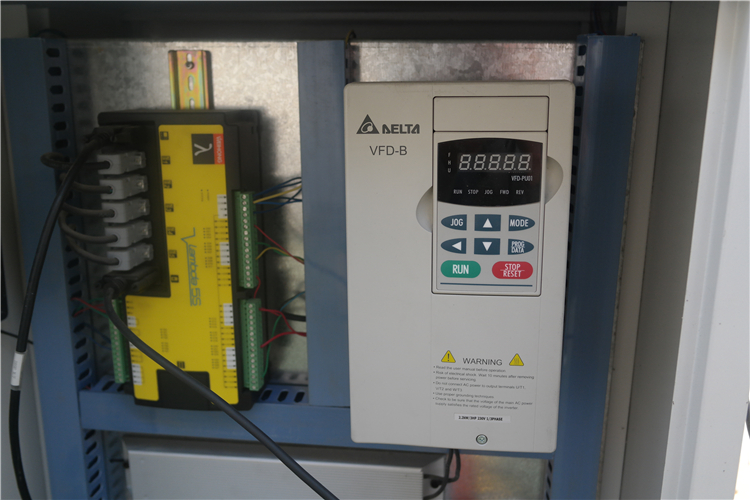

19	Inverter	Delta
20	Electrical components	Schneider
21	Limit switch	OMRON
22	Tool sensor and lubrication	With

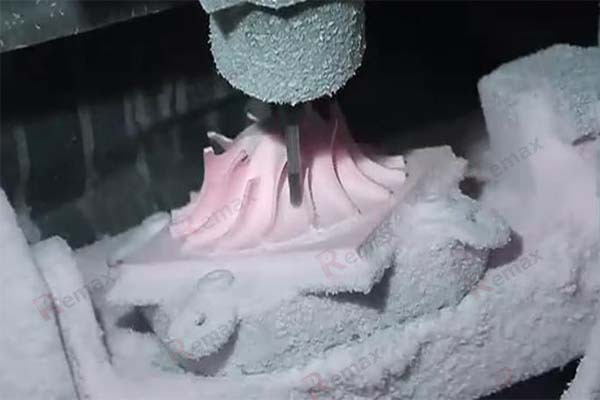

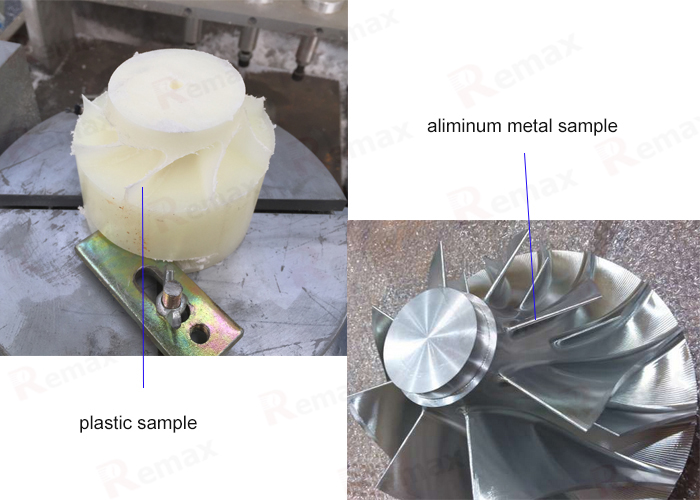

Samples:

Remax CNC Service:

A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
