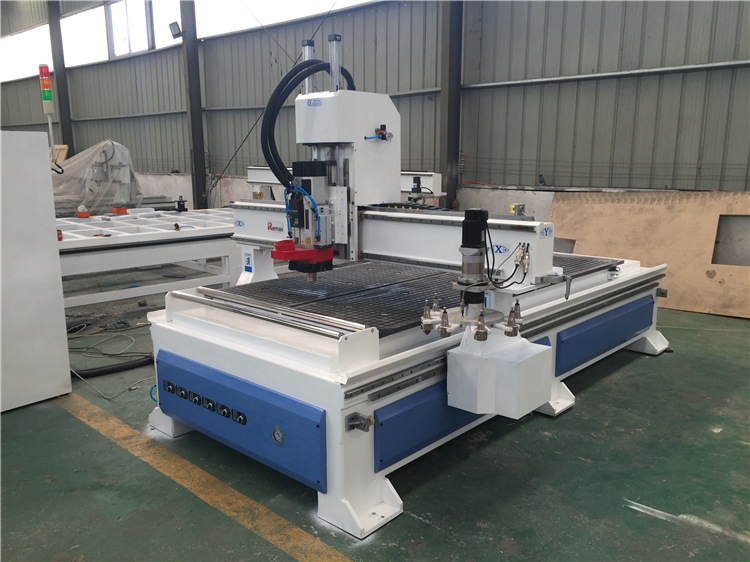

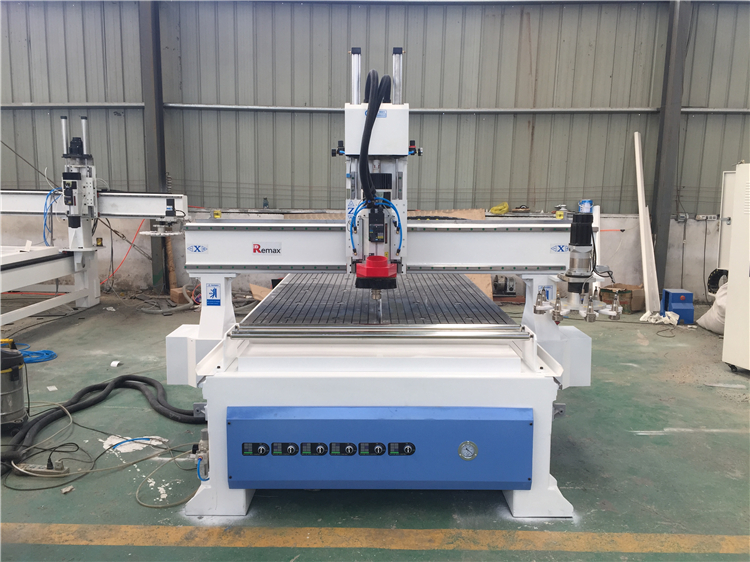

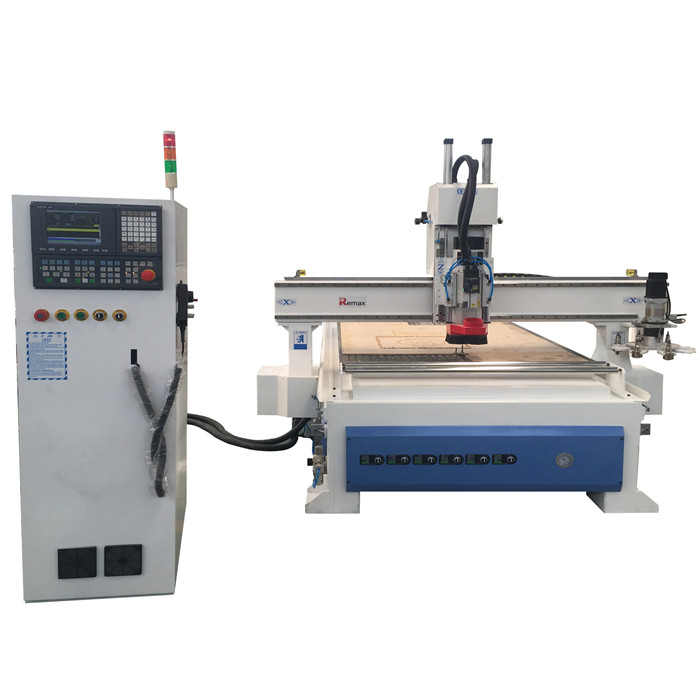

Remax 1325 CNC Router machine with Disc ATC

1325 cnc router machine is used in the wood industry and advertising industry, Suitable for processing wooden furniture, aluminum alloys, sign making, acrylic engraving and cutting, crystal word making, blaster molding,Wave plate, fine pattern, etc.

Remax 1325 CNC Router machine with Disc ATC

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding,

and other advertising materials derivatives making.

Signage; Logo; Badges; Display board; Meeting sign board; Billboard, Doors; Cabinets; Tables; Chairs.

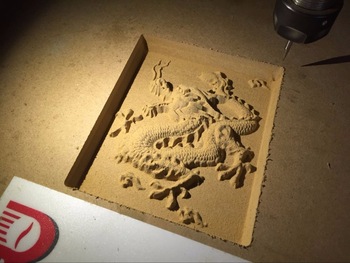

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,

cupboard doors, interior doors, sofa legs, headboards and so on.

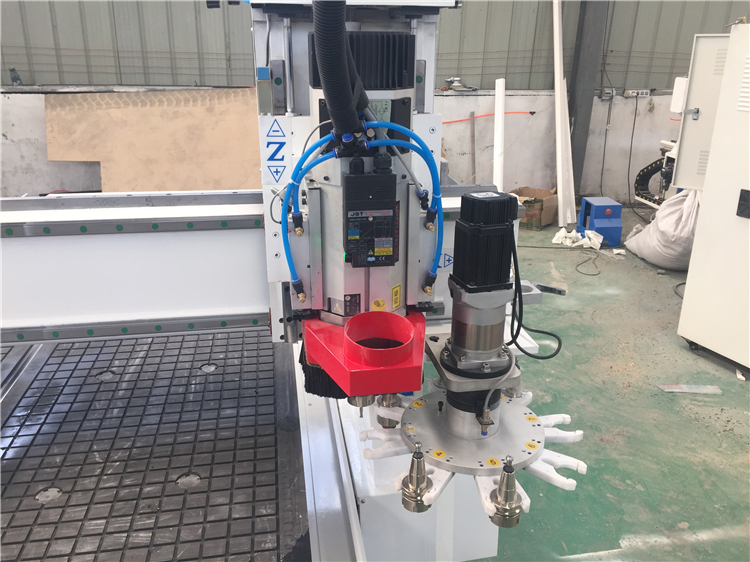

Disc type ATC

HSD 9KW air cooling spindle

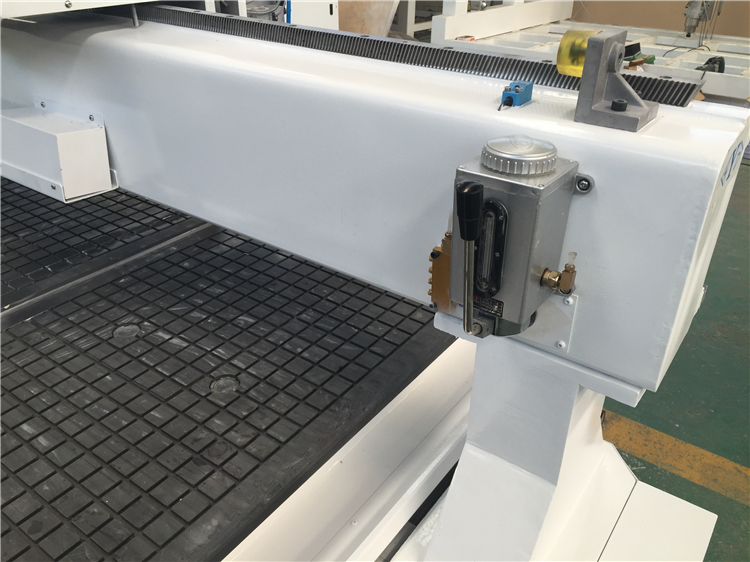

Manual lubrication

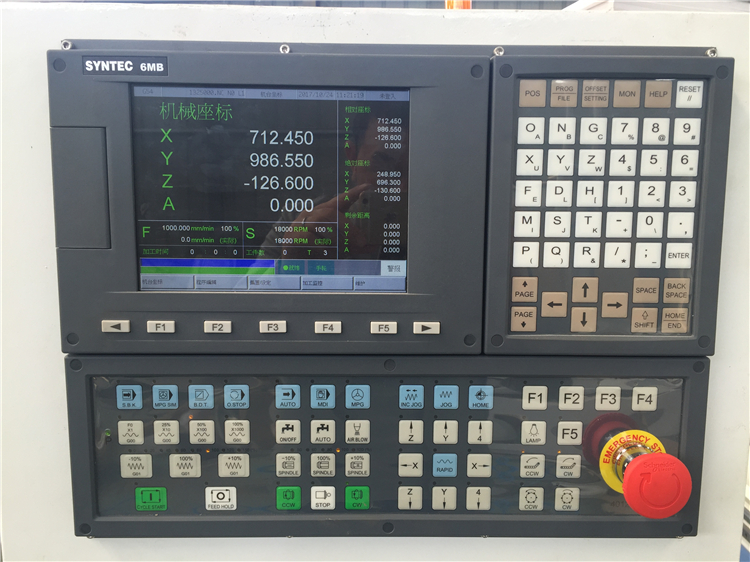

SYNTEC control system

1. This machine is suit for diverse complexity products processing,wide functions:engraving

and milling drilling ,cutting,side milling ,chamfering edge and so on.

2. All mechanical,electrical components adopts international top brand products,

such as Germany vacuum system and drive system,servo drive system from Japan,Italy imported spindle.

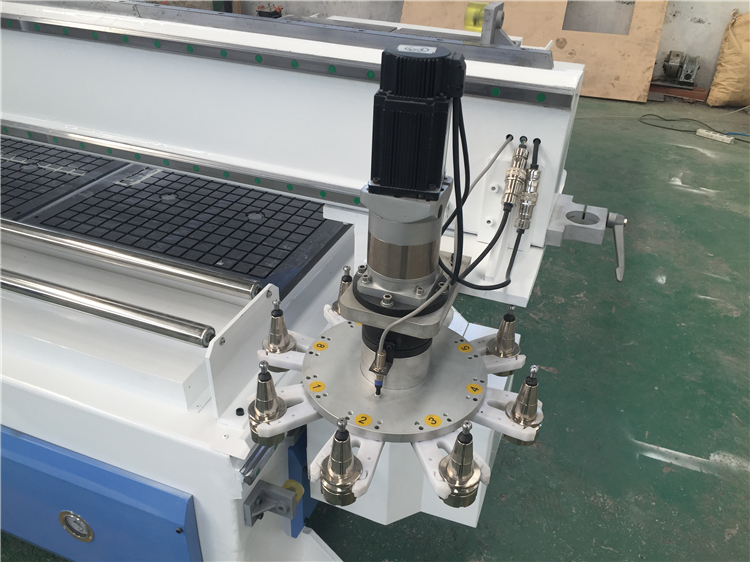

3. Disc type atc system,tool changer capacity is 8 pieces,changing time just need 8 second.

Description	Parameter
X,Y,Z Working Area	1300X2500X200mm
Table Size	1440X3040mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Positioning Accuracy	±0.05mm
Lathe Structure	Welded Structure
X, Y Structure	Hiwin or PMI square guide rails and rack gear transmission
Z Structure	Hiwin or PMI square guide rails and Ball Screw
Max.Consume power	20KW
Max.Speed	0-60000mm/min
Max.Working Speed	0-25000mm/min
Spindle Power Motor	9KW HSD Spindle ATC or Chinese spindle
Spindle Speed	0-24000RPM
Motor and driver	Yaskawa servo motor and driver
Working Voltage	AC380V/50/60Hz , 3PH
Command	G Code, uoo, mmg, *plt
Operating System	SYNTEC System
Interface	Internet line
Flash Memory	512M
Collet	ER32
X,Y Working Delicacy	<0.01mm
Software	Type3 software, Wentai software,Artcam software
Running circumstance	Temperature: 0°C~45°C, Relative humidity: 30%~75%

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
