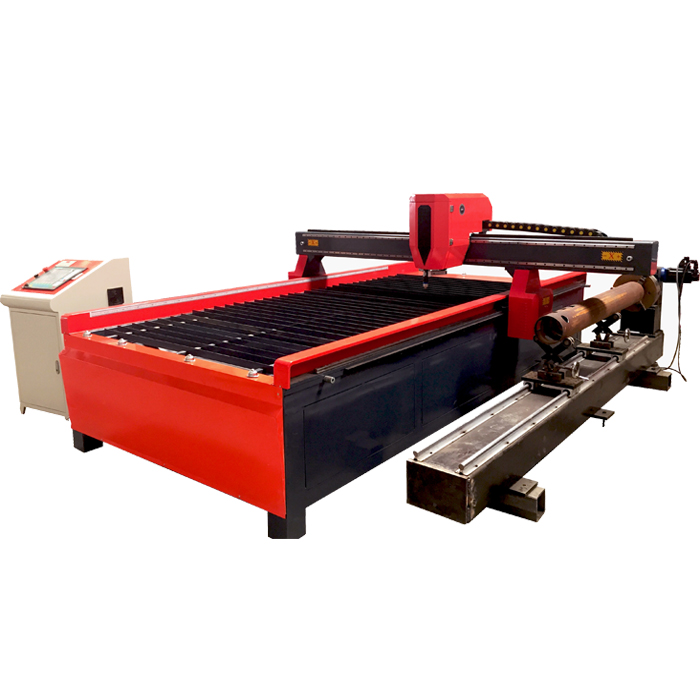

Remax-1530 Plasma Tube CNC Pipe Cutting Machine

1. CNC Plasma Tube Cutting Machine used for cutting plate and pipe steel. 2. Tube Plasma Cutting Machine can also make with gantry type, it can make more big size. 3. Plasma cutting with flame /gas cutti

Remax-1530 Plasma Tube CNC Pipe Cutting Machine

Remax-1530 Plasma Tube CNC Pipe Cutting Machine Application

Plasma Cutting Machine used for cutting steel, iron, aluminum kind of metal, with high cutting efficiency and speed. widely used for heavy industry.

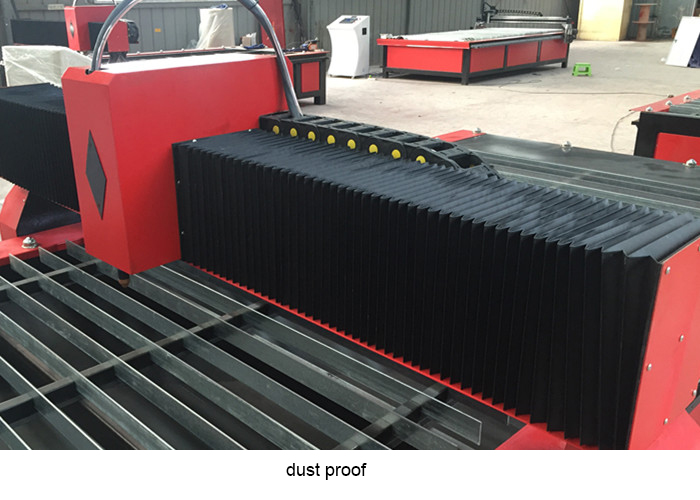

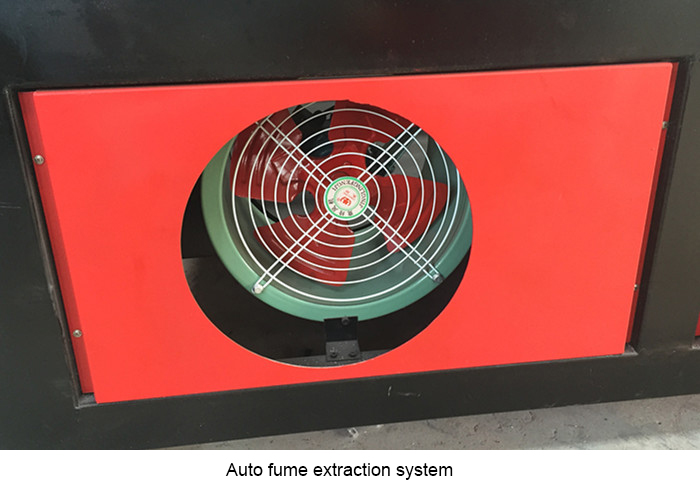

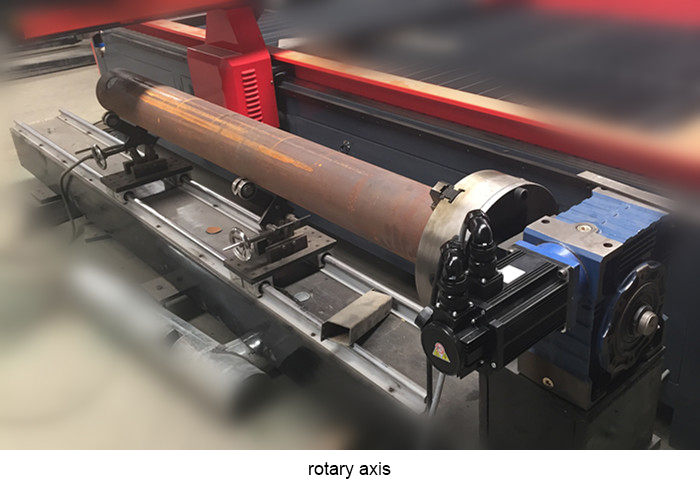

Remax-1530 Plasma Tube CNC Pipe Cutting Machine Parts

Remax-1530 Plasma Tube CNC Pipe Cutting Machine Parameter

Model	Remax-1530 Plasma Tube CNC Pipe Cutting Machine
Effective Cutting Width (X Axis)	1500mm
Effective Cutting Length (Y Axis)	3000mm

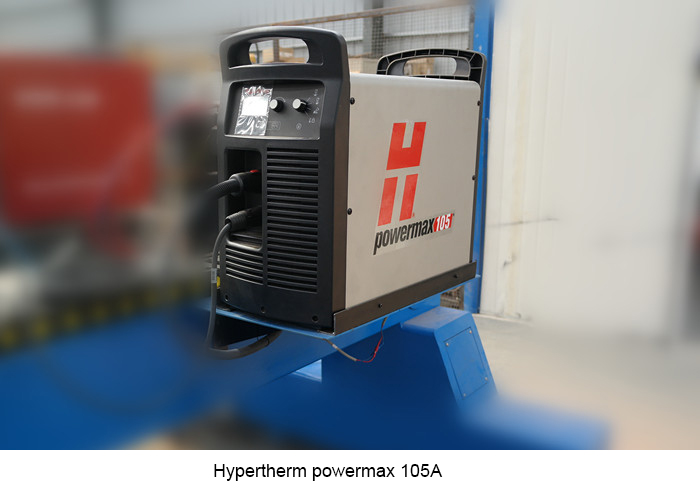

Plasma Power	Hypertherm 105A
Drive Mode	Bilateral-side

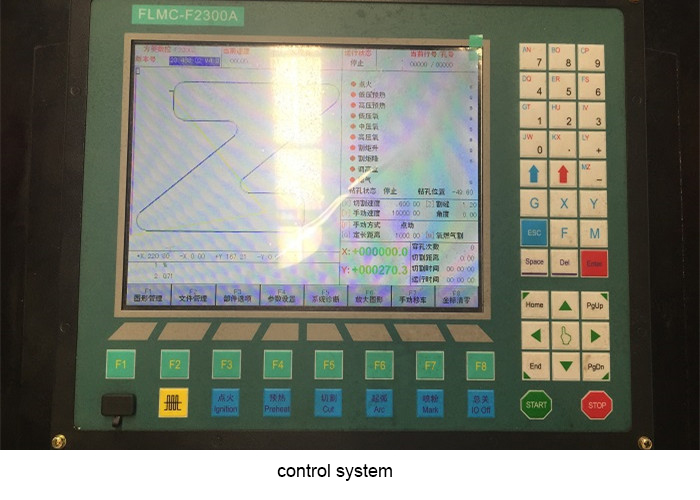

CNC System	FLMC-2300
Plasma cutting speed	50-6500 mm/min
Cutting torch lifting distance	150mm
Speed setting error	≤±5%
Max Idle running speed	12000mm/min
Torch height controller accuracy	≤±1.0mm
Longitudinal line accuracy	±0.2mm/10m
Motor and driver	stepper motor and driver
Gearbox	Hubei planet
Drive Method	Rack and square ralls for X Y Z axis
Moving precision	0.01mm per step
Power Source	380V 50/60Hz 3 phase
Height controller (plasma)	HYD THC
Plasma cutting thickness	1-32mm
length of a side	±0.5mm
Diagonal error \|AD-BC\|	±0.5mm
Base point return error	±0.2mm
Intersection point error	±0.5mm
Lineation forward-reverse error	±0.2mm

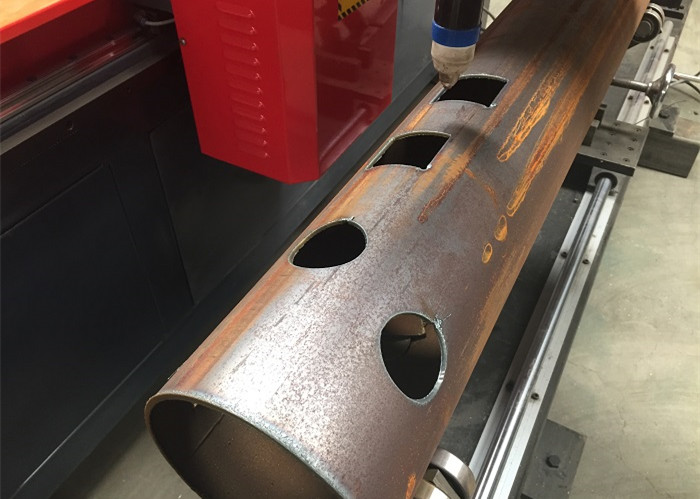

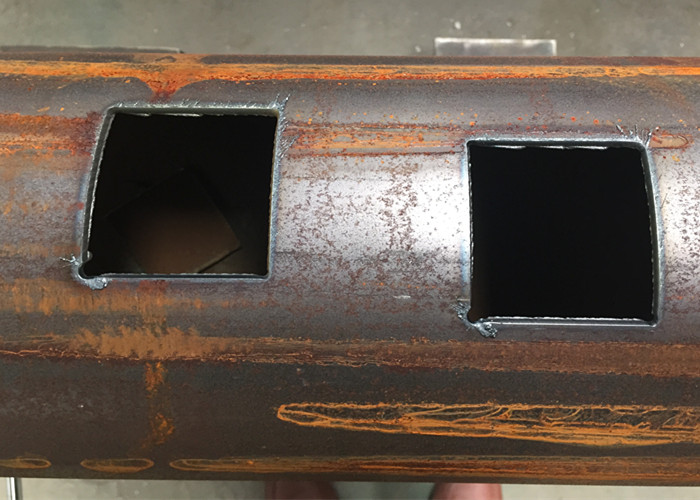

Remax-1530 Plasma Tube CNC Pipe Cutting Machine Sample

Remax-1530 Plasma Tube CNC Pipe Cutting Machine Services

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
