Remax-3050 Gantry Plasma Cutting Machine for Sale

Plasma cutting machine used for cutting stainless steel, mild steel, iron, aluminum, widely for furniture, heavy industry line.

1.Gantry plasma cutting machine used steel welded structure, Y,X axis with hiwin square rail, rack transmission.

2.Plasma cutting machine used U-disk interface and cutting code auto converting

software for CAD drawing, CAD drawing can be input directly into the cutter through U-disk.

Model	Remax-3050
Effective Cutting Width (X axis)	2000mm
Effective Cutting Length (Y axis)	3000mm

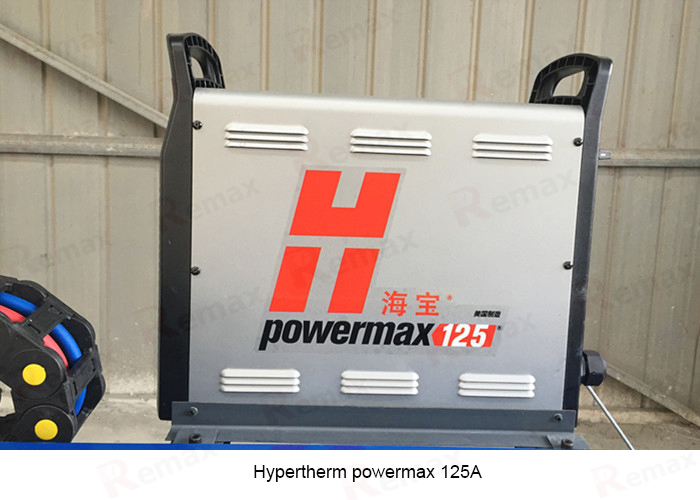

Plasma power	hypertherm 125A
Drive Mode	Bilateral-side

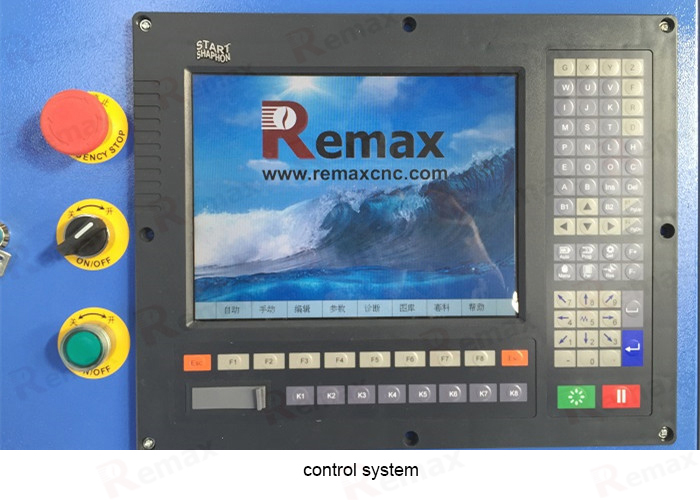

CNC system	Beijing START CNC
Plasma cutting speed	50-6500 mm/min
Cutting torch lifting distance	150mm
Speed setting error	≤±5%
Max Idle running speed	12000mm/min
Torch height controller accuracy	≤±1.0mm
Longitudinal line accuracy	±0.2mm/10m

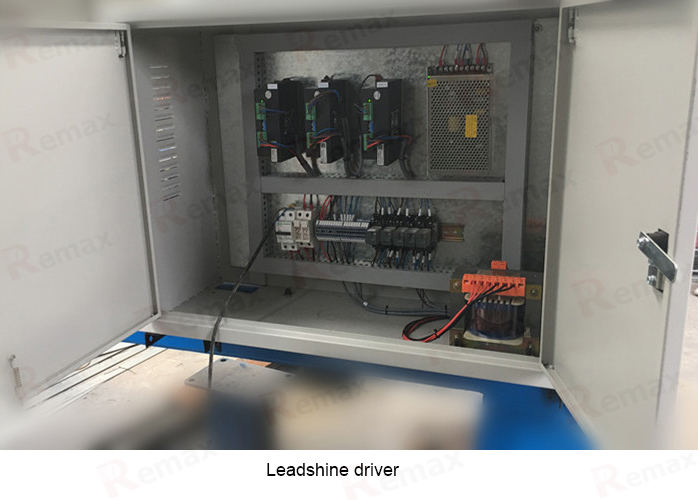

Motor and driver	stepper motor and driver
Gearbox	Hubei planet
Drive Method	Rack and square rails for X Y Z axis
Moving Precision	0.01mm per step
Power Source	380V 50/60Hz 3 phase
Height controller(plasma)	HYD THC
Plasma cutting thickness	1-32mm
length of a side	±0.5mm
Diagonal error \|AD-BC\|	±0.5mm
Base point return error	±0.2mm
Intersection point error	±0.5mm
Lineation forward- reverse error	±0.2mm

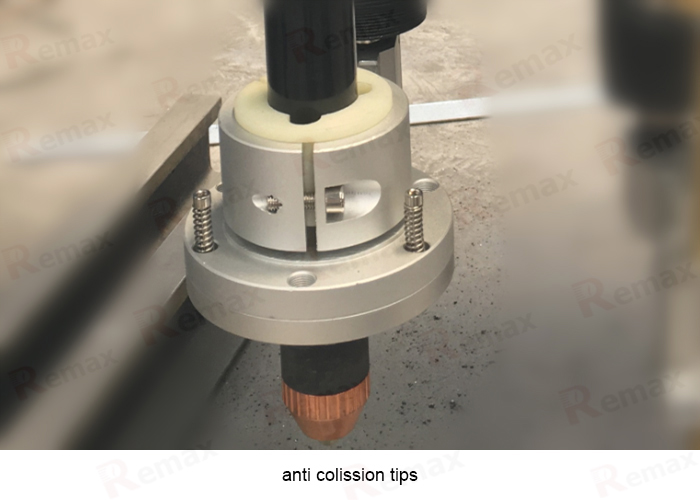

Parts

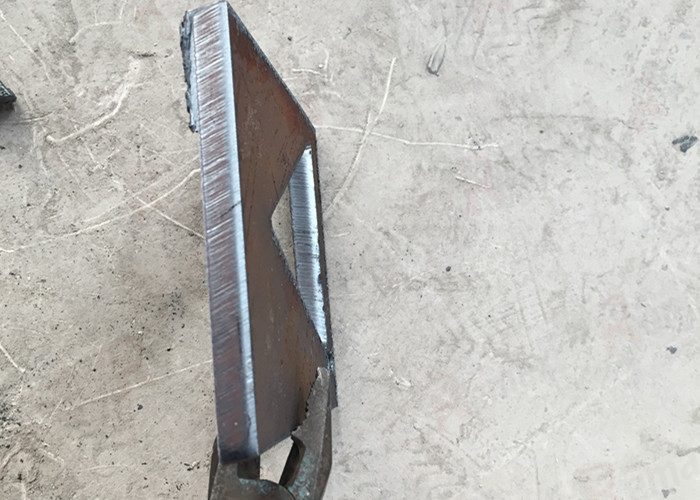

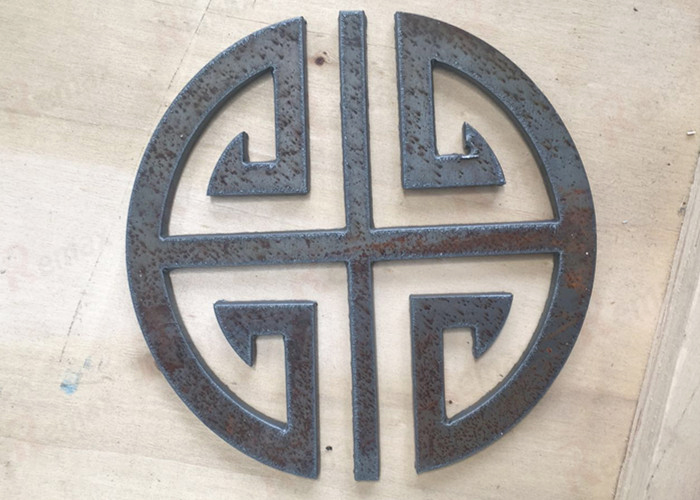

Samples

Our Service

Q: This is the first time I use this kind of machine, is it easy to operate?

A: There are english manual or teaching video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.

6. Send your order by air or by sea.
