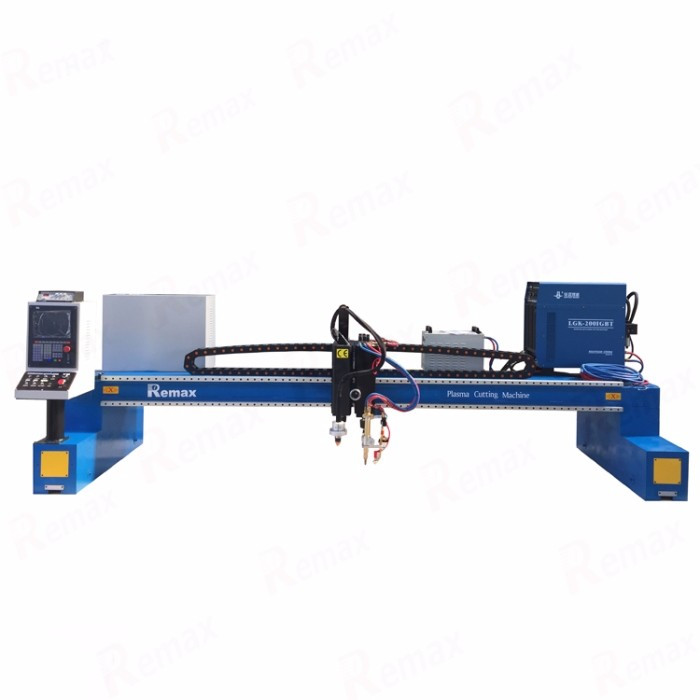

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine

1. Our flame cutting machine with flame cutter head 、plasma cutter head with flame lighter,the two cutting heads share a lifting body. 2. This machine is equipment with Huayuan 200A plasma power supply,, the maximum cutting thickness of 40 mm and a maxim

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine Application

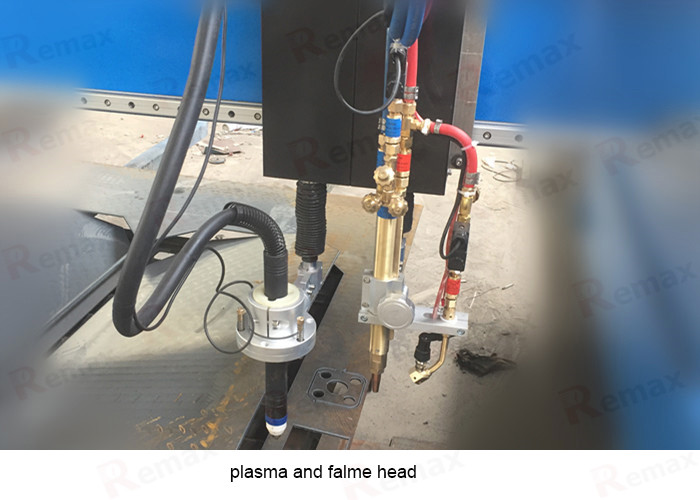

Our gantry flame plasma cutting machine is equipped with a plasma cutting head, a flame cutting head and

an automatic ignition device.Mainly used for cutting metal plates, such as stainless steel, carbon steel, copper,

aluminum, iron, brass and other metal sheets.

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine Parts

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine Parameter

Model	Remax-4060 gantry plasma and flame cutting machine
Effective Cutting Width (X axis)	3000mm
Effective Cutting Length (Y axis)	4000mm

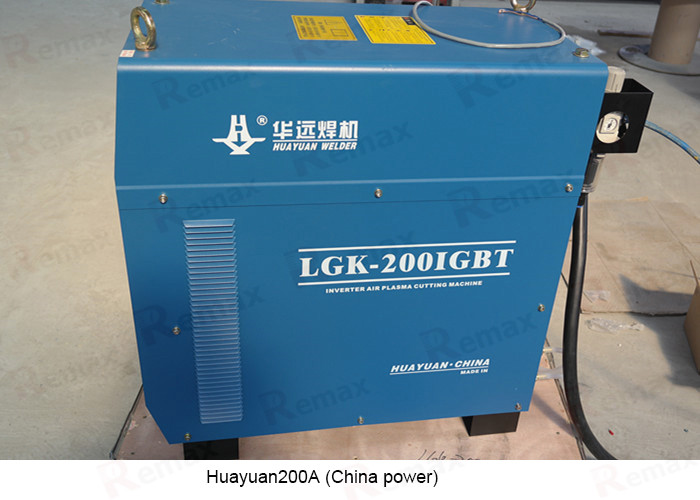

Plasma power	Huayuan 200A
Drive Mode	Bilateral-side

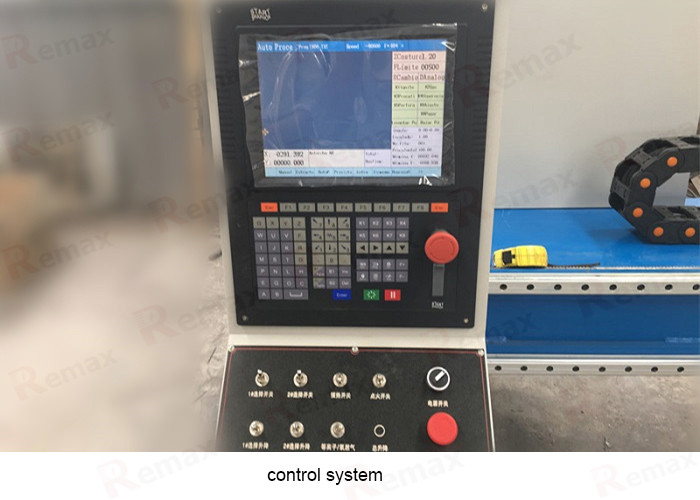

CNC system	START Control system
Plasma cutting speed	50-6500 mm/min
Cutting torch lifting distance	150mm
Speed setting error	≤±5%
Max idle running speed	12000mm/min
Torch height controller accuracy	≤±1.0mm
Longitudinal line accuracy	±0.2mm/10m

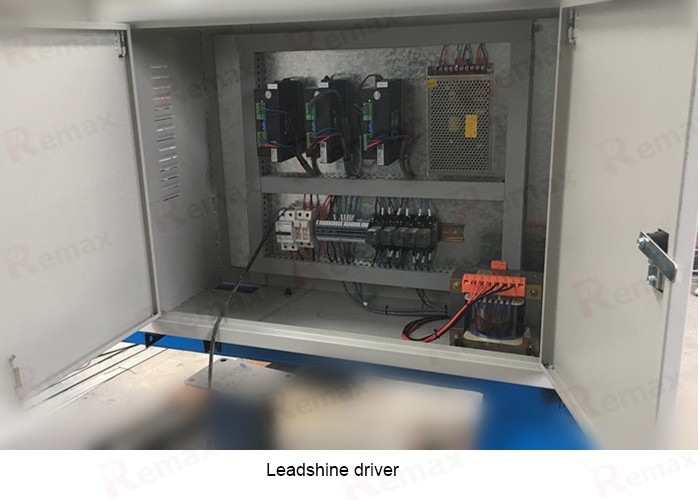

Motor and driver	Stepper motor and leadshine driver
Gearbox	Hubei planet
Drive Method	Rack and square rails for X Y Z axis
Moving Precision	0.01mm per step
Plasma Power Voltage	380V 50/60Hz 3 phase
Machine voltage	220V 50/60Hz single phase
Height controller (plasma)	HYD THC
Software	FastCAM software
Cooling system	CW3000 water chiller
Plasma cutting thickness	1-30mm
length of a side	±0.5mm
Diagonal error \|AD-BC\|	±0.5mm
Base point return error	±0.2mm
Intersection point error	±0.5mm
Lineation forward-reverse error	±0.2mm

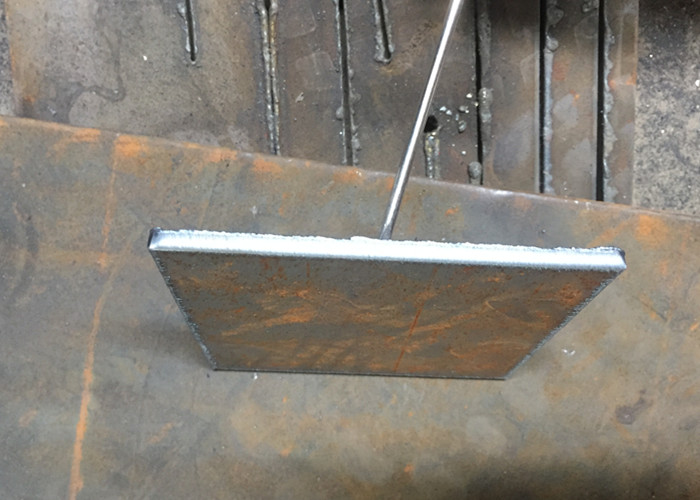

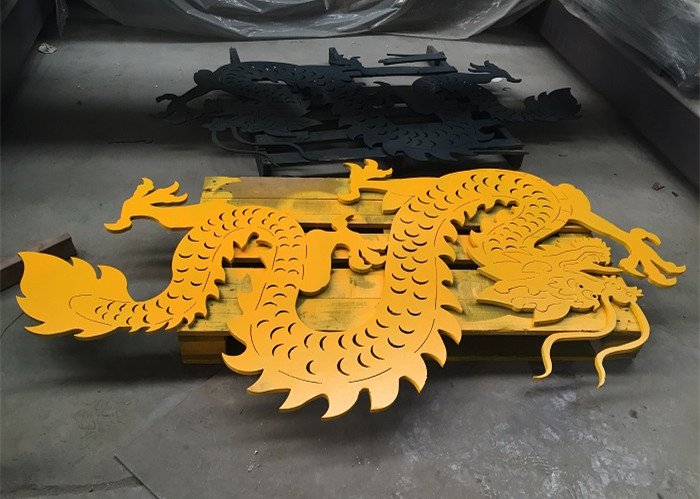

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine Sample

Remax-4060 Heavy gantry plasma and flame CNC Cutting Machine Services

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
