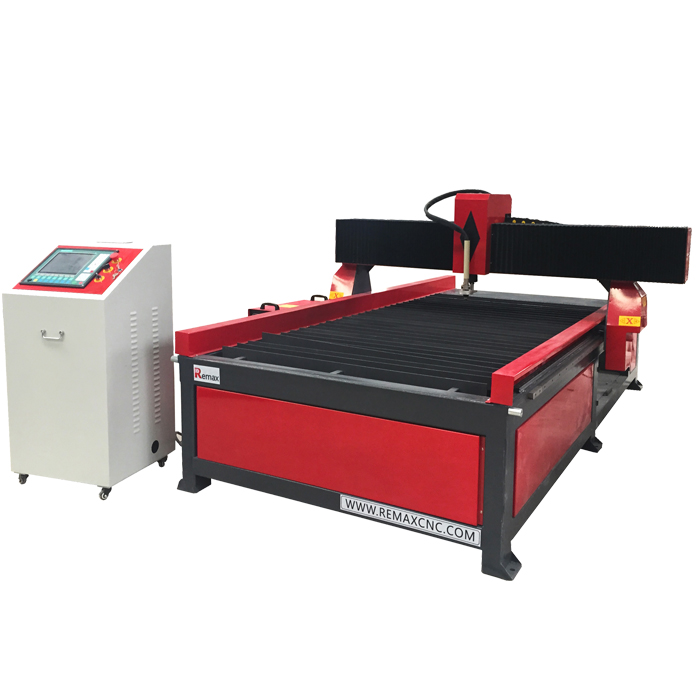

Remax 1325 CNC Plasma Cutting Table
Remax 1325 CNC Plasma Cutting Table
1.The advantage of the plasma cutting machine is that when cutting metal with small thickness, the plasma cutting speed is fast, especially when cutting ordinary carbon steel sheets, the speed can reach 5 to 6 times that of the oxygen cutting method, the

Remax 1325 CNC Plasma Cutting Table


The main application fields of plasma cutting machines are:

Stainless steel, cast iron, copper, aluminum and other non-ferrous metal plates or sheets

with a thickness of less than 6mm are mainly used for plane cutting irregular patterns.

Plasma cutting machine has many advantages such as simple operation, high precision,

high working efficiency, low labor intensity, etc. it is widely used in many kinds of workpieces.

Numerical control plasma cutting machines are often used in many industries,

such as chemical machinery, automobile industry, general engineering machinery, etc.

For those materials that are difficult to cut by traditional methods,

they can be finished by numerical control plasma cutting machine.


1. All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.

2. X Y Z axis with leadshine drive , stable performance .

3. The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk. The software can be edict graphics automatically.

4. Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.

5. Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.

6. Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.

7. There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.

8. With break point or interruption of power ,memory function.

Model
Remax-1325 plasma cutting machine
Effective cutting width(X axis)
1300mm
Effective cutting width(Y axis)
2500mm

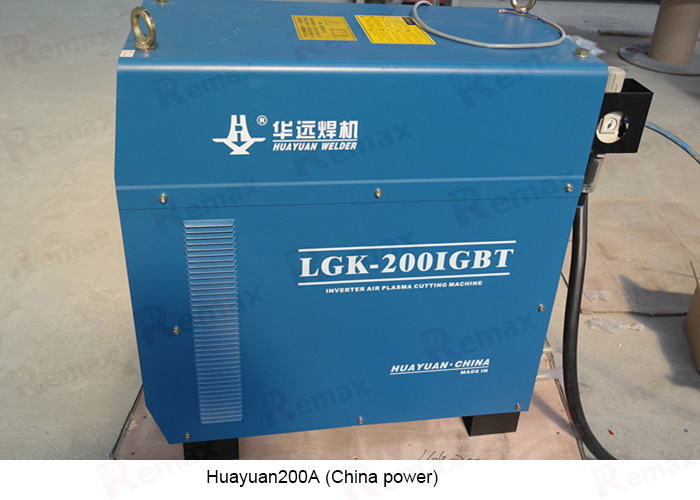

Plasma power
Huayuan 200A
Eletric components
Schneider
control system
START control system
Plasma cutting speed
50-6500mm/min
Cutting torch lifting distance
150mm
Speed setting error
≤±5%
Max idle running speed
12000mm/min
Torch height controller accuracy
≤±1.0mm
Longitudinal line accuracy
±0.2mm/10m
Drvier
Leadshine driver/ Panasonic servo driver
Motor

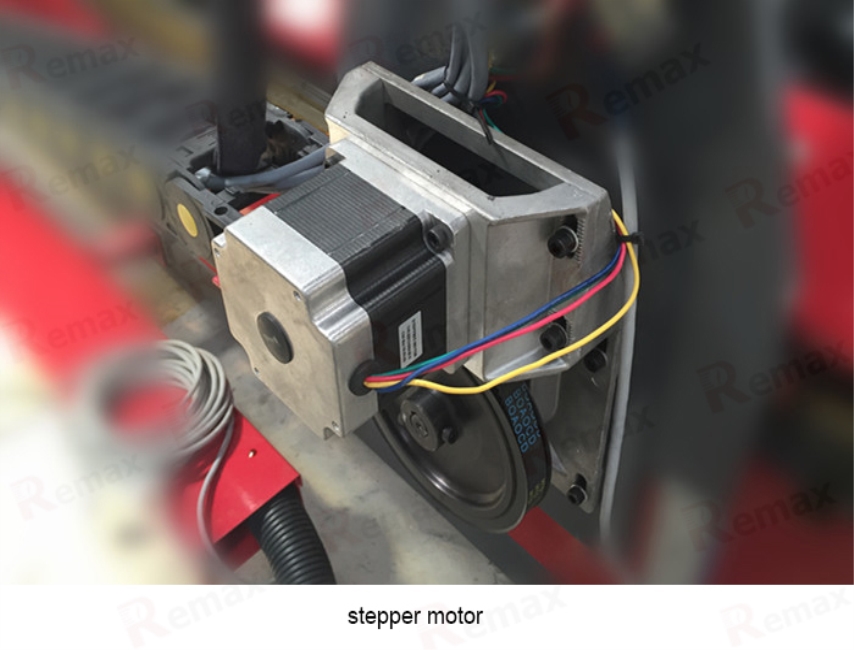

Stepper motor / Panasonic servo motor
Gear box
Hubei planet
Drive Method

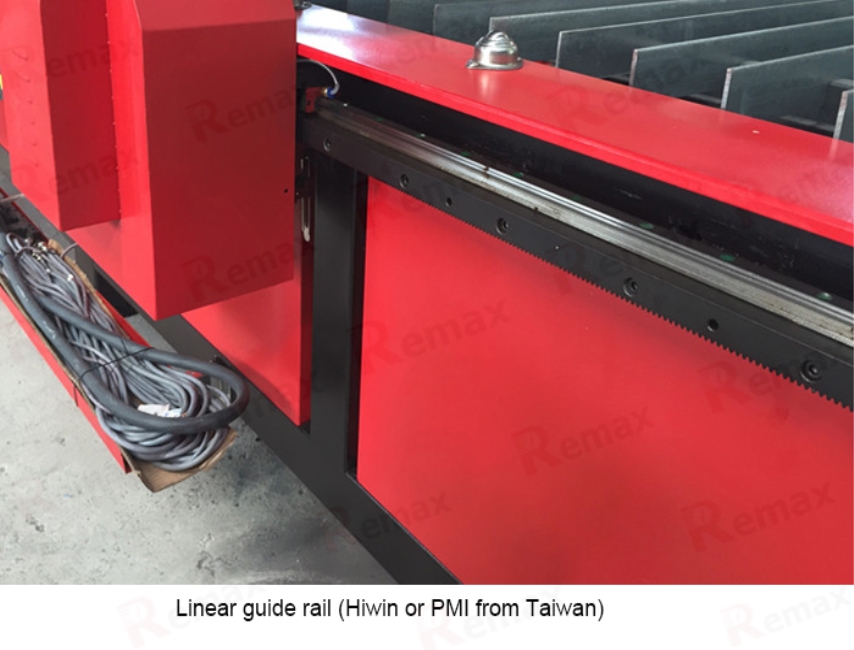

Rack and square rails for X Y Z axis
Drive Method
Rack and square rails for X Y Z axis
Moving Precision
0.01mm per step
Machine Voltage
220V 50/60hz ,Single phase
Plasma power voltage
380V 50/60hz ,3 phase
Plasma cutting thickness
1-30mm
Length of one side
±0.5mm
Diagonal error |AD-BC|
±0.5mm
Error of returning to base point
±0.2mm
Intersection point error
±0.5mm
Front-back lineation error
±0.2mm



Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
