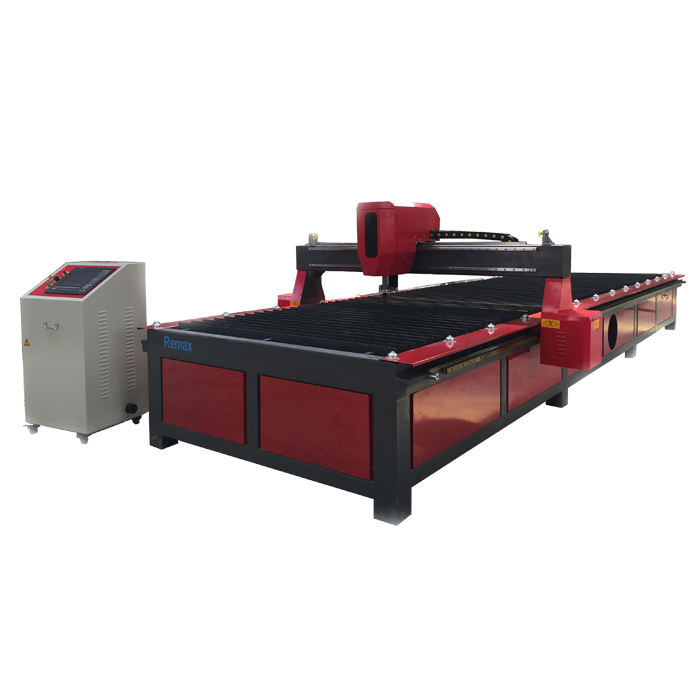

Remax 1560 cnc plasma cutting machine for sheet metal

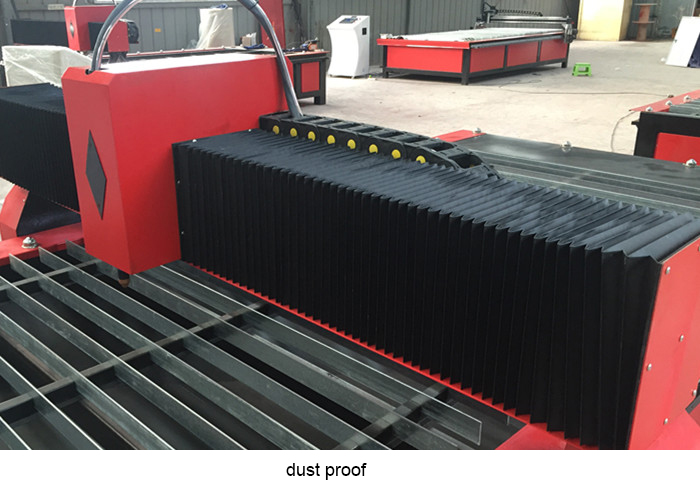

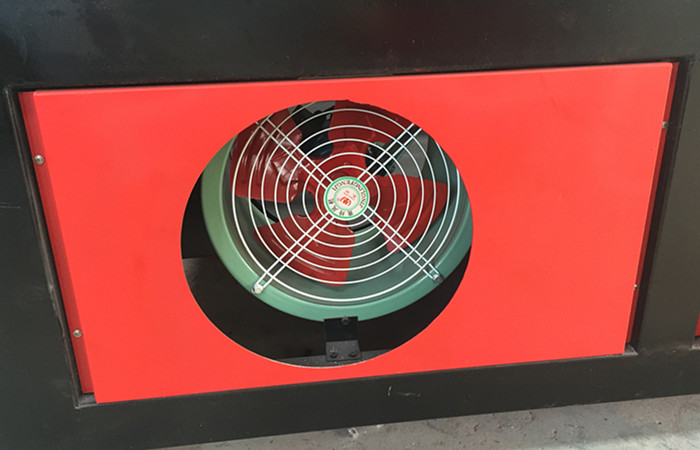

1. 1500*6000mm big size machine body,1500kg weight 2. This machine is equipped with multiple exhaust systems 3. All welded structure, Y, X axis with rack and linear guide drive, Z axis with electric automatic lifting, to assure cutting speed and quali

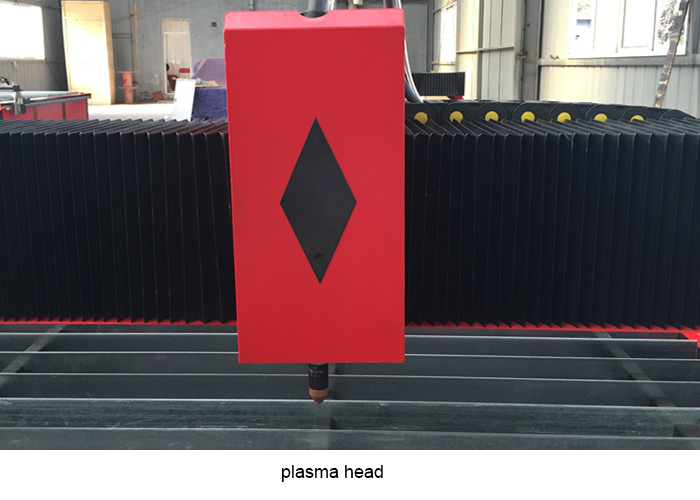

Remax 1560 cnc plasma cutting machine for sheet metal

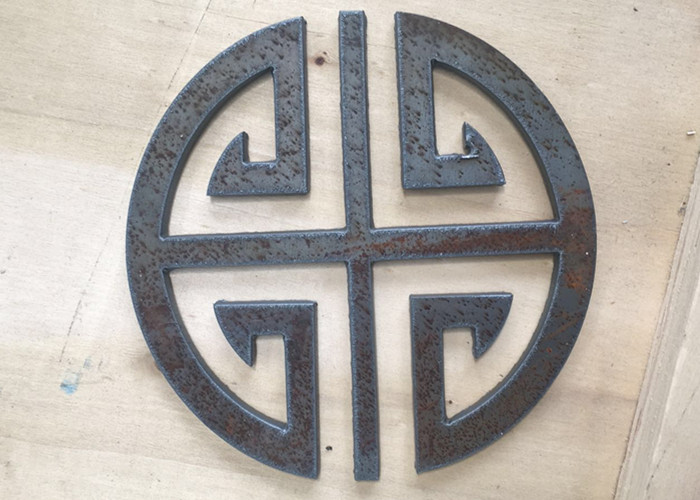

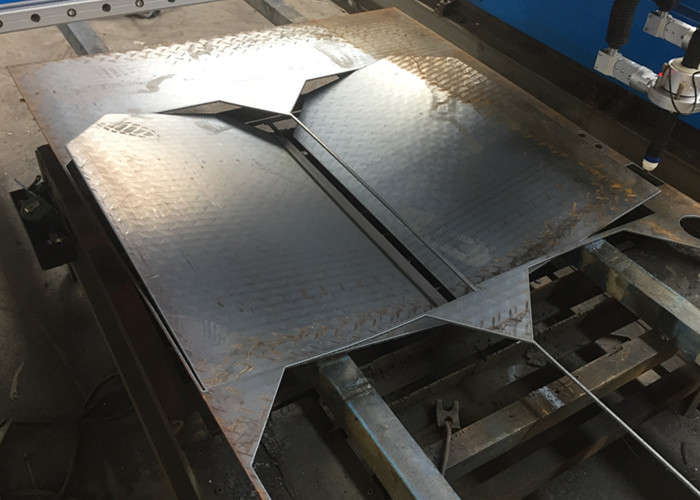

All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies

to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

1. The cnc plasma cutting machine set-up is very simple, all kinds of CAD graphics can be read directly by

our system trough U-disk. The software can be edict graphics automatically.

2. Collocated Udisk interface and cutting code auto converting software for CAD drawing, CAD drawing can

be input directly into the cutter through U-disk.

Model	Remax 1560 plasma cutting machine
Working area	1500*6000 mm

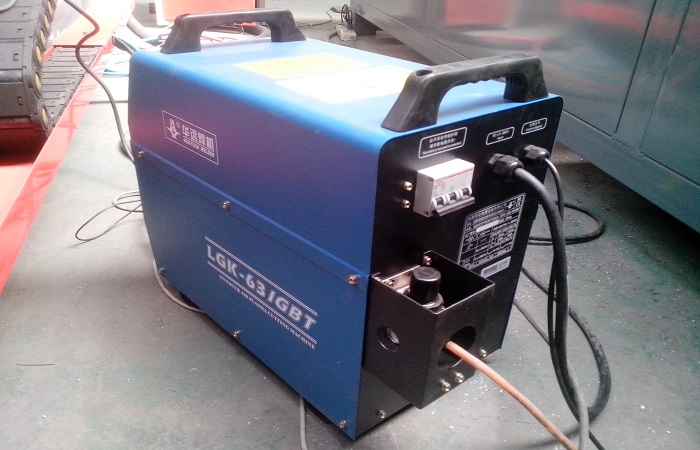

Plasma power	Huayuan 63A
Driver	Yako

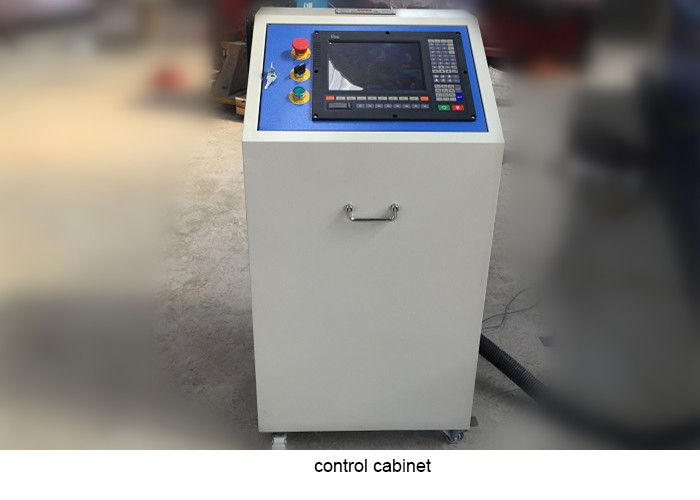

Control system	Start brand
Cutting speed	50-6500 mm/min
Cutting torch lifting distance	100mm
Speed setting error	≤±5%
Torch height controller accuracy	≤±1.0mm
Longitudinal line accuracy	±0.2mm/10m
Motor	Stepper motor
Gearbox	Hubei planet
Drive Method	Rack and square rails for X Y Z axis
Moving Precision	0.01mm per step
Power Source	380V 50/60Hz

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
