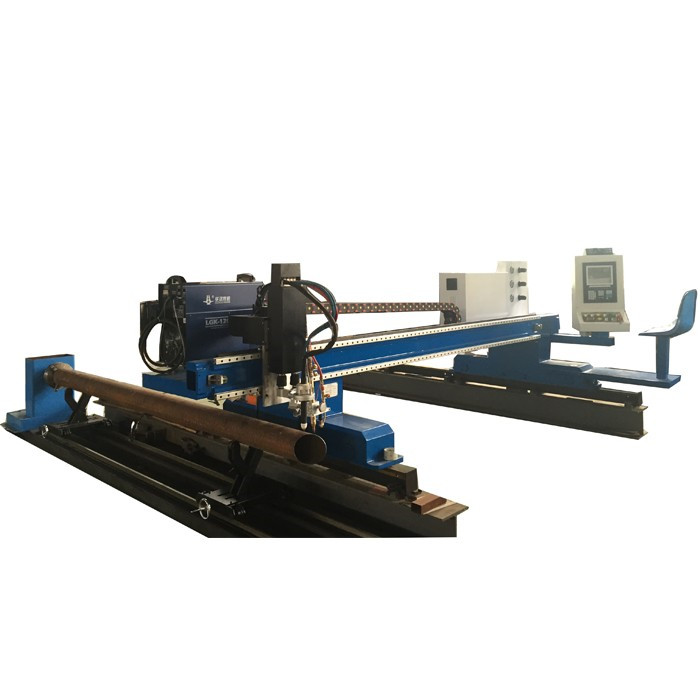

Remax gantry plasma cutting machine with rotary
Remax gantry plasma cutting machine with rotary

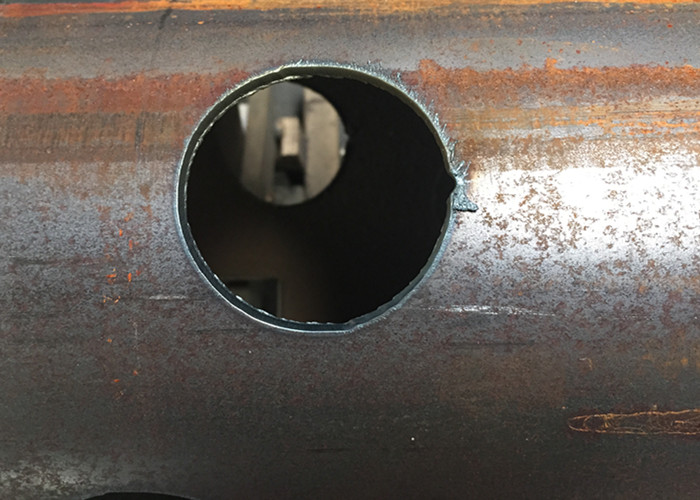

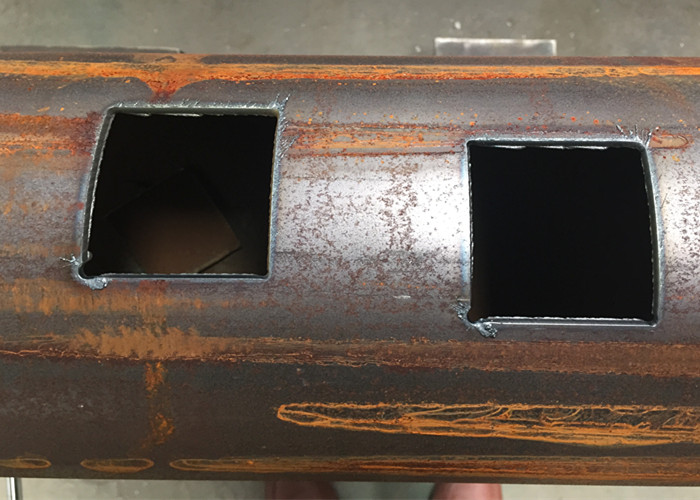

Gantry type rotary axis plasma cutting machine used for cutting metal, like stainless steel, mild steel, aluminum, iron etc. both can cut pipe steel and plate steel. this gantry type support very thick steel cutting.

Remax gantry plasma cutting machine with rotary



Application:

1.Gantry type with big work area, and both for cutting pipe and plate steel.
2.FLMC-2300 control system can work with u flash for drawing picture to work.
3.it support english, spanish, french, Russian, czech language.

Parameters:

Model

Remax-3060

Effective Cutting Width (X axis)

2000mm

Effective Cutting Length (Y axis)

4000mm

Plasma power

huayuan 200A

Drive Mode

Bilateral-side

CNC system

FLMC-2300

Plasma cutting speed

50-6500 mm/min

Cutting torch lifting distance

150mm

Speed setting error

≤±5%

Max Idle running speed

12000mm/min

Torch height controller accuracy

≤±1.0mm

Longitudinal line accuracy

±0.2mm/10m

Motor and driver

stepper motor and driver

Gearbox

Hubei planet

Drive Method

Rack and square rails for X  Y Z axis

Moving Precision

0.01mm per step

Power Source

380V 50/60Hz 3 phase

Height controller(plasma)

HYD THC

Plasma cutting thickness

1-32mm

length of a side

±0.5mm

Diagonal error |AD-BC|

±0.5mm

Base point return error

±0.2mm

Intersection point error

±0.5mm

Lineation forward- reverse error

±0.2mm








A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.


Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.


Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.


Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.


Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
