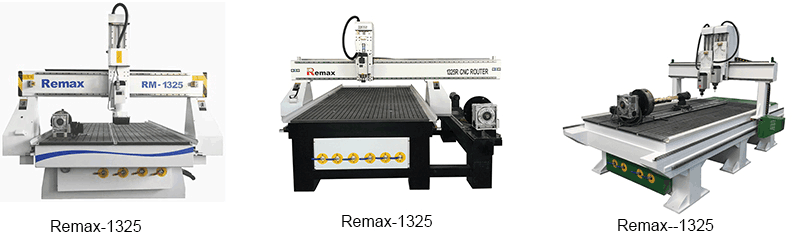

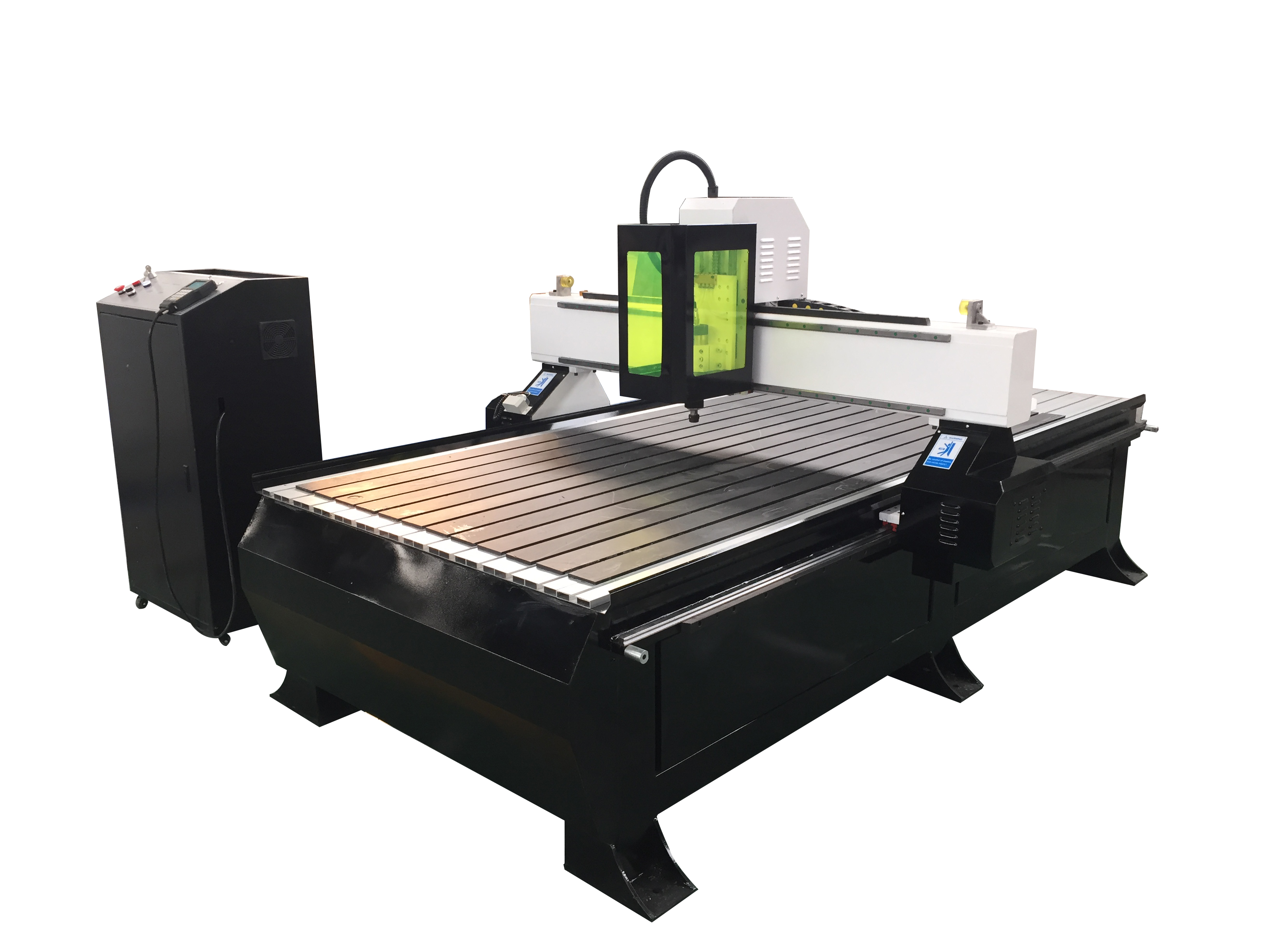

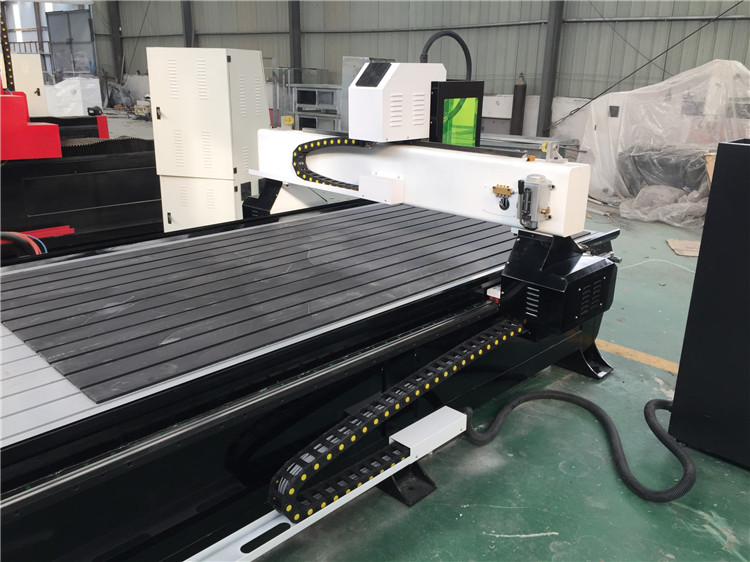

Cheap 1325 cnc wood router machine for sale at low price

1325 cnc wood router machine is used for engraving and cutting metal and non-metal materials, such as wood, metal, stone,Steel, aluminum, iron, acrylic...

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm

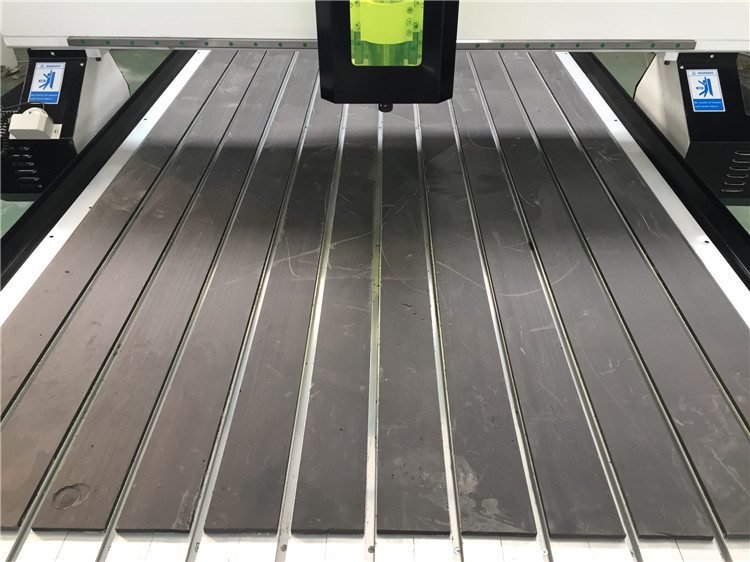

Table Surface	Vacuum or T-slot Table
Frame	steel structure

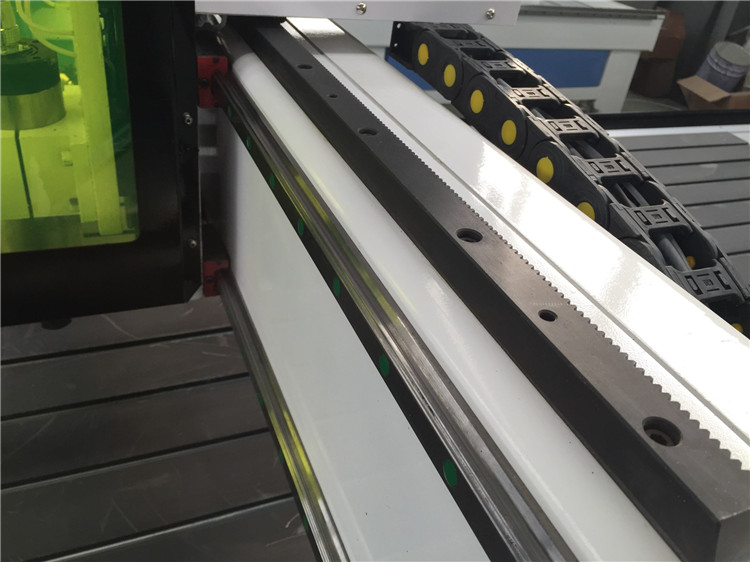

X, Y, Z Structure	Hiwin Rail Linear Guide and TBI ball screw
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Power Consumption (Without Spindle)	2kw~3Kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min

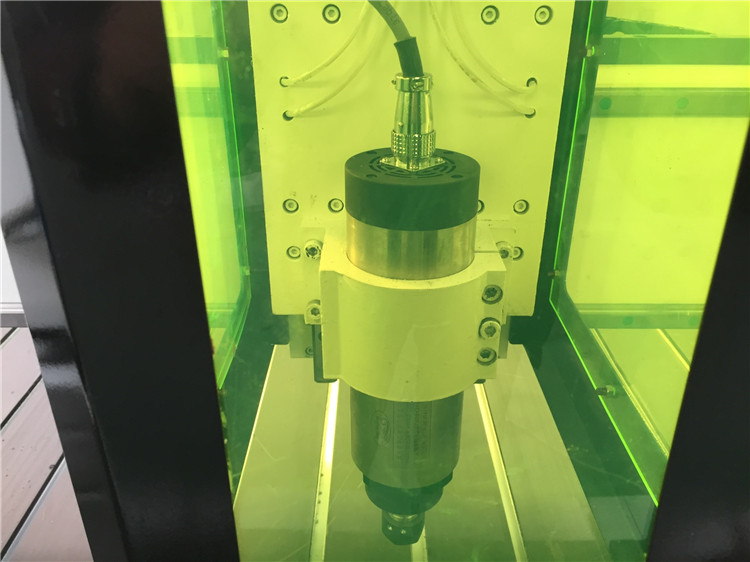

Spindle Power	4.5KW water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper Motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code

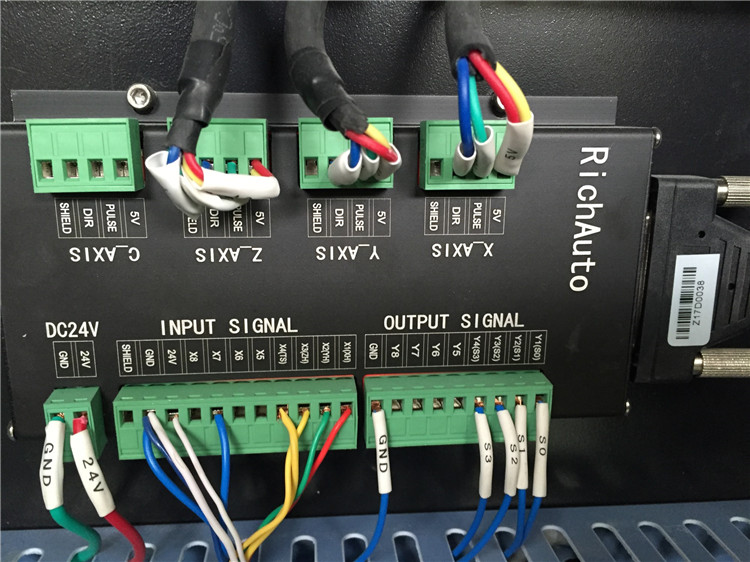

Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment	Temperature 0 - 45 Centigrade
Relative Humidity	30% - 75%

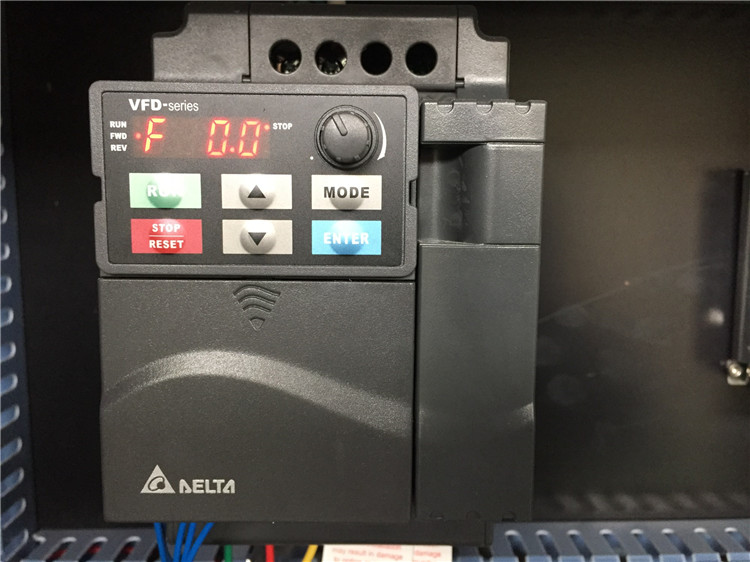

Inverter	Delta/Fuling

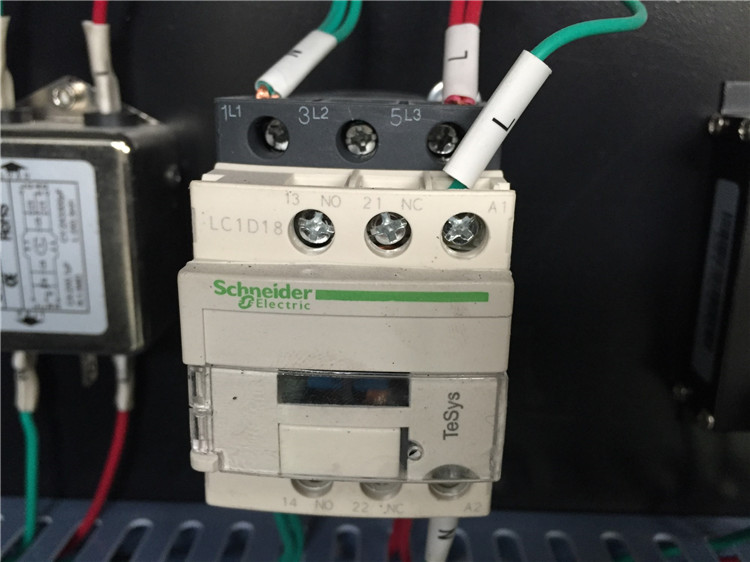

Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine or Yako

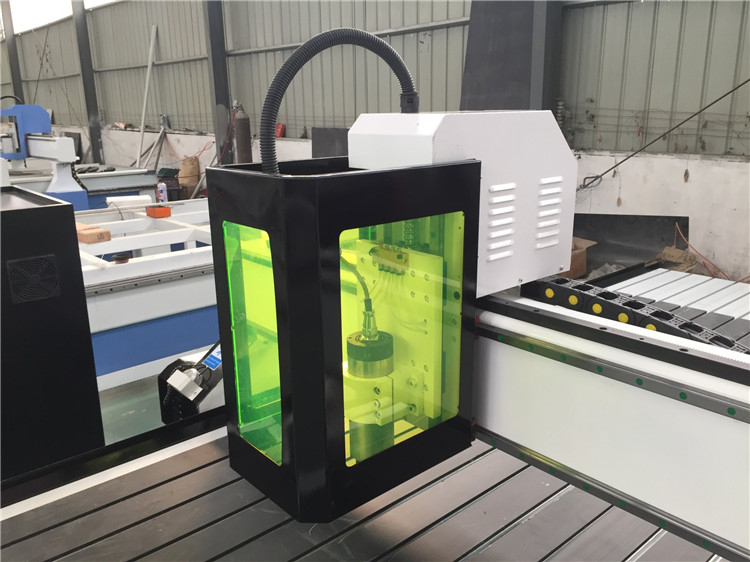

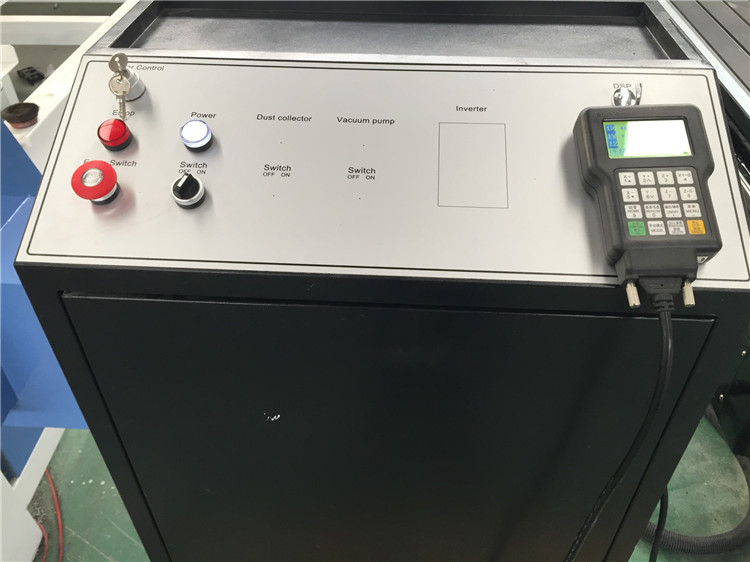

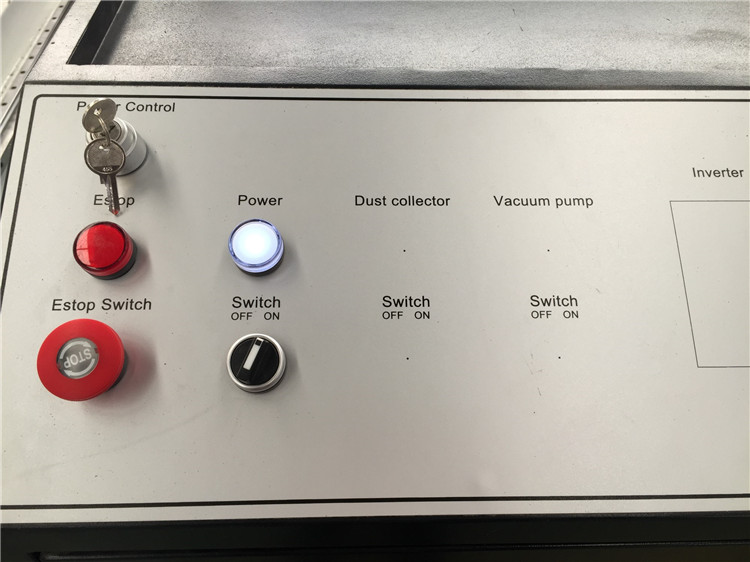

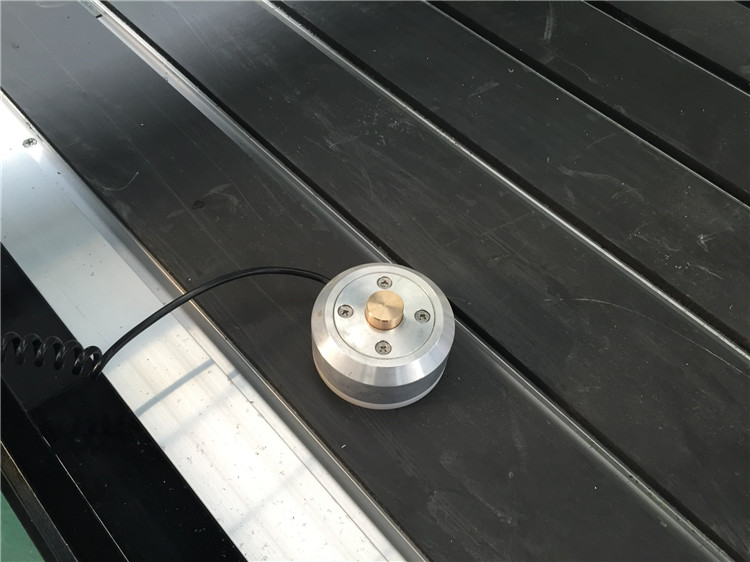

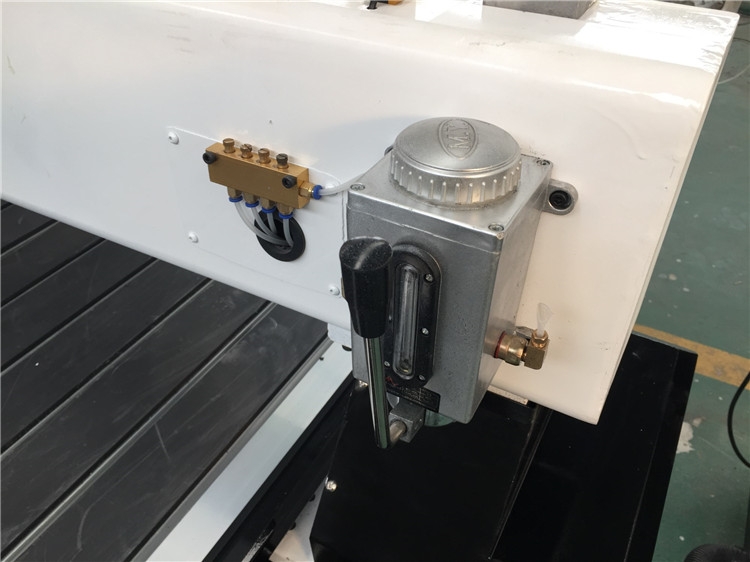

Parts and Samples

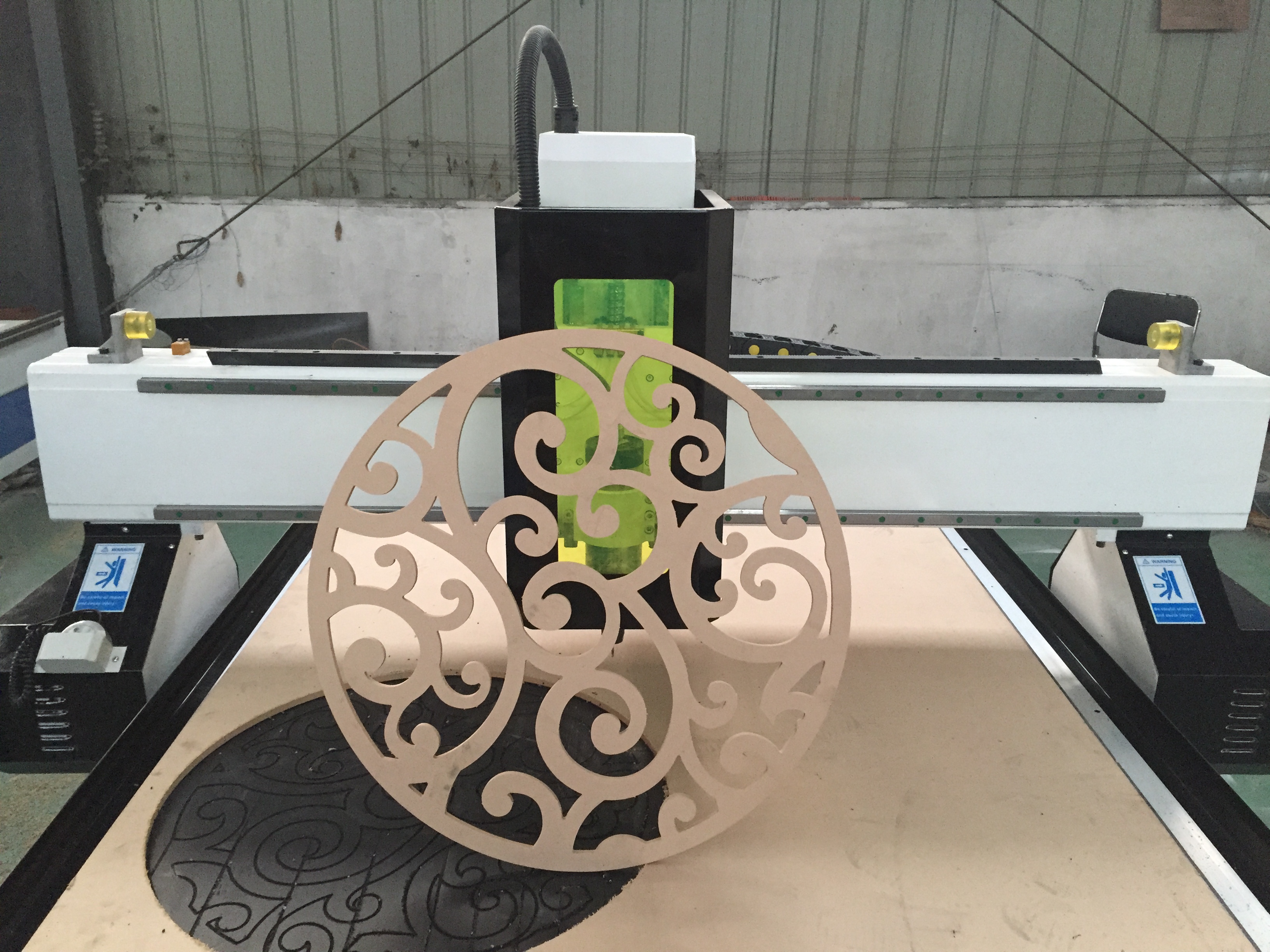

Samples

Our Service

Q: This is the first time I use this kind of machine, is it easy to operate?

A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?

A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
