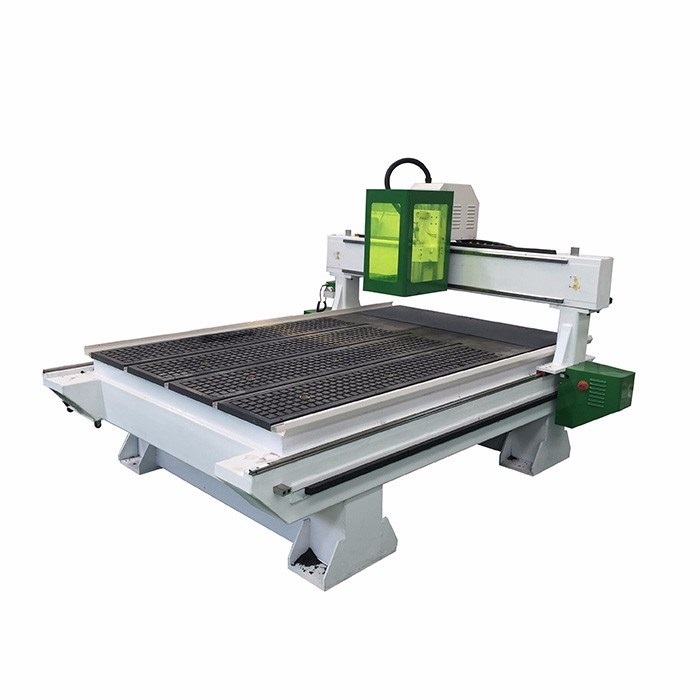

remax 1315 woodworking cutting machine 3d cnc wood carving router

1)Welded steel pipe lathe bed, strong and never out of shape 2)Double motors and drivers of Y axis which can ensure steady movement 3)Rack gear transmission ensures fast speed and high accuracy

remax 1315 woodworking cutting machine 3d cnc wood carving router

cnc wood carving machine application

Wood cnc router machine is a electric motor tool for milling wood components. It has the characteristics of flexible application, fast speed, good quality, high efficiency and the like.

Woodworking engraving machines can process the edges of strip-shaped workpieces, slot, engrave, etc. on the surface of processed workpieces, and hollow out workpieces. If the woodworking engraving machine is fixedly installed on the platen, it can also process medium and small specification wood decorative lines.

cnc wood carving machine product description

1)8mm thickness welded steel heavy lathe bed, strong and never out of shape.

2)Big power stepper motor and leadshine driver, servo motor for option.

3)Germany Rack gear transmission ensures fast speed and high accuracy.

4)Taiwan Hiwin square rail ensures high accuracy and heavy workload.

5)Machine with good quality air vacuum pump, BECKER vacuum pump for option.

6)Dust collector system and automatic lubrication system with machine, let machine work for long time.

7)Machine with Japan OMRON limit switch,Schneider electrical components, tool sensor.

Model	Remax-1315 woodworking cnc router
Frame	Steel structure
Work size	13001500200mm
Spindle	3.0kw water cooling spindle with spindle cover
Table	T-slot Aluminum +PVC table
X, Y Structure	Oblique rack gear transmission
ZStructure	HIWIN Rail Linear Guide and TBI Ball Screw
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Max. Power Consumption(Without Spindle)	2.5kw-3kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min
Spindle Speed	0-24000 RPM
Driver motors	Stepper motor
Working Voltage	AC 220V/380V, 50/60 Hz
Operating System	DSP-A11 Control System
Computer Interface	USD
Flash Memory	128M(U Disk)
Software Compatibility	Type 3/Artcam/Ucancame V9 for option
Command Language	G code
Running Environment Temperature	0-45°C
Relative Humidity	30%-75%
X,Y Resolution	<0.01
Electrical components	Schneider
Inverter	Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine

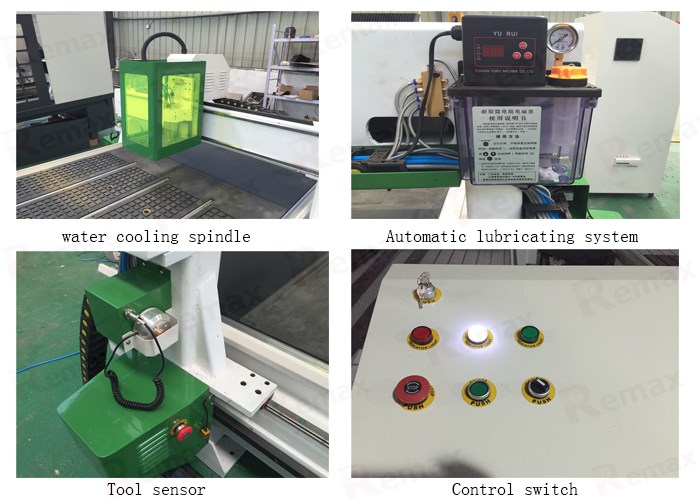

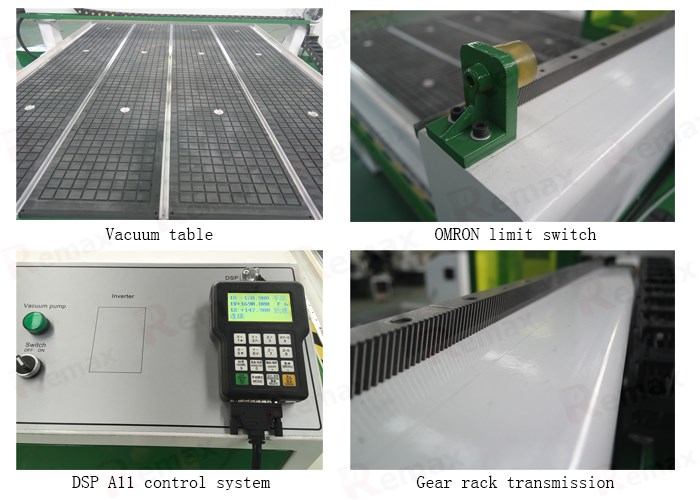

cnc wood carving machine parts

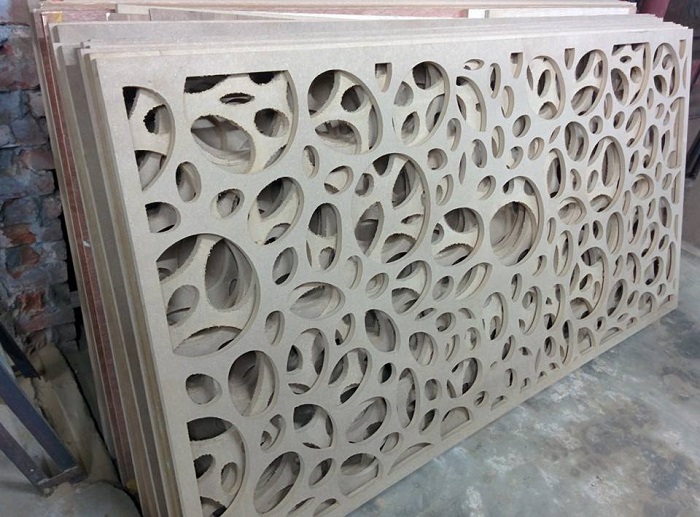

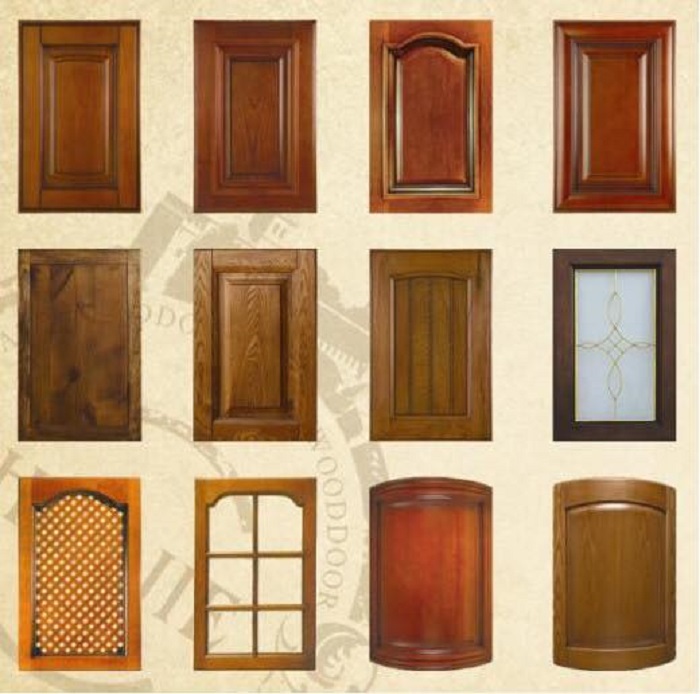

cnc wood carving machine samples

remax cnc wood router seevices

Q:This is the first time I use this kind of machine, is it easy to operate?
A:There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager

online service at any time.

Q:If machine have any problem after I receive it, how can I do ?
A:Free parts send to you within machine warranty period if machine have any problem.

Q:MOQ ?
A:The minimum order is 1 set machine, if you order more one time, the price will be better.

Q:How can I buy this machine from you? ( Very easy and flexible !)
A:1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.

6. Send your order by air or by sea.
