Description |
Parameter |
|
X,Y,Z Working Area |
300x300x100mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/100mm |
|
X,Y,Z Repositioning Accuracy |
±0.03mm |
|

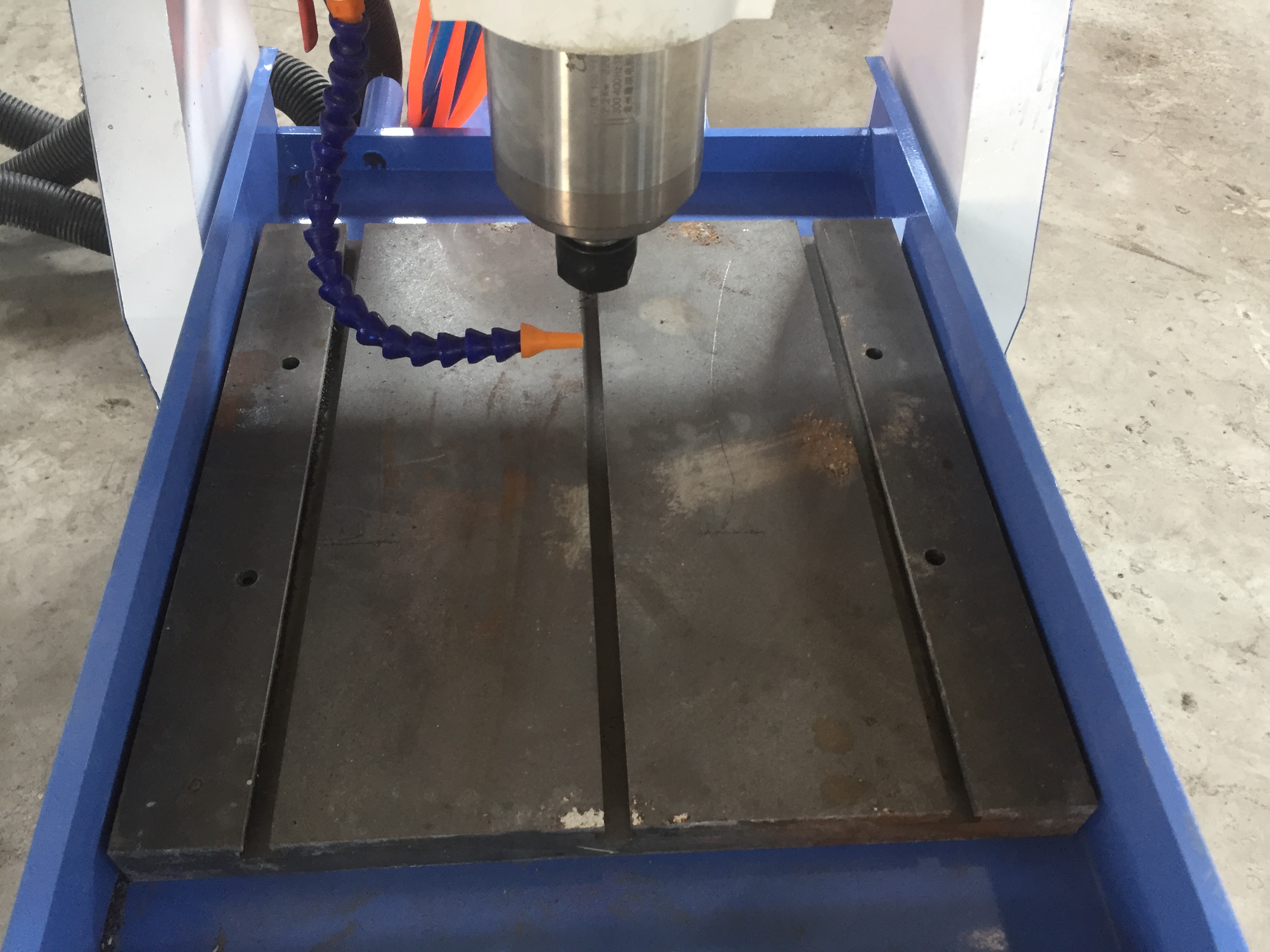

Table Surface |
T-slot Table |
|
Frame |
cast by iron |
|
X, Y,Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
|
Z Structure |
Hiwin Rail Linear Guide and Ball Screw |
|
Max. Power Consumption |
(Without Spindle) 1.0Kw |
|
Max. Rapid Travel Rate |
16000mm/min |
|
Max. Working Speed |
10000mm/min |
|
Spindle Power |
1.5KW water cooling spindle |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
Stepper Motor |
|
Working Voltage |
AC220/380V/50/60Hz, 1PH/3PH |
|
Command Language |
G Code |
|
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
|
Computer Interface |
USB |
|
Flash Memory |
128M(U Disk) |
|
X,Y Resolution |
<0.01mm |
|
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
|

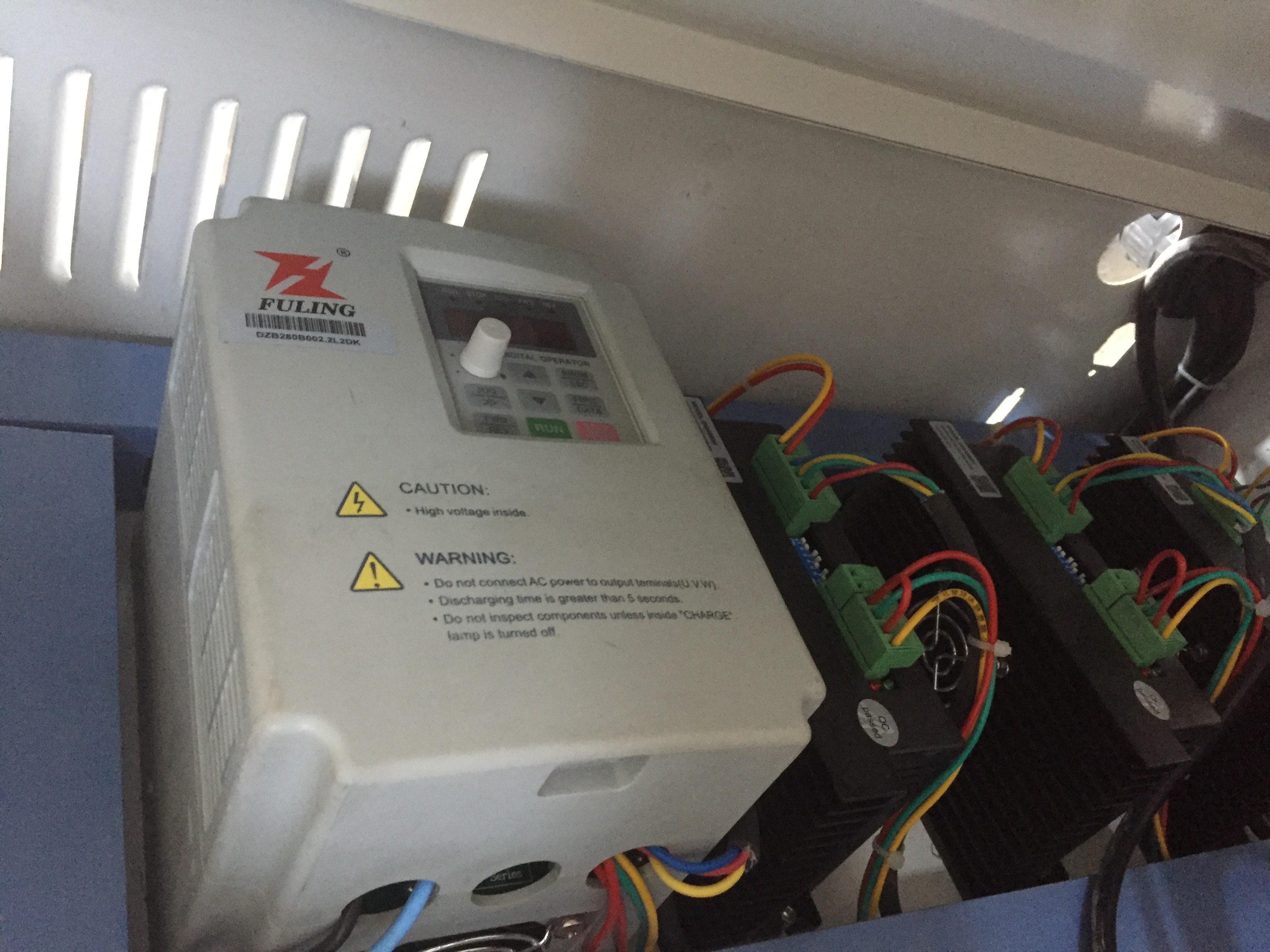

Inveter |
Delta/Fuling |
|
Electrical components |
Schneider |
|

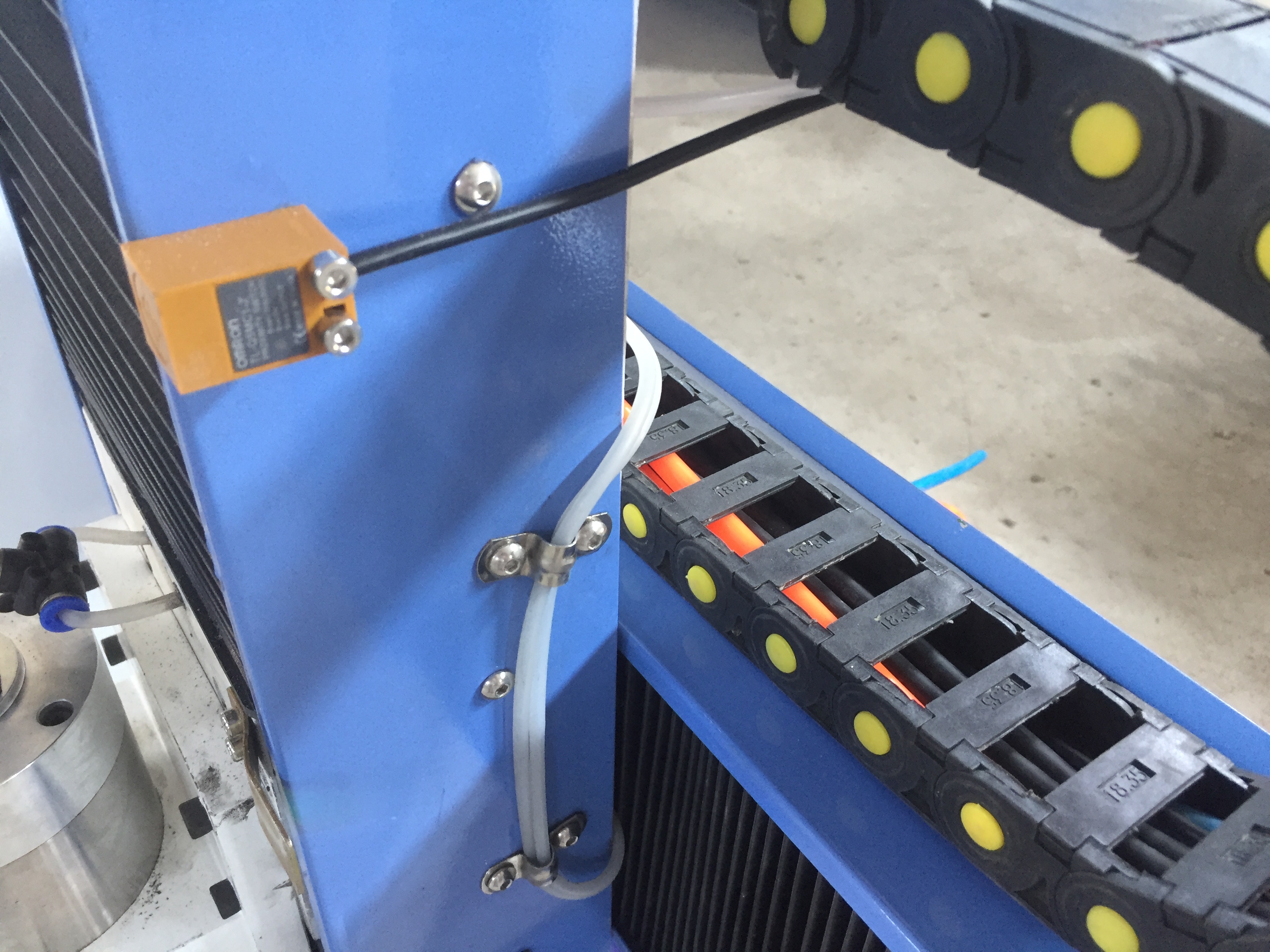

Limit switch |
OMRON |
|
Driver |
Leadshine or Yako |
Parts

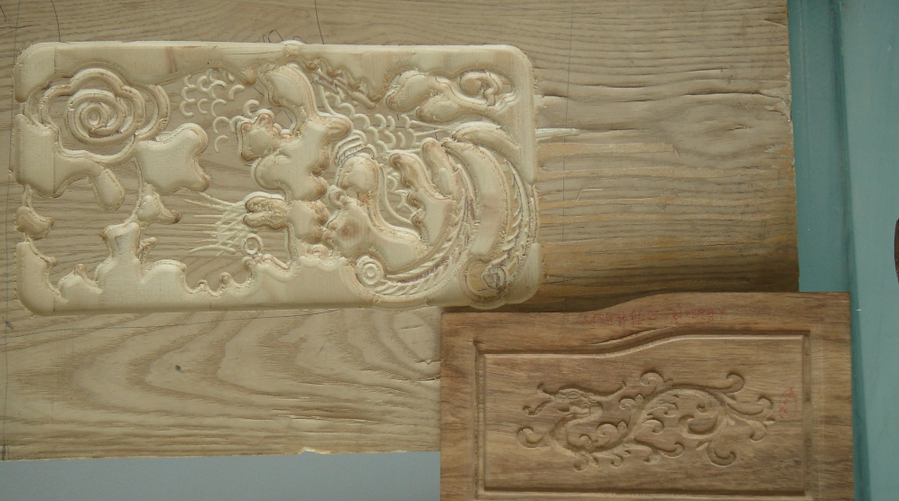

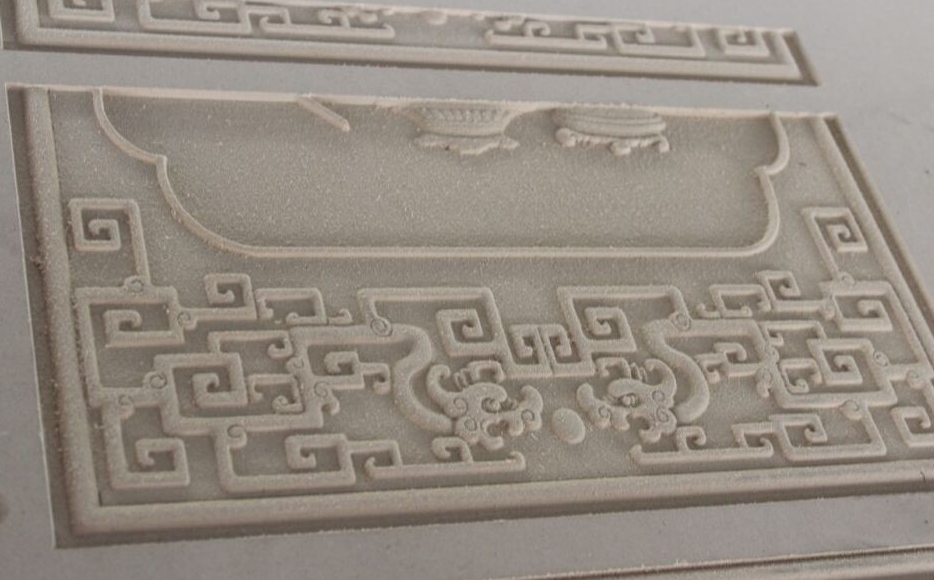

Samples
Our service
Shipping and Delivery
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
