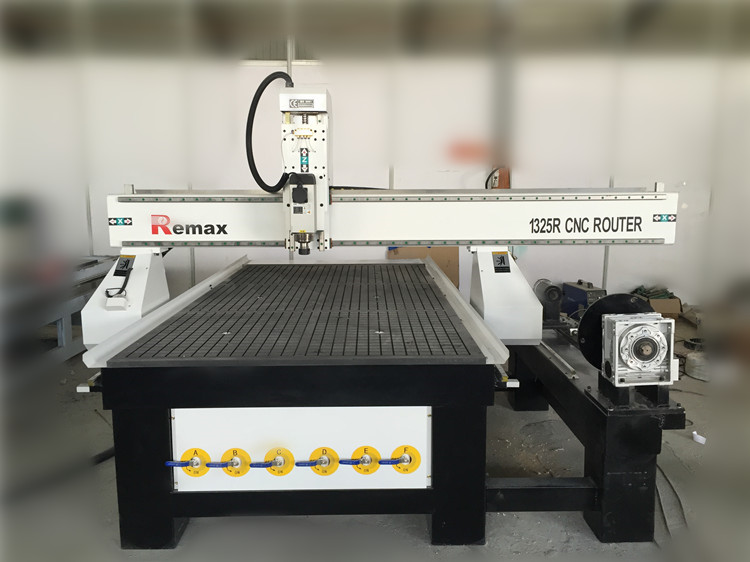

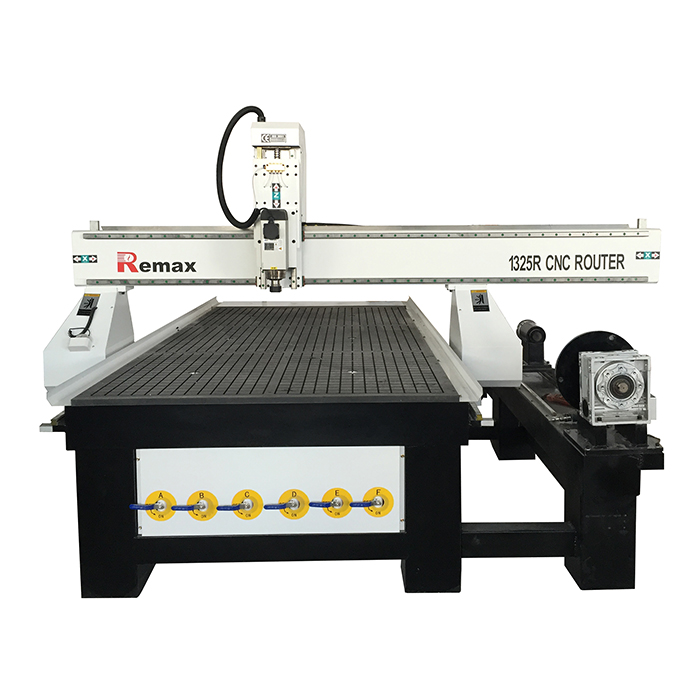

Remax 1325 CNC Router machine with Rotary

1325 cnc router machine is used in the wood industry and advertising industry, Suitable for processing wooden furniture, acrylic sheets, aluminum alloys, etc. This machine is equipped with a rotating shaft that can process a variety of cylindrical mate

Remax 1325 CNC router Machine with rotary

Used for cutting and engraving of various materials, including metal, wood, plastic, etc.

1. Advertising making : Cutting and engraving of acrylic and plastic sheets, including display rack, light boxes,

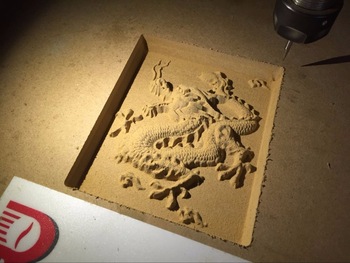

3D letters, reliefs, sign boards, plates, logos, emblems.

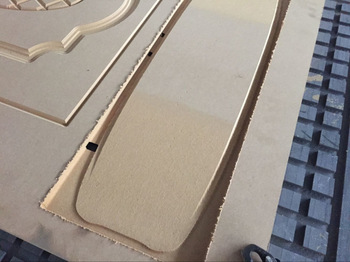

2. Wood furniture ： Wood cutting and engraving, including door panels, beds, wardrobes, tables.

3. Metal cutting and engraving，House number, brand name, sign board.

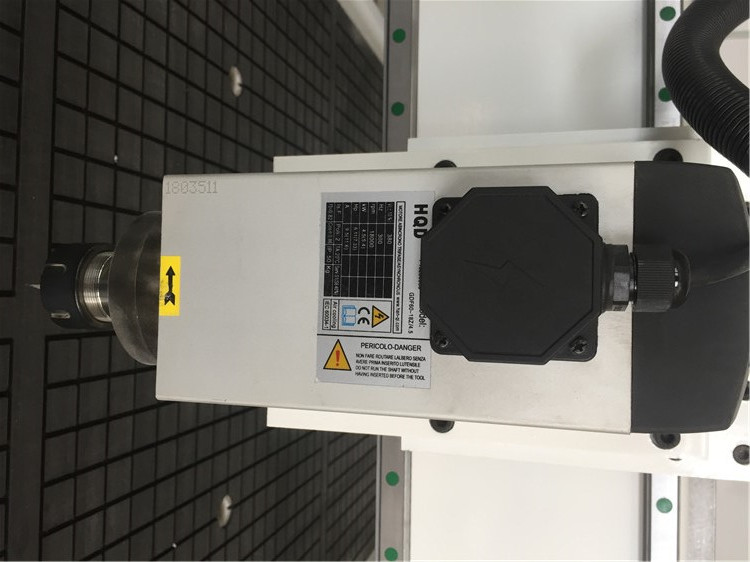

HQD 4.5kw air cooling spindle

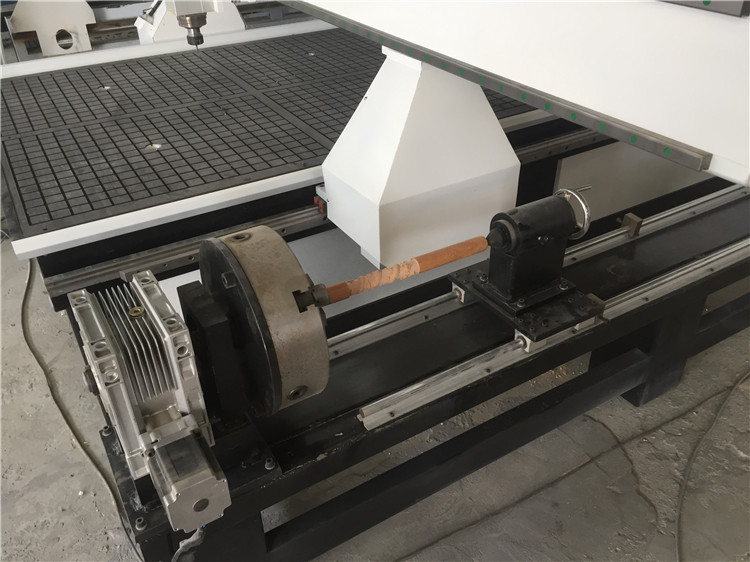

rotary axis

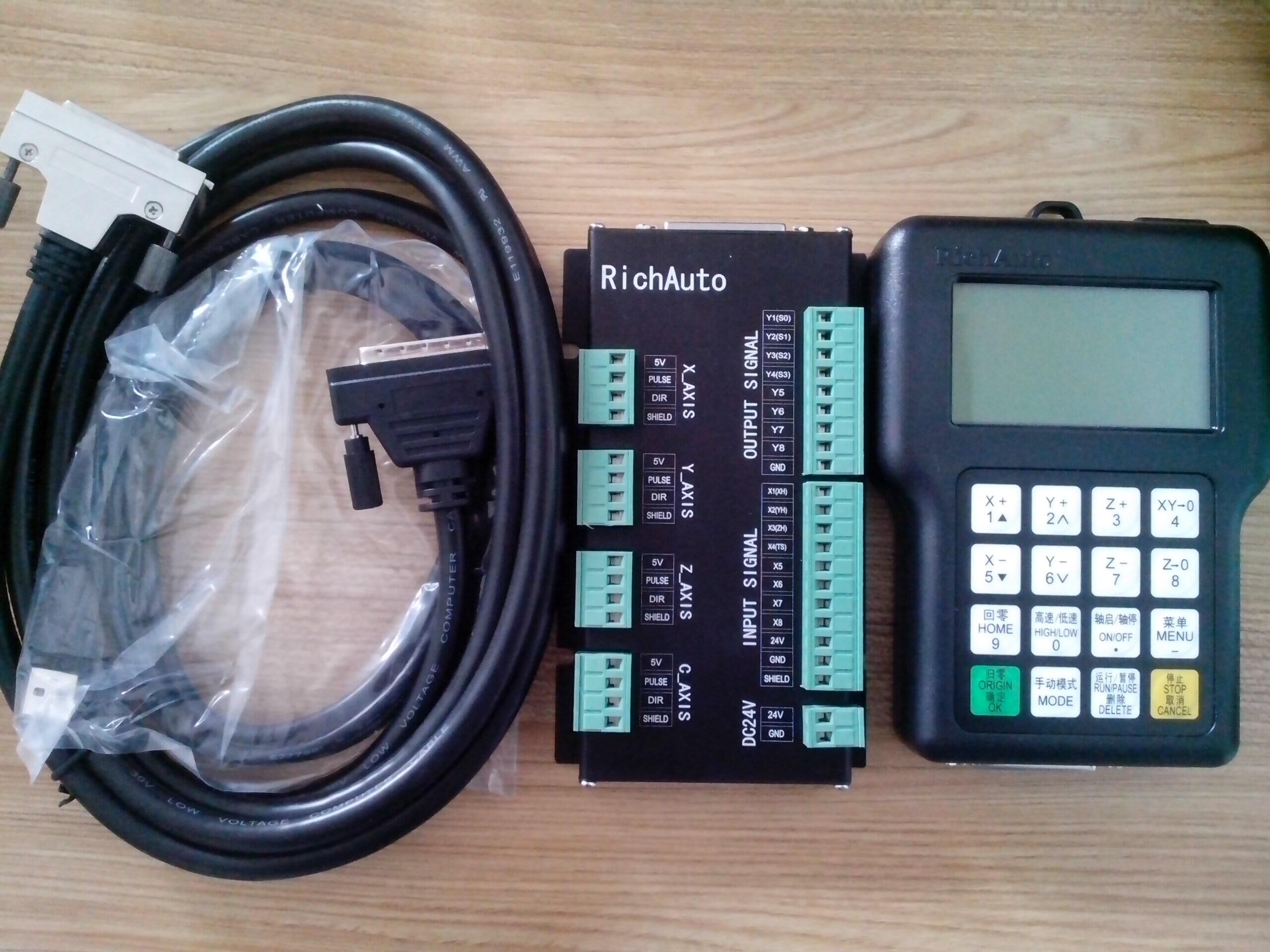

DSP control system

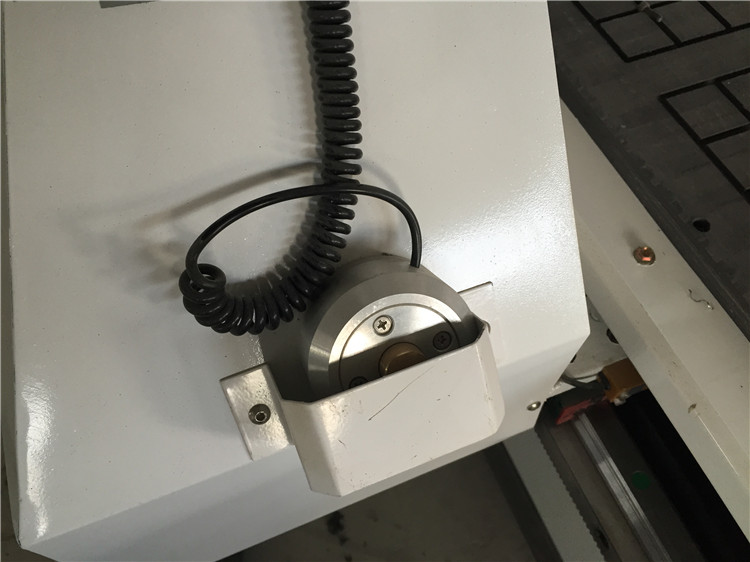

tool sensor

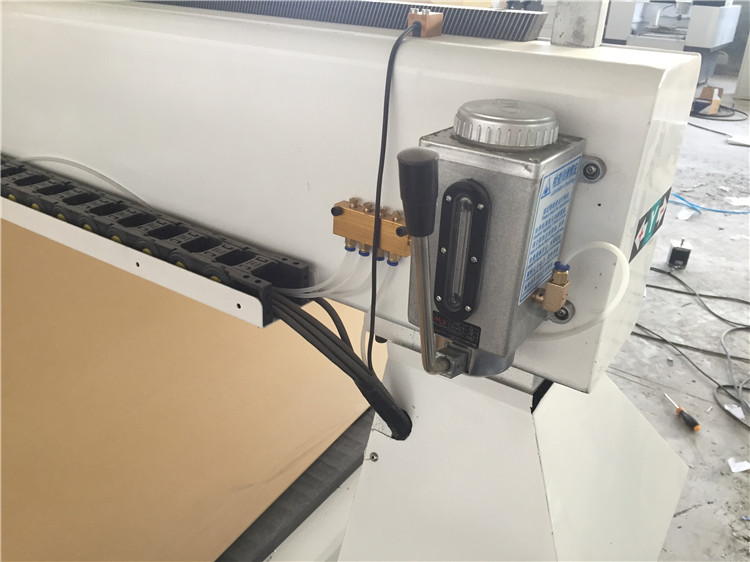

manual oli system

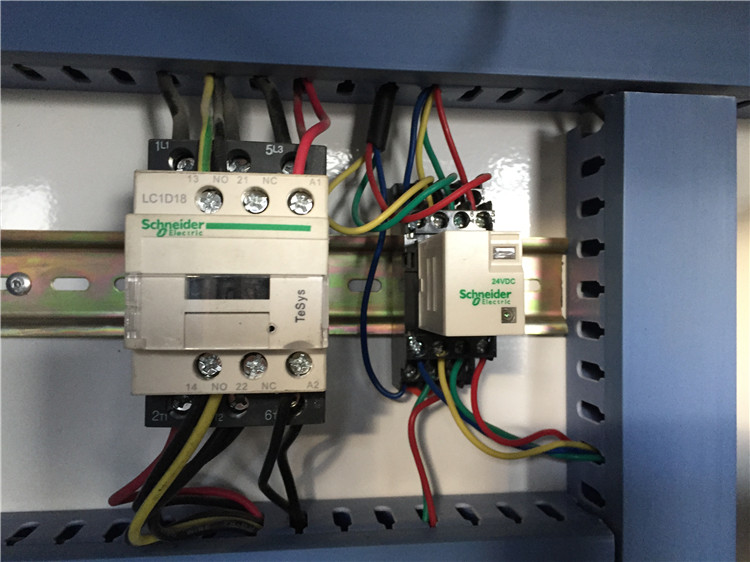

Schneider Electrical components

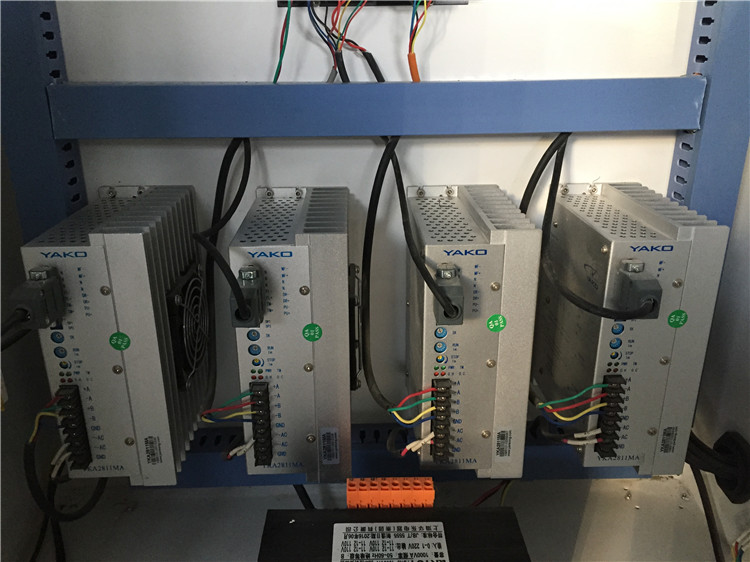

yako driver

1. Large working size for engraving and cutting a wide range of materials.

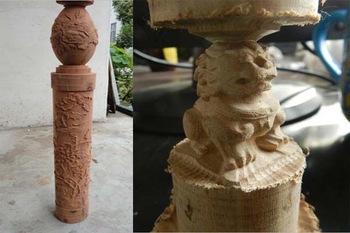

2. Equipped with a rotating axis, you can engrave table legs, bed legs, portraits, etc.

3. Z-axis uses high precision screw drive.

Description	Parameter
X,Y,Z Working Area	13002500200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	Vacuum or T-slot Table
Frame	Welded Structure
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Guide
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 4.5kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min
Spindle Power	4.5kw HQD air cooling spinle
Spindle Speed	0-18000RPM
Drive Motors	Stepper Motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Yako

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.

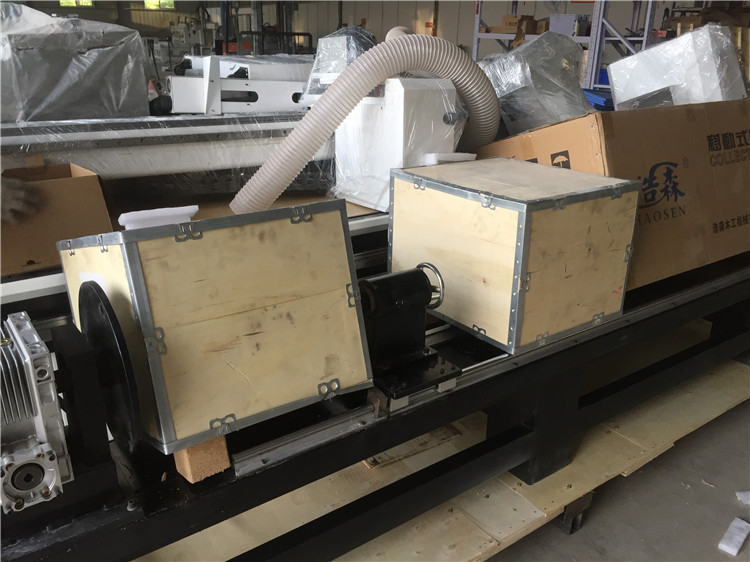

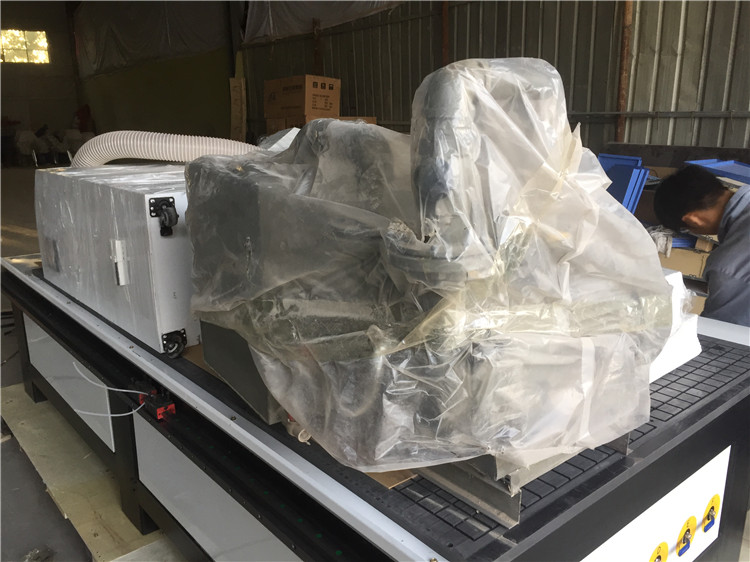

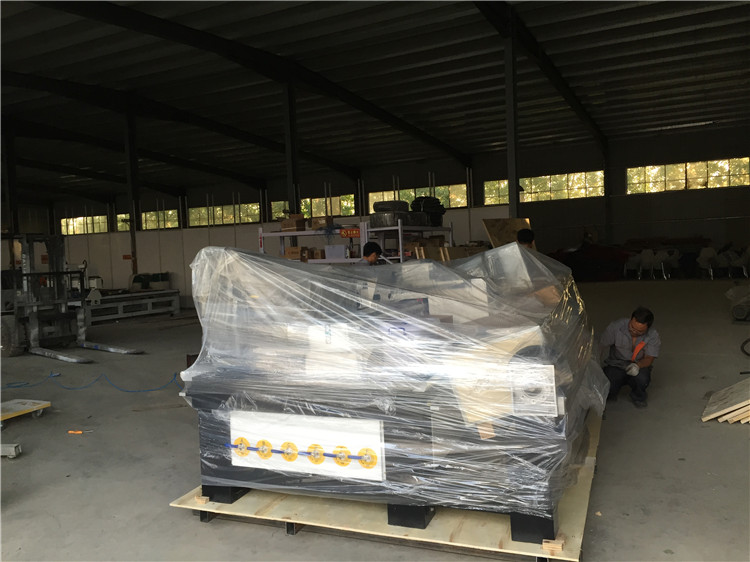

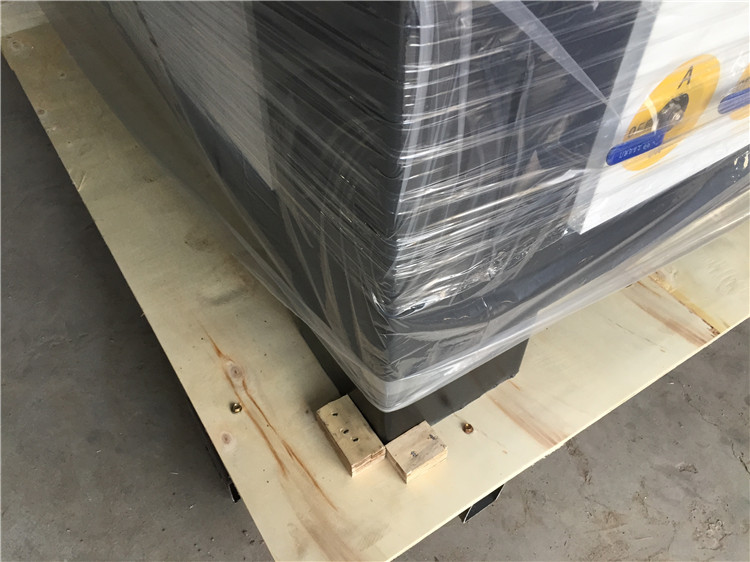

6. Send your order by air or by sea.
