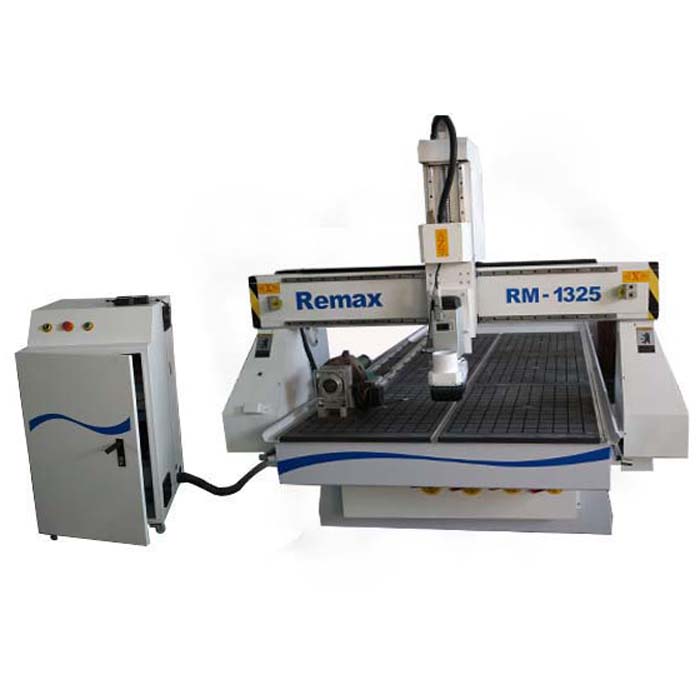

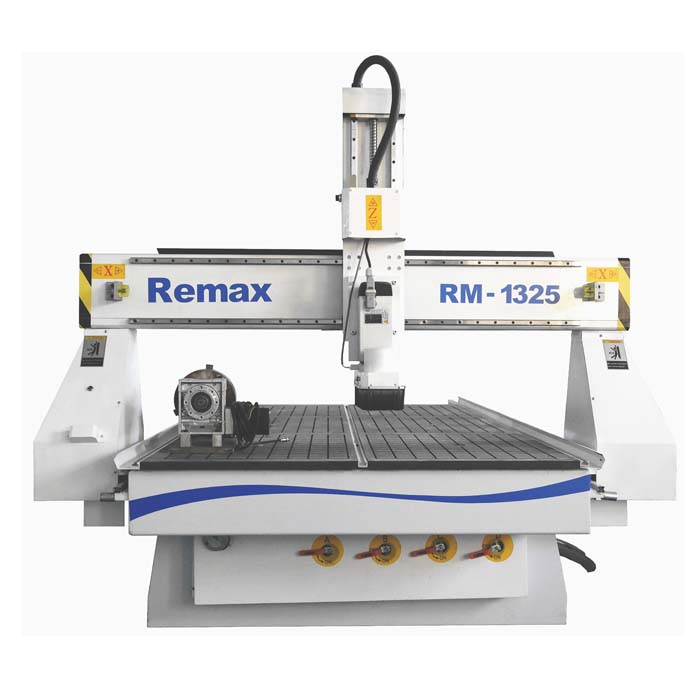

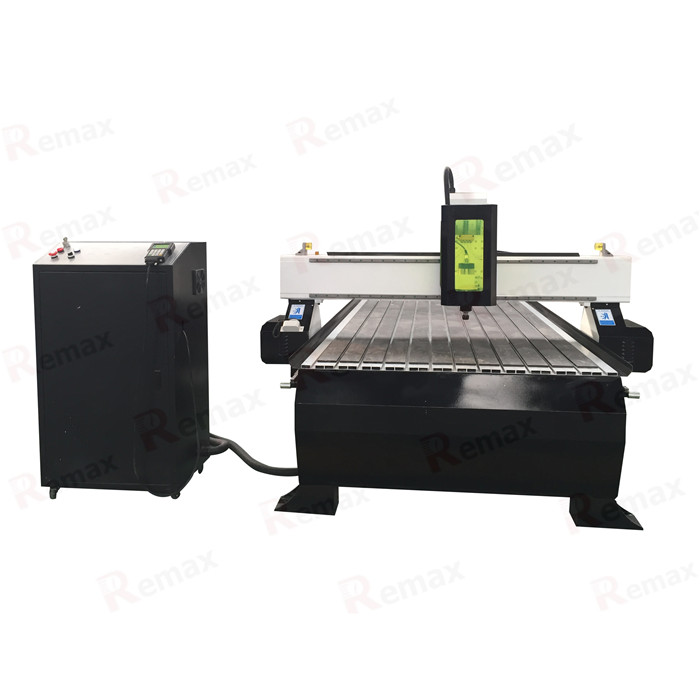

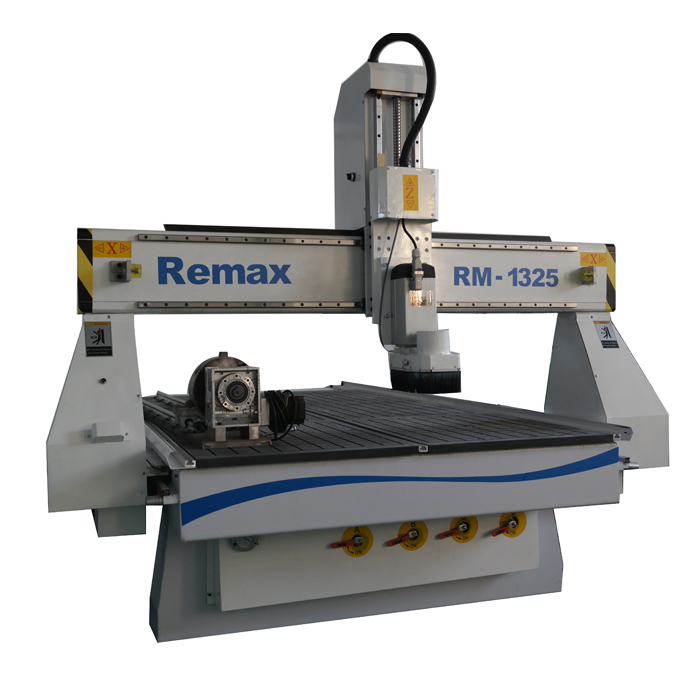

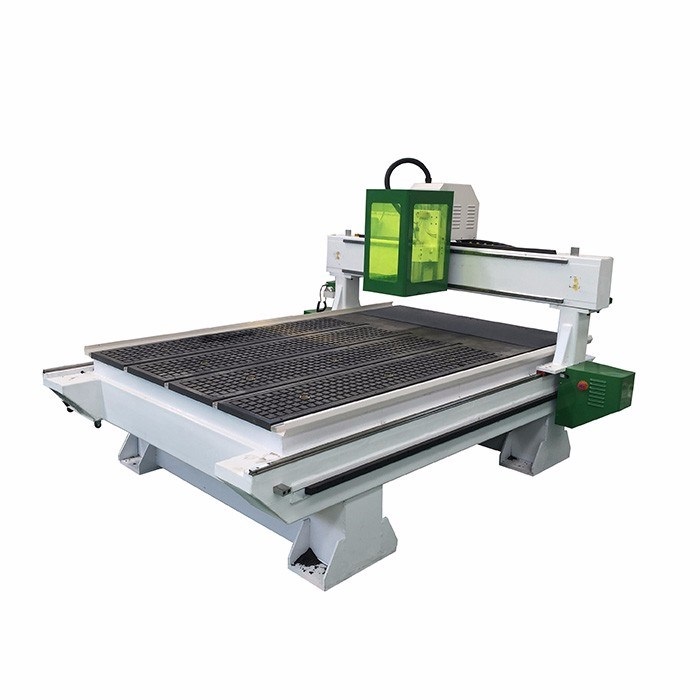

1325 wood cnc router 3d carving for sale

1)Welded steel pipe lathe bed, strong and never out of shape 2)Double motors and drivers of Y axis which can ensure steady movement 3)Rack gear transmission ensures fast speed and high accuracy 4)Imported square rail ensures high accuracy and heavy

1325 Wood CNC Router 3D Carving Machine Application:

cnc router for 3D engraving machine is used for engraving and cutting wood, metal, stone and

other materials.
Widely used in furniture,bed legs,table legs.
Sports equipment,baseball bat,billiard bar and so on

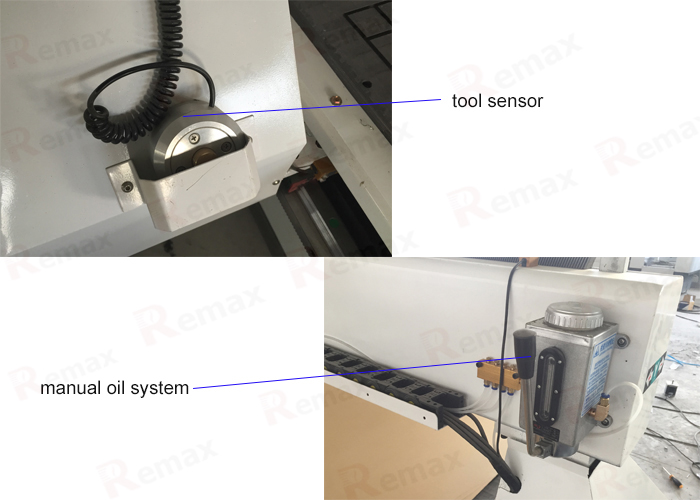

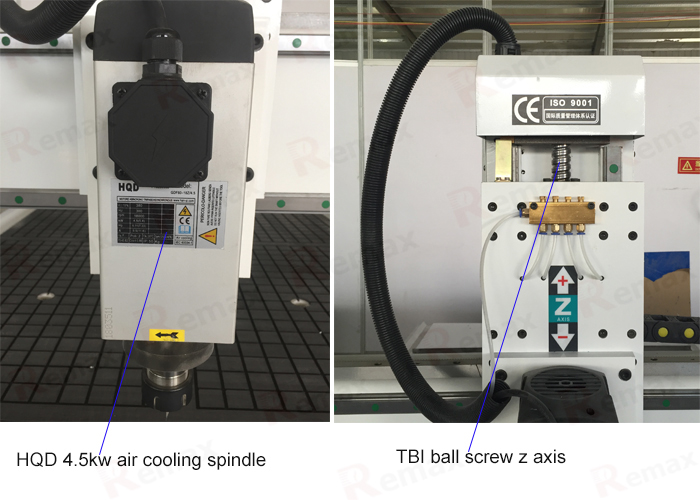

1325 Wood CNC Router 3D Carving Machine Parts

1325 Wood CNC Router 3D Carving Machine Feature:

1.Import square rail ensure high accuracy and heavy workload.
2.Adopt vacuum system.Made by advanced international technology,with double cavities
3.pump of strong adsorption,can adsorb different size materials.

1325 Wood CNC Router 3D Carving Machine Parameter:

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	Vacuum or T-slot Table
Frame	steel structure
X, Y Structure	Hiwin Rail Linear Guide and rack gear
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 2kw~3Kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min
Spindle Power	4.5KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	Stepper Motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine or Yako

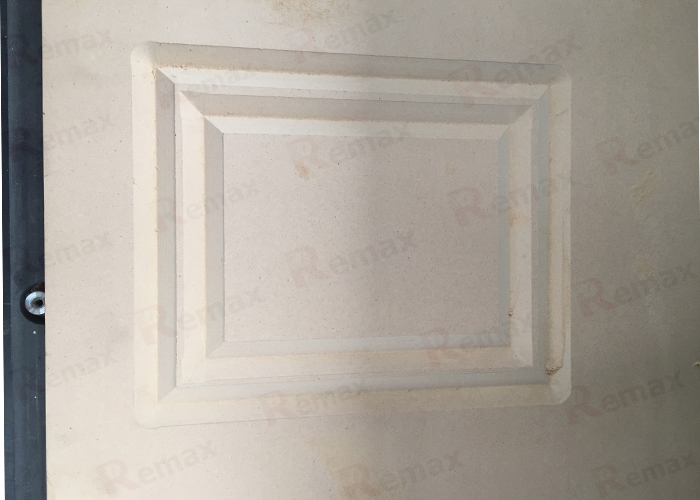

1325 CNC Router 3D Carving Machine Sample:

Remax CNC Router services:

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
