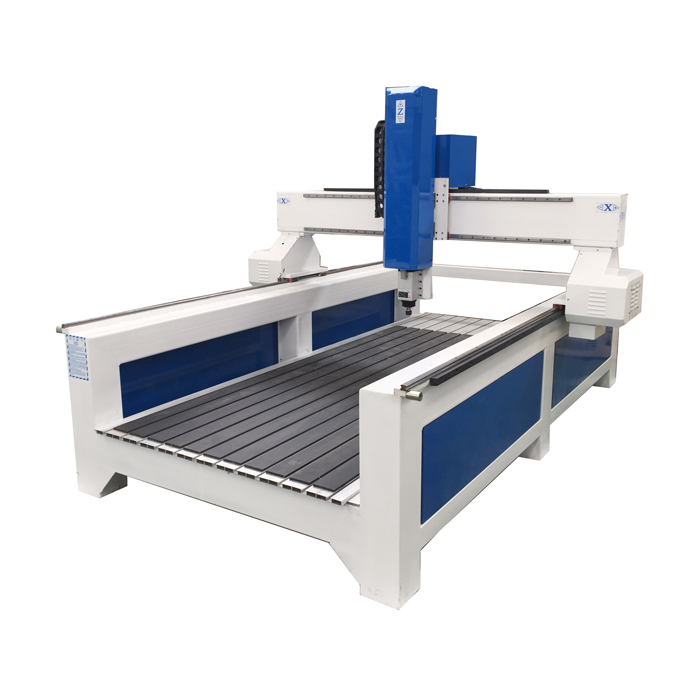

CNC Foam Cutter Machine

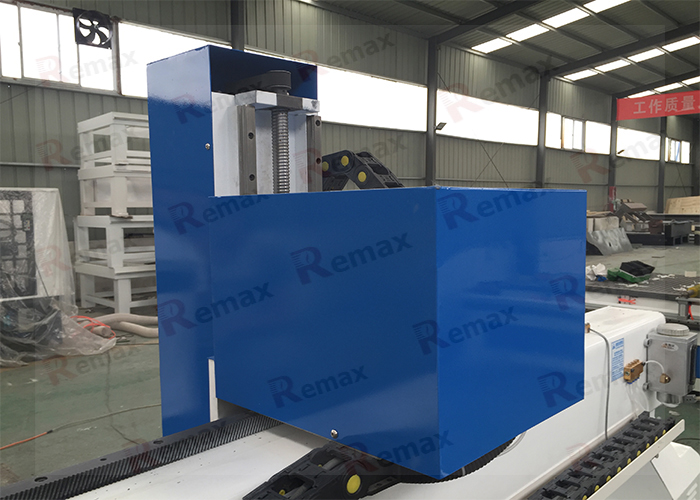

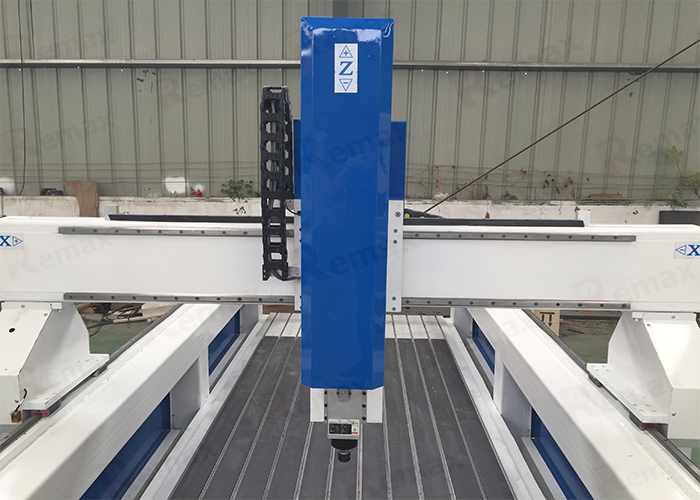

1. High Z Axis work area can support to process high mold. 2. Dust cover for protect the rail and keep a long life time. 3. HIWIN Square rail with stable work condition.

CNC Foam Cutter Machine

CNC Foam Cutter Machine Application

CNC Foam Cutter Machine with high Z Axis, used for process foam, wood, plastic, acrylic,

plywood, MDF, metal kind of mold or big size materials. If you have confusion for this, welcome

sent me your sample picture, then I will give you the best solution.

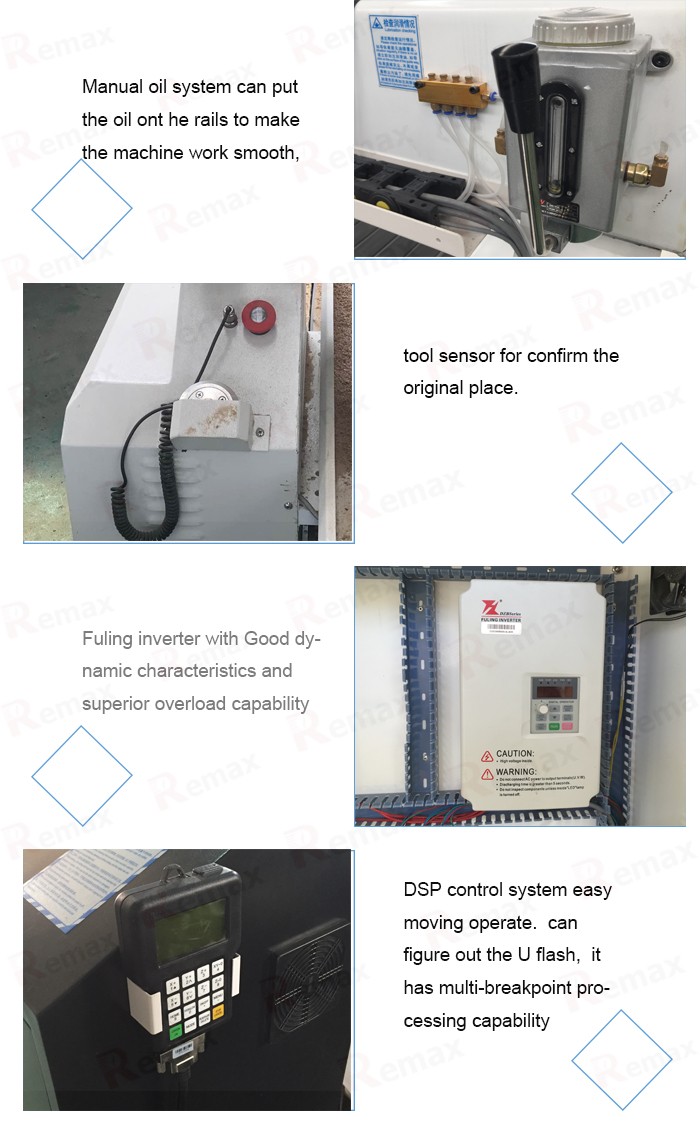

CNC Foam Cutter Machine Parts

CNC Foam Cutter Machine Parameter

Description	Remax-1325
X,Y,Z Working Area	13002500600mm
X,Y,Z Traveling Positioning Accuracy	±0.03/600mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	T-slot Table
Frame	Welded Structure
X,Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Guide
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 4.5KW
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min
Spindle Power	4.5KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	Stepper Motor
Working Voltage	AC380V/50/60Hz,3PH(Option:220)
Command Language	G Code
Operating System	DSP System (Option:Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M (U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Sofeware, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Eletrical components	Schneider
Limit switch	OMRON

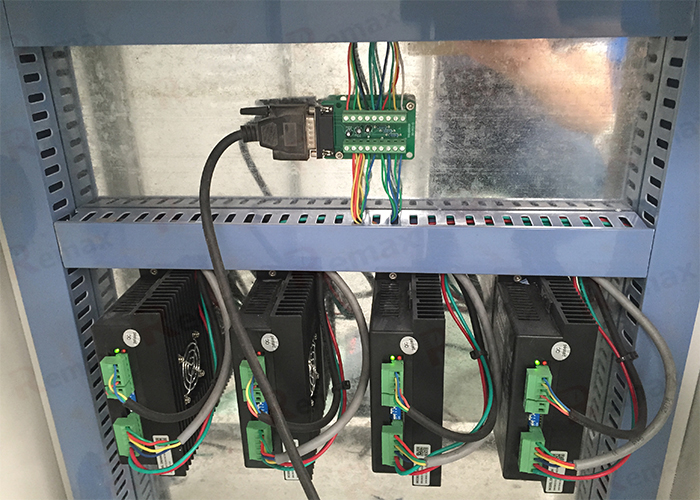

Driver	Leadshine or Yako

CNC Foam Cutter Machine Sample

CNC Foam Cutter Machine Services

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
