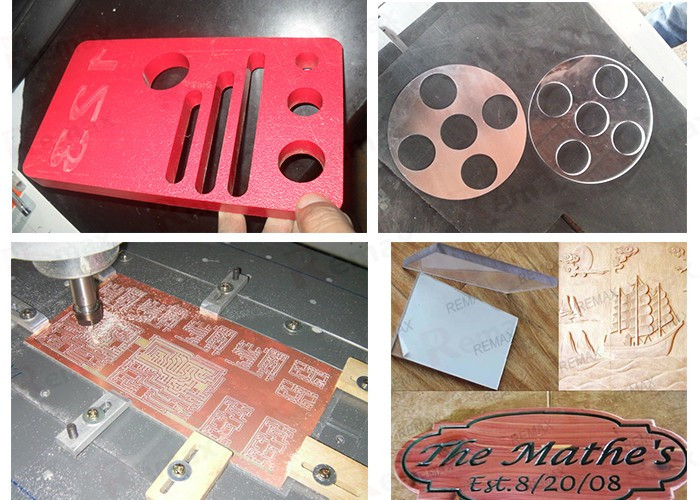

CNC Metal Sheet Cutting Machine well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.

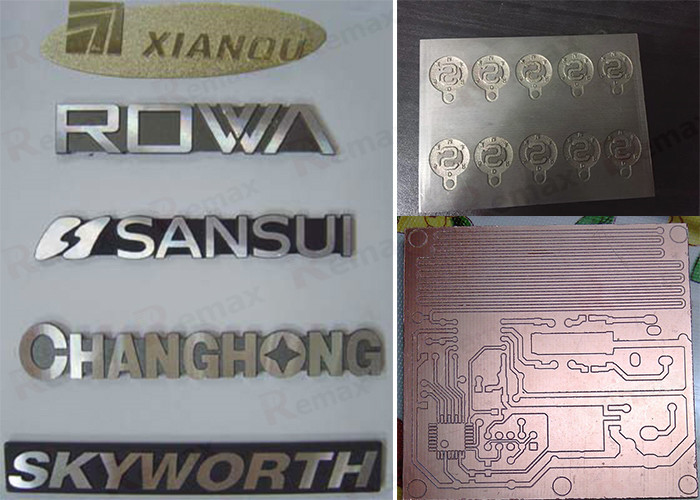

Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper.
| Description | Parameter |
| X,Y,Z Working Area | 600*900*200mm |
| X,Y,Z Repositioning Accuracy |
±0.03mm |
| X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
| Table Surface | Aluminum and PVC |
| Frame | Welded Structure |
| X,Y Structure | Hiwin Rail Linear Guide And TBI Ball Screw |
| Z Sturcture | Hiwin Rail Linear Guide And TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5KW~3KW |
| Max. Rapid Travel Rate | 25000mm/min |
| Max. Working Speed | 18000mm/min |
| Spindle Speed | 0-24000 RPM |
| Spindle Power | 2.2KW/3KW |
| Drive Motors | Stepper Motor |
| Working Voltage | AC380V/50/60/Hz,PH(Option:220V) |
| Command Language | G Code |
| Operating System | DSP System(Options:Ncstudio/Mach 3 PC Software) |
| Computer Interface | USB |
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
