Metal Mold CNC Router Milling Machine For Cutting And Carving Metal

CNC mold making machine used for making metal mold, like shoe mold, metal awards, can process aluminum, brass, steel etc. 1. whole machine cast iron body, very strong for metal work. 2. wireless handle controller more convenient for customer to work.

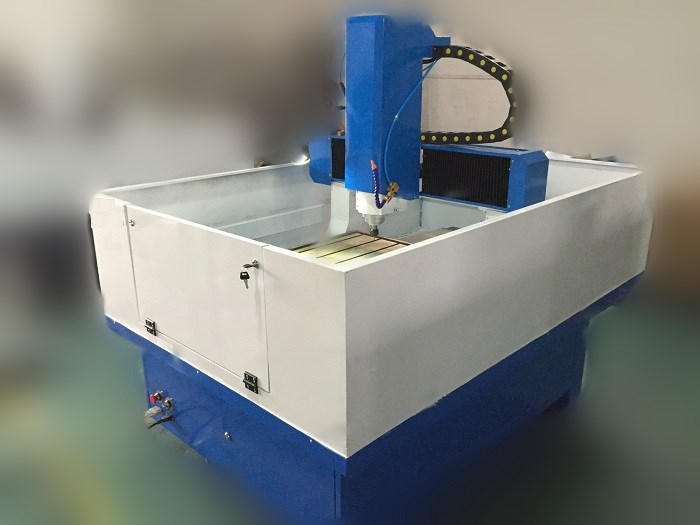

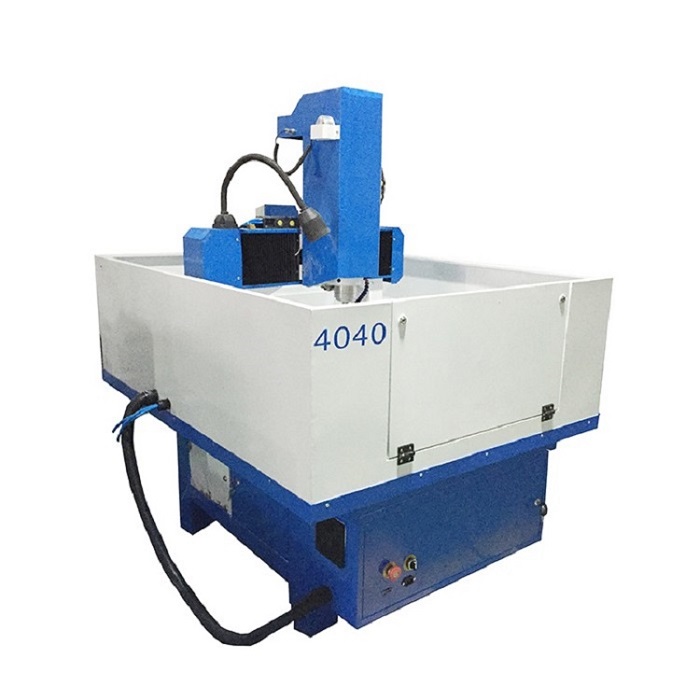

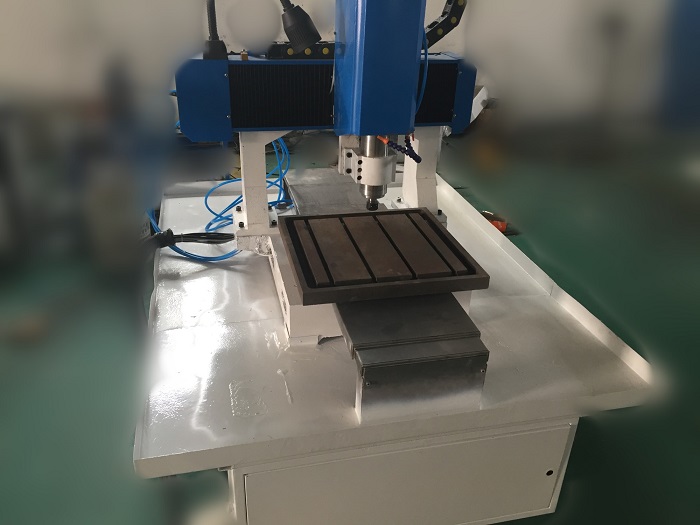

Metal mold cnc router machine for cutting and carving metal

CNC Mold Marking Machine Application:

cnc mold making machine used for making metal mold, like shoe mold, metal awards, can process aluminum, brass, steel etc.

cnc milling machine Main configuration:

1.Work area: 600*900mm, stepper motor

2.Cast Aluminum worktable, Rotary diameters: 200mm

3.1.5kw water cooling spindle

4.DSP control system, USB port

5.HIWIN square orbit, ball screw transmission

6.tool sensor, ORMON limit, oiling system

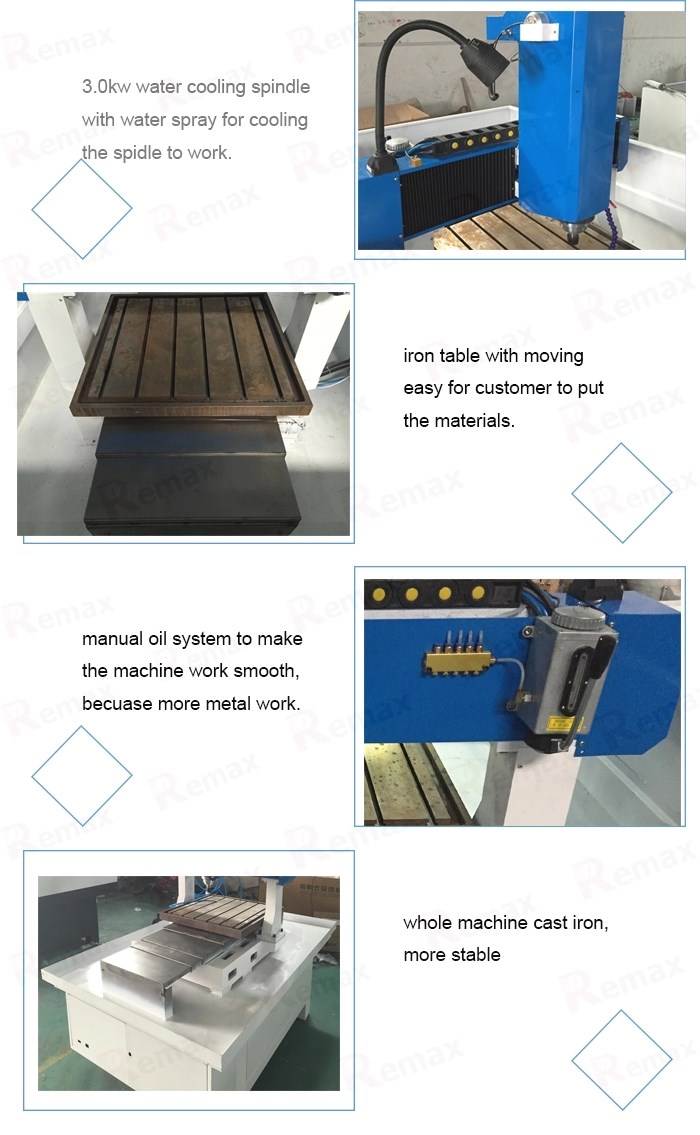

CNC Mold Making Machine Parts:

CNC Mold Making Machine Technology Features:

1. By cast iron, solid, resistant, never deformation

2. Schneider Electrical Components, Omron Limit Switch, other spare parts to extend service life

3. Opening system DSP-A11, easy to operate, Mach3 or Nc studio option

4. The transmission of ball screw TBI and HIWIN linear guide rails ensure high accuracy and heavy workload

5. With the USB interface, totally independent from the PC platform

6. With clever design, this machine can be disassembled, so it is easily transported.

CNC Mold Making Machine Parameter:

NO.	Description	Parameter
1.	X, Y, Z Working Area	400400200mm
2.	X, Y, Z Traveling Positioning Accuracy	±0.03/200mm
3.	X, Y, Z Repositioning Accuracy	±0.03mm
4.	Table Surface	T-Slot Table
5.	Frame	Cast By Iron
6.	X, Y, Z Structure	Hiwin Rail Linear Guide And Ball Screw
7.	Z Structure	Hiwin Rail Linear Guide And Ball Screw
8.	Max. Power Consumption	(Without Spindle) 1.0KW
9.	Max. Working Speed	10000mm/min
10.	Max. Rapid Travel Rate	16000mm/min
11.	Spindle Power	2.2KW Water Cooling Spindle
12.	Spindle Speed	0-24000RPM
13.	Drive Motors	Hybrid Servo Motor
14.	Working Voltage	AC220/380V/50/60Hz, 3PH
15.	Command Language	G Code
16.	Operating System	Ncstudio/Mach3 PC Software
17.	Computer Interface	USB
18.	Flash Memory	128M (U Disk)
19.	X, Y Resolution	<0.01mm
20.	Software Compatibility	Type3/UcancameV9 Sofrware, (Option: Artcam Software)
21.	Running Environment Temperature	0-45 Centigrade
22.	Relative Humidity	30% - 75%
23.	Inverter	Delta/Fuling
24.	Electrical components	Schneider
25.	Limit switch	OMRON
26.	Drive	Leadshine or Yako

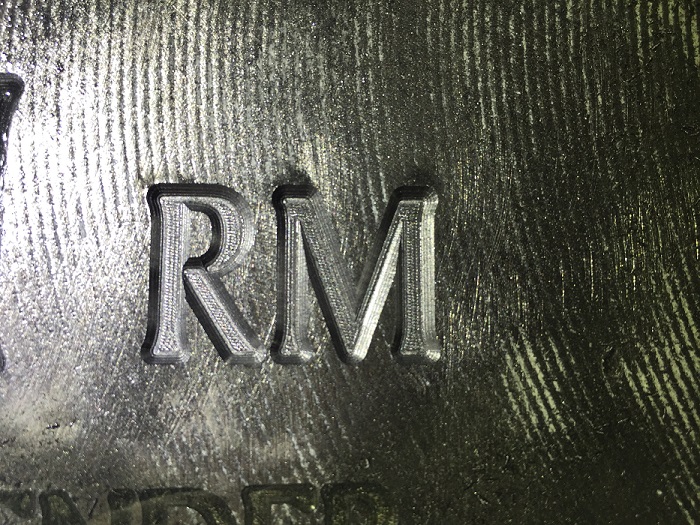

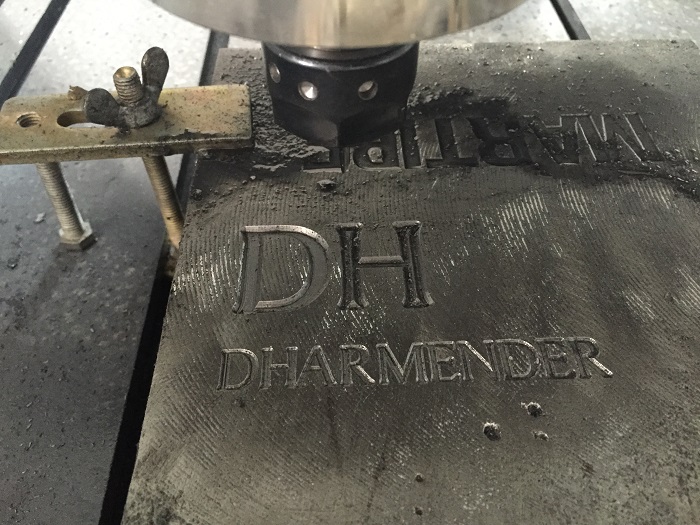

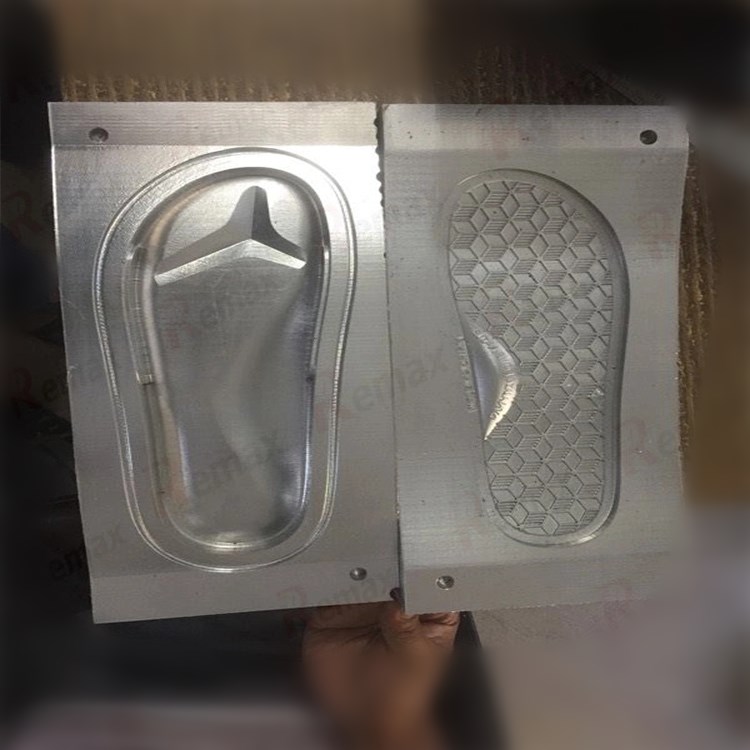

CNC Mold Making Machine Sample

Remax CNC Router Services

Q:This is the first time I use this kind of machine, is it easy to operate?
A:There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager

online service at any time.

Q:If machine have any problem after I receive it, how can I do ?
A:Free parts send to you within machine warranty period if machine have any problem.

Q:MOQ ?
A:The minimum order is 1 set machine, if you order more one time, the price will be better.

Q:How can I buy this machine from you? ( Very easy and flexible !)
A:1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.

6. Send your order by air or by sea.
