cnc metal engraving machine:
1.cnc metal engraving machine body is cast iron, more stable for metal and nonmetal work.
2. water tank used for cooling the spindle and protect the environment.

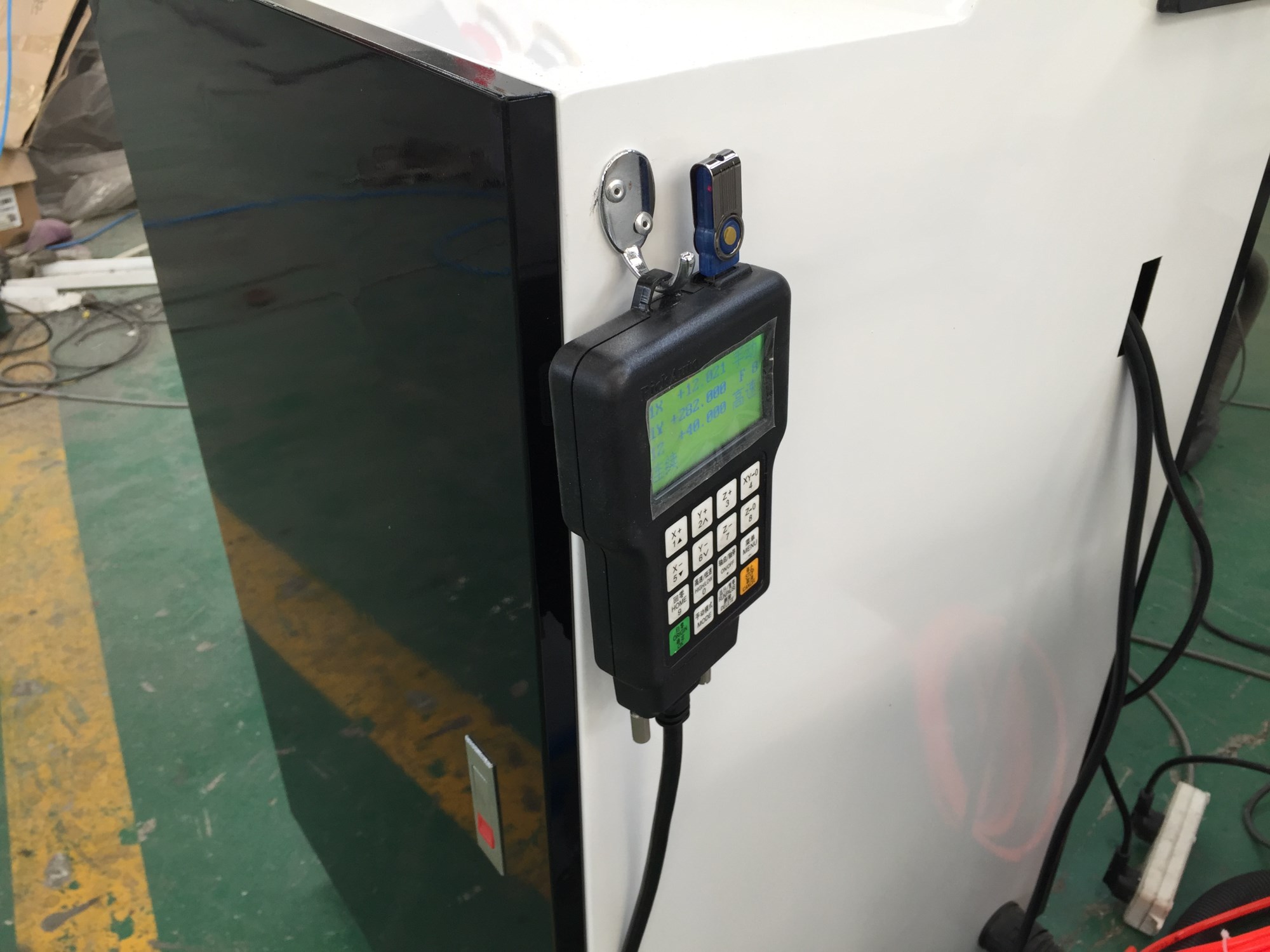

3.DSP control system system easy to operate.
X,Y,Z Working Area
600x900x200mm
X,Y,Z Traveling Positioning Accuracy
±0.03/200mm
X,Y,Z Repositioning Accuracy
±0.03mm
Table Surface
Frame
cast by iron
X, Y,Z Structure
Hiwin Rail Linear Guide and Ball Screw
Z Structure
Hiwin Rail Linear Guide and Ball Screw
Max. Power Consumption
(Without Spindle) 1.0Kw
Max. Rapid Travel Rate
16000mm/min
Max. Working Speed
10000mm/min

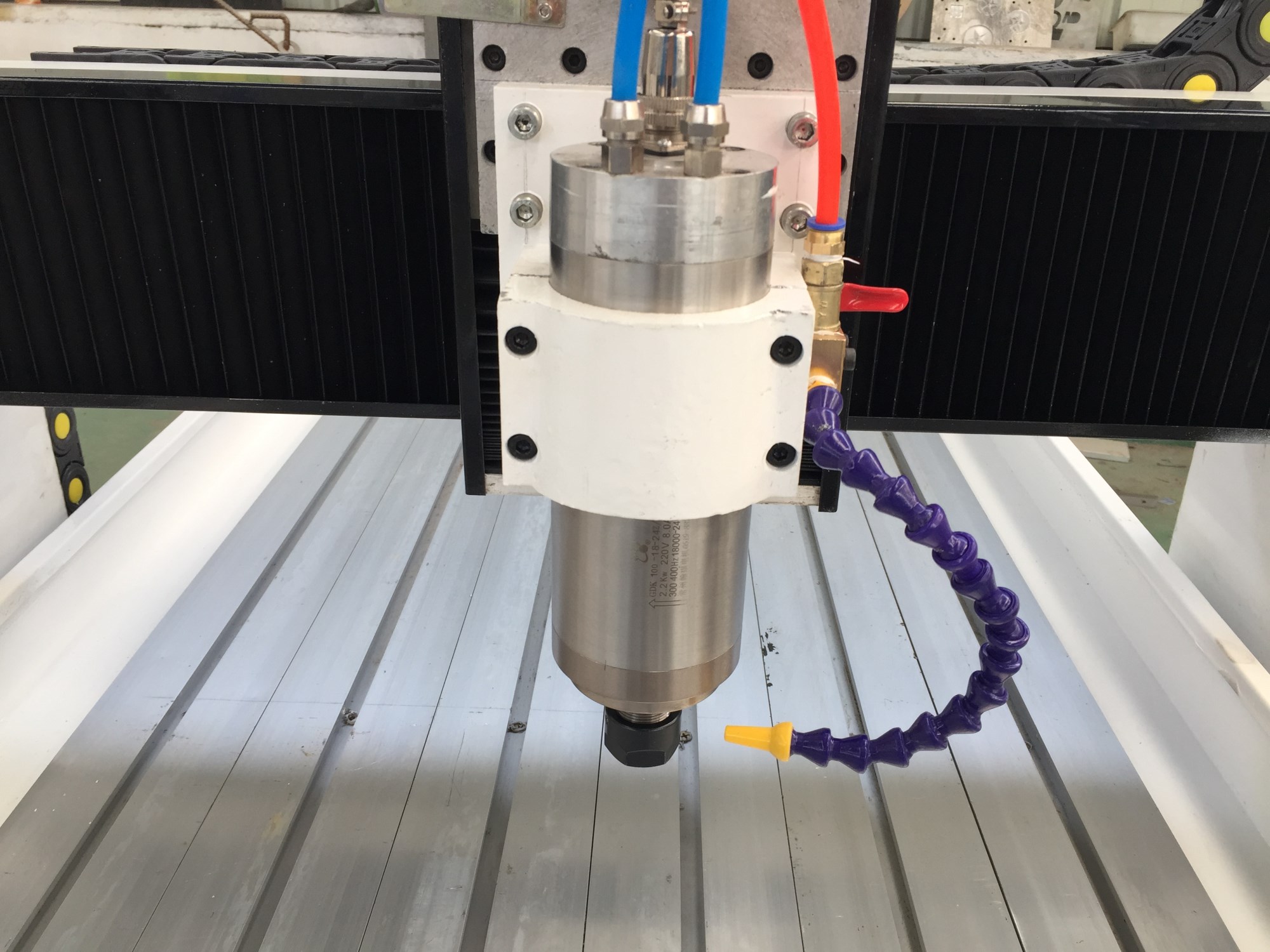

Spindle Power
1.5KW water cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Stepper Motor
Working Voltage
AC220/380V/50/60Hz, 1 ph/3PH
Command Language
G Code
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface
USB
Flash Memory
128M(U Disk)
X,Y Resolution
<0.01mm
Software Compatibility
Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment
Temperature 0 - 45 Centigrade
Relative Humidity
30% - 75%

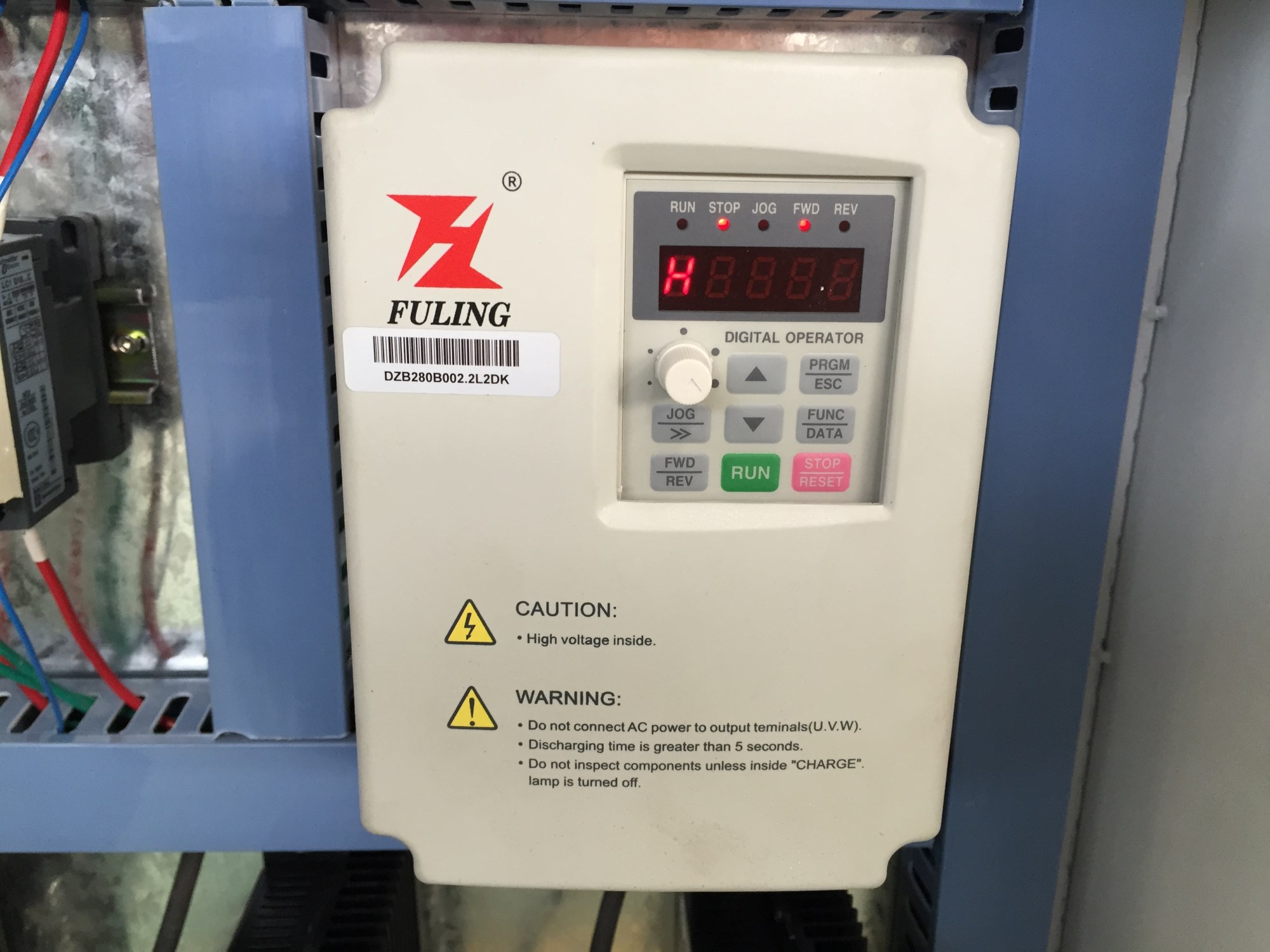

Inverter
Delta/Fuling

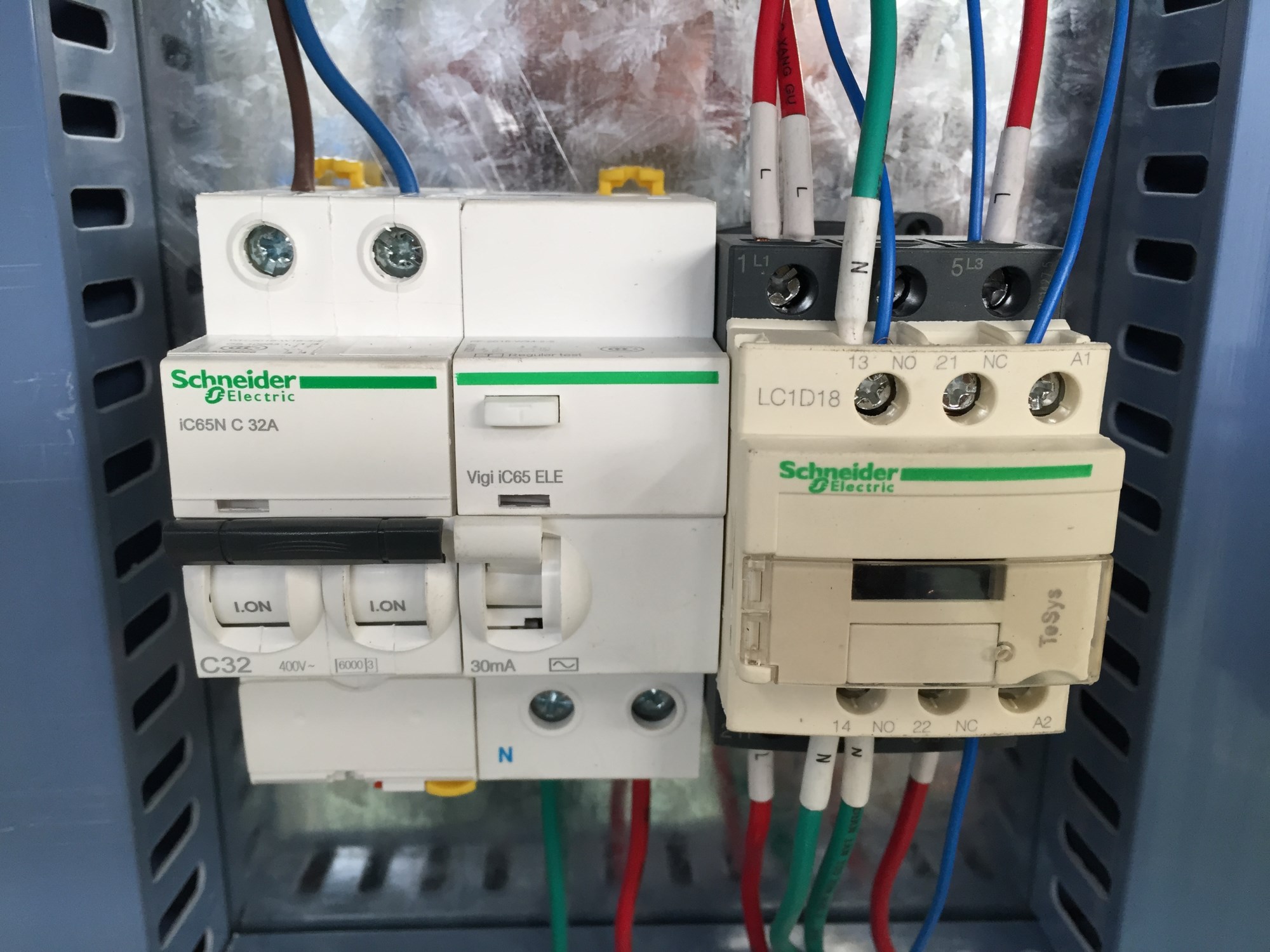

Electrical components
Schneider
Limit switch
OMRON
Driver
Leadshine or Yako

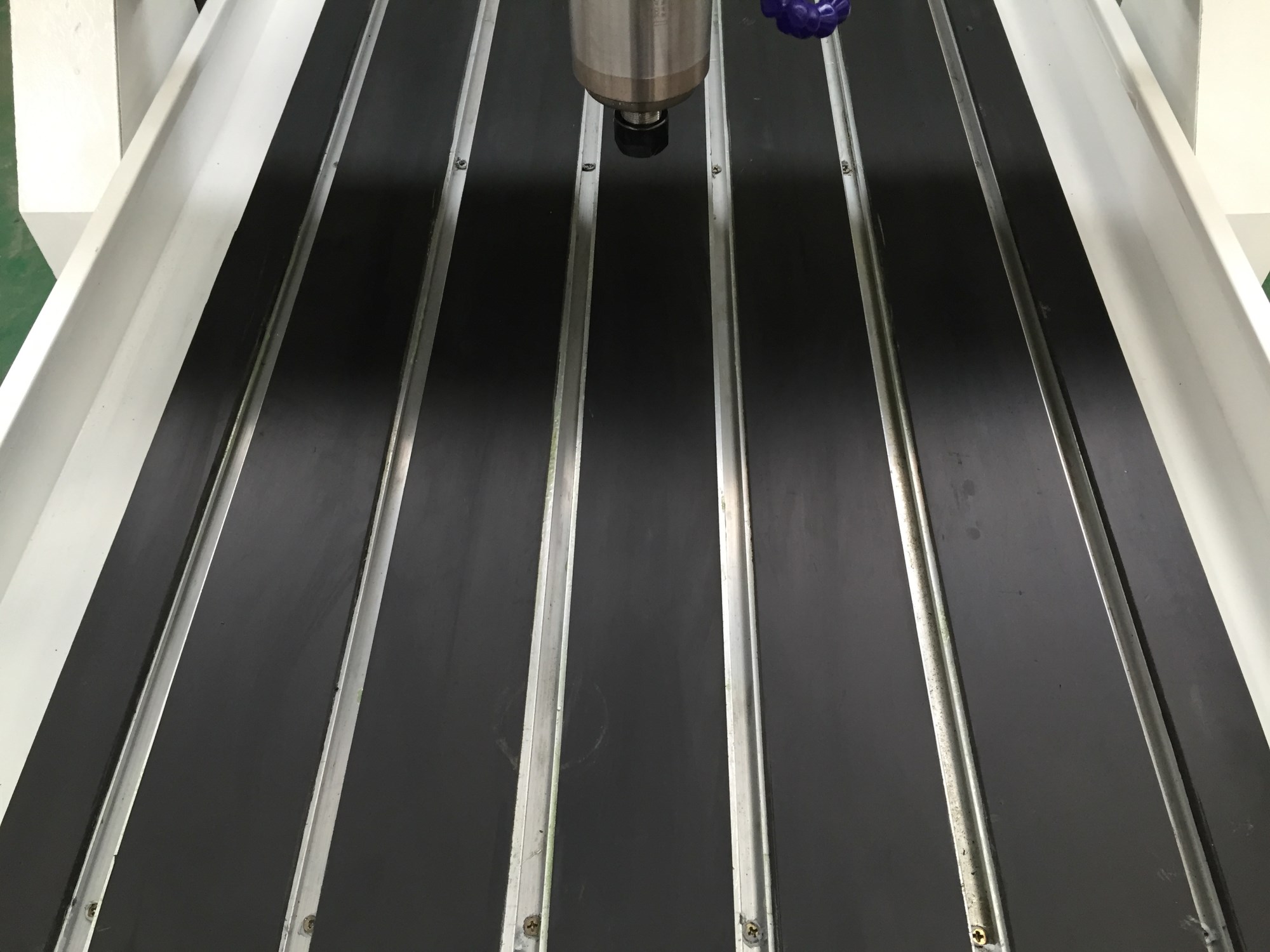

T-slot Table
Parts

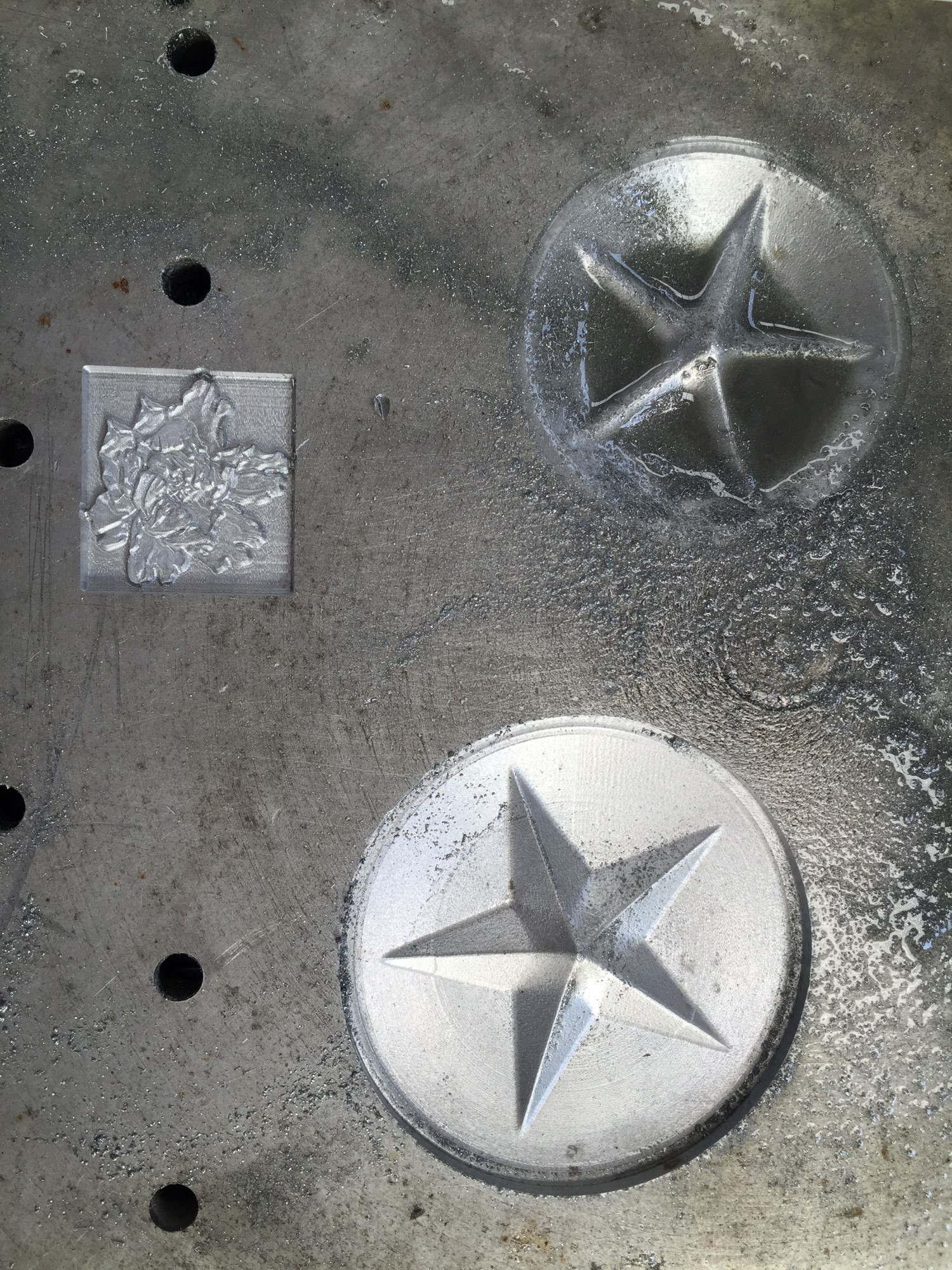

Samples
Our Service
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
