Remax-6060 CNC Milling Machine For Shoe Mold
Remax-6060 CNC Milling Machine For Shoe Mold
1. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity 2. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of

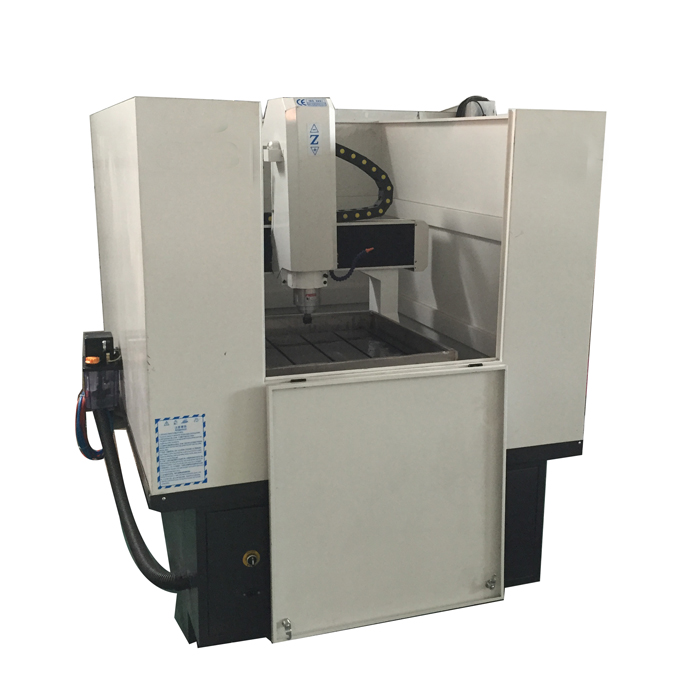

Remax-6060 CNC Milling Machine For Shoe Mold


Remax-6060 CNC Milling Machine For Shoe Mold Application

CNC milling machine used for engraving and cutting aluminum, steel. wood, PVC, MDF.

also can do some Stone, Brass and AL Processing, mold, wood processing, craft manufacturing,

indoor decoration cutting, sign and mark manufacturing, acrylic board processing, metal and PCB drilling.

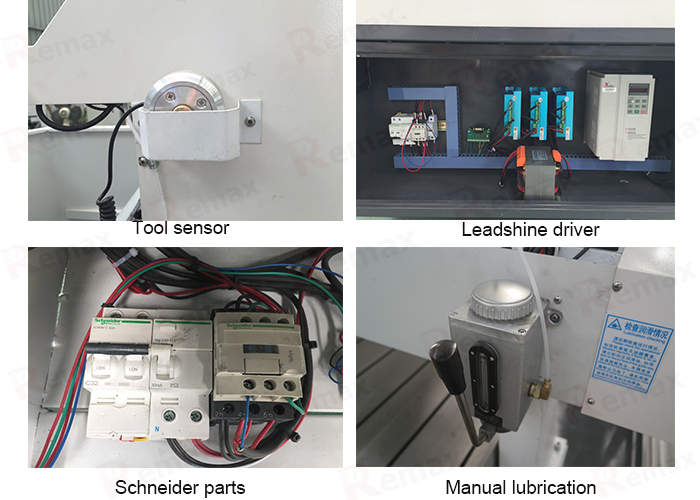

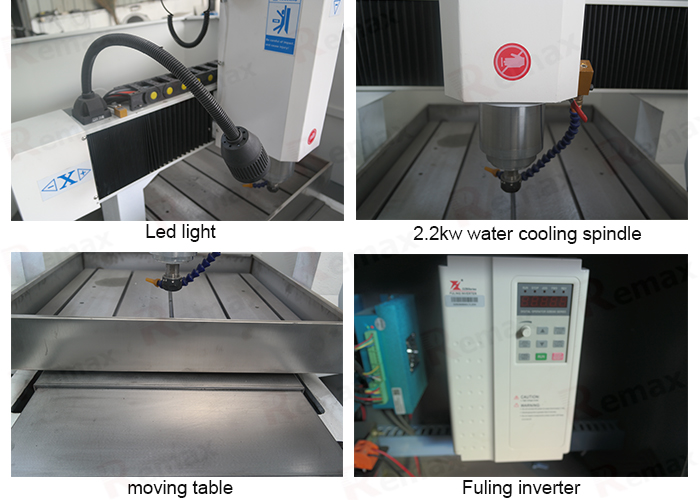

Remax-6060 CNC Milling Machine For Shoe Mold Parts



Remax-6060 CNC Milling Machine For Shoe Mold Parameter

Model Remax-6060 CNC Milling Machine
X,Y,Z Working Area 600*600*200mm
X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface T-Slot Aluminum +PVC
Frame By cast iron
X,Y,Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Max.Power Consumption (Without Spindle) 1.0KW
Max. Rapid Travel Rate 16000mm/min
Max. Working Speed 10000mm/min
Spindle Power 2.2KW water cooling spindle(3.0kw for optional)
Spindle Speed 0-24000RPM
Drive Motors Servo motor (or Stepper motor)
Working Voltage AC220/380V, 50/60Hz
Command Language G Code
Operating System Nc Studio or Mach3 PC Software
Computer Interface USB
Flash Memory 128M(U Disk)
X,Y Resolution <0.01mm
Software Compatibility Type 3/ Ucancame V9 Software (Option:Artcam Software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30%-75%
Inverter Delta/Fuling
Eletrical components Schneider
Limit switch OMRON
Driver Leadshine or Yako

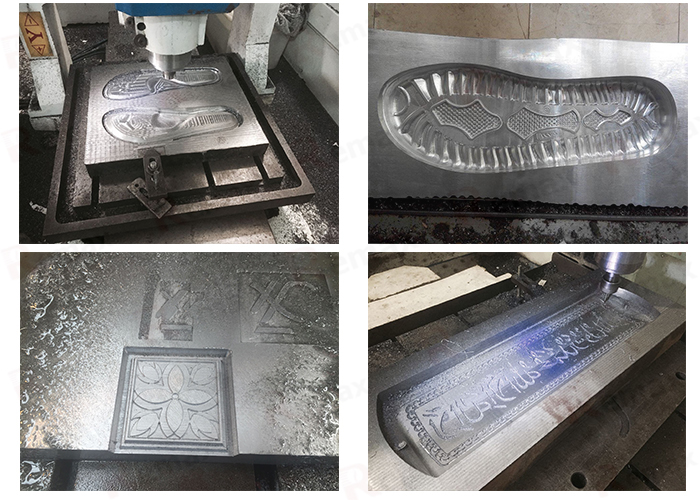

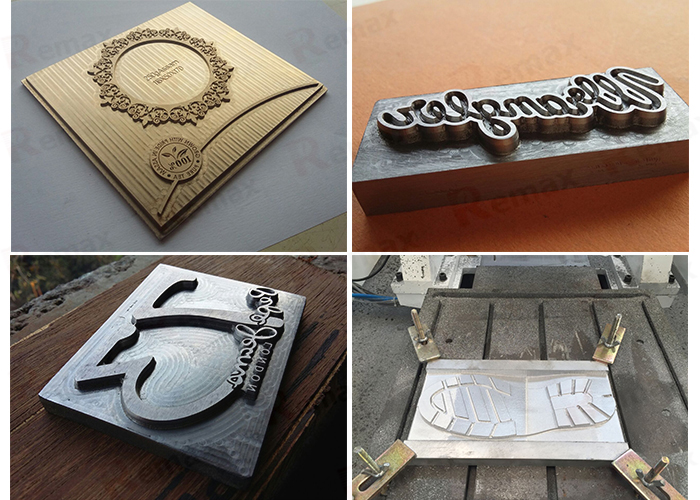

Remax-6060 CNC Milling Machine For Shoe Mold Sample



Remax-6060 CNC Milling Machine For Shoe Mold Services



Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
