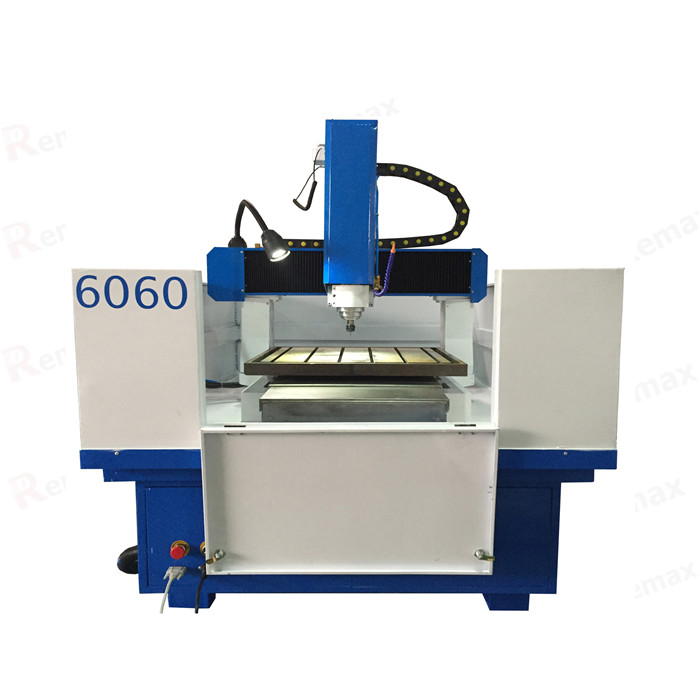

Remax 6060 metal cnc mold making machine CE certification

Mold industry: can carve copper, aluminum, iron and other metal mold, as well as artificial marble, sand, plastic sheet, PVC pipe, wood and other non-metallic mold. other industries: shadow carving, widely usde in craft gift industry.

Remax 6060 metal cnc mold making machine CE certification

Metal CNC Mold Making Machine Application：

Table moving cnc router 6060 metal mould machine aluminum cnc milling machine

Iron, Copper, Aluminum, Stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT sheet, Timber, Gemstone, Marble, Plastic, etc.

1. It is suitable for engraving, milling and drilling compactly all sorts of materials such as steel, copper, aluminum and plastics.

2. It is widely used on automotive, injection mould, ironware mould and engrave mould industries.

3. The metal milling machine is especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface's sleeking of large size molds.

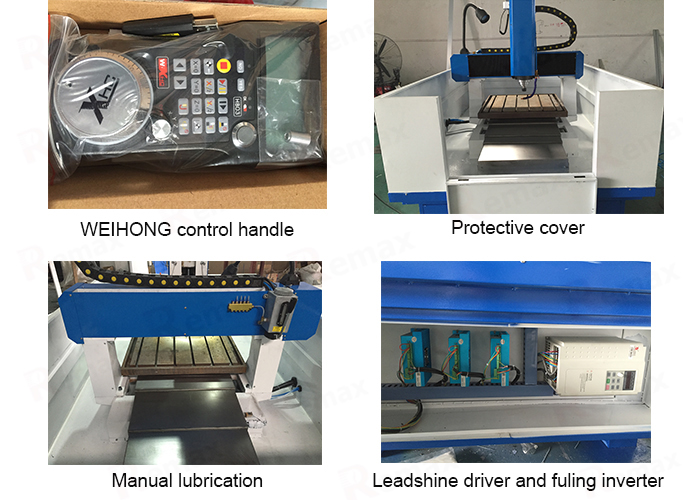

Metal CNC Mold Making Machine Parts

metal mold machine

Metal CNC Mold Making Machine Feature:

1. Aluminum grooved and moving table, ideal for machining metal or wooden molds

2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity

3. TBI ball screw transmission improves positioning accuracy and fast speed

4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials

5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements

Metal CNC Mold Making Machine Parameter:

Model	Remax-6060 Small CNC Machine for sale
X,Y,Z Working Area	600600200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	T-slot Aluminum +PVC
Frame	Cast by iron
X, Y Structure	HIWIN Rail Linear Guide and TBI Ball Screw
Z Structure	HIWIN Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 1.0Kw
Max. Rapid Travel Rate	16000mm/min
Max. Working Speed	10000mm/min
Spindle Power	3.0 kw water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper Motor
Working Voltage	AC220/380V, 50/60Hz
Command Language	G Code
Operating System	Ncstudio or Mach3 PC Software
Computer Interface	USB
Flash Memory	128M(U Disk)
X,Y Resolution	<0.01mm
Software Compatibility	Type3/Ucancame V9 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine or Yako
Warranty	One year, expect consumable parts
Support	By calling or email or training

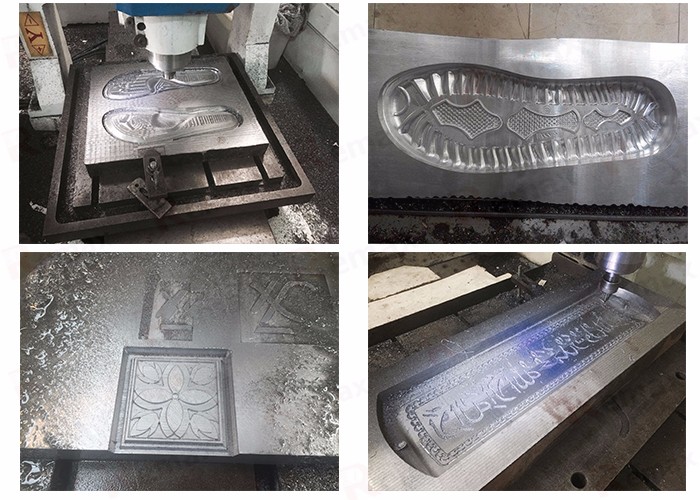

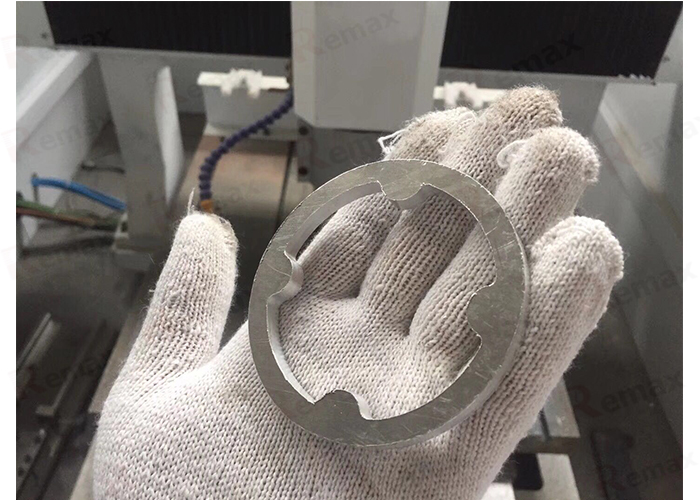

Metal CNC Mold Making Machine Sample:

Remax CNC Router Services

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.
