Steel Caving 6060 ATC Metal Mould Cnc Milling Machine
Steel Caving 6060 ATC Metal Mould Cnc Milling Machine
Steel Caving 6060 ATC Metal Mould Cnc Milling Machine used for carving, milling and drilling soft metal materials such as steel brass, copper, aluminum etc it is our professional one for making metal mold, like shoe and awards.

Steel Caving 6060 ATC Metal Mould Cnc Milling Machine




6060 ATC Metal Mould Cnc Milling Machine application


1. It is suitable for engraving, milling and drilling compactly all sorts of materials such as steel,

copper, aluminum and plastics.

2. It is widely used in automotive, injection mould, ironware mould and engrave mould industries.

3. It is especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand,

graphics and words ofthree-dimensional and outside surface's sleeking of large size molds.


6060 ATC Metal Mould Cnc Milling Machine Feature

1. Whole machine cast by iron , the rigidity is good, not easy to be deformed,

2 .Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed.

Adopting Taiwans high-precision square linear guide, effectively imported the precision of carving.

3 The CNC milling machine adopts advanced CNC system (NCstudio or DSP control system),

has break point memory mode to make sure continuous working after electronic drop or other postpone situation

4 High-performance driven motor to ensure that the machines high speed and accurancy.

5 Automatic oil lubrication system is easy to operate by one key press, equiped with dust proof

and water proof for XY axis, make the maintenance operation easily.

6 ATC function support different tool to work with different engrave requirement.

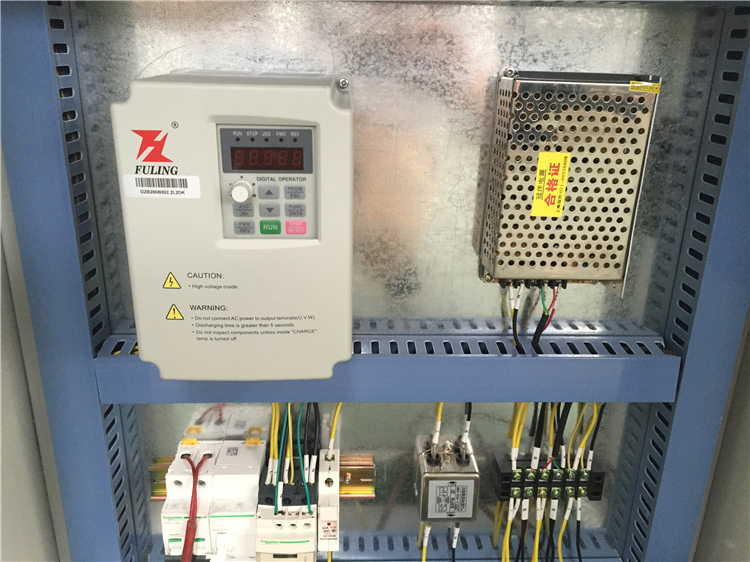

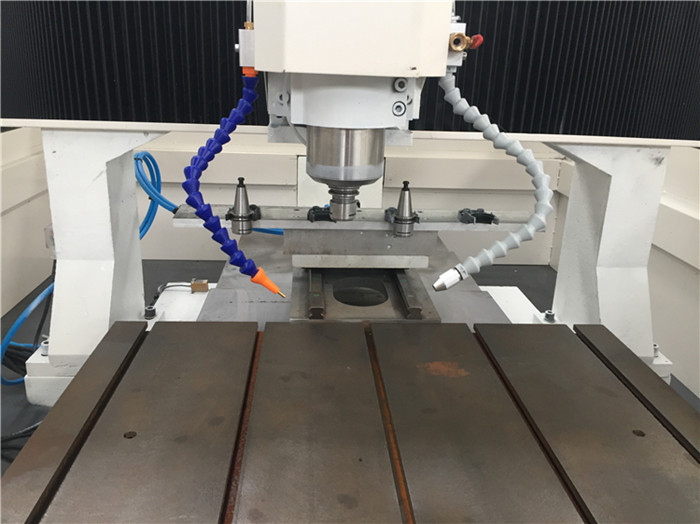

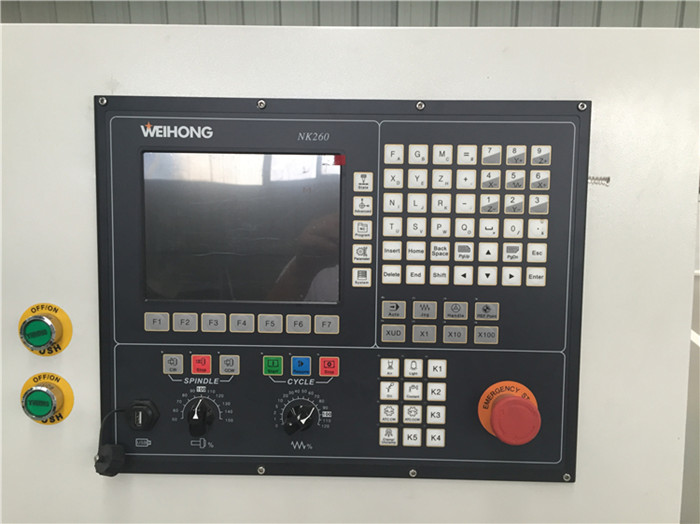

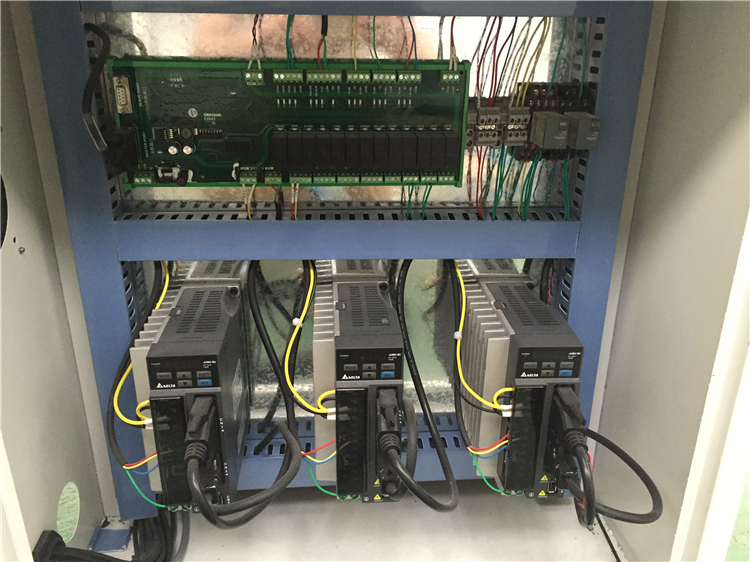

6060 ATC Metal Mould Cnc Milling Machine Parts

Technical parameter 6060 ATC Metal Mould Cnc Milling Machine

Description Parameter
X,Y,Z working area 600x600x200mm
X,Y,Z Accuracy

±0.02mm

X,Y,Z Repositioning Accuracy

±0.0254mm

table surface
t-slot table
Frame
cast by iron
X,Y,Z structure
Hiwin square rail and TBI ball screw
Max rapid travel rate
16000mm/min
max working speed
10000mm/min
spindle power ATC2.2kw water cooling spindle
spindle speed
0-24000rpm/min
driver and motor
Delta servo motor and driver
working voltage AC 220V/380V 50/60HZ
command language
G code
operating system
NK 260
computer interface USB
XY resolution

<0.01mm

software compatibility
Type3 /ucancame V9/Artcam
Running Environment  Temperature

0 - 45 Centigrade

Relative humidity

30% - 75%

Inverter

Delta/Fuling

Electrical components

Schneider

Limit switch

OMRON

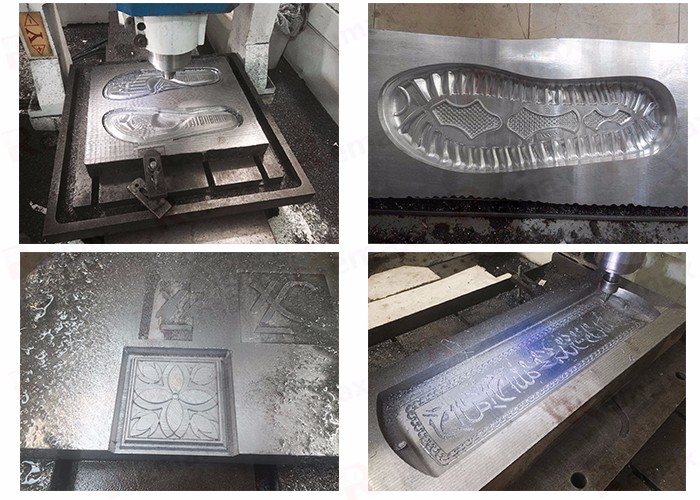

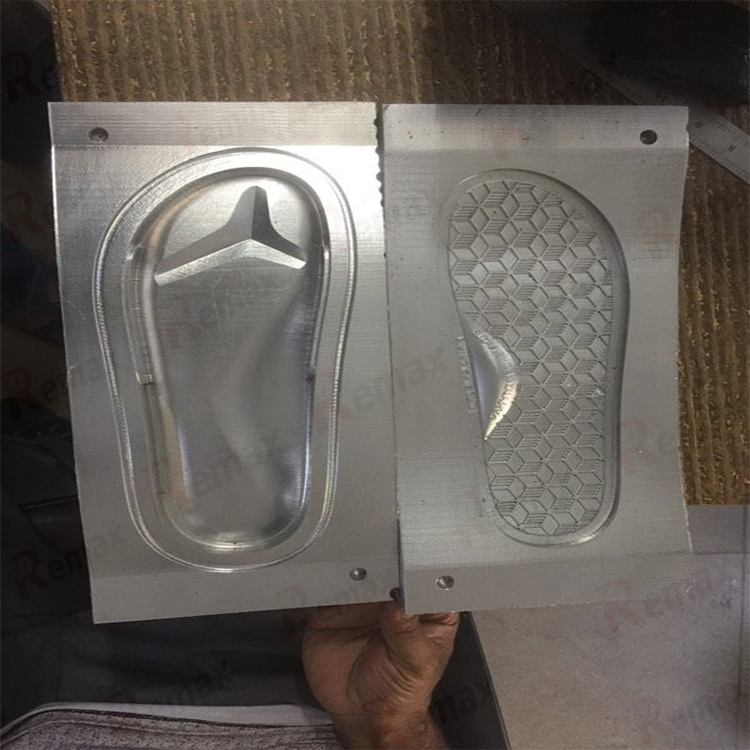

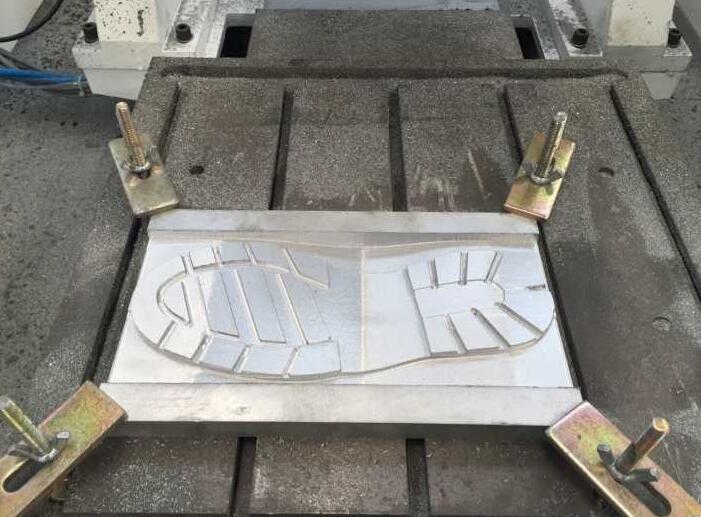

Sample of 6060 ATC Metal Mould Cnc Milling Machine





FAQ
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
