Remax-8080 Woodworking 4 Axis CNC Router with ATC

1.Remax 4 axis cnc router with high z axis height, for bigger mold making, like wood, metal. 2.Spindle moving with 180 degree. widely used for many industry. 3.with ATC function, improved the work efficiency highly. 4.price is flexible with the differe

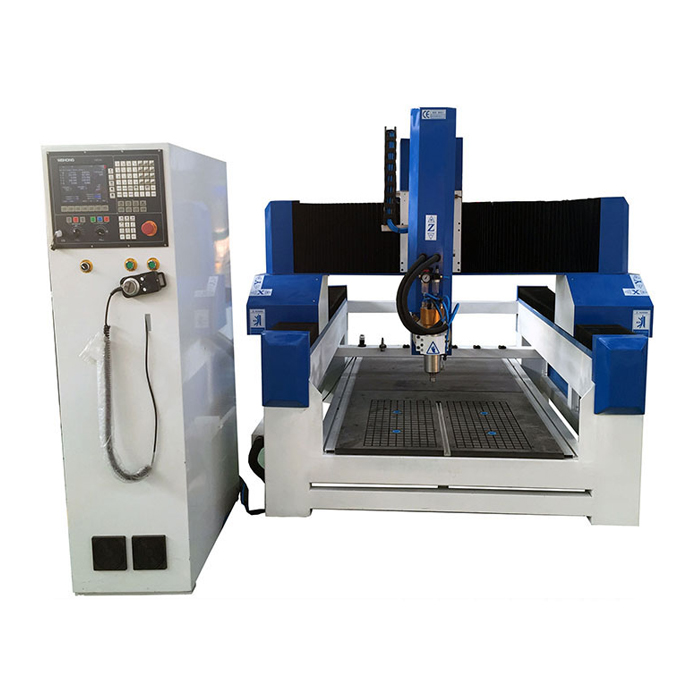

Remax 8080 Woodworking 4 Axis CNC Router with ATC

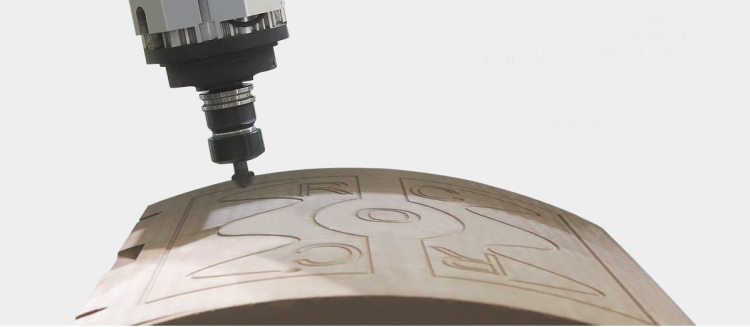

Remax 8080 Woodworking 4 Axis CNC Router with ATC Application

4 Axis CNC Router support work on foam, MDF, Acrylic, wood, and the soft metal etc.

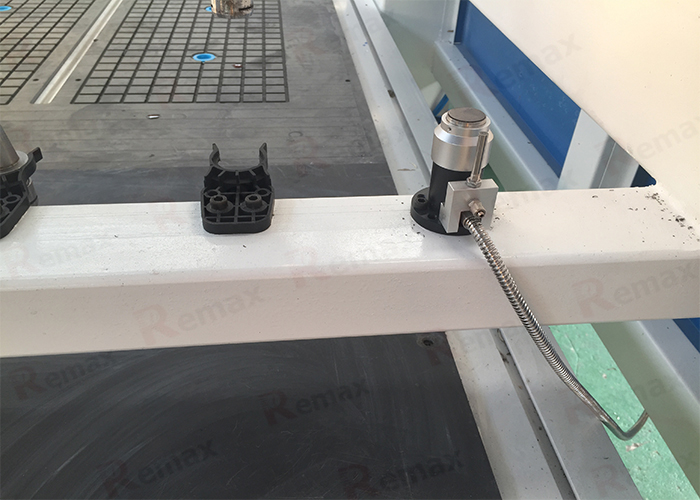

Remax 8080 Woodworking 4 Axis CNC Router with ATC Parts

Remax 8080 Woodworking 4 Axis CNC Router with ATC Parameter

Index	Parameter
X,Y,Z Aworking Area	800x800x600mm ±90°
Table Size	940x990mm
X,Y,Z Traveling Positioning Accuracy	±0.03/600mm
X,Y,Z Repositioning Accuracy	±0.03
Table Surface	Integrated Vacuum and T-slot Combined (Option: T-slot Table)
Frame	Precision machined & heavy duty frame (stress-relieved), one-piece steel base
X,Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and TBI Ball Screw
Max. Power Consumtion	(Without Spindle) 10.5KW
Max. Rapid Travle Rate	50000mm/min
Max. Working Speed	30000mm/min

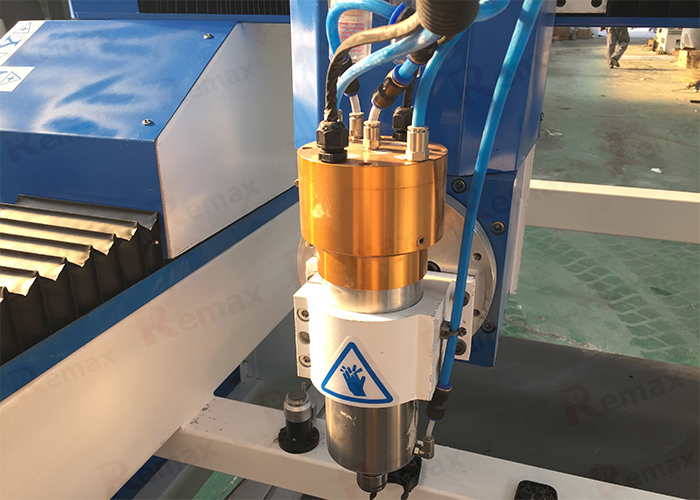

Spindle Power	5.5KW water cooling HITECO ATC (Optional HQD)
Spindle Speed	0-24000RPM

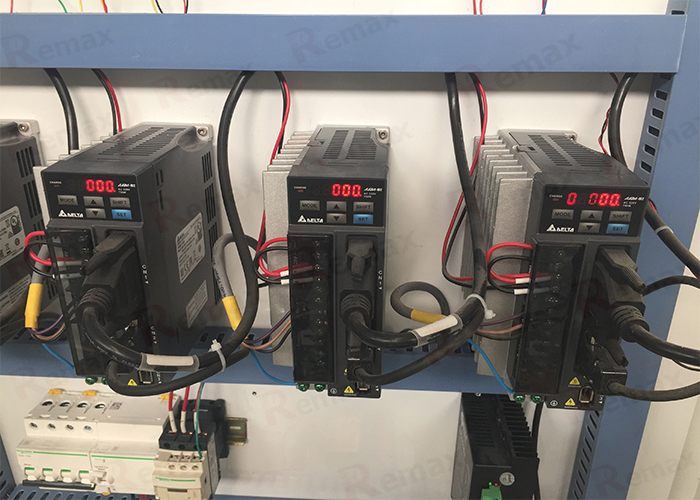

Drive Motors	Taiwan delta servo Motors
Working Voltage	AC380V/50/60Hz, 3PH
Command Language	G Code
Operating System	NK 280 control system
Computer Interface	CF card, Ethernet
Flash Memory	256M
Tool holder	HSK F63
X,Y Resolution	<0.03mm
Software Compatibility	Type3, Ucancame V9 Software (UG software/Power mill)
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Packing Size	3400x3500x2800mm
N.W.	2600KG
G.W.	2800KG

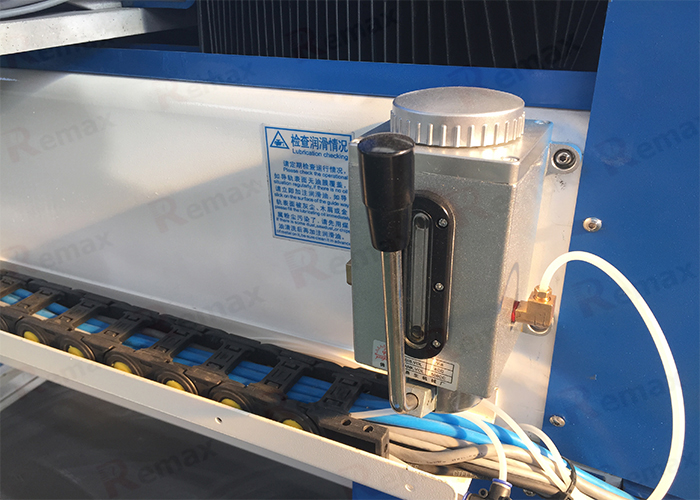

Optional Parts	Lucbricating system
	Vacuum Pump
	Mist-cooling System
	Positioning air cylinder

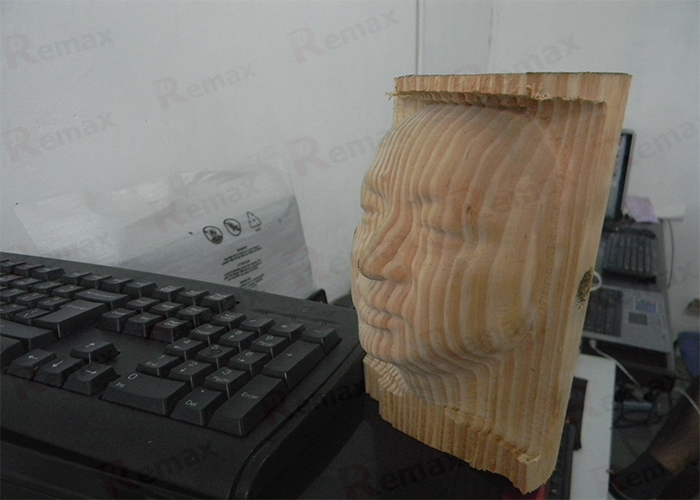

Remax 8080 Woodworking 4 Axis CNC Router with ATC Sample

Remax 8080 Woodworking 4 Axis CNC Router with ATC Services

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
