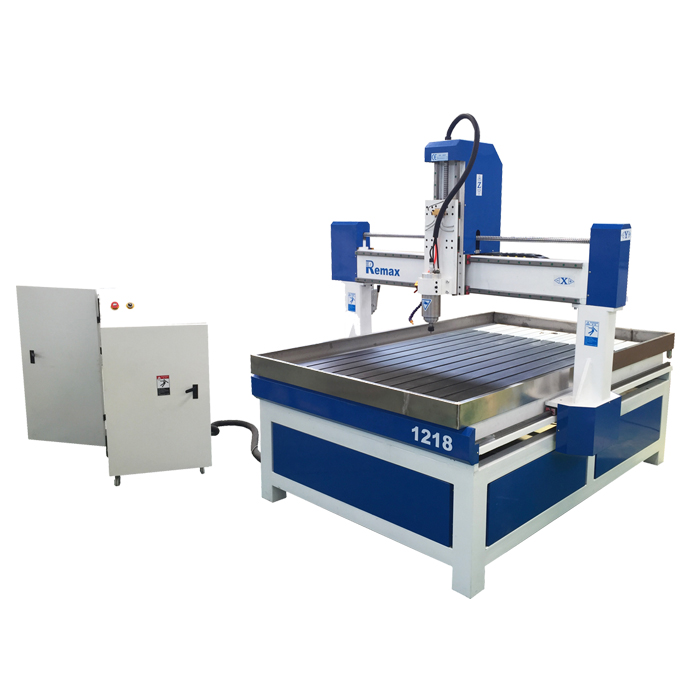

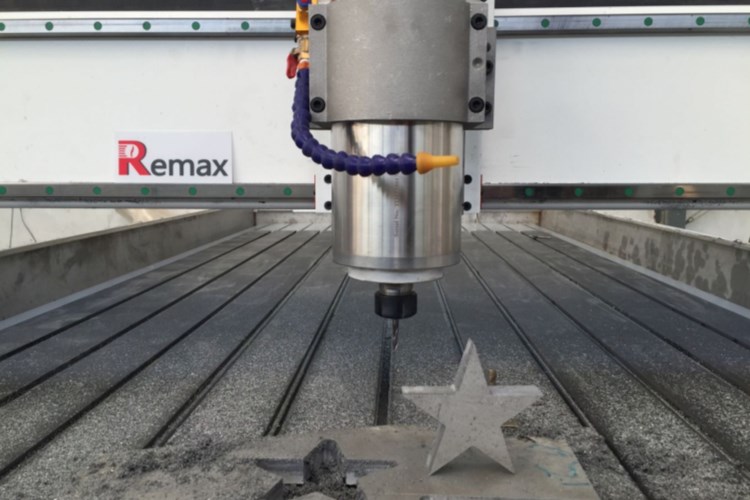

Remax 1218 cnc wood router machine

Application:

1)Machine lathe bed cast by iron, very strong and never out of shape

2)Leadshine driver and motor, Schneider electrical parts

3)TBI ball screw transmission ensures high accuracy

4)Imported Taiwan Hiwin square rail ensures high accuracy and heavy workload

Main Parts:

Parameters:

NO.	Description	Parameter
1	X,Y,Z Working Area	1200x1800x150mm
2	X,Y,Z  Accuracy	±0.02mm
3	X,Y,Z Repositioning Accuracy	±0.0254mm
4	Table Surface	T-slot Table
5	Frame	lathe bed castby iron
6	Transmission	Hiwin square rail and TBI ball screw for 3 axis
7	Max. Power Consumption	2.5kw~3Kw (without spindle)
8	Max. Rapid Travel Rate	15000mm/min
9	Max. Working Speed	8000mm/min

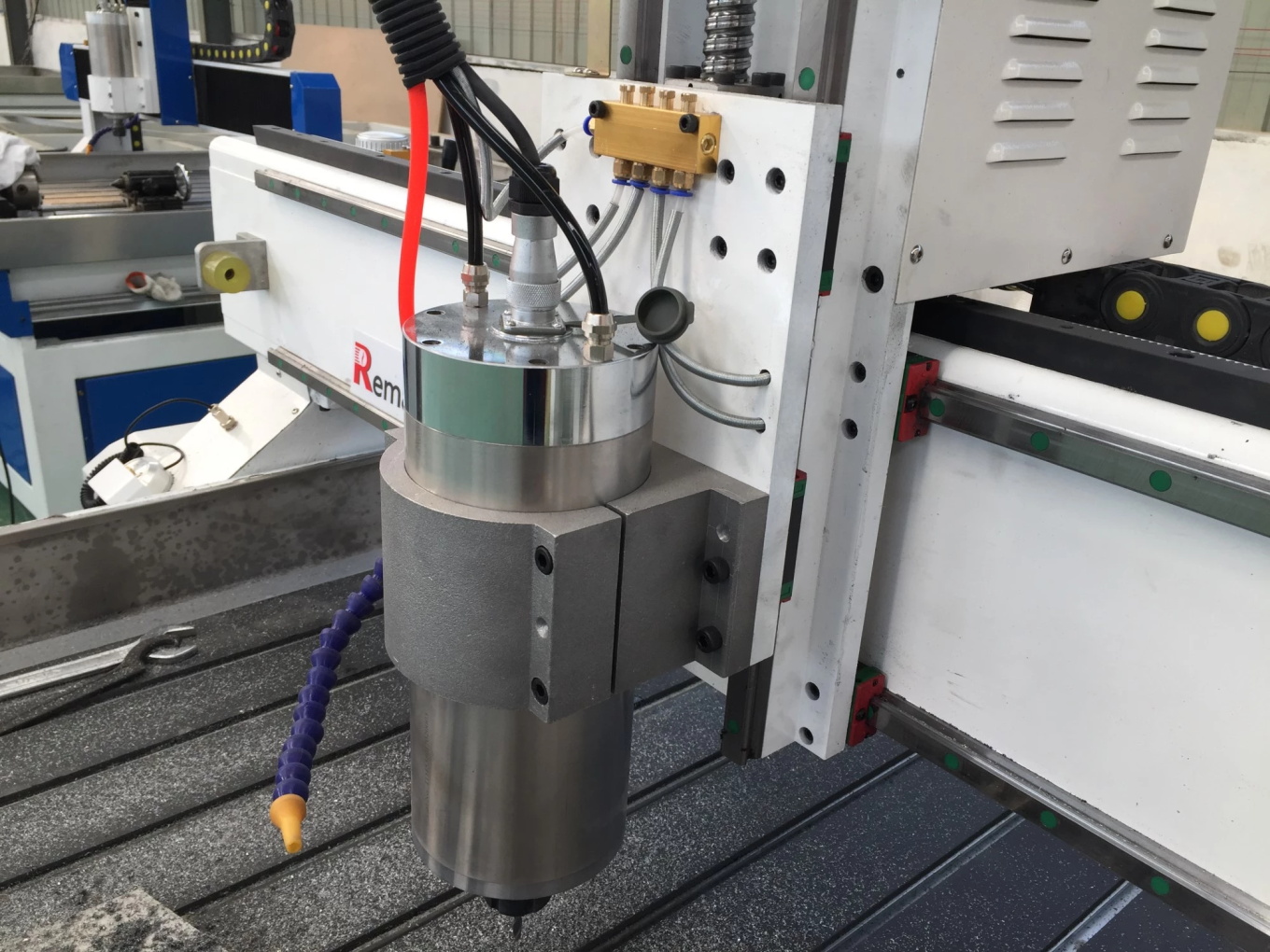

10	Spindle Power	2.2kw water cooling (3kw for option)
11	Spindle Speed	0-24000RPM
12	Driver and Motor	Leadshine and Stepper Motor
13	Working Voltage	220/380V    50/60Hz
14	Command Language	G Code

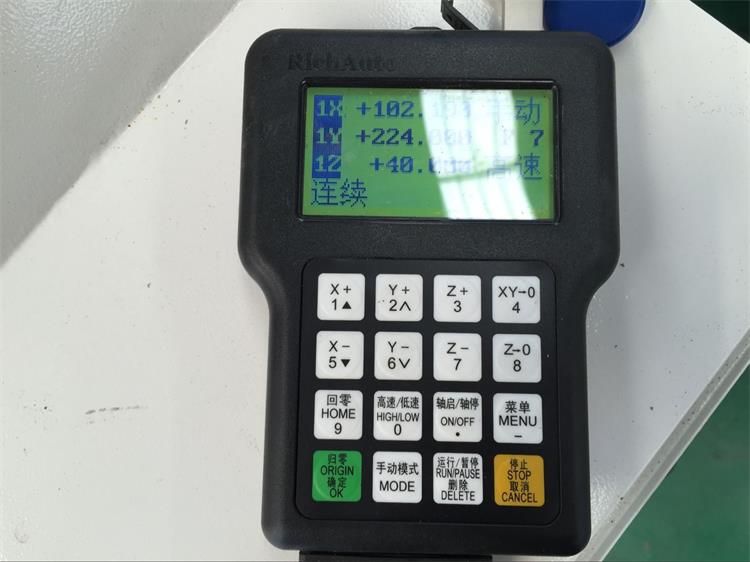

15	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
16	Computer Interface	USB
17	Software	Type3 or Artcam
18	Running Environment  Temperature	0 - 45 Centigrade
19	Relative Humidity	30% - 75%

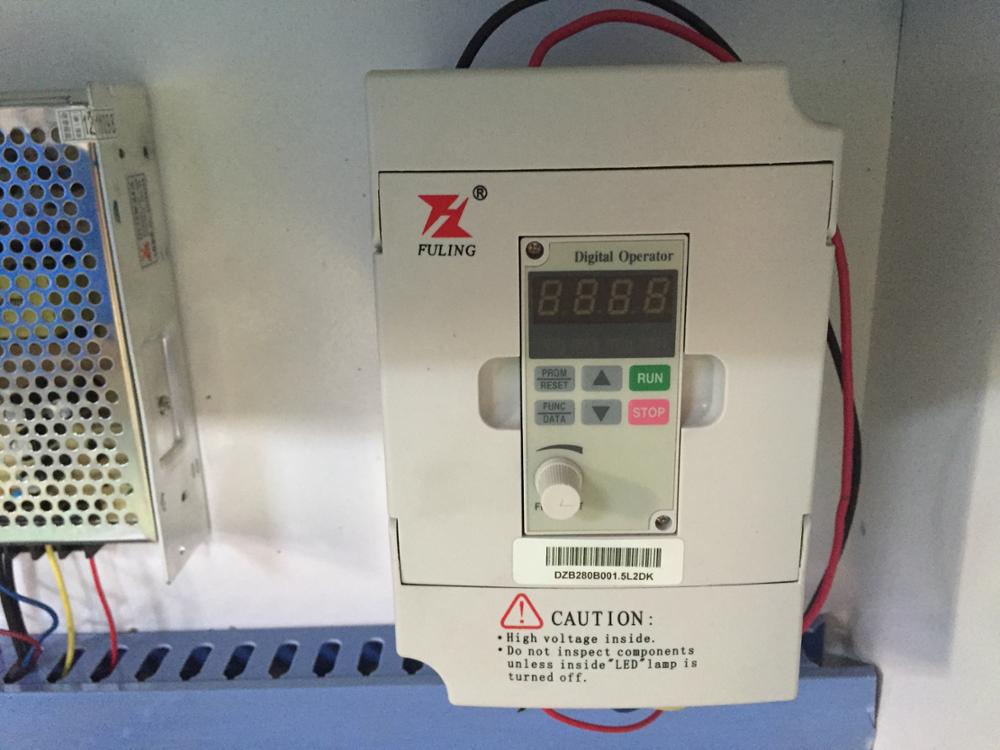

20	Inverter	Delta/Fuling
21	Electrical components	Schneider

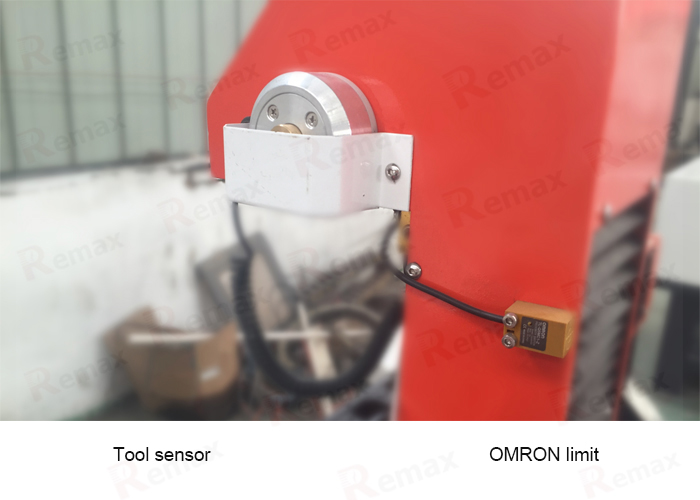

22	Limit switch	OMRON

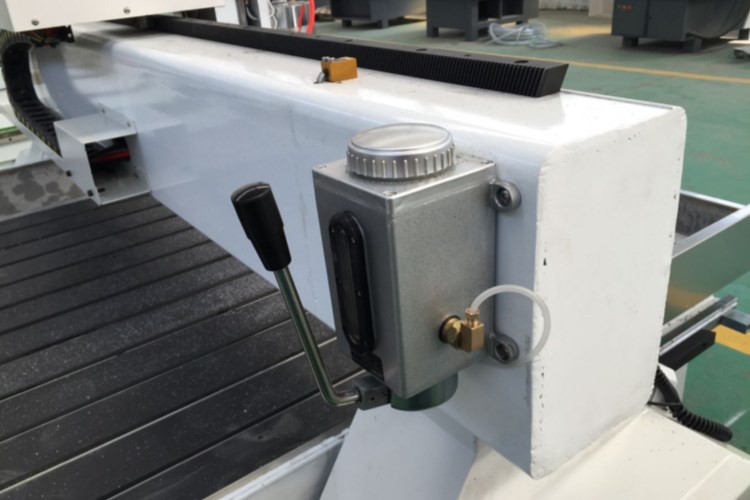

23	Tool sensor and lubrication	With

A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
