Hot sale Wood Acrylic Plywood Mdf Remax 1224 cnc router machine with CE

1224 cnc router: 1.cnc router machine with 1200*2400*200mm work area. 2.T-slot worktable for process metal and nonmetal. 3.water cooling spindle good for wood and aluminum work.

Remax-1224 cnc router machine used for engraving and cutting aluminum, steel, brass, wood, plastic,

acrylic, plywood, MDF, pvc kind of metal and nonmetal materials. widely used for furniture, package,

decorate, advertising industry.

1. Rack gear transmission ensures fast speed and accuracy.

2. Welded pipe steel machine bed,strong and never out of the shape.

3. Import square rail ensures high accuracy and heavy workload.

4. The advantage is low investment, high profit, easy to operate. It is also easy for new user to operate.

5. Humanistic design, the machine can be disassembled, so it is easily transported.

Model	Remax-1224 cnc router
X,Y,Z Working Area	1200x2400x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	T-slot Table
Frame	Welded Structure

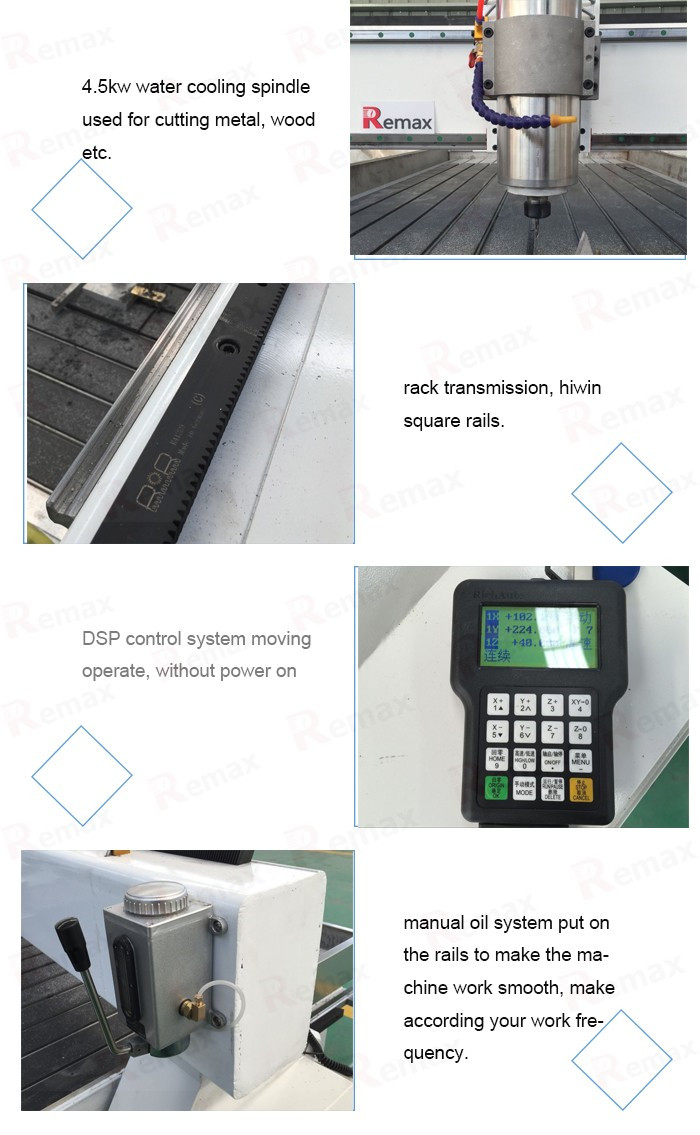

X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Guide
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Rapid Travel Rate	60m/min
Max. Working Speed	45m/min

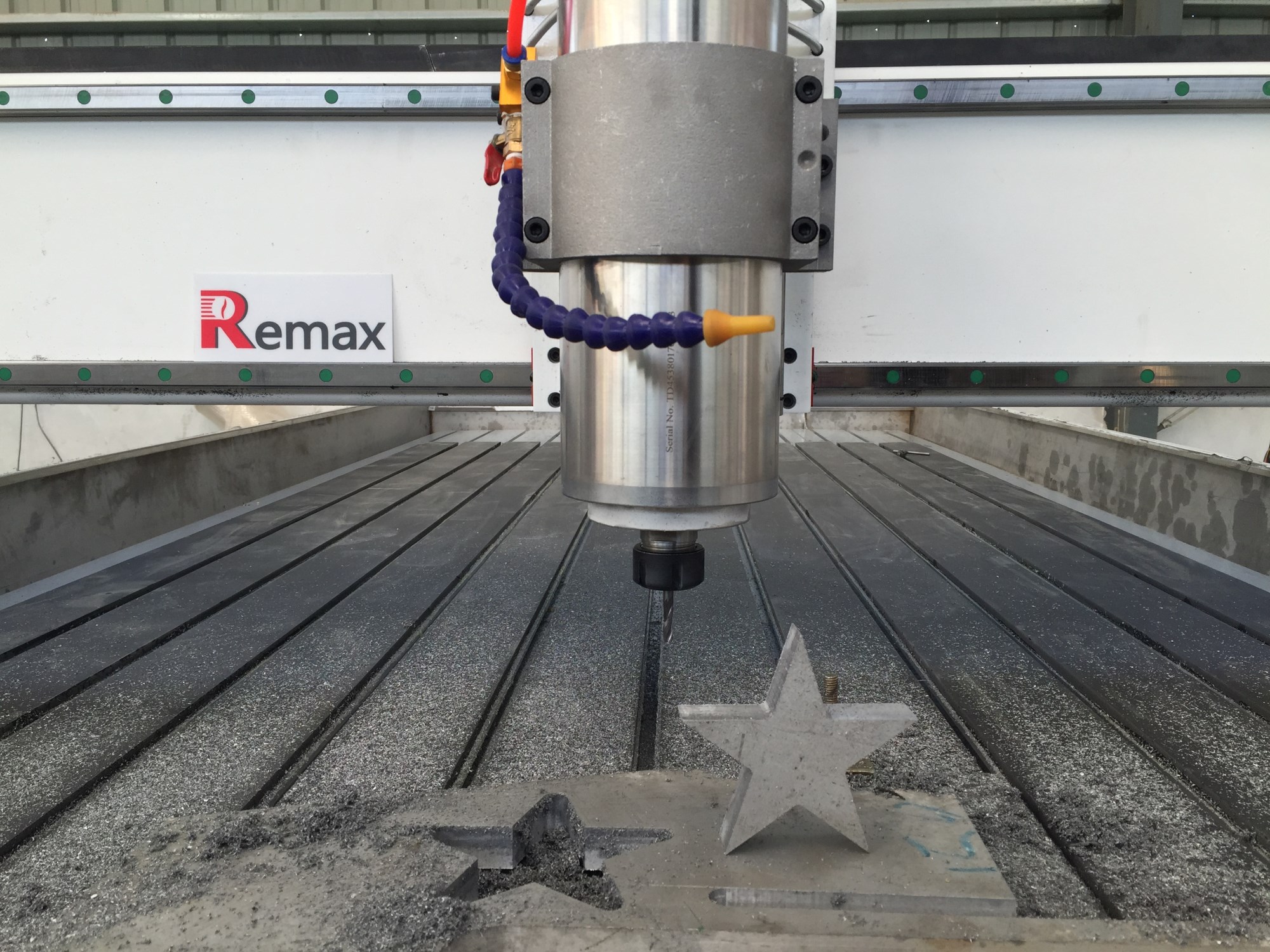

Spindle Power	4.5KW water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper Motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M(U Disk)
Running Environment Temperature	0 - 45 Centigrade
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Relative Humidity	30% - 75%
Inverter	Delta/Fuling

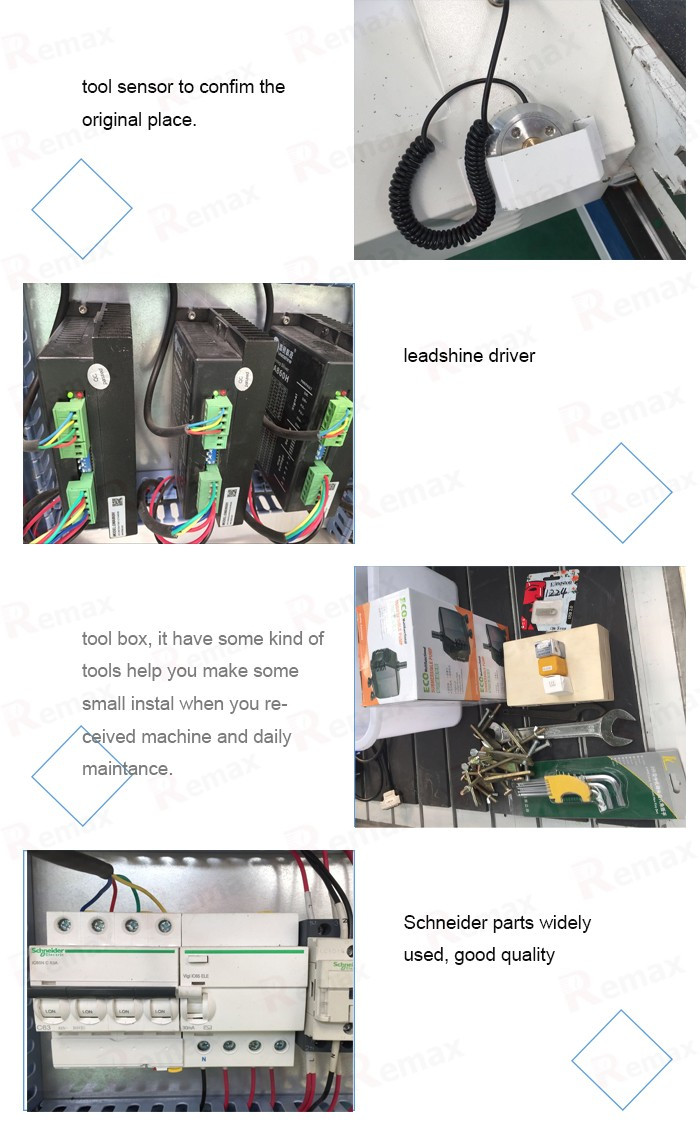

Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine or Yako

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
