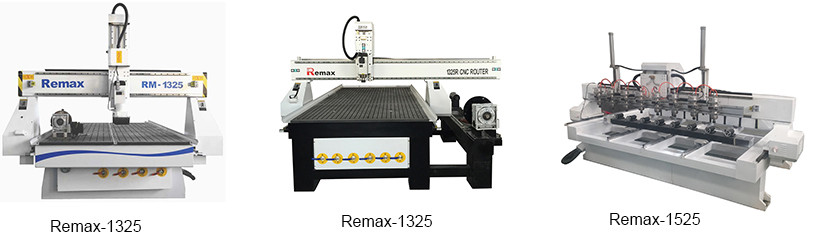

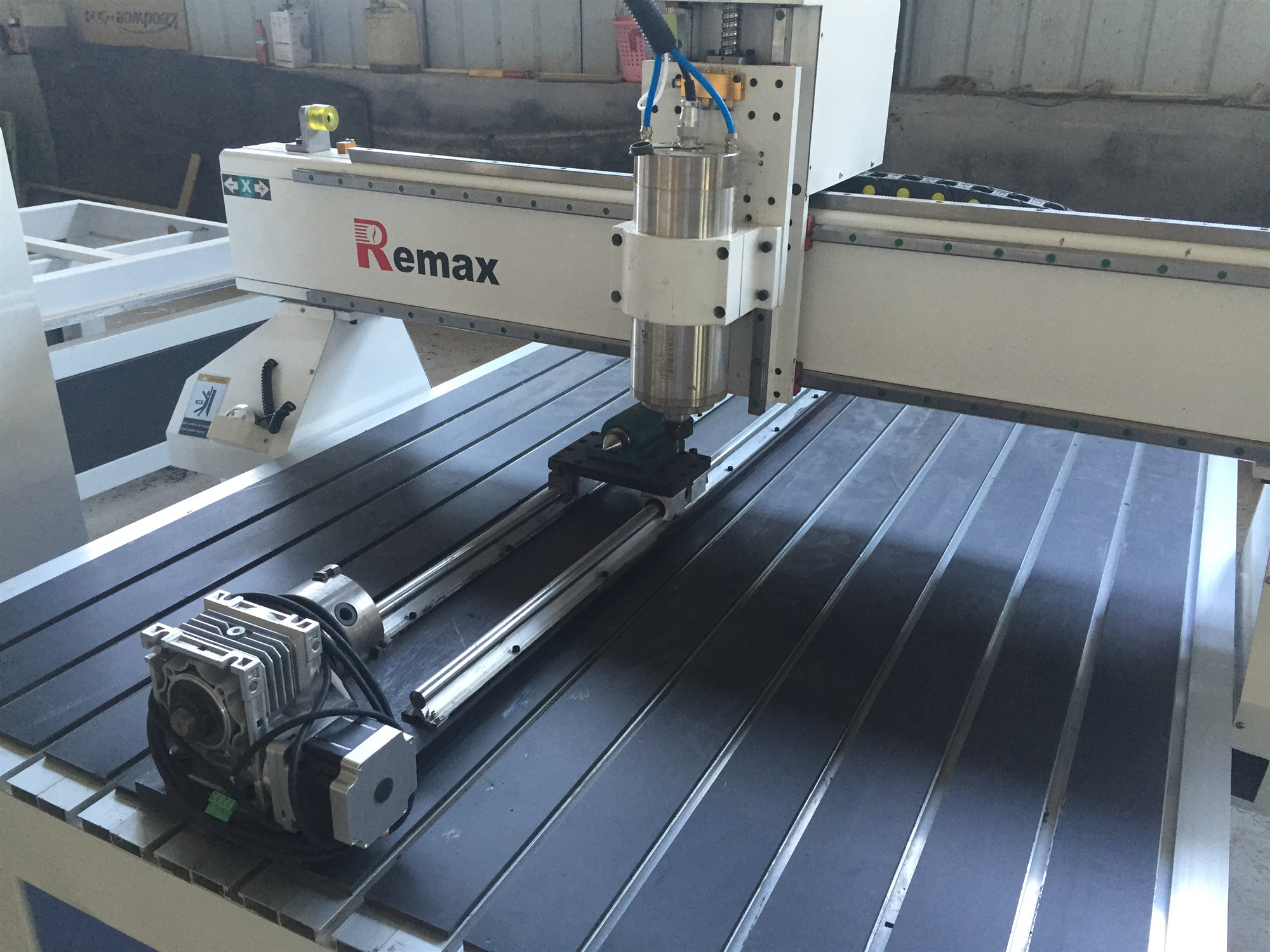

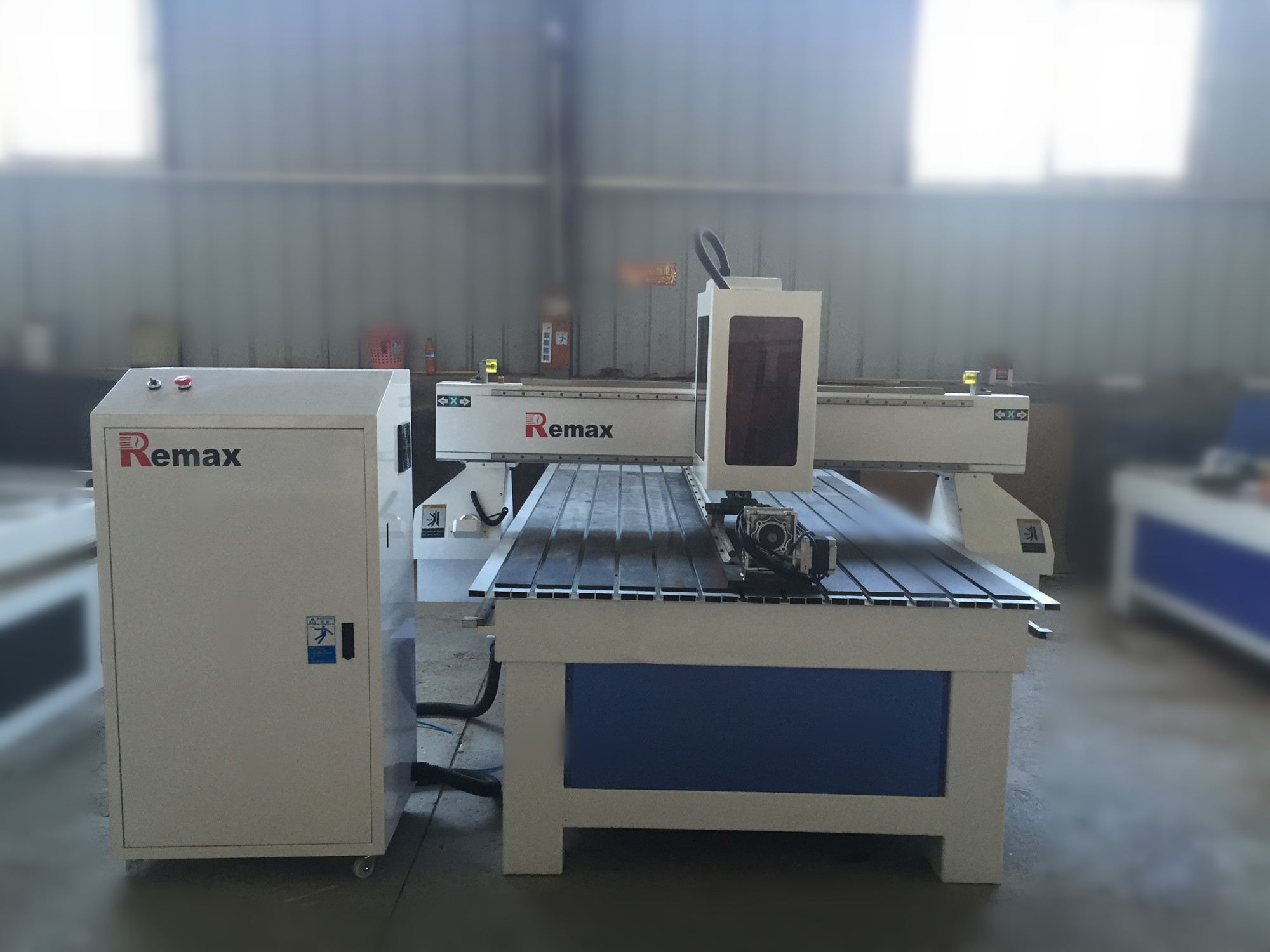

Remax High quality 1224 cnc router engraving machine with Rotary axis
Remax High quality 1224 cnc router engraving machine with Rotary axis
1. Remax-1224 cnc router machine with 1200*2400*200mm working area. 2.T-slot worktable for process metal and nonmetal. 3.water cooling spindle good for aluminum work.

Remax High quality 1224 cnc router engraving machine with Rotary axis

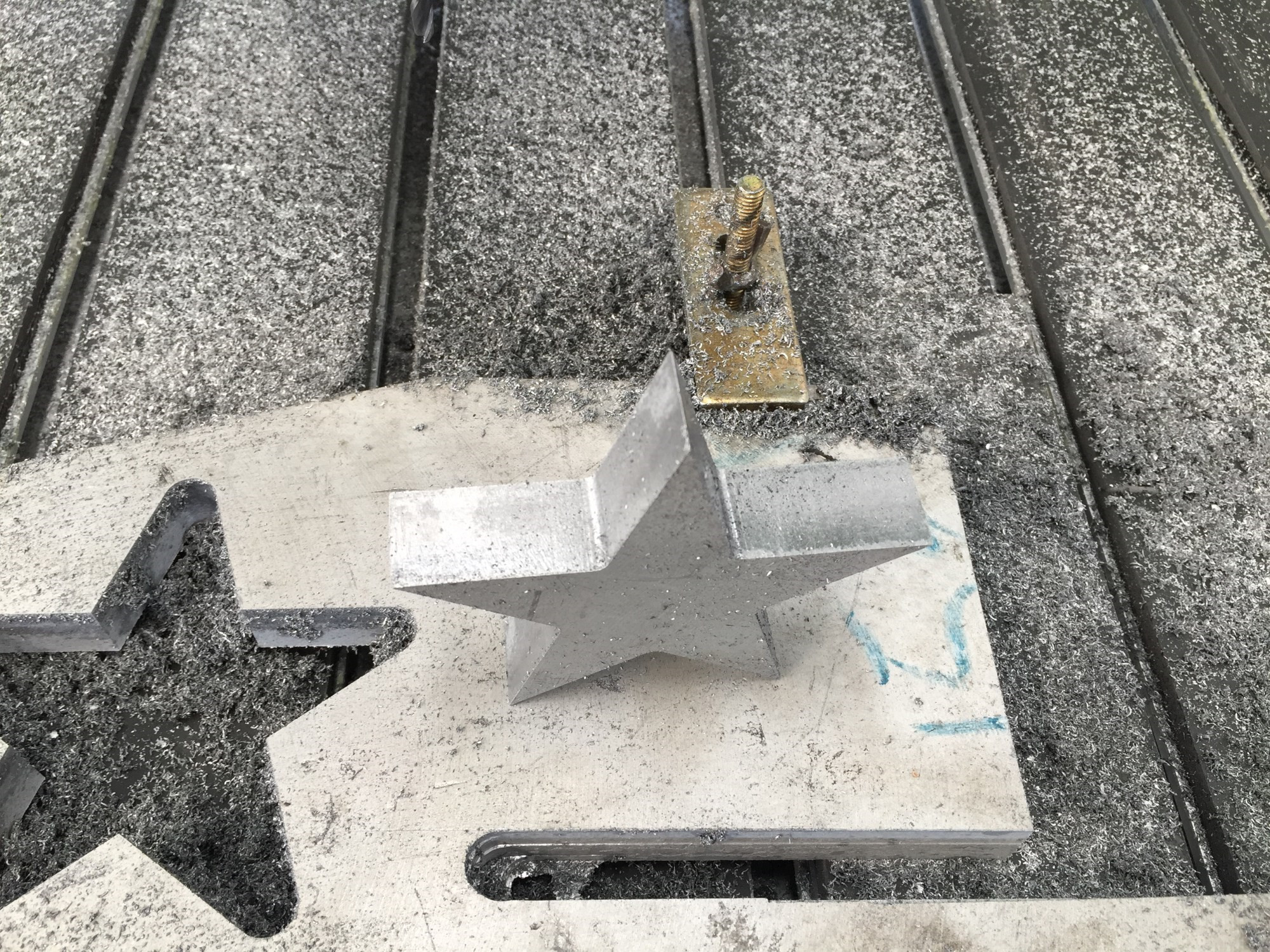

Remax-1224 cnc router machine used for engraving and cutting aluminum, steel, brass, wood, plastic, acrylic,

plywood, MDF, PVc kind of metal and nonmetal materials. widely used for furniture, package, decorate, advertising industry.




1. Equipped with 4.5kw water cooling spindle, T-slot table.


2. HIWIN square rail, good stable, and high work accuracy.

3. work size can customised, like 1200*2400mm / 1200*1200mm etc.


Model                                          Remax-1224 cnc router machine
X,Y,Z Working area 1200*2400*200mm
X,Y,Z Repositioning accuracy ±0.02 mm
Table surface T-slot table
Frame Steel weld

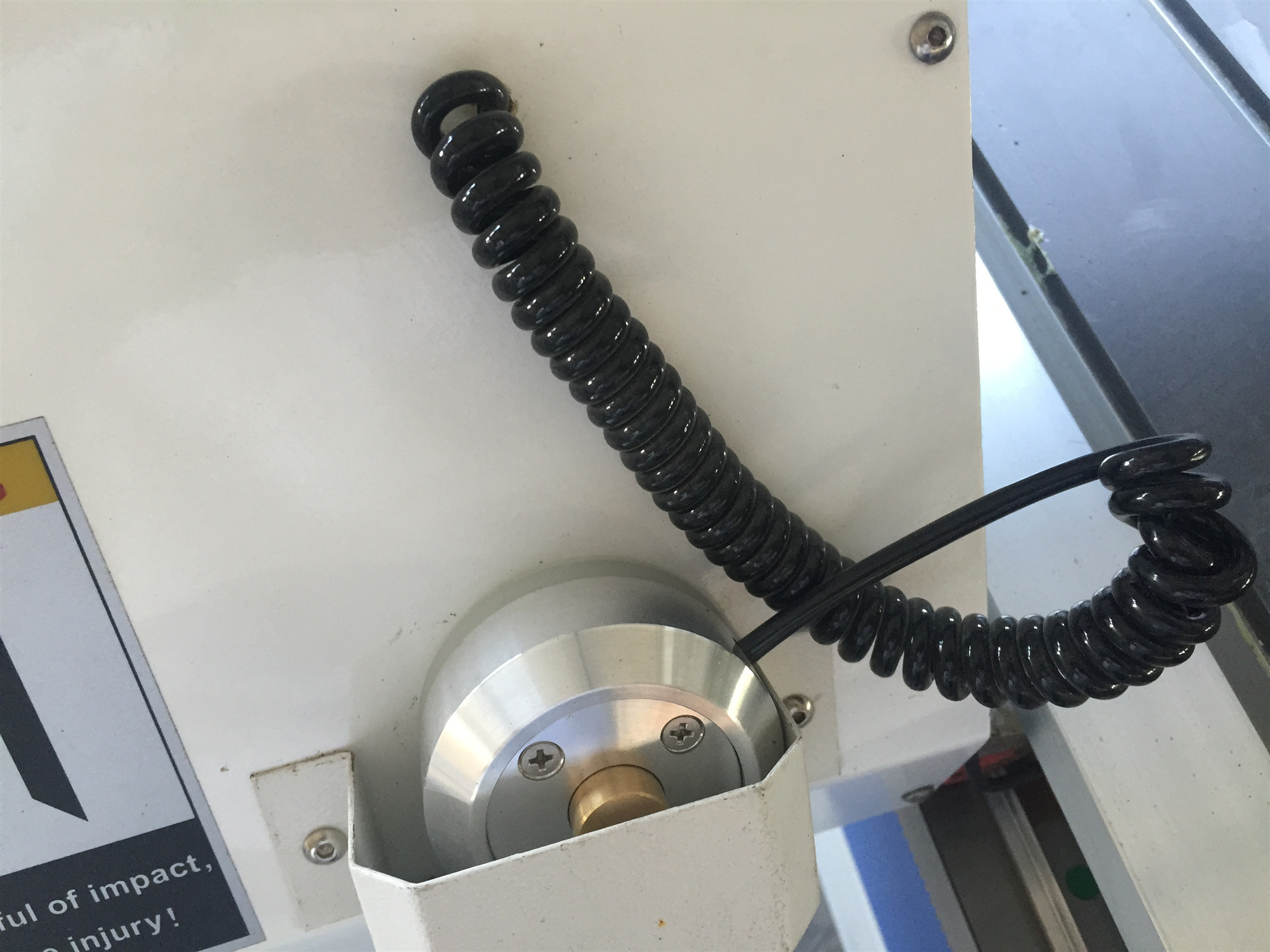

Spindle power 4.5kw water cooling spindle
Max Rapid travel rate 15000 mm/min
Max Working speed 8000 mm/min
Motor Leadshine stepper motor

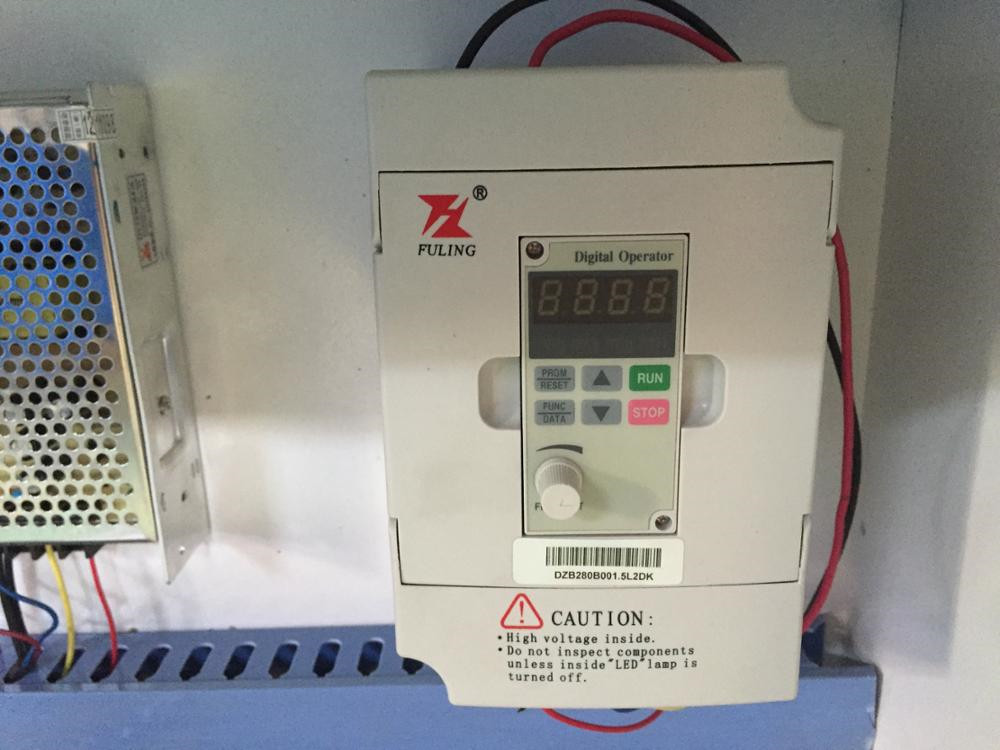

Inverter Fuling/Delta

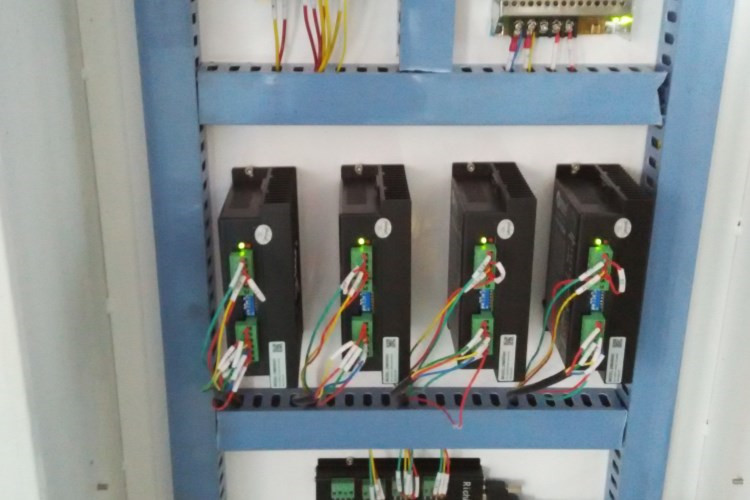

Driver Leadshine/Yako

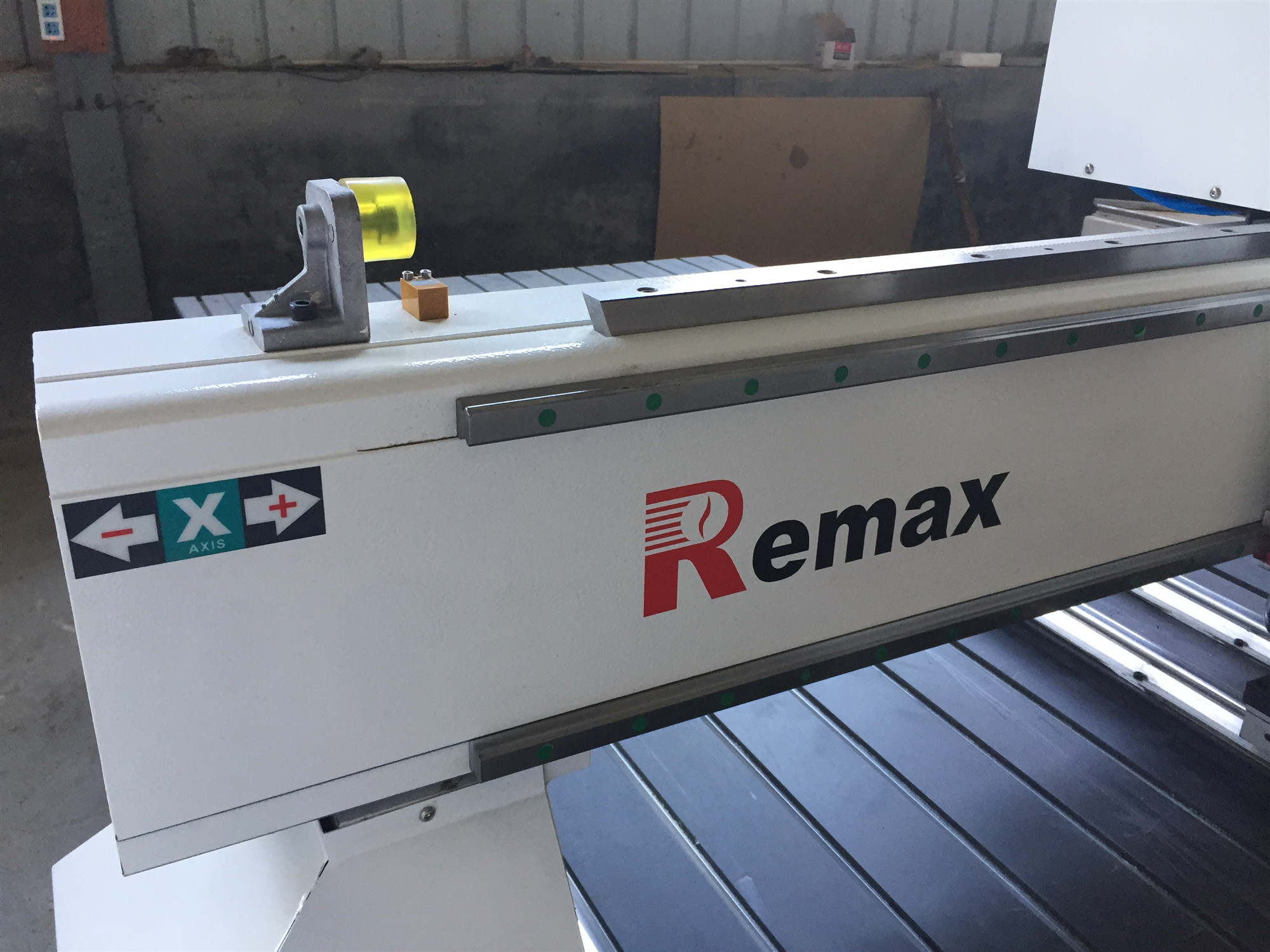

X,Y Structure Hiwin Guide rail
Z Structure TBI Ball screw
Control system Dsp control system
Computer interface USB
Working voltage
AC380V/50/60Hz,3PH (Option: 220V)
Command language G code
Electrical components Schneider
Litmit switch OMRON
Software Artcam/Type3



Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
