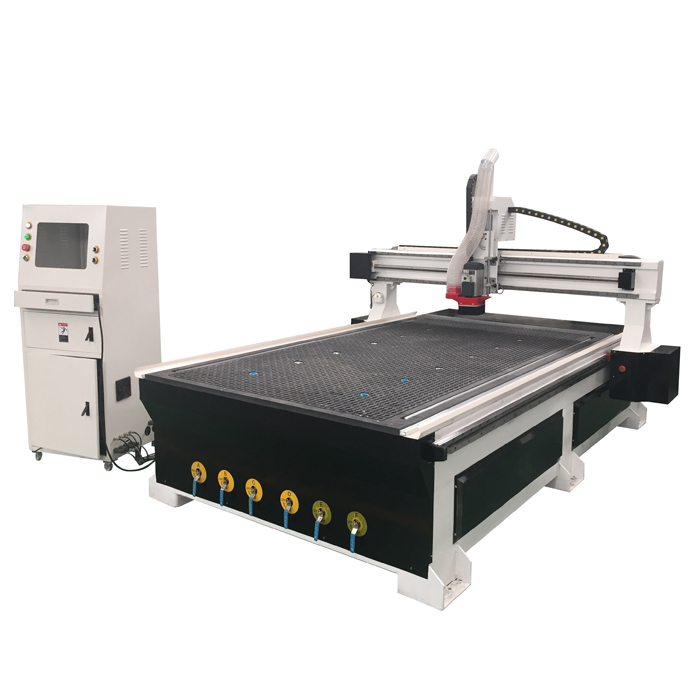

Remax 1325 wood cnc router machine with vacuum table

Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials

Remax 1325 wood cnc router machine with vacuum table

Application:

1)Welded steel pipe lathe bed, strong and never out of shape

2)Double motors and drivers of Y axis which can ensure steady movement

3)Rack gear transmission ensures fast speed and high accuracy

4)Imported HIWIN square rail ensures high accuracy and heavy workload

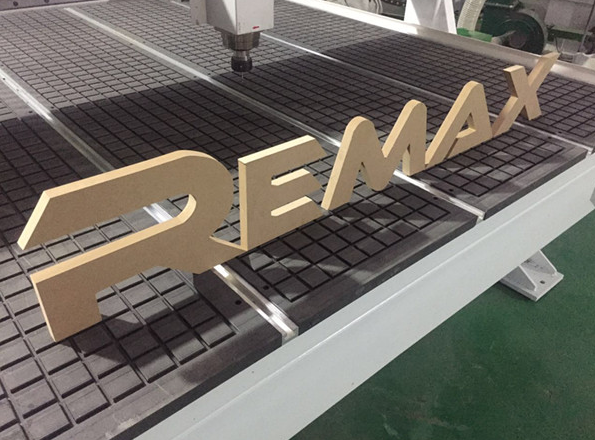

5)Adopt vacuum system. Made by advanced international technology, with double cavities,

configured with vacuum pump of strong adsorption, can absorb different size materials

6)Machine with YAKO 2811 driver and stpper motor, you can choose YASKAWA servo motor and driver.

7)Humanistic design,the machine can be disassembled,so it is easily transported.

Main Parts:

Parameters:

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	Vacuum or T-slot Table
Frame	steel structure
X, Y Structure	Hiwin Rail Linear Guide and rack gear
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 2kw~3Kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min

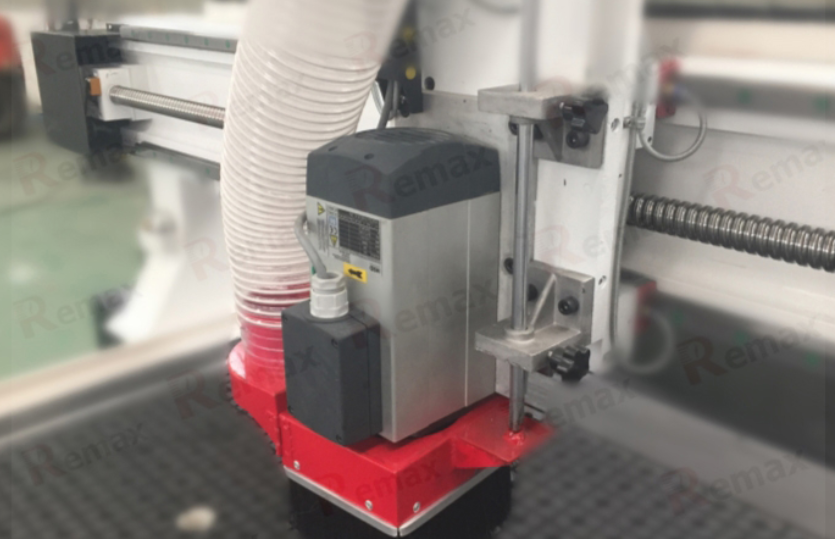

Spindle Power	4.5KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	Stepper motor or YASKAWA SERVO
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code

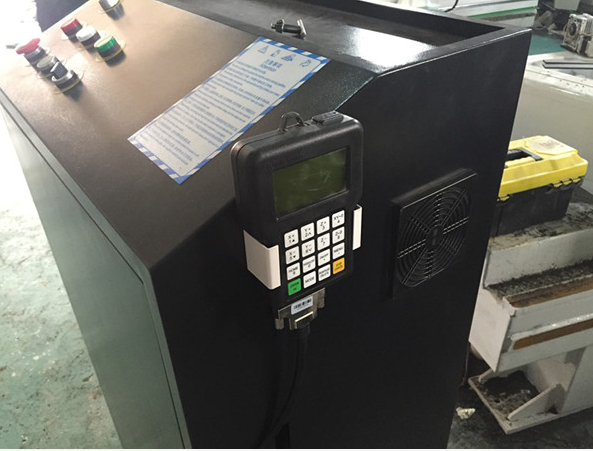

Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Artcam Software ,Type3
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

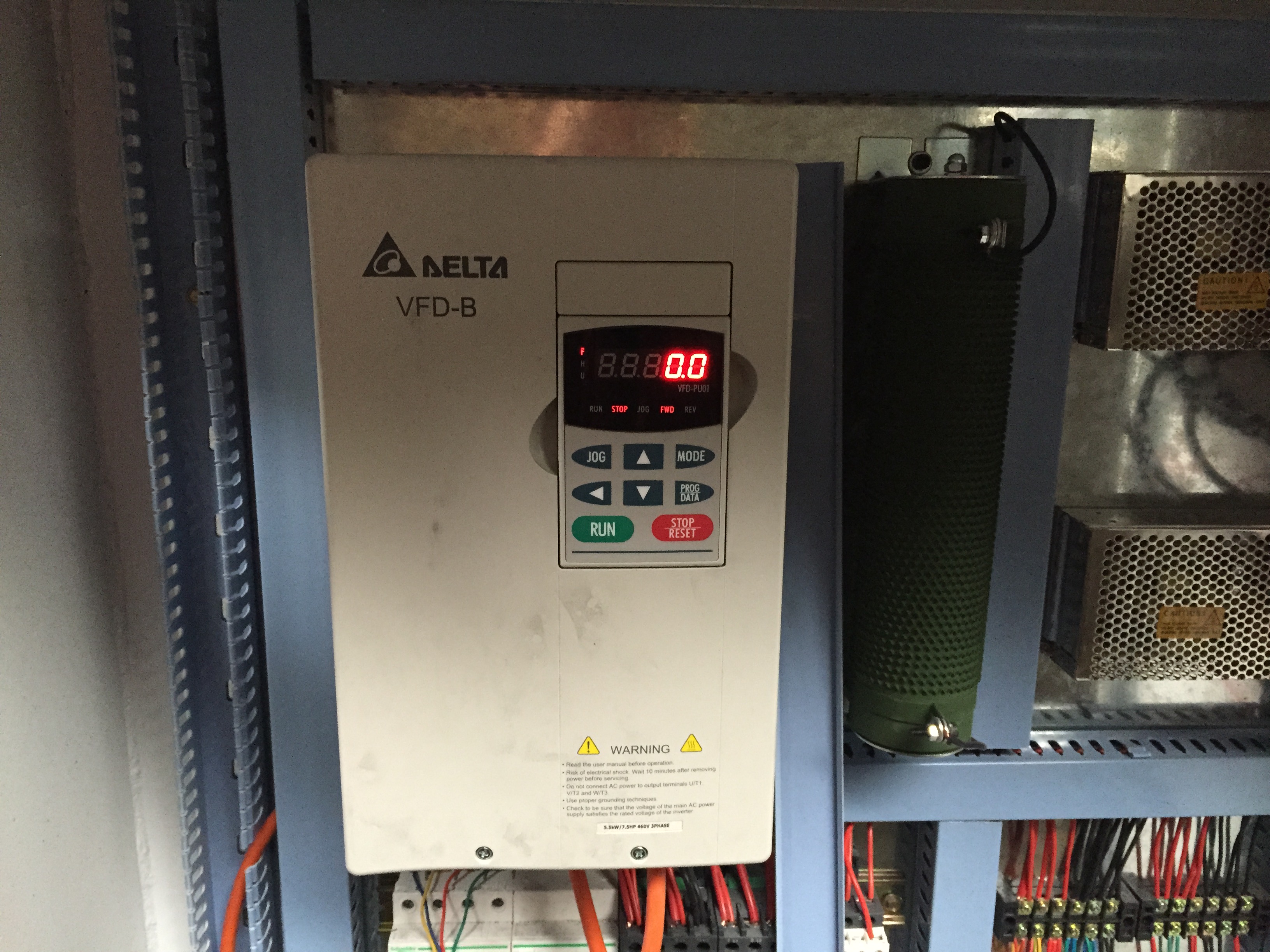

Inverter	Delta
Electrical components	Schneider
Limit switch	OMRON
Driver	Stepper driver or YASKAWA SERVO

A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
factory.
4 You will also get free suggestion and consulting, technical support and
service by email/fax/tel and lifetime technical support.

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
