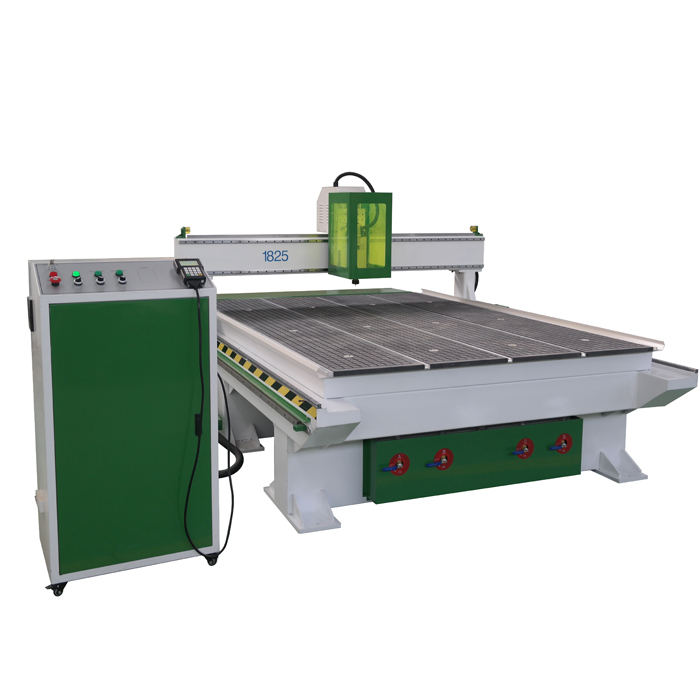

Remax 1825 3D CNC router machine

3d wood carving machine: 1.this is customised tbale size for 1800*2500*200mm work area. 2.very strong structure over 6mm pipe steel welded. 3.high configuration for 7.5kw dry vacuum table and pump.

Remax 1825 3D CNC router machine

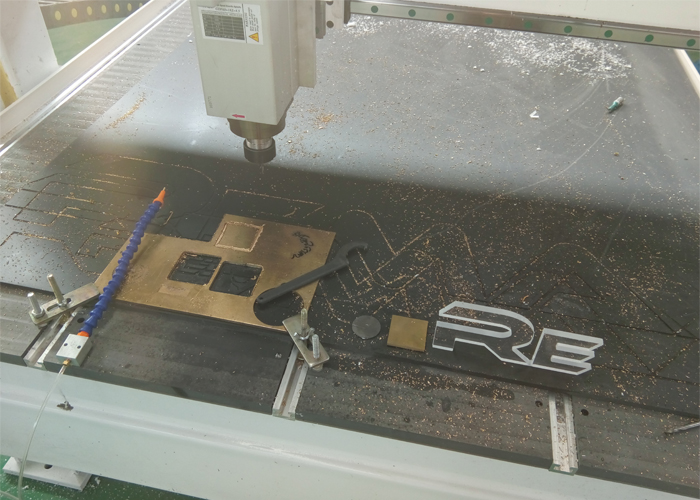

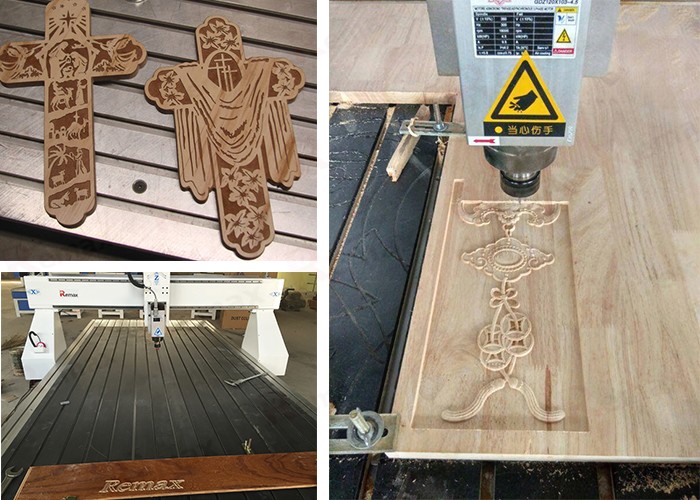

3d wood carving machine used for process wood, plywood, mdf, pvc, acrylic kind of nonmetal materials;

also can used for process aluminum, steel, brass kind of metal materials.

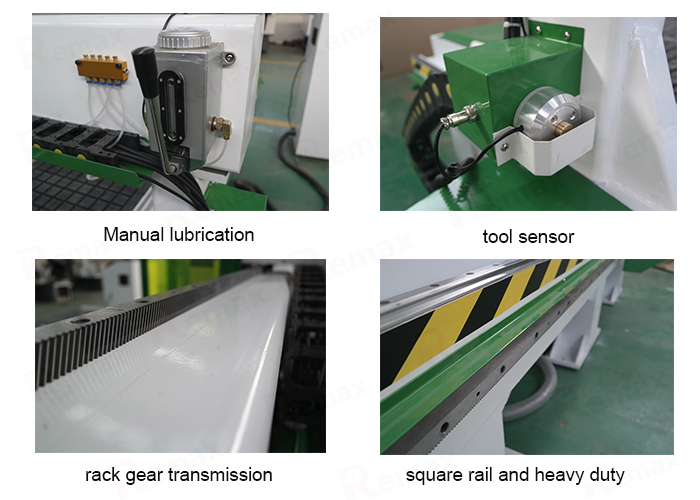

1. very strong structure for stable work.

2. HSD italy imported air cooling spindle specially good for wood work.

3. hiwin square rail 25, rack transmission.

Description	Parameter
X,Y,Z Working Area	1800x2500x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/200mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	Vacuum Table
Frame	steel structure
X, Y, Z Structure	Hiwin Rail Linear Guide and TBI ball screw
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 2kw~3Kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min

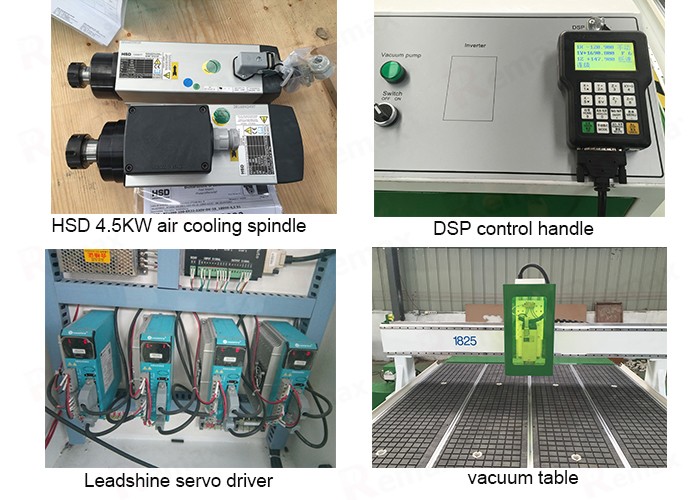

Spindle Power	HSD 4.5KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	hybrid servo motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Driver	Leadshine

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
