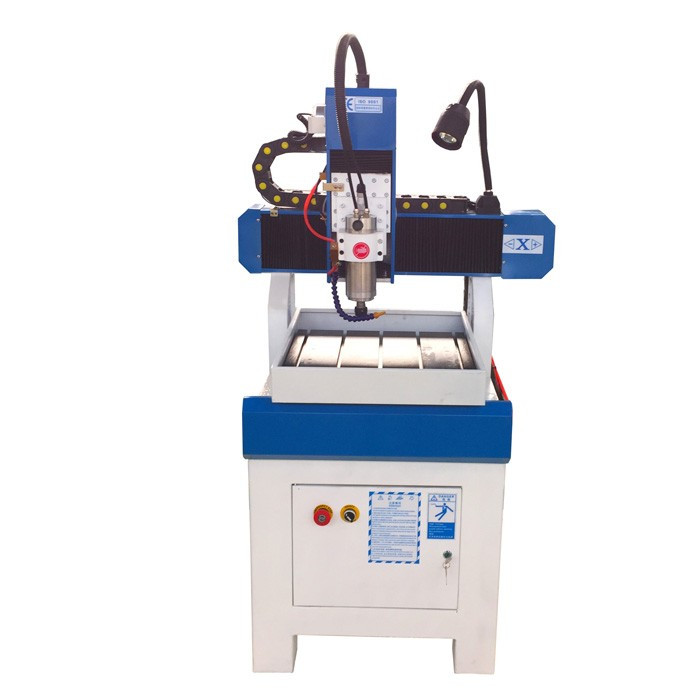

Remax Mini 4040 cnc router machine

1.Remax-4040 Mini CNC router adopt DSP-A11 control system with handle，It is very convenient and easy operate. 2. The machine using HQD water cooling spindle ,low nosie,fast speed,high precision. 3. All kinds of high-precision products can be carved.

Remax Mini 4040 cnc router machine with CE

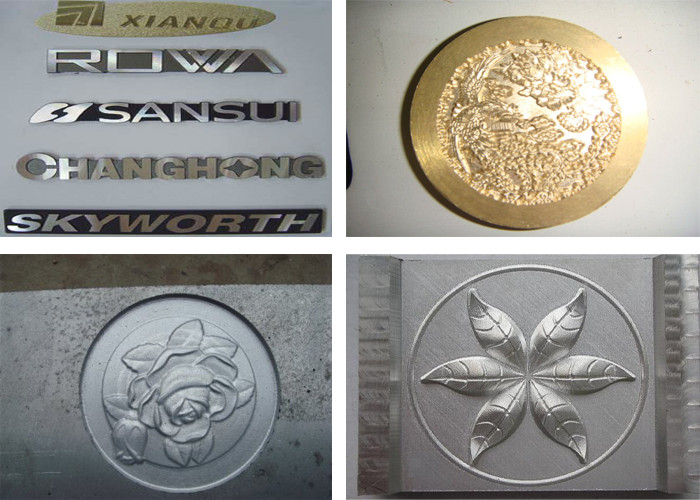

Remax-4040 Mini cnc router machine can be used for ceramic tile engraving, mold engraving, woodworking

engraving, antique furniture engraving, handicraft batch engraving, advertisement engraving, cutting, stone

carving, ceramic tile engraving and cutting, copper-aluminum engraving cutting, wood cutting engraving,

handicraft engraving cutting, handicraft box engraving, building model making, interior decoration,

lamp industry engraving, identify production, acrylic engraving cutting, sign engraving.

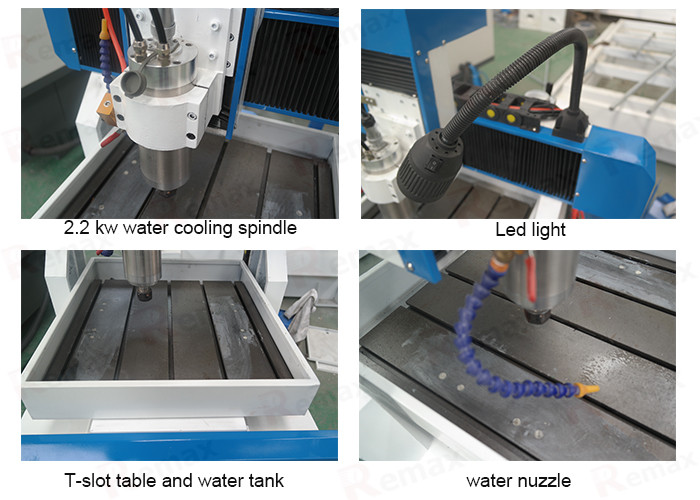

1. Equipped with high speed 2.2 kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.

2..Adjust driving speed via inverter, reversing the direction of rotation right / left, emergency stop punch.

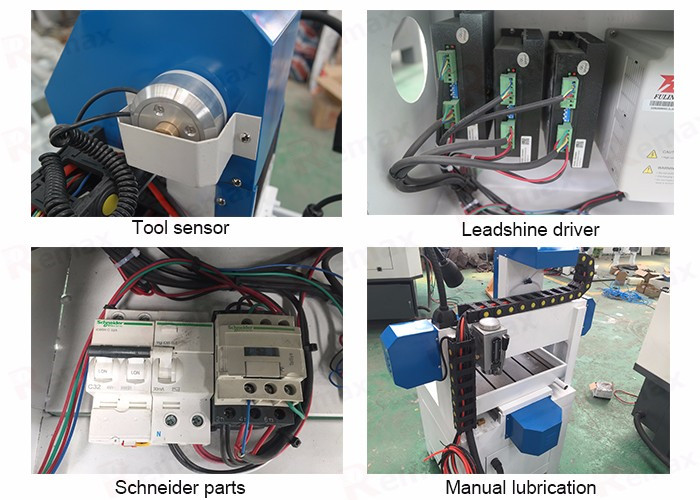

3. Equipped with Schneider electrical components and Omron safety limit switch.

4. TBI ball screw transmission improves positioning accuracy and fast speed.

5. Whole machine cast by iron, T-slot , table moved ,easy to sue.

Model	Remax-4040 Mini cnc router machine
X,Y,Z Working area	400*400mm
X,Y Repositioning accuracy	±0.02mm
Table surface	T-slot table
Frame	Cast by iron
Max Rapid travel rate	15000mm/min
Max Working speed	8000mm/min
Motor	Leadshine stepper motor
Inverter	Fuling/Delta
Control system	Dsp control system (Options: Ncstudio/Mach3 PC Software)
Spindle power	2.2kw water cooling spindle
Command language	G code
Limit switch	OMRON
Electrical components	Schneider
Driver	Leadshine Driver
Working voltage	AC220/380V/50/60Hz
X,Y Structure	Hiwin Ball screw
Z structure	Hiwin Ball screw
Computer interface	USB
Software	Type3/Artcam Software

Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.

Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.

Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.

Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
