steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm
steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm
metal sheet cutting engraving machine 3 axis cnc router used for carving and cutting steel sheet wood furniture, gifts, boxes, models, arts and crafts, signs, jewelry carving.

steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm




Application of steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm

1. Advertising Industries:  engraving, milling and cutting processing for acrylic, PVC, density board,

artificial stone, organic glass, plastic and soft metal sheet such as copper and aluminum

2.  Arts and crafts Industries:  engrave on artificial stone, wood, bamboo, marble, organic board, double

color board and so on for achieving effects of exquisite patterns and characters

3. Furniture Industries:  cabinet door, wooden door, solid wood, plate, antique furniture, door, window, desk and chair.

4. Soft Metals: such as aluminum, copper etc.

Feature of steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm

1) Machine lathe bed cast by iron, very strong and never out of shape
2) TBI ball screw transmission ensures high accuracy
3)Imported Taiwan Hiwin square rail ensures high accuracy and heavy workload

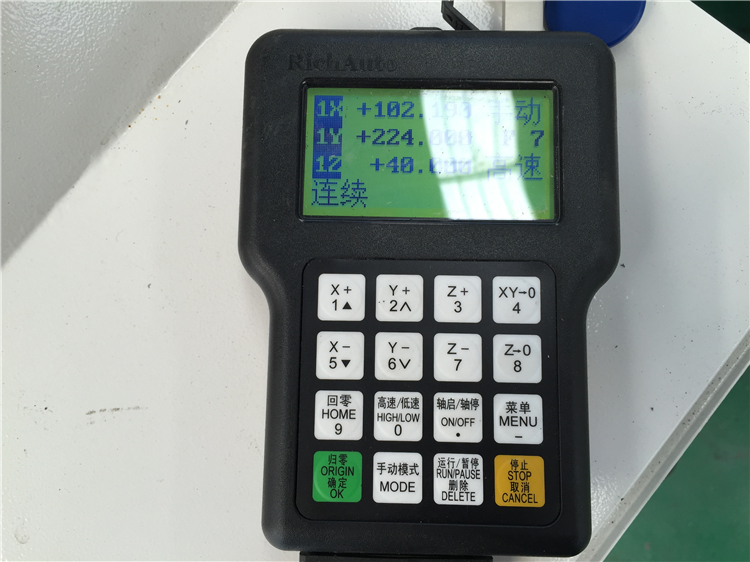

4) Advanced DSP digital control system, offline controller with USB interface, continuation at stop point

5) The water cooling spindle has fast rotation speed, no noise during processing and long service life.

6)  Water tank is good for for cutting soft metal

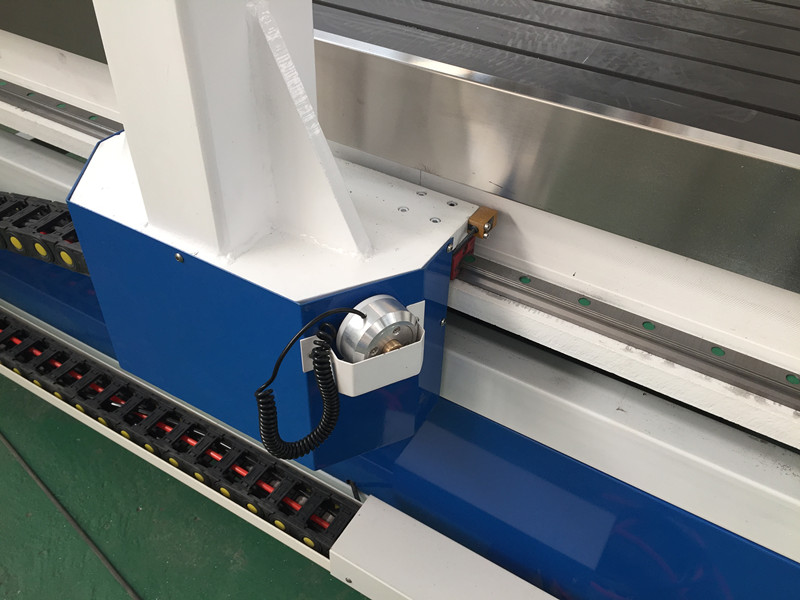

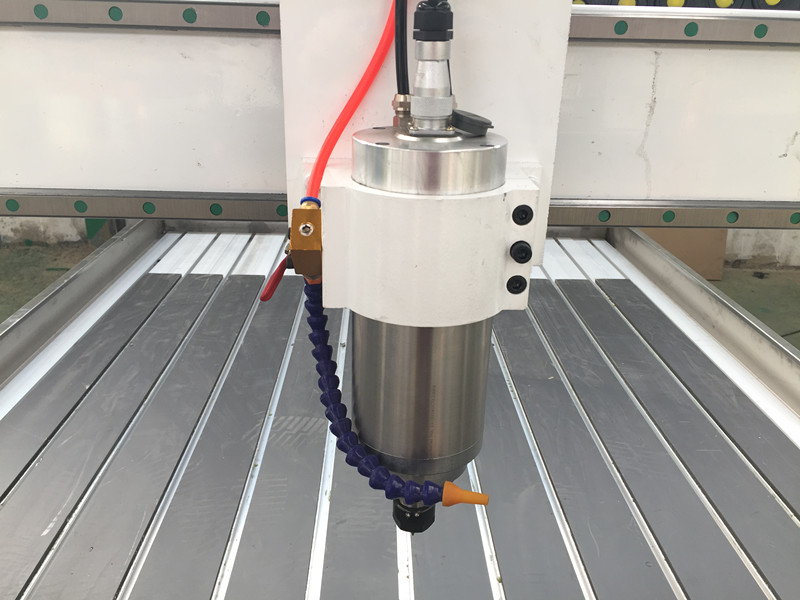

parts of steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm





Technial parameter of steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm


Description

Parameter

X,Y,Z Working Area

1200x1800x150mm

X,Y,Z  Accuracy

±0.02mm

X,Y,Z Repositioning Accuracy

±0.02mm

Table Surface

T-slot Table

Frame

lathe bed cast by iron

Transmission

Hiwin square rail and TBI ball screw for 3 axis

Max. Power Consumption

2.5kw~3Kw (without spindle)

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

8000mm/min

Spindle Power

2.2kw water cooling (3kw for option)

Spindle Speed

0-24000RPM

Driver and Motor

Leadshine and Stepper Motor

Working Voltage

220/380V    50/60Hz

Command Language

G Code

Operating System

DSP System (Options: Ncstudio/Mach3 PC Software)

Computer Interface

USB

Software

Type3 or Artcam

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Inverter

Delta/Fuling

Electrical components

Schneider

Limit switch

OMRON

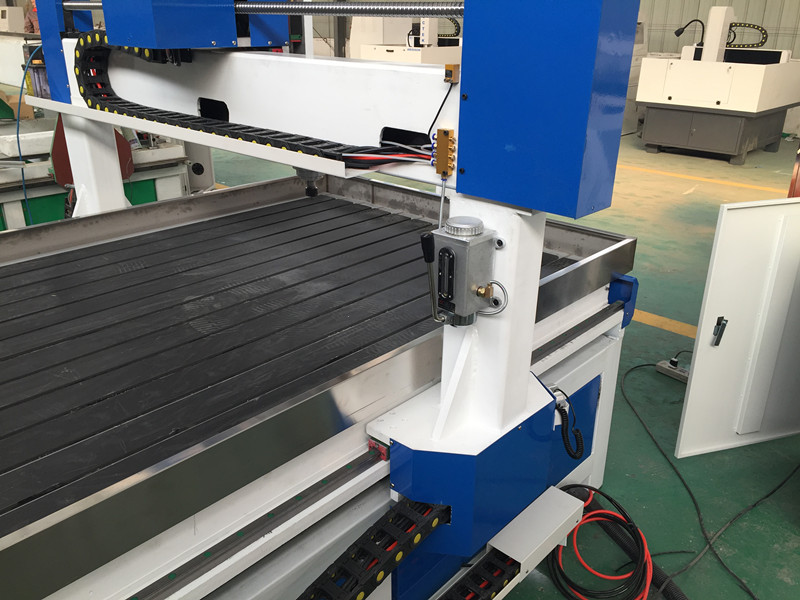

Tool sensor and lubrication

with

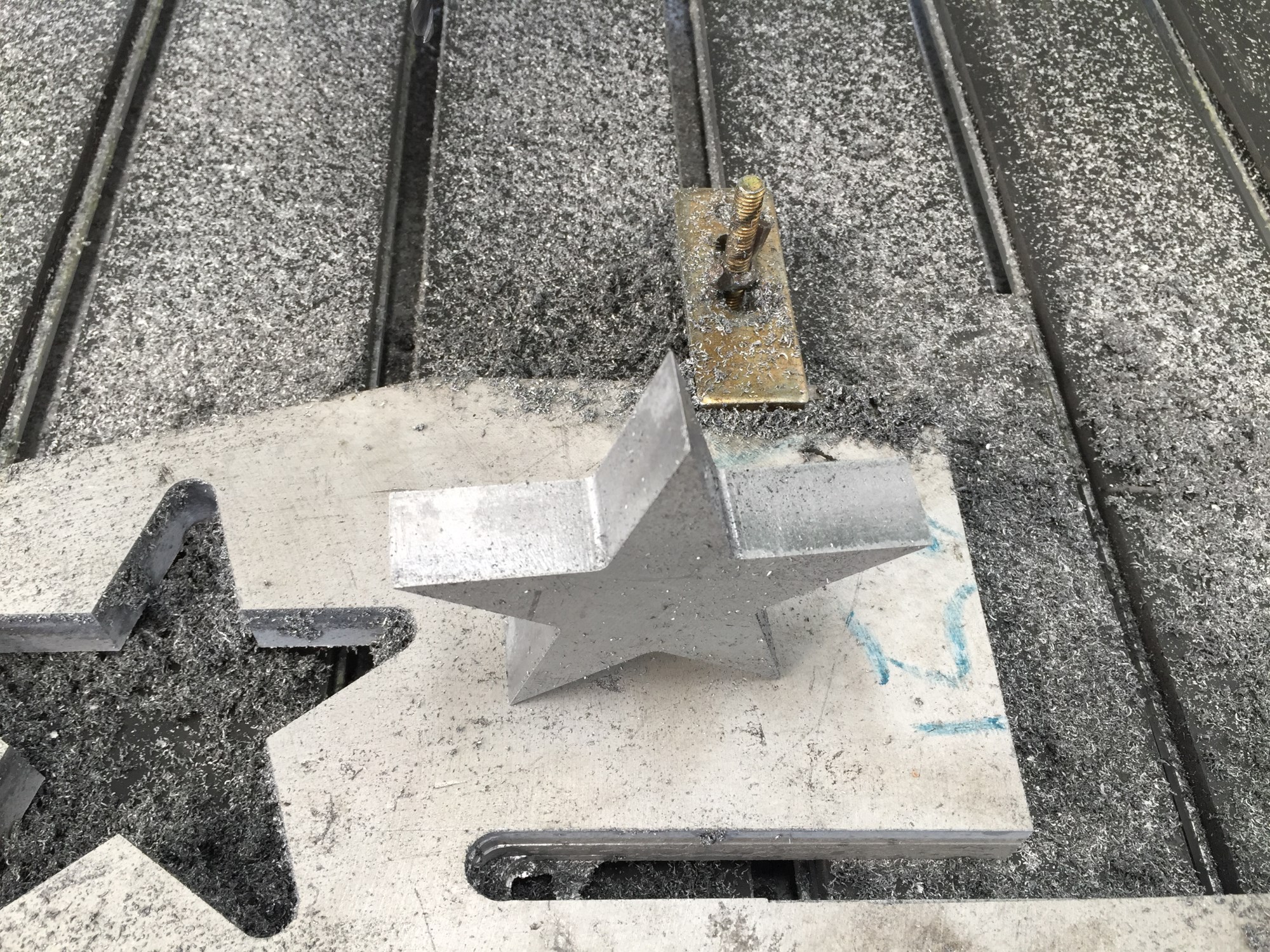

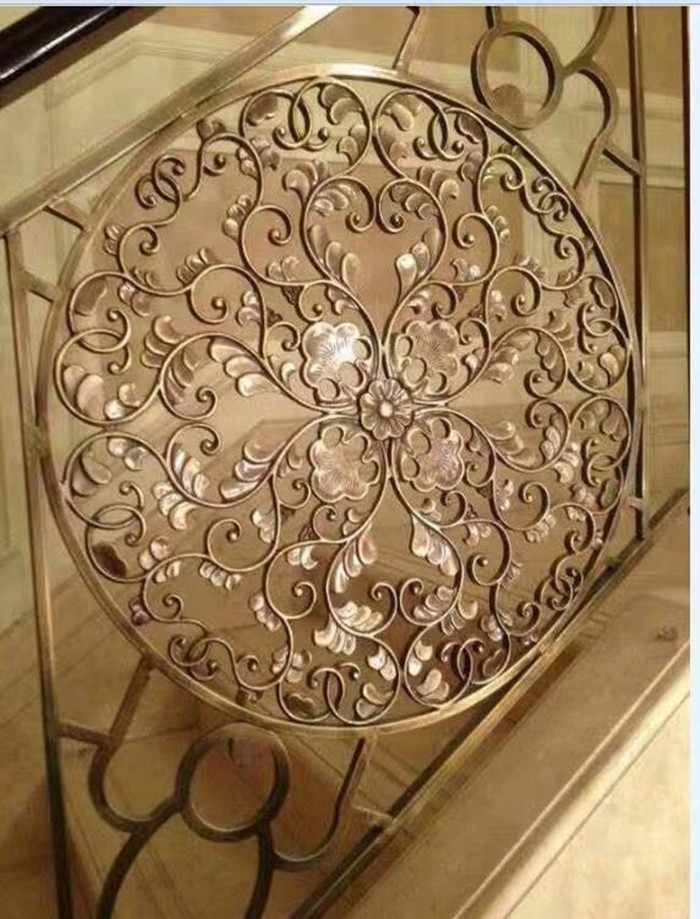

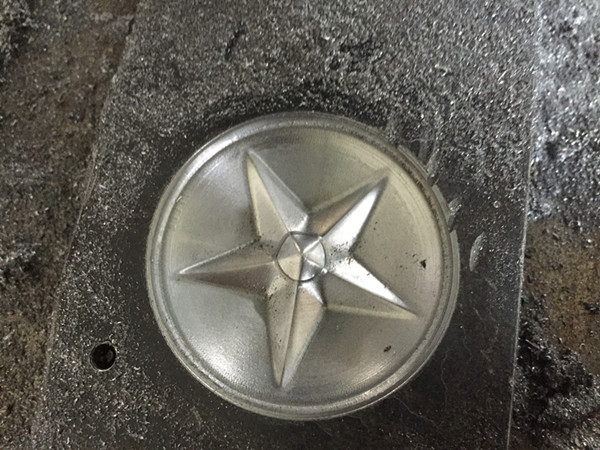

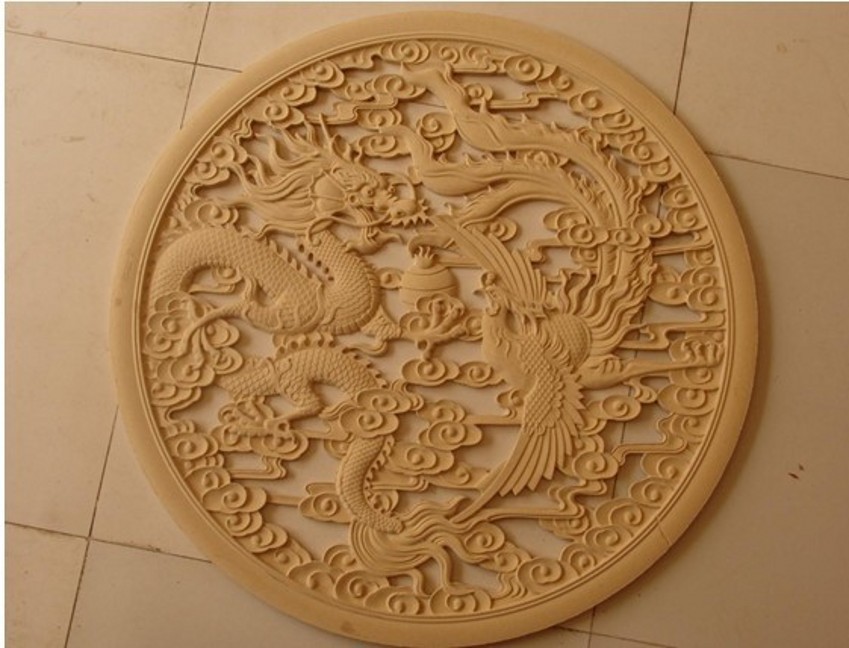

Sample of steel sheet cutting engraving machine 3 axis cnc router 120*180*20cm



FAQ
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager
online service at any time.
Q: If machine have any problem after I receive it, how can I do ?
A: Free parts send to you within machine warranty period if machine have any problem.
Q: MOQ ?
A: The minimum order is 1 set machine, if you order more one time, the price will be better.
Q: How can I buy this machine from you? ( Very easy and flexible !)
A: 1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
